9. Finishing the Installation

1. Secure all wire connections with supplied wire ties to assist in
canopy installation.
2. Tuck connections neatly into ceiling outlet box.

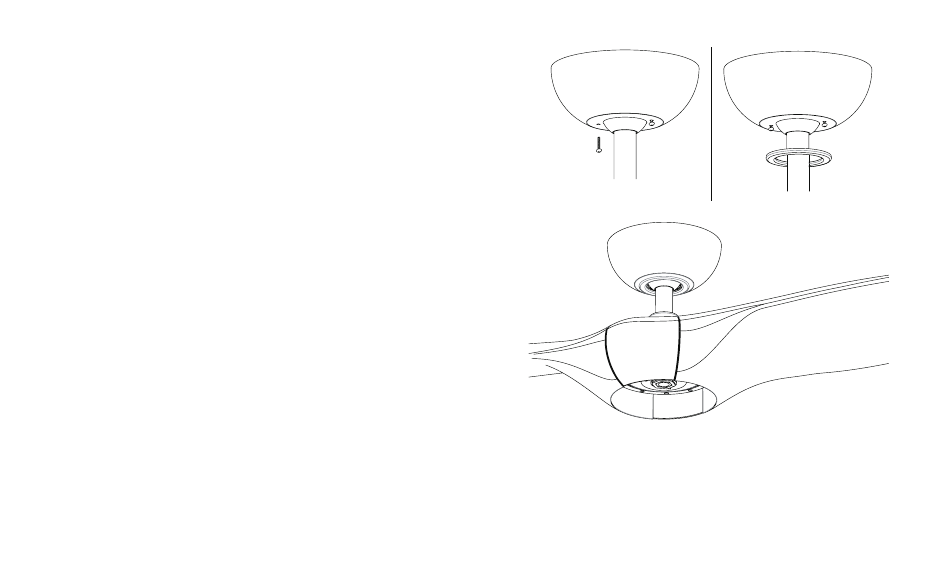

3. Slide the canopy up to hanger bracket and place the key hole on
the canopy over the screw on the hanger bracket. Turn canopy until
it locks in place at the narrow section of the key holes (FIG. 20).
4. Align the circular hole on canopy with the remaining hole on the
hanger bracket. Secure by tightening the one screw previously
loosened and the one previously removed.
5. Adjust the canopy screws as necessary until the canopy and
canopy cover are snug.
WARNING: Make sure tab at bottom of hanger bracket is properly seated
in groove of hanger ball before attaching canopy to bracket. Failure to
properly seat tab in groove could cause damage to electrical wiring.
18
FIGURE 20
