Summary of Contents for Modern Forms Morpheus

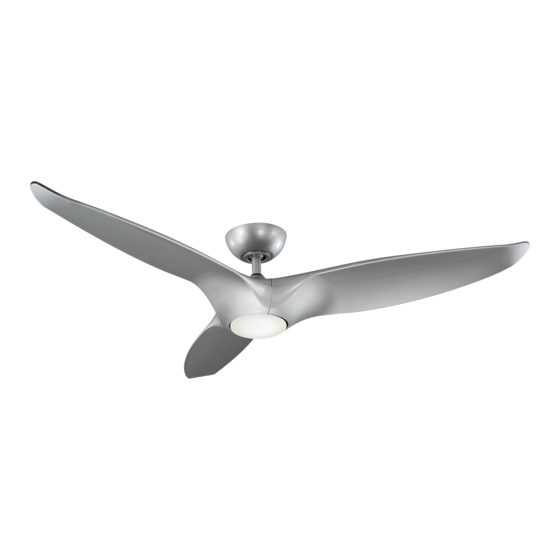

- Page 1 Morpheus Installation Instructions works with the Google Assistant...
- Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE Morpheus Instructions FR-W1813...
- Page 3 For fast service have the following information below when you call: Model Name and Number 2. Part Number and Part Description 3. Date Of Purchase and Purchase Location 1-866-810-6615 option 1 MON-FRI 8AM-8PM EST Email: fansupport@modernforms.com Morpheus Instructions 3 FR-W1813...
- Page 4 The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box, and the ungrounded conductor on the other side of the outlet box. All set screws must be checked and re-tightened where necessary before installation. Morpheus Instructions FR-W1813...
- Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
- Page 6 AC fans MOTOR Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-RCBT-WT White Accessories: Bluetooth Wall Control Dims light to 1% | ON/OFF personalize your experience 6 fan speeds F-WCBT-WT White Morpheus Instructions FR-W1813...
-
Page 7: Table Of Contents
6. Making the Electrical Connections 7. Installing the Wall Control 8. Finishing the Installation 9. Installing the LED Luminaire Module 10. Controlling the Fan 11. Reset 12. Breeze Mode 13. Application 14. Accessories 15. Troubleshooting 32-34 Tools Required Morpheus Instructions 7 FR-W1813... - Page 8 Ø5*14*1mm Flat Washer (2) • 3/16” Star Washer (2) Before discarding packaging materials be certain all parts have been removed. Place the parts from the hardware bag into a small container to keep them from being lost. Morpheus Instructions FR-W1813...
- Page 9 Hanging Weight: 17 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. Morpheus Instructions 9 FR-W1813...
-
Page 10: Mounting Options
The sloped ceiling kit (sold separately) is required for sloped ceiling applications, and will accommodate slopes up to 45° (Fig. 1B). NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling (Fig. 1B). Morpheus Instructions FR-W1813... - Page 11 Support Brace 2. Outlet Box 3. Joist Outlet Box Support Ceiling Max 30° Angle Support Brace 2. Mounting Bracket 3. Recess Outlet Box Outlet Box Morpheus Instructions 11 FR-W1813...
-
Page 12: Hanging The Fan
Remove and discard the 2 pre-installed screws on the motor as shown (Fig. 3A). 2. Attach the fan blades with the blade screws provided (Fig. 3). 3. Turn the fan motor assembly over and install the blade collector ring with the screws provided (Fig. 3B). Morpheus Instructions FR-W1813... - Page 13 120V Wires 2. cUL Listed Electrical Box Mounting Bracket 3. Mounting Bracket 2. Screw 4. Mounting Screws (supplied with outlet box) Morpheus Instructions 13 FR-W1813...
-
Page 14: Installing The Adapter Plate
4. Align the holes of downrod and collar and insert the cotter pin and clevis pin. Tighten the two collar screws (Fig. 5). WARNING: Failure to properly install the cotter pin and/or tighten the screws could result in the fan loosening and possibly falling. Morpheus Instructions FR-W1813... - Page 15 Hanger Ball/Mounting Bracket 2. Downrod 3. Canopy 4. Canopy Screw Cover 5. Coupling Cover 6. Collar Cotter Pin 8. Clevis Pin 9. Screws Morpheus Instructions 15 FR-W1813...
-
Page 16: Hanging The Fan
NOTE: Safety cable is required for all ceiling fan installations in Canada. Safety cable is required for ceiling fan and light (combo) installations over 35 lbs. in both flush and downrod models in the United States. Morpheus Instructions FR-W1813... - Page 17 Morpheus Instructions 17 FR-W1813...
-
Page 18: Making The Electrical Connections
Connect the black (hot) wire from the ceiling to the black wire marked “AC in L” from the receiver. 8. Connect the white (neutral) wire from the ceiling to the white wire marked “AC in N” from the receiver. Morpheus Instructions FR-W1813... - Page 19 Follow the steps above to connect the fan to your household wiring. Use the plastic wire nuts with your fan. Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections. Morpheus Instructions 19 FR-W1813...
-
Page 20: Installing The Wall Control
Fasten the wall plate to the wall mounting plate (Fig. 7A). to Fan House Wires Wall Switch Wires (Hot) (Hot In) (Neutral) (Neutral) (Copper/Ground) (Ground) Fan Switch leg (Hot out to Fan) From Breaker * Home Wiring may vary Morpheus Instructions FR-W1813... - Page 21 Multi-location wiring Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 27. If Applicable Wall Control 1 Wall Control 2 Wall Control 3 Line/Hot Green (Green or Bare) Neutral/White Morpheus Instructions 21 FR-W1813...
-
Page 22: Finishing The Installation
WARNING: Make sure tab at bottom of hanger bracket is properly seated in groove of hanger ball before attaching canopy to bracket. Failure to properly seat tab in groove could cause damage to electrical wiring. Morpheus Instructions FR-W1813... - Page 23 Morpheus Instructions 23 FR-W1813...
-
Page 24: Installing The Led Luminaire Module
(Fig. 9B). NOTE: Add metal light cover if you do not need lighting function or prefer a different aesthetic (Fig. 9B). NOTE: Do not connect the LED connector wires if you are using the metal light cover. Morpheus Instructions FR-W1813... - Page 25 Morpheus Instructions 25 FR-W1813...
-
Page 26: Controlling The Fan
NOTE: Pairing must be completed within three (3) minutes of powering the fan. Synchronizing Control Across Multiple Fans If you are controlling multiple fans with one controller, fans/lights may be synced by referring to Fig. 10B and instructions on the next page. Morpheus Instructions FR-W1813... - Page 27 All fans will be set to summer mode (CCW rotation). This will bring all fans controlled by the remote into sync. Morpheus Instructions 27 FR-W1813...
-
Page 28: Reset
In addition to the included wall control, you can control your fan with a remote control (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play. - Page 29 3 beeps indicating the reset receiver emits 3 beeps indicating the reset Scan and follow prompts for multilingual instruction options and Smart Fan FAQs: Spanish For detailed Instructions and Smart Home Device Integration French Morpheus Instructions 29 FR-W1813...
-
Page 30: Accessories
14. Accessories personalize your experience Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds F-WCBT-WT White Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-RCBT-WT White Morpheus Instructions FR-W1813... - Page 31 18” Downrod XF-24 - 24” Downrod | XF-36 - 36” Downrod XF-48 - 48” Downrod | XF-60 - 60” Downrod XF-72 - 72” Downrod 12”- 72” Finishes: AS, SS, BZ, DW, GH, GW, MB, MW, OB, TT Morpheus Instructions 31 FR-W1813...
-
Page 32: Troubleshooting
4. Make sure the fan blades are properly aligned and securely fastened to the motor housing assembly/blade arms. 5. Make sure the gaps between the blades are evenly distributed or make sure you are using an approved cUL/UL listed outlet box and it is installed correctly. Morpheus Instructions FR-W1813... - Page 33 Your fan supports connection with 2.4GHz 802.11b/g/n networks. Confirm your network is compatible by checking your router settings or contact your router manufacturer. 2. Make sure your network’s SSID is not hidden. 3. Your fan does not support 5 GHz network connectivity. connection. Morpheus Instructions 33 FR-W1813...
- Page 34 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
- Page 35 What is Pairing? Pairing is the process of connecting your Modern Forms remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
- Page 36 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
- Page 37 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
- Page 38 Morpheus Instructions FR-W1813...
- Page 39 Morpheus Instructions 39 FR-W1813...
- Page 40 FR -W18 13 modernforms.com...
