Liquid end for Sigma/ 1 120 PVT

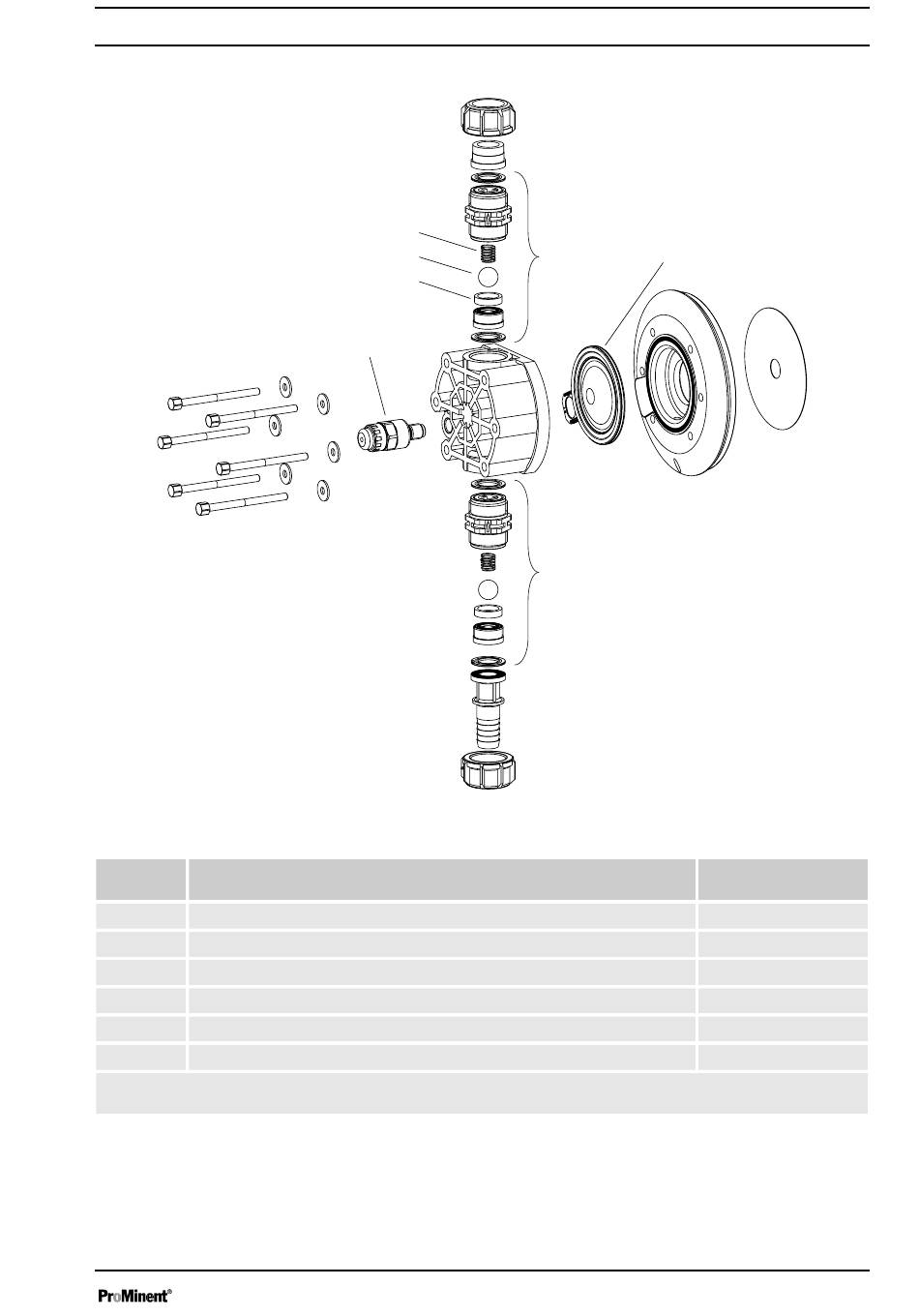

Fig. 33: Liquid end for Sigma/ 1 120 PVT
Pos. Description
1 Spring
2 Ball
3 Ball seat
4 Diaphragm rupture sensor, optical
5 Valve
6 Multi-layer diaphragm
* The items listed are included in the spare parts kit. ** Special accessories (not included in the spare parts kit). Tech‐
nical changes reserved.
1
2
3
4
Exploded drawings Sigma/ 1
6
5
5
Type 04084, 04120,
07042
**
*
-
1033323
792517*
1035828*
P_SI_0024
