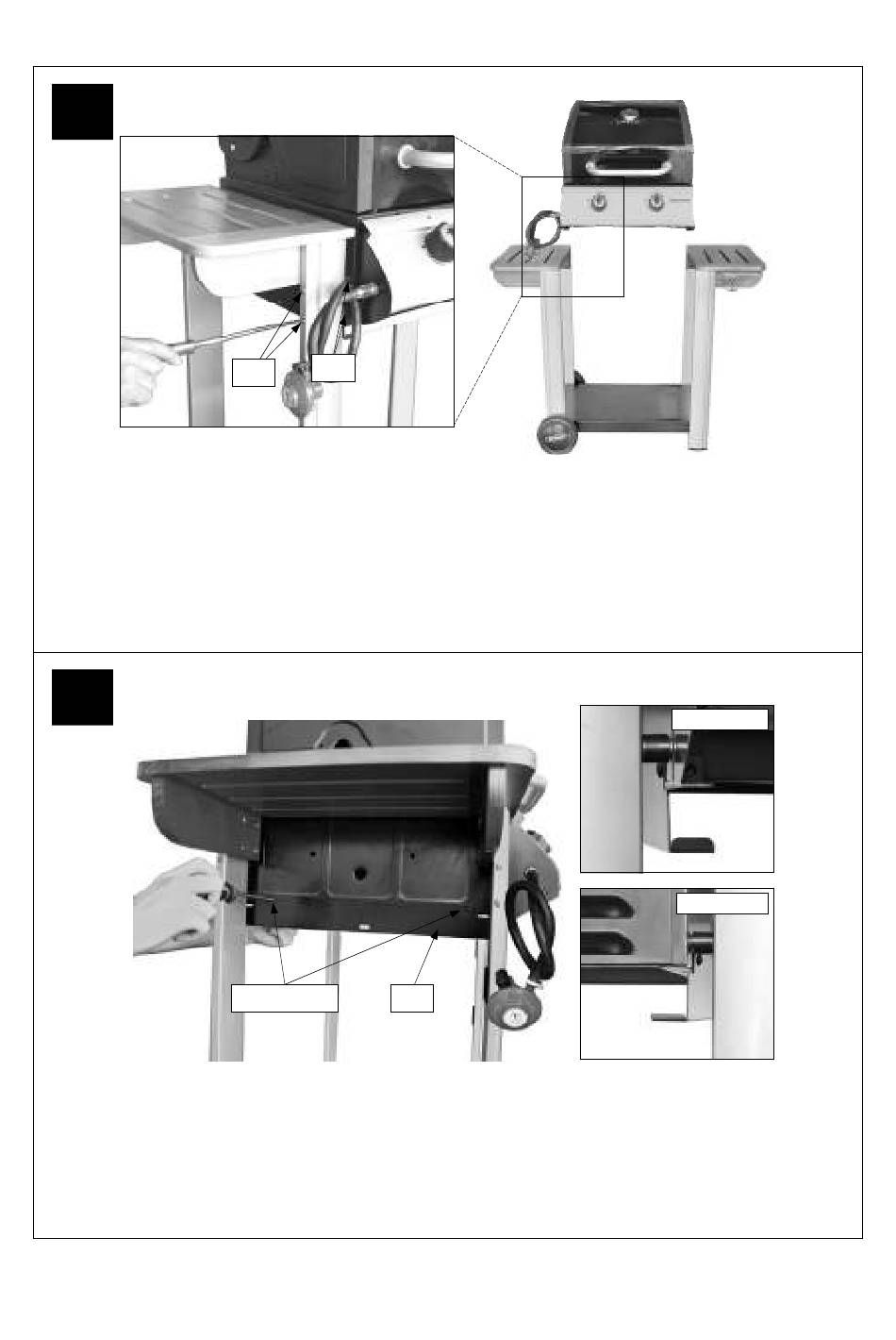

Outback Spectrum THG2302PA Assembly And Operating Instructions Manual page 7

5
D4
Insert M6x110 Bolts (D4x8pcs) through the trolley legs, the Spacers (D5x8pcs), and keep the tip of
the bolts inside the spacers. While holding the barbecue body into position (2 people required),
screw the bolts into the barbecue body as shown.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or
becomes damaged when it is set on the ground.
When positioning the body of the barbecue, ensure the control panel is on the same side as the legs
with Velcro fastenings.
6
D1,D2,D3
Attach the Drip Tray Left Bracket (B8) to barbecue body using M5x15 Bolts (D1x2pcs),
Washers (D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for the
Drip Tray Right Bracket (B9).
NOTE: Ensure that the big tabs of the brackets which stop the drip tray are located
at the front of the barbecue.
D5
B8
7
Front view
Rear view
