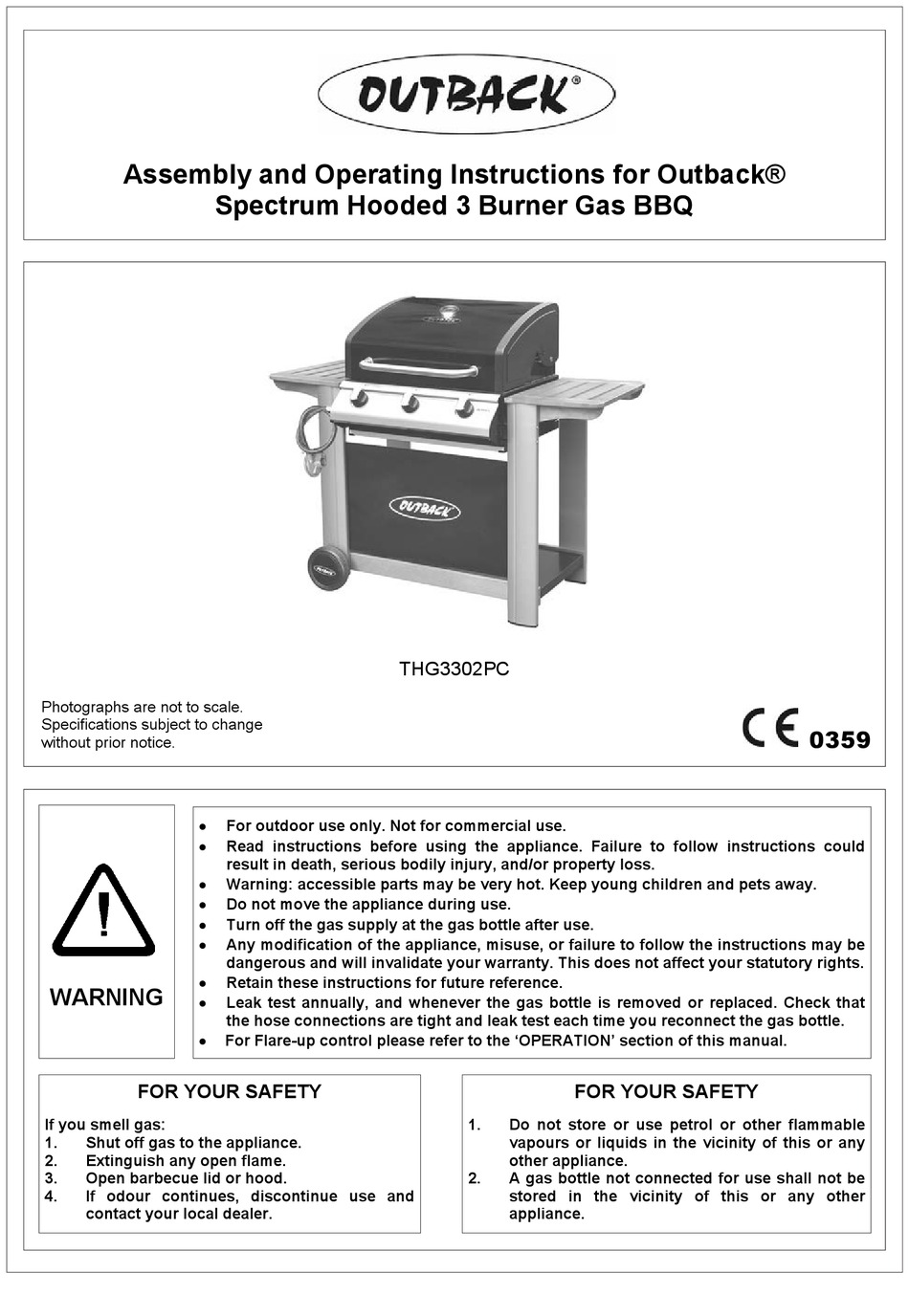

Assembly and Operating Instructions for Outback®
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.

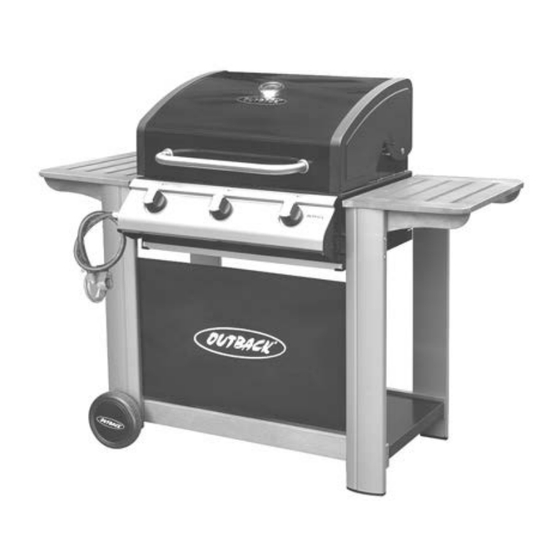

Spectrum Hooded 3 Burner Gas BBQ
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
THG3302PC
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
FOR YOUR SAFETY
0359
Advertisement
Related Manuals for Outback THG3302PC
Summary of Contents for Outback THG3302PC
- Page 1 Assembly and Operating Instructions for Outback® Spectrum Hooded 3 Burner Gas BBQ THG3302PC Photographs are not to scale. Specifications subject to change 0359 without prior notice. For outdoor use only. Not for commercial use. Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
- Page 2 Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. Outback® Spectrum Hooded 3 CODE PART Burner Gas BBQ Hood (Pre-Assembled to Body) Hood Handle ...
- Page 3 Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
- Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D1,D2,D3 D4,D5...
- Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. Remove any internal components or packaging from the barbecue body. Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
- Page 6 helves Install the Side S (C1) onto left and right legs using the M6x25 bolts (D6x16pcs) . Remove any internal components or packaging from the Hood and Body. Insert M6x125 Bolts (D4) through the trolley legs, the Spacers (D5), and keep the tip of the bolts inside the spacers.
- Page 7 Attach Drip Tray Left Bracket (B8) to barbecue body using M5x15 Bolts (D1x2pcs), Washers (D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for Drip Tray Right Bracket (B9). NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the front of the barbecue.
- Page 8 Place the Flame Tamers (B7) over the burners within barbecue body. Lay the Cooking Grills (B6) in position. NOTE: Ensure that the flame tamers lies directly underneath the grills. Step 1 Step 2 Step 3 Step 4 Attach the Warming Rack (A4) to the Hood (A1) and Barbecue Body (B1) as shown. Make sure that the swing legs fix to the body of the barbecue and the shorter fixed legs go through the holes in the hood.
- Page 9 (Rear view of the barbecue trolley.) Attach the screen (C6) to the front left/right legs as shown. ASSEMBLY IS NOW COMPLETE.
- Page 10 Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
- Page 11 Important Information leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully Leak test annually, and whenever the gas before assembly and use of your barbecue. bottle is removed or replaced.
- Page 12 Installation Preparation Before Cooking To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and before each barbecuing session.
- Page 13 lighting hole on the right side of the burners down to the low position. It is not barbecue body and place near rightmost necessary or advisable to have all of the burner porthole. burners on high when the hood is closed. ...
- Page 14 In the event of a fat fire: may result in damage to the barbecue. It may If safe to do so, turn all control knobs to the be necessary to dry the barbecue and the ‘off’ position. inside of the cover. It is possible for mould to ...
- Page 15 (and foil liner, if applicable) of any fat or food Cover the burners with aluminium foil in order to particles, using a plastic or wooden scraper if prevent insects or other debris from collecting in necessary. burner holes. Failure to keep it clean, and excessive build up If the barbecue is to be stored indoors, the gas can result in a fat fire.
- Page 16 Technical Specifications Notes: Heat Injector Burners Approval Input Size Consumption Outback® Spectrum 0359 12.96 Butane: 943g/hr Hooded 3 1.02mm 359BR665 Propane: 926g/hr Burner Gas Category: I 3+ (28-30/37) Gas / Pressure: G30 Butane at 28-30mbar and G31 Propane at 37mbar...
- Page 17 Troubleshooting Problem Possible Cause Solution Burner will not light using the LP gas bottle is empty Replace with full bottle ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
- Page 18 Other parts are warranted for a period of one (1) year from the date of purchase. OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
