Assembly and Operating Instructions for

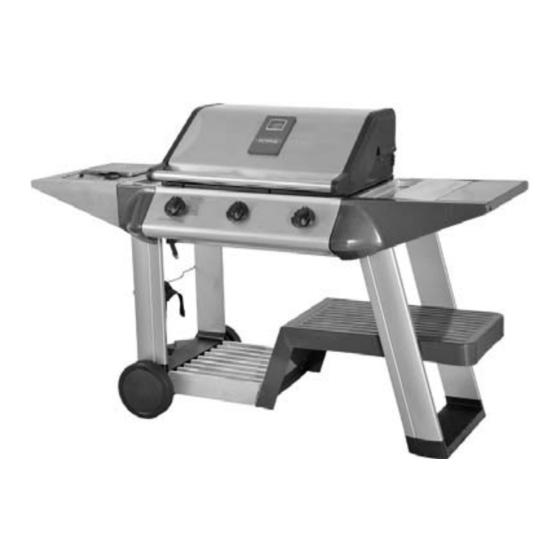

Outback® Excelsior 3 Burner and Excelsior 6 Burner Gas Barbecues
THG3710SS-3
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
THG6710SS-3
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
EN (Europe)
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THG3710SS-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Outback THG3710SS-3

Summary of Contents for Outback THG3710SS-3

  • Page 1 Assembly and Operating Instructions for Outback® Excelsior 3 Burner and Excelsior 6 Burner Gas Barbecues EN (Europe) THG3710SS-3 THG6710SS-3 Photographs are not to scale. Specifications subject to change 0359 without prior notice. For outdoor use only. Not for commercial use.

  • Page 2: Parts List

    1. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® Outback® CODE PART Excelsior 3 Burner Excelsior 6 Burner Hood (Pre-Assembled to Body) ...

  • Page 3: Parts Diagram

    2. Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 3. Hardware Reference Diagram Specifications subject to change without prior notice. D2、D3、D4 D5、D6...
  • Page 5 4. Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. The assembly of this barbecue requires 2 people. The inlet connection of the gas rail assembly on the barbecue body is lower than the body. You must never allow the pipe to rest on the ground during assembly as serious damage could result.
  • Page 6 Attach the Bottom Slat Assembly (C12) to the Base Tray (C13) using M6x15 Bolts (D5). Attach the leg assembly to the Base Tray (C13) using M6x15 Bolts (D5).
  • Page 7 Threaded Insert Attach the Left Front Leg (C8) and Left Rear Leg (C9) to the Gas Bottle Holder (C14). Note: Threaded inserts must be facing in the direction shown! Align the Gas Bottle Holder (C14) with the Bottom Slat Assembly (C12).
  • Page 8 Attach the Gas Bottle Holder (C14) to the Bottom Slat Assembly (C12) using M6x15 Bolts (D5) and Ø6 Washers (D6). Unscrew the Locknuts (D9) from both ends of the Axle (C18). Insert the axle through the clamping brackets into the Gas Bottle Holder (C14) and tighten the clamp bolts.
  • Page 9 Slide the Wheels (C17) over each end of the axle. Secure the wheels into place with the locknuts. Carefully turn the completed trolley over, right side up. Place the wheel Hubcaps (C16) onto the outsides of the wheels.
  • Page 10 Remove all cooking components, lava rock / flame tamer, and any internal packaging from the Barbecue Body (B1). Carefully turn the barbecue body upside-down. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 11 Attach the Rear Left Endcap (C4) to the barbecue body using M6x15 Bolts (D5). Carefully turn the barbecue body over right-side-up. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 12 Carefully place the barbecue body onto the tops of the legs. The tops of the legs should slot into the endcaps. When done correctly, the barbecue should be able to stand on its own weight. WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN PROPERLY SEATED.
  • Page 13 Attach the Side Shelf Shield (C2) to the endcaps using the M4x15 Bolts (D1). Attach the Side Shelf Hook (C21) to the Side Burner Shelf (C1) using 1/4-20UNCx12 Bolts (D8), then hook the side burner shelf to the endcaps. Unscrew the retaining bolts to loosen the pre-assembled Fixing Brackets (C22).
  • Page 14 Lay the Utensil Trays (C5) into their positions on either side of the barbecue body. Slide the loops of the Gas Bottle Strap (C20) onto the Retaining Rod (C19). Secure the rod to the trolley legs using M6x15 Bolts (D5).
  • Page 15 Attach Drip Tray Left Bracket (B9) to barbecue body using M5x15 Bolts (D2), Ø5 Washers (D3) and M5 Nuts (D4) as shown. Repeat above process for Drip Tray Right Bracket (B10). NOTE: Ensure that the big tabs of the brackets which stop the drip tray are located at the front of the barbecue.
  • Page 16 Carefully lay the Lava Rock / Flame Tamer (B6) into the barbecue body ensuring it lies level within the body. Lay the Grill (B7) and Griddle (B8) into place. 3/6 burner model configuration: Left — Cooking Grill, Right — Cooking Griddle NOTE: Ensure that the lava rock lies directly underneath the grills.
  • Page 17 Place the Side Burner Grid (C23) onto side burner shelf as shown. Ensure the jubilee clip is on the hose. Warm the end of the gas hose with in hot water for 2 minutes, and then push the hose all the way onto the barb of the barbecue. Using a screwdriver turn the retaining screw to tighten the jubilee clip.

  • Page 18: Leak Testing

    Turn off the gas supply at the gas bottle Retighten all joints Repeat test If bubbles form again do not use the barbecue and contact your local Outback distributor for assistance. Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints...

  • Page 19: Gas, Regulator And Hose

    5. Important Information  Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and before assembly and use of your barbecue. connections of the barbecue after assembly.

  • Page 20: Installation

    INCORRECT OR FAULTY REGULATOR IS Full coverage will cause excessive build-up DANGEROUS AND WILL INVALIDATE ANY of heat and damage the barbecue. This is WARRANTY. Please consult your local gas not covered by warranty. dealer for the most suitable gas bottles and regulators.
  • Page 21 Open the gas control valve on the gas smaller cuts of fish. Similarly, it can be used in bottle or regulator. exactly the same way as a griddle in the kitchen, for searing steaks, cooking eggs, etc. Insert lit match through the right match- Alternatively, it can be used for heating pans or lighting hole on the right side of the keeping food warm.

  • Page 22: Care And Maintenance

    over this area that the meat will be cooked. 8.12. Fat Fires Slide one of the spit forks onto the spit rod Empty and clean the drip tray and drip pan (and and tighten its thumb screw to secure it into foil liner, if applicable) of food debris after each place.
  • Page 23 Outback® barbecue covers and other accessories are 9.3. Flame Tamer (where supplied) available from your local Outback® stockist. Remove any food residue from the flame tamer surface with a plastic or wooden scraper or Even when your barbecue is covered for its brass wire brush.

  • Page 24: Technical Specifications

    0.80mm 30 mbar LPG mixture appearance. It is quite natural for small cracks Gas Consumption: to appear on the surface of the wood. The wood Outback® Excelsior 3 Burner: 943g/hr should regularly inspected Outback® Excelsior 3 Burner: 1258g/hr Side Burner: 195g/hr...

  • Page 25: Troubleshooting

    11. Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas Clean jets and gas hose hose Electrode or ignition button wire is...
