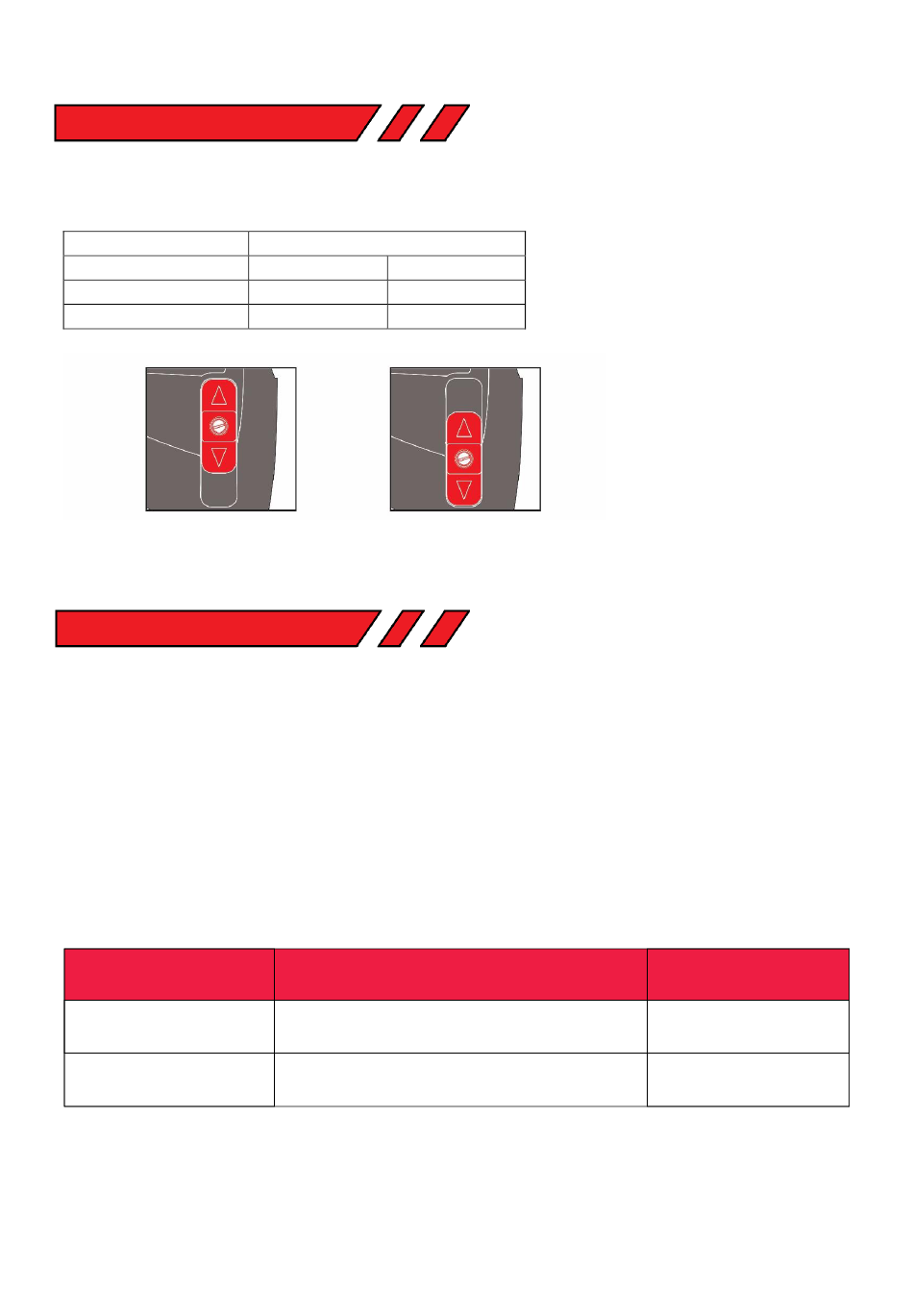

9) GEAR SELECTION

The Element 50 magnetic drill is fitted with a 2 speed gearbox. The gear is used to reduce the
output speed when using larger cutters.
Slide Selector Position
/\
\/
Slide Selector Position Up

10) AUTOMATIC FUNCTION

The auto feed function is an efficient way of drilling that allows for multiple units to be operated at
the same time, by one operator. The Element 50 Auto can be operated both manually and with
the auto feed function. The auto feed function can be used for core cutting up to 50mm x 50mm
as well as twist drilling (6mm-25mm only).
When operating the drill in auto feed mode, it must be set at one of the two following speeds
depending on the diameter of the cutter being used. Prior to starting the machine, the electronic
speed controller requires setting, if the electronic speed controller is set after starting the
machine, the automatic function will not perform correctly.
Original Instructions
Speed Controller Setting
Level 1 Level 6
200/min 500/min
100/min 265/min
Slide Selector Positon Down
