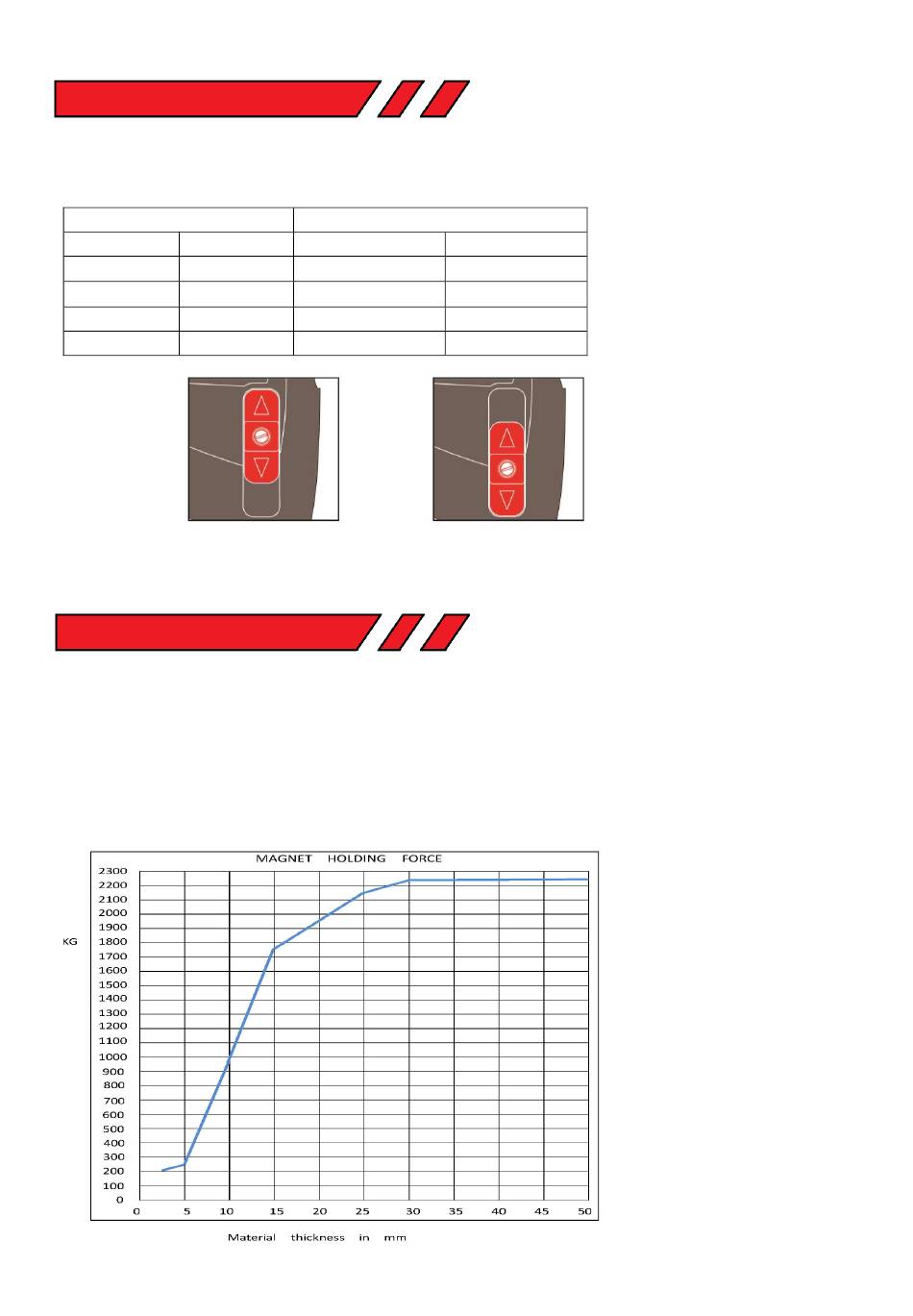

9) GEAR SELECTION

The Element 100 magnetic drill is fitted with a 4 speed gearbox. The gear is used to reduce the
output speed when using larger cutters.
Slide Selector Position
Left Right
/\
\/
\/ \/
/\ /\
/\ \/
Slide Selector Positon Left
The Slide Selector Positions show Left

10) MAGNET DETECTION

It is advised that when working on thin material a packing piece should be used to increase the
material thickness under the magnet. Working on thin material without a packing piece will reduce
the magnet holding force.
It is advised that the drill is to be operated on ferrous material 12mm thick and above. Damage to
the magnet base, such as pitting, will affect the strength of the magnet holding force.
Original Instructions
Speed Controller Setting
Level 1 Level 6
45/min 129/min
70/min 208/min
150/min 434/min
240/min 700/min
Slide Selector Position Right
/\ and Right\/depicting an available range of 240 – 700/min.
