QUICK START GUIDE
FEATURES
• 1/2.5" 8.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 8 MegaPixel (3840x2160)
• 4.0mm Fixed Iris Lens
• 36 Infrared LED's with 120' IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Object Removal/
Museum Search, Line Crossing, and Area Intrusion Detection
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• IP66 Weather Resistance
• Optional Junction Box Mount Available (VT-TJB01)
• 12VDC & PoE (Power over Ethernet) Operation

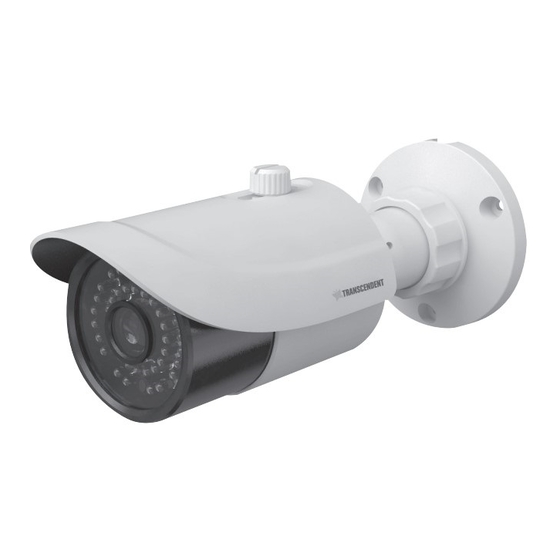

VTC-TNB8RFS
Megapixel H.265 Indoor/
Outdoor WDR IP Bullet Camera
with 36 IR LED Illumination
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek 8 Series
Summary of Contents for Vitek 8 Series
- Page 1 VTC-TNB8RFS Transcendent Series 8 Megapixel H.265 Indoor/ Outdoor WDR IP Bullet Camera with 36 IR LED Illumination QUICK START GUIDE FEATURES • 1/2.5” 8.0 Megapixel Progressive Scan CMOS image sensor • Up to 30fps live view @ 8 MegaPixel (3840x2160) •...
- Page 2 Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Waterproof Cap Hex Wrench Service Port Cable Overview RJ-45 Ethernet Power Cable Audio In Lens Cover Audio Out Reset CVBS Output Service Port...
- Page 3 Cable Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. Optional 12VDC Power Connection. Not needed with PoE Weather Resistant Network Coupler 1.
- Page 4 Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the...
- Page 5 Installation 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then tighten the mount lock to secure the viewing angle adjustments. 360° Pan 90° Tilt 4. Carefully remove the protective film from the lens to complete the installation.
- Page 6 LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the cables through the mounting base) according to the drill template Accessing the Camera Using the IP-Tool...
- Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
- Page 8 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatical- 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
