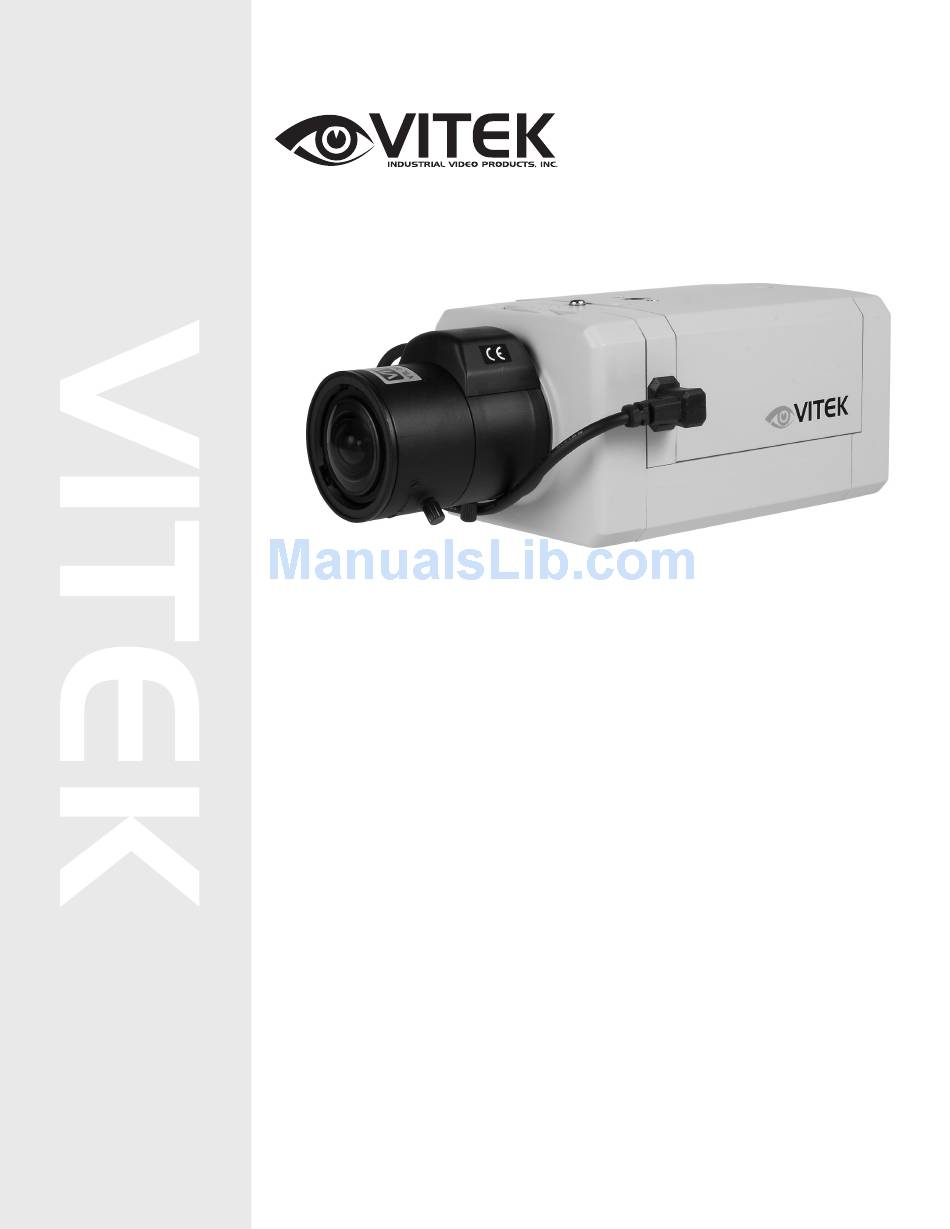

VTC-C750WDR
Wide Dynamic Range Color CCD
Camera w/550TVL
• Wide Dynamic Range 1/3" Color DPS Pixim Image Sensor
• 550 TV Lines of Resolution
• OSD (On Screen Display) for Camera Function Setup
• True (ICR) Day/Night Function
• 0.0002 Lux Sensitivity (F1.2 @40IRE Sense-Up)
• Dual Voltage Operation 12VDC/24VAC
• Over 50dB S/N Ratio
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-750WDR
Summary of Contents for Vitek VTC-750WDR
- Page 1 VTC-C750WDR Wide Dynamic Range Color CCD Camera w/550TVL • Wide Dynamic Range 1/3" Color DPS Pixim Image Sensor • 550 TV Lines of Resolution • OSD (On Screen Display) for Camera Function Setup • True (ICR) Day/Night Function • 0.0002 Lux Sensitivity (F1.2 @40IRE Sense-Up) •...
-
Page 2: Power Source
To prevent fire or shock hazard, do not expose the unit to rain or moisture. WARNING The symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the unit. The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Table Of Contents
Table of contents 1. Safety Instructions and Notes…... 2. General Descriptions...……………………………... 3. Supplied Items...……………………………... 4. Part names…………………………….…...…………………………... 5. Installation and commissioning Instructions...……………………... 6. Start up…………………...…………………………... 7. Setup Menu………………………………………………... 8. Specifications……………………………………………... 9. Dimensional Drawings…... 10. Setup Menu tree………... -
Page 4: Safety Instructions And Notes
1. Safety Instructions and Notes • Please read these safety and operating instructions before putting the camera into operation. • Keep the operating instructions in a safe place for later use. • The Standard Box Camera is designed for indoor use only and it must not be installed where exposed to rain and moisture. -
Page 5: General Descriptions
2. General Descriptions VTC-C750WDR (VTC-C750WDR/PAL for PAL)) is a superb wide dynamic range camera which achieves 120dB max(102dB typical) of dynamic range of the image by implementing PIXIM's DPS(digital pixel system) CMOS SENSOR. With CMOS image sensor, - Provides the best quality image without any blooming or vertical smear even under the spot light. With Pixim’s DPS technology, - Offers unparalleled image quality across all lighting conditions especially at high-contrast environments like indoor and outdoor of daylight time... -
Page 6: Part Names
4. Part Names 4.1 Front view ① ② ① Back Focus Adjustment ③ Lens connector for auto iris lenses ⑤ Camera Mount Hole (Top and Bottom) - Lens Connector for Auto-iris lens (DC Drive) PIN 4 PIN 2 PIN 3 PIN 1 ④... -
Page 7: Installation And Commissioning Instructions
4.2 Rear side view ⓐ ⓐ OSD menu switches (Up/ Down/ Left/ Right / Enter) ⓑ Video Output Connector (BNC) ⓒ Power indicator LED ⓓ Power Input Terminal 5. Installation and commissioning Instructions • Make sure the power is removed before the installation. •... -
Page 8: Start Up
4. Loosen ④ Back focus Adjustment Lock Screw one~two turns on the camera with industrial “+” driver 5. Rotate ① Back Focus Adjustment until the optimum focus is achieved. 6. Tighten ④ Back focus Adjustment Lock Screw again. 7. Trim the focus precisely at lens if necessary. Setting for lenses with a variable focal distance (zoom) If the focus changes as the focal distance changes, please proceed as follows. -
Page 9: Setup Menu
7. SETUP Menu 7.1 In the menu buttons to move menu, to select or enter. button stands for MENU or ENTER button. 7.2 Entering menu Press button longer than 2 sec on the back of camera. 7.3 PRESET menu PRESET menu is provided to help the settings with the possible parameters obtained and assumed by the factory tests for the most common environments. - Page 10 7.4 EXPOSURE menu EXPOSURE menu is provided to help the settings with the possible parameters obtained and assumed by the factory tests for the most common environments. EXPOSURE presets may not be the best optimized settings for the actual installations. In such cases, find the optimal settings in CUSTOM setting of EXPOSURE menu EXPOSURE <WDR MID>...
- Page 11 CUSTOM Metering of the dynamic control is weighted to the selected window from SAFE AREA, WINDOW ZONE ADJUST, CENTER 1/3 AND LOWER 2/3. RANGE Adjusts the strength of the dynamic range control. BIAS Adjusts the base level of the dynamic range control. 7.6 ZONE ADJ menu Adjusts the size and the location of the metering zone for the dynamic range control.
- Page 12 7.8 DAY / NIGHT menu DAY/NIGHT IR Cut filter is switched OUT/IN at night/day time automatically. <AUTO BW> At night mode, camera outputs the B/W video without the color burst signal. IR Cut filter is stuck and is NOT switch OUT. 7.9 DAY/NIGHT SETUP menu DAY/NIGHT SETUP...
- Page 13 7.10 SHUTTER LIMIT menu SHUTTER LIMIT The longest shutter is limited to 2X of 1/60(NTSC)/1/50(PAL) sec when the scene <2X ESS > illumination becomes dim. Video refresh rate at 2X ESS is 15(NTSC)/12.5(PAL)frames/sec. The longest shutter is limited to 4X~32X of 1/60(NTSC)/1/50(PAL) sec when the scene 4X ESS ~ illumination becomes dim.
- Page 14 7.12 MANUAL WHITE BALANCE menu (in PITURE CONTROL menu) To enter MANUAL WHITE BALANCE menu, press Shoot a white paper or a gray card and adjust either KELVIN or R/B so that the color on the monitor becomes most white. 7.13 BRIGHTNESS, DNR, SHARPNESS, FLIP, COLOR SELECT and SATURATION menus (in PITURE CONTROL menu) PICTURE...
- Page 15 7.14 LENS SELECT menu DC auto iris lens or MAUAL lens can be used for this camera but DC auto iris lens must be used in FL-LIGHT and EFR presets and strongly recommended in other presets when the scene is very bright. 7.15 VIDEO SYNC menu VIDEO SYNC <INT...
- Page 16 7.16 SAVE / RESTORE / EXIT menu MENU-2 SAVE AND EXIT Exits menu after saving the parameters. EXIT NO CHANGES Exits menu with discarding any changes. RESTORE Restores and saves all parameters of factory settings. FACTORY SETTINGS Camera resets and restarts automatically. English is available only.
-
Page 17: Specifications
8. Specifications Model name Image Device 1/3" RGB Color DPS SENSOR (Pixim Orca D1500series) Effective Pixels 720(H) x 540(V) TV system NTDC, 525lines / 2:1interlace Scan frequency. 59.94Hz(V), 15.734Khz(H) Synchronization Internal/Line lock (Default: Internal) H. Resolution 550 TV Lines Sensitivity 0.0002Lux(F1.2,@40IRE, DN(DSS mode + ICR mode)) S/N Ratio 50dB with AGC OFF at 50IRE... -
Page 18: Dimensional Drawings
VTC-C750WDR 9. Dimensional Drawings (Unit: mm) -
Page 19: Setup Menu Tree
VTC-C750WDR 10. Setup Menu Tree... - Page 20 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
