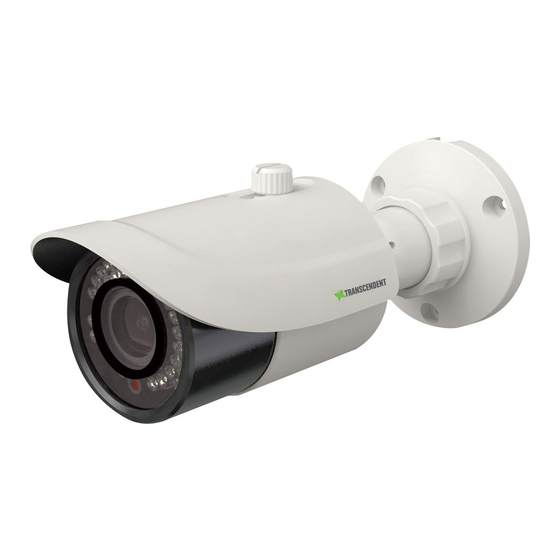

Vitek VTC-TTAB42R2F Manual

2.1 megapixel outdoor hd-tvi/ahd/cvbs ir bullet cameras
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES
• 1/3" 2.1 MegaPixel CMOS Sensor
• HD-TVI & AHD/CVBS Video Output
• 3.6mm Fixed Lens (VTC-TTAB42R2F) / 2.8~12mm
Varifocal Lens (VTC-TTAB36R2V)
• 42 Infrared LED's with 150' IR Range (VTC-TTAB42R2F)
/ 36 Infrared LED's with 120' IR Range (VTC-TTAB36R2V)
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP66 Weather Resistance
• Supports Up The COAX Control
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• Optional Junction Box Mount Available (VT-TJB01)
• 12VDC Operation

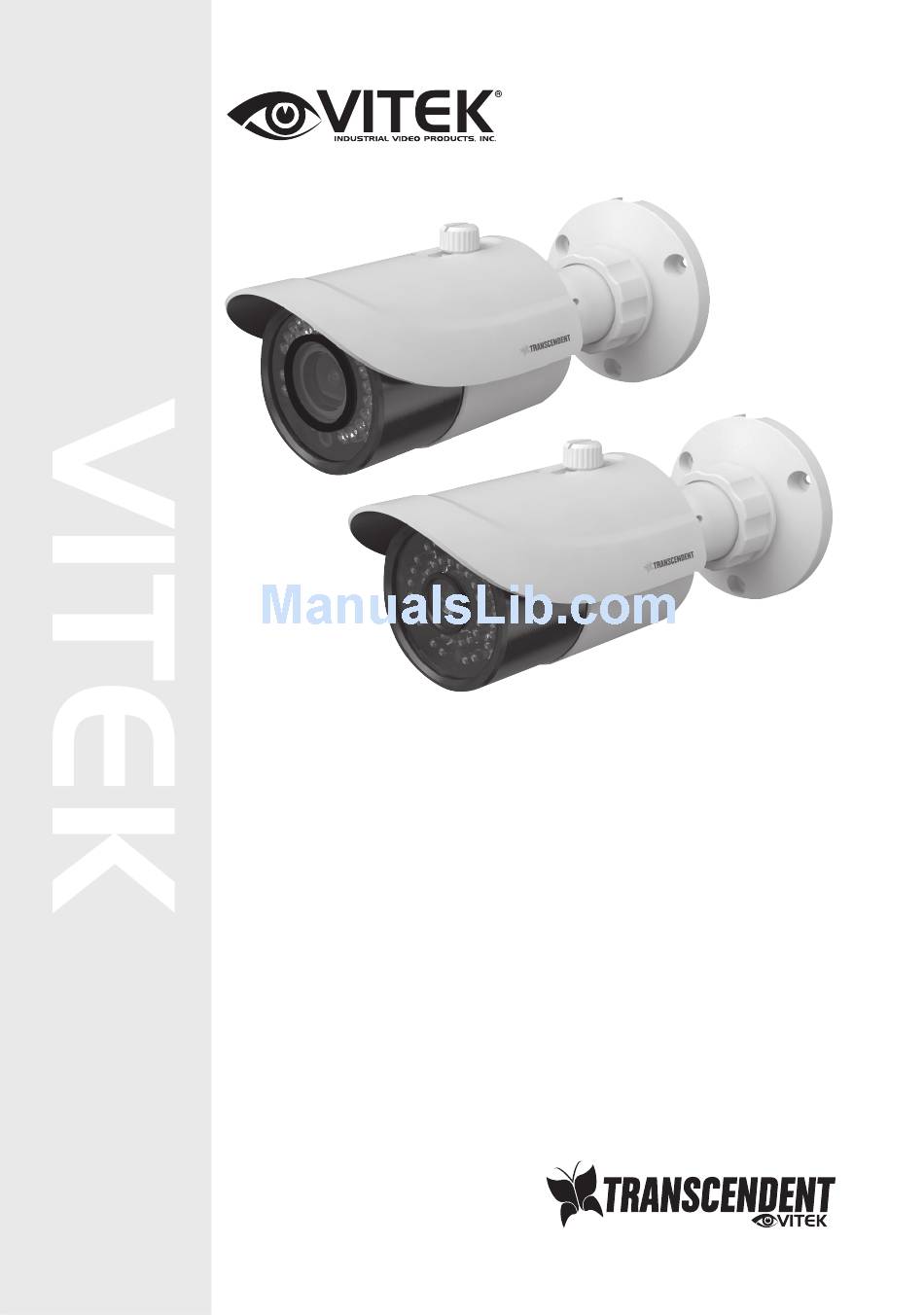

VTC-TTAB42R2F
VTC-TTAB36R2V
2.1 Megapixel Outdoor HD-TVI/
AHD/CVBS IR Bullet Cameras

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-TTAB42R2F and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VTC-TTAB42R2F

Summary of Contents for Vitek VTC-TTAB42R2F

  • Page 1 • HD-TVI & AHD/CVBS Video Output • 3.6mm Fixed Lens (VTC-TTAB42R2F) / 2.8~12mm Varifocal Lens (VTC-TTAB36R2V) • 42 Infrared LED’s with 150’ IR Range (VTC-TTAB42R2F) / 36 Infrared LED’s with 120’ IR Range (VTC-TTAB36R2V) • Digital Wide Dynamic Range (D-WDR) •...

  • Page 2: Safety Precaution

    Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

  • Page 3: Components And Accessories

    Components and Accessories Camera Screws User Manual Drill Template Overview This camera series supports both fixed and varifocal lenses. Please note that the zoom and focus features mentioned below are only available on the varifocal lens version. Lens Focus* Sun Shield HD-TVI Output AHD/CVBS Output Mount Lock...

  • Page 4: Video Connection

    Video Connection Connect the HD-TVI Video or AHD/CVBS video connector to a BNC patch cable, then to DVR. Monitor Video AHD/CVBS Switch: Switch to CVBS Mode: Press & Hold the Switch for 5 seconds Switch to AHD Mode: Press & Release the Switch quickly Power Connection Connect the power connector to a 12 VDC power adaptor.

  • Page 5: Installation

    Installation Before you begin, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the...
  • Page 6 Installation 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then tighten the mount lock to secure the viewing angle adjustments. 360° Pan 90° Tilt 4. To adjust the lens, start by removing the Lens Cover, then adjust the Focus and Zoom levers to achieve a clear image.

  • Page 7: Camera Osd Menu

    OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The following menu toolbar will pop up by right-clicking the mouse when using VITEK Transcendent Series HD-TVI DVRs. You will see the following interface by clicking the button.
  • Page 8 You can select the menu by clicking (U) or (D) key on the direction area. Click (L) or (R) key to select the menu on the left. The menu with arrow icon which means it has sub-menu. You can select the menu and click “Iris +” or call preset NO.95 to enter the sub-menu.
  • Page 9 Detailed Specifications VTC-TTAB42R2F VTC-TTAB36R2V Image Sensor 1/3” 2.1 MegaPixel CMOS Sensor Resolution 1080p (2.1 MegaPixel) Effective Pixels 1920(H) x 1080(V) Signal System PAL/NTSC Video Output 1x HD-TVI (BNC) & 1 AHD/CVBS (BNC) Lens 3.6mm Fixed 2.8~12mm (Vari-Focal) Day/Night True Day/Night by ICR S/N Ratio >52dB (AGC OFF)

  • Page 11: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
  • Page 12 Version 2.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 June 2016 WWW.VITEKCCTV.COM...
