OPERATION MANUAL
FEATURES
• 1/2.5" 8 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 8 MegaPixel (3840x2160)
• Motorized Varifocal & Fixed Lens Options
• Infrared LED Illumination
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Face Detection,
Object Removal/Museum Search, Exception, Line Crossing, Area
Intrusion, People Counting, People Intrusion, Crowd Density Monitoring
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• IP66 Weather Resistance (VTC-TNT8RMS/RFS cameras are IP67) &
IK10 Impact Rating On select Dome Models
• ONVIF Compliant
• Optional Mounts Available - see page 51
• 12VDC & PoE (Power over Ethernet) Operation

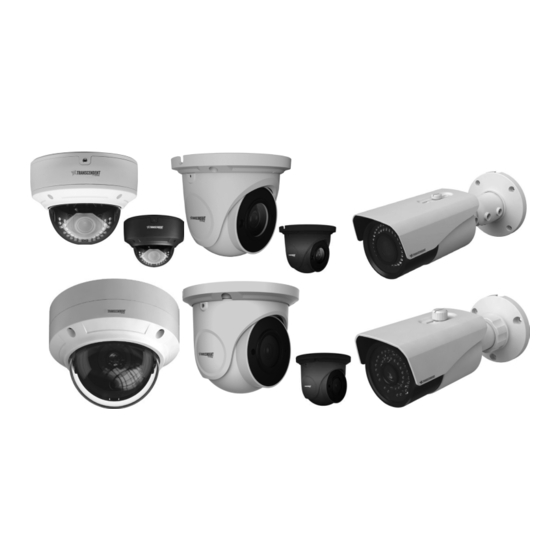

Transcendent IP
8MP (4K) Cameras
Transcendent Series 8 Megapixel
Indoor/Outdoor WDR IP
Cameras with IR Illumination
Advertisement
Table of Contents
Related Manuals for Vitek Transcendent VTC-TNT8RMS
Summary of Contents for Vitek Transcendent VTC-TNT8RMS
- Page 1 Transcendent IP 8MP (4K) Cameras Transcendent Series 8 Megapixel Indoor/Outdoor WDR IP Cameras with IR Illumination OPERATION MANUAL FEATURES • 1/2.5” 8 Megapixel Progressive Scan CMOS image sensor • Up to 30fps live view @ 8 MegaPixel (3840x2160) • Motorized Varifocal & Fixed Lens Options •...
- Page 2 Transcendent IP Cameras v4: Operation Manual Please use the specified power supply to connect. Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.
-
Page 3: Table Of Contents
Transcendent IP Cameras v4: Operation Manual Table of Contents Introduction....................4 IE Remote Access..................5 LAN.....................5 1.1.1 Access through IP-Tool..............5 1.1.2 Directly Access through IE..............7 WAN....................8 Remote Preview..................11 Remote Live Surveillance................12 System Configuration..............12 1.2.1 Basic Information.................12 1.2.2 Date and Time................12 1.2.3 Local Config................13 1.2.4 Storage....................13 1.2.5 SD Card Management...............13 1.2.6 Snapshot Settings..............14... - Page 4 Transcendent IP Cameras v4: Operation Manual Table of Contents (Continued) Security Configuration.................36 1.6.13 User Configuration.................36 1.6.14 Online User..................37 1.6.15 Block and Allow Lists..............37 4.2 Maintenance Configuration................37 1.6.16 Backup and Restore.................37 1.6.17 Reboot.....................38 1.6.18 Upgrade..................38 16.6.19 Operation Log................39 Record Search......................40 5.1 Photo Search....................40 5.2 Photo Search....................40 5.3 Video Search....................41 16.6.20...
-
Page 5: Introduction
Transcendent IP Cameras v4: Operation Manual 1 Introduction This IP camera is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system is more stable and reliable. -
Page 6: Ie Remote Access
Transcendent IP Cameras v4: Operation Manual 2 IE Remote Access 2.1 LAN In LAN, there are two ways to access the IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser. 1.1.1 Access through IP-Tool Network connection: Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the PC from the CD. - Page 7 Transcendent IP Cameras v4: Operation Manual For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to 192.168.1.X. After modification, please input the ADMIN password of the administrator and click “Modify” button to modify the setting. The default password of the administrator is “123456”.
-
Page 8: Directly Access Through Ie
Transcendent IP Cameras v4: Operation Manual The system will prompt the above-mentioned textbox to ask you to change the default password. It is strongly recommended to change the default password for account security. If “Do not show again” is checked, the textbox will not be prompted next time. 1.1.2 Directly Access through IE The default network settings are as shown below:... -
Page 9: Wan
Transcendent IP Cameras v4: Operation Manual Open IE browser and input the default address of IP-CAM and confirm. IE browser will ask to download the Active X control. After downloading the Active X control, the login dialog box will pop up. Input the default username and password and then enter to view. - Page 10 Transcendent IP Cameras v4: Operation Manual IP Setup Go to the router’s management interface through IE browser to forward the IP address and port of the camera. Please check your router manual for instructions on port forwarding. Router Setup Open IE browser and input its WAN IP and http port to access. Access through PPPoE dial-up Ø...
- Page 11 Transcendent IP Cameras v4: Operation Manual Go to ConfigàNetworkàTCP/IPà PPPoE Config menu. Enable PPPoE and then input the user name and password which you can get from your internet service provider. Go to ConfigàNetworkàDDNS menu. Before you configure the DDNS, please apply for a domain name first.
-
Page 12: Remote Preview
Transcendent IP Cameras v4: Operation Manual 3 Remote Preview After you log in, you will see the following window. The following table is the instructions of the icons on the remote live interface. Icon Description Icon Description Original size Scene change indicator icon Appropriate size Abnormal clarity indicator icon Auto... -
Page 13: Remote Live Surveillance
Transcendent IP Cameras v4: Operation Manual 4 Remote Live Surveillance System Configuration The “System” configuration includes four submenus: Basic Information, Date and Time, Local Config and storage. 1.2.1 Basic Information In the “Basic Information” interface, you can check the relative information of the device. 1.2.2 Date and Time Go to ConfigàSystemàDate and Time. -
Page 14: Local Config
Transcendent IP Cameras v4: Operation Manual 1.2.3 Local Config Go to Config(use right arrow)System(use right arrow)Local Config to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files. -
Page 15: Snapshot Settings
Transcendent IP Cameras v4: Operation Manual 1.2.6 Snapshot Settings Go to Config à System à Storage à Snapshot to go to the interface as shown below Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. - Page 16 Transcendent IP Cameras v4: Operation Manual Brightness: Set the brightness level of the camera’s image. Contrast: Set the color difference between the brightest and darkest parts. Hue: Set the total color degree of the image. Saturation: Set the degree of color purity. The purer the color, the brighter the image is. WDR: WDR can adjust the camera to provide a better image when there are very bright and very dark areas simultaneously in the field of view by lowering the brightness of the bright area and increasing the brightness of the dark area.
-
Page 17: Video / Audio Configuration
Transcendent IP Cameras v4: Operation Manual Set full time schedule for common, day, night mode and specified time schedule for day and night. Choose “Timing” in the drop-down box of schedule as shown below. 1.3.2 Video / Audio Configuration Go to ImageàVideo / Audio interface as shown below. In this interface, you can set the resolution, frame rate, bitrate type, video quality etc. -
Page 18: Osd Configuration
Transcendent IP Cameras v4: Operation Manual 1.3.3 OSD Configuration Go to ImageàOSD interface as shown below. You can set the time stamp, device name and OSD content here. After enabling the corresponding display and entering the content, drag them to change their position. Then click “Save” button to save the settings. 1.3.4 Video Mask Go to ImageàVideo Mask interface as shown below. -
Page 19: Roi Configuration
Transcendent IP Cameras v4: Operation Manual 1.3.5 ROI Configuration Go to ImageàROI Config interface as shown below. 1. Check “Enable” and then click “Draw Area” button. 2. Drag the mouse to set the ROI area. 3. Set the level. 4. Click “Save” button to save the settings. Now, you will see the selected ROI area is clearer than other areas especially in a low bitrate condition. -
Page 20: Alarm Configuration
Transcendent IP Cameras v4: Operation Manual Alarm Configuration Alarm configuration includes two submenus: Motion Detection and Alarm Server. 1.4.1 Motion Detection Go to AlarmàMotion Detection to set motion detection alarm. 1. Check “Enable Alarm” check box to activate motion based alarm, choose alarm holding time and set alarm trigger options. - Page 21 Transcendent IP Cameras v4: Operation Manual 3. Set the schedule of the motion detection. Click “Schedule” tab to go to the interface as shown below. Week schedule Set the alarm time from Sunday to Saturday for alarm everyday in one week. The lengthwise means one day of a week;...
-
Page 22: Alarm In
Transcendent IP Cameras v4: Operation Manual 2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to the motion detection chapter for details. IP Address Conflict This function is only available for the models with Alarm Out interface. -
Page 23: Alarm Server
Transcendent IP Cameras v4: Operation Manual Alarm Out Mode: Alarm linkage, manual operation, day/night switch linkage and schedule are optional. Alarm Linkage: Having selected this mode, select alarm out name and alarm holding time at the “Alarm Holding Time” pull down list box. Manual Operation: Having selected this mode, click “Open”... -
Page 24: Exception
Transcendent IP Cameras v4: Operation Manual 1. Enable object removal detection and then select the detection type. Enable Left Detection: The relevant alarms will be triggered if there are items left in the pre-defined alarm area. Enable Item Missing Detection: The relevant alarms will be triggered if there are items missing in the pre-defined alarm area. -
Page 25: Line Crossing
Transcendent IP Cameras v4: Operation Manual 1. Enable the relevant detection as required. Scene Change Detection: The relevant alarms will be triggered if the scene of the monitor video has changed. Video Blur Detection: The relevant alarms will be triggered if the monitor video is blurry. Video Cast Detection: The relevant alarms will be triggered if color cast happens to the monitor video. - Page 26 Transcendent IP Cameras v4: Operation Manual 1. Enable line crossing alarm and set the alarm holding time. 2. Set alarm trigger options. The setting steps are the same with that of motion detection. Please refer to motion detection chapter for details. 3.
-
Page 27: Intrusion
Transcendent IP Cameras v4: Operation Manual 1.5.4 Intrusion Intrusion The relevant alarms will be triggered if someone or something intrudes into the alarm areas or moves in the pre - defined alarm areas. Go to Config Event Intrusion interface as shown here. à... -
Page 28: Crowd Density Detectiion
Transcendent IP Cameras v4: Operation Manual 1.5.5 Crowd Density Detection This function can detect the density of the people in a specified area (like square, supermarket). Go to Config à Event à Crowd Density as shown here. 1. Enable the crowd density detection. 2. - Page 29 Transcendent IP Cameras v4: Operation Manual 1. Go to Config à Event à People Counting. Please refer to the reference image. 2. Enable the people counting detection. 3. Set “Detection Sensitivity”, “Entrance Threshold”, “Departing Threshold”, “Staying Threshold”, “Counting Period”, “Alarm Holding Time” and so on. Counting Period: All, daily, weekly and monthly are optional.
-
Page 30: Face Detection
Transcendent IP Cameras v4: Operation Manual 5. Various changeable lights will disturb the people counting and the dark scenes will reduce the accuracy of counting. 6. If someone is moving at a high speed (passing the detected area within 2 seconds), it may result in detection failure. -
Page 31: Network Configuration
Transcendent IP Cameras v4: Operation Manual Configuration requirements of Camera and Surrounding Area 1. Cameras must be installed in the area with stable and adequate light sources. 2. The installation height ranges from 6 feet to 12 feet, adjustable according to the focal-length of different lenses and object distances. -
Page 32: Port
Transcendent IP Cameras v4: Operation Manual Trigger Email: when the IP address of the device is changed, a new IP address will be sent to the appointed mailbox automatically Trigger FTP: when the IP address of the device is changed, a new IP address will be sent to FTP server. -
Page 33: Snmp
Transcendent IP Cameras v4: Operation Manual Create domain name. After you successfully request your domain name, you will see your domain in the list. 3. Input the username, password, domain you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings. 1.6.5 SNMP To get camera status, parameters and alarm information and remotely manage the camera, you can set... -
Page 34: 802.1X
Transcendent IP Cameras v4: Operation Manual Protocol type and EAPOL version: Please use the default settings. User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server. The structure of 802.1x ①... -
Page 35: Upnp
Transcendent IP Cameras v4: Operation Manual 1.6.9 UPNP If you enable this function, you can quickly access the camera via LAN and you don’t need to configure the port mapping when the camera is connected to the WAN via the router. Go to ConfigàNetworkàUPnP. -
Page 36: Https
Transcendent IP Cameras v4: Operation Manual 1.6.12 HTTPS HTTPs provides authentication of the web site and protects user privacy. Go to Config ConfigàNetworkàHTTPS as shown below. There is a certificate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering https://IP: https port via the web browser... -
Page 37: Security Configuration
Transcendent IP Cameras v4: Operation Manual QoS (Quality of Service) function is used to provide different quality of services for different network applications. If there is not enough network bandwidth, the router or switch will sort the data streams and transfer them according to their priority to solve the network delay and network congestion by using this function. -
Page 38: Online User
Transcendent IP Cameras v4: Operation Manual Add User: 1. Click “Add” button to pop up the following textbox 2. Input user name in “User Name” textbox. 3. Input letters or numbers in “Password” and “Confirm Password” textbox. 4. Choose the use type. 5. -
Page 39: Reboot
Transcendent IP Cameras v4: Operation Manual Import & Export Settings You can import or export the setting information from PC or to PC. 1. Click “Browse” to select save path for import or export information on PC. 2. Click “Import Setting” or “Export Setting” button. Default Settings Click “Load Default”... -
Page 40: Operation Log
Transcendent IP Cameras v4: Operation Manual 1.6.19 Operation Log To query and export log: 1. Go to ConfigàMaintenanceàOperation Log. 2. Select the main type, sub type, start and end time. 3. Click “Search” to view the operation log. 4. Click “Export” to export the operation log. -
Page 41: Record Search
Transcendent IP Cameras v4: Operation Manual 5 Record Search 5.1 Photo Search Click SearchàPhoto to go to the interface as shown below. You can search the images saved in the SD card. This feature is camera dependent; some cameras do not have an SD card slot. 5.2 Photo Search Click SearchàPhoto to go to the interface as shown below. -
Page 42: Video Search
Transcendent IP Cameras v4: Operation Manual Icon Description Icon Description Save: Click this button to select Save all: Click this button to the save path of the picture on select the save path of the pictures the PC for saving the current to the PC for saving all pictures. -
Page 43: Sd Card Video Search
Transcendent IP Cameras v4: Operation Manual Icon Description Icon Description Play button. After pausing the video, click this button Pause button. to continue playing. Stop button. Speed down. Click it to play the Speed up. previous recording. Click it to play the next Open/close watermark. -
Page 44: Specifications
Transcendent Series 4MP H.265 Indoor/Outdoor WDR Compact IP Dome Camera w/10 IR LEDs & 3.6mm Lens EXAMPLE: VTD-TNMD4RFS VTD-TNMD4RFS-2 Transcendent Series 4MP H.265 Indoor/Outdoor WDR Compact IP Dome Camera w/10 IR LEDs & 2.8mm Lens {VTD} {TN} {MD} VITEK Transcendent Mini IR LEDs Fixed Iris Smart Dome Network... - Page 45 3.43 x 8.62” (87mm x 219mm) Dia x L VT-TJB01 Optional Junction Box for Cable Management for use with all Transcendent Bullet and Turret Style Cameras (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 46 4.39" x 3.92" (111.5 mm x 99.6 mm) Dia x H VT-TJB01 Optional Junction Box for Cable Management for use with all Transcendent Bullet and Turret Style Cameras (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 47 Optional Wall Mount for use Optional Junction Box for with Select Transcendent Cable Management for use Vandal Dome Cameras with all Transcendent Bullet and Turret Style Cameras (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 48 Wall Mount for Transcendent Optional Junction Box for 30 IR LED Vandal Domes Cable Management for use and Varifocal Turret Cameras with all Transcendent Bullet and Turret Style Cameras (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 49 VTD-TND4RFS Transcendent IP Cameras v4: Operation Manual Transcendent Series 4 Megapixel H.265 Indoor/Outdoor VTC-TNB4RFS WDR IP Vandal Dome Cameras with IR LED Illumination Bullet Camera with 36 IR LED Illumination VTD-TND8RFS, VTD-TND8RFS-2 Specifications Image Sensor 1/2.5” 8.0 Megapixel Progressive Scan CMOS Image Size 8 MegaPixel 3840x2160 8 MP (3840x2160) / 5 MP (2592x1944) / 4 MP (2592x1520) / 3 MP (2304x1296) / 1080P (1920x1080) / 720P (1280x720) / D1/CIF (480x240)
- Page 50 Wall Mount for Transcendent Junction Box for Cable 30 IR LED Vandal Domes Management for use with and Varifocal Turret Cameras Transcendent 30 IR LED Vandal Domes (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
- Page 51 OPTIONAL ACCESSORIES FOR TRANSCENDENT IP CAMERAS VT-TJB03A VT-TJB02A/B VT-TJB03/B VT-TJB01/B Junction Box for Cable Junction Box for Cable Junction Box for Cable Junction Box for Management for use Management for use Management for use Cable Management with Transcendent Fixed with Transcendent with Transcendent for use with all Motorized IP Dome...
- Page 52 LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
