  • Page 1 Aqua TROLL 700 Operator’s Manual 2023-05-10 | 1011822...
  • Page 2 Information subject to change without notice. In-Situ, In-Situ logo, “Water Simplified”, VuLink, RDO, RuggedCable, TROLL, BaroTROLL, HydroVu, VuSitu, Baro Merge, and Win-Situ are trademarks or registered trademarks of In-Situ Inc. ©2023. All rights reserved. This product may be covered by patents identified at www.in-situ.com/patents For a list of local compliance representatives, see https://in-situ.com/us/faq/regulatory-compliance/...

  • Page 3: Table Of Contents

    Required Accessories ........................... 17 Communication Device ................................17 Telemetry + Communication Device ............................17 Software ......................................17 Wireless TROLL Com ..................................17 Cable .........................................18 Sensors ......................................18 Rugged Twist-Lock Cable ................................18 System Components............................. 19 Aqua TROLL 700 Quickstart Guide ......................22 Getting Started ............................. 22 1-970-498-1500 www.in-situ.com...
  • Page 4 Snapshot Mode .....................................40 Live Readings Mode ..................................40 Viewing and Sharing Data ........................... 41 Sharing Data ....................................41 Viewing Data on a Mac or PC ..............................41 VuSitu Locations ............................42 About VuSitu Locations ................................42 How to Create a Location ................................42 1-970-498-1500 www.in-situ.com...
  • Page 5 Cleaning and Storing the Turbidity Sensor .........................57 Cleaning and Storing the Conductivity Sensor .........................58 Cleaning the Copper Antifouling Restrictor ........................58 Replacing O-Rings ............................59 Not used: ......................................59 Service and Repair ............................60 Obtaining Repair Service ................................60 Guidelines for Cleaning Returned Equipment ........................61 1-970-498-1500 www.in-situ.com...
  • Page 6 More Information ............................62 Declaration of Conformity ........................... 63 Appendix ..............................65 Appendix A: Parameter Numbers and Locations ......................65 Appendix B: Unit IDs ...................................68 1-970-498-1500 www.in-situ.com...

  • Page 7: Introduction

    Your equipment was carefully inspected before shipping. Check the equipment for any physical damage sustained during shipment. Notify In-Situ and file a claim with the carrier if there is any such damage; do not attempt to deploy or operate the instrument.

  • Page 8: Safety

    700. If you have questions, contact In-Situ Technical Support for assistance. • Do not use the Aqua TROLL 700 in any manner not specified by the manufacturer. • Do not submerge the Twist-Lock connector ends of the cable or instrument when they are not connected.

  • Page 9: Instrument Specifications

    2 year - sonde, sensors (excluding ISE sensors) Warranty 1 year - Nitrate, Chloride, and Ammonium Sensors Other - see warranty policy at www.in-situ.com Specifications are subject to change without notice. Android is a Notes trademark of Google, Inc. Bluetooth is a trademark of Bluetooth SIG, Inc.

  • Page 10: About The Aqua Troll 700

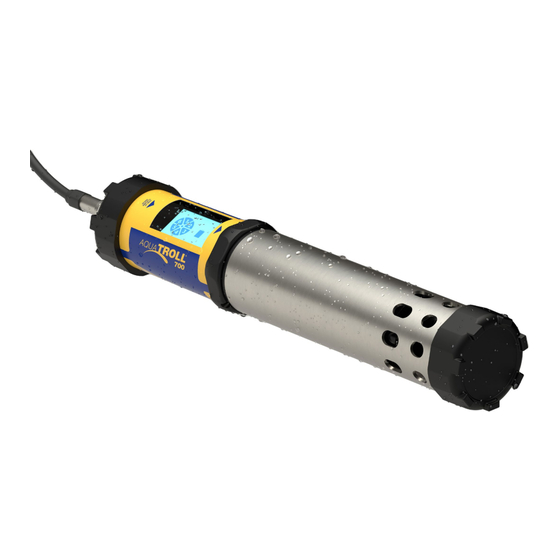

    About the Aqua TROLL 700 The Aqua TROLL 700 is a scientific instrument for water monitoring. It’s capable of measuring numerous water-quality parameters at the same time. These parameters include: • pH • Temperature • Chlorophyll-a • Fluorescein Fluorescence • ORP •...

  • Page 11: End View

    4. Sensors (6) 5. Restrictor 6. End Cap 7. Bumper Exploded View 2 8. Bulkhead connector End View Sensor Detail Flat edge of connector aligns with flat edge of 6 Interchangeable Wiper or Rugged Cable. sensors wiper plug 1-970-498-1500 www.in-situ.com...

  • Page 12: Sensor Specifications

    User calibration only if Crude OIl 2 years or greater - 5 to 50° C needed * Expected lifetime includes total shelf life and deployment lifetime. ** Lifetime and calibration frequency depend on site and storage conditions. 1-970-498-1500 www.in-situ.com...

  • Page 13: Solutions

    12 months 12 months from expiration date Hours, check before use for Deionized Water 24 months calibration Ammonium 12 months 3 to 6 months Chloride 12 months 3 to 6 months Nitrate 12 months 3 to 6 months 1-970-498-1500 www.in-situ.com...

  • Page 14: Potential Interferents

    • Gaseous chlorine • Do not use in organic solvents (e.g., acetone, chloroform, methylene chloride, etc.), which may destroy the sensing element Conductivity/Temperature Sensor Soaking the Conductivity/Temperature sensor in vinegar for longer than one hour can cause serious damage. 1-970-498-1500 www.in-situ.com...

  • Page 15: Ammonium, Chloride, And Nitrate Interferent Concentrations

    The table below lists concentrations of possible interfering ions that cause 10% error at various levels (in ppm) of N0 100 ppm NO 10 ppm NO 1 ppm NO Perchlorate (CIO 7 x 10-2 7 x 10-3 7 x 10-4 Iodide (I 0.04 Chlorate (CIO Cyanide (CN Bromide (Br Nitrite (NO Hydrogen Sulfide (HS 1-970-498-1500 www.in-situ.com...
  • Page 16 Acetate (OAc 104,200 10,420 1,042 Fluoride (F 81,400 8,140 Sulfate (SO 685,700 68,570 6,857 Additional Information For additional sensor details including accuracy, range, resolution, methodology, detection limits, response time, and more, view the Aqua TROLL specification sheet at www.in-situ.com. 1-970-498-1500 www.in-situ.com...

  • Page 17: Required Accessories

    Required Accessories Communication Device You will need a communication device to calibrate, configure and deploy the Aqua TROLL 700. Wireless TROLL Com Provides power to the Aqua TROLL 700. Calibrate, configure and deploy with a Bluetooth-endabled Android or iOS device.

  • Page 18: Cable

    Cable Rugged Twist-Lock Cable Connects the Aqua TROLL 700 to a Wireless TROLL Com or VuLink. Vented or non-vented. Stripped and tinned available for connecting to 3rd- party equipment. Sensors Available Sensors 1. Temperature 2. Conductivity/temperature 3. pH/ORP 4. RDO 5.

  • Page 19: System Components

    0056140 TROLL Com USB Cable Connect 0052500 TROLL Com RS-232 Direct Connect 0056150 TROLL Com USB Direct Connect 0052510 Accessories Part Number Dual Titanium Restrictor/Storage Chamber 1012140 Rubber Bumpers (2) 1012150 Wiper or Wiper Port Plug 1012110, 1012130 1-970-498-1500 www.in-situ.com...
  • Page 20 355 ppm, 3545 ppm, DI water) Nitrate Calibration Kit (includes 1 liter each: 14 ppm, 0032130 140 ppm, 1400 ppm, DI water) Fluorescein WT Solid State RFU Calibrator 1012180 FDOM Solid State RFU Calibrator 1012170 Crude Oil Solid State RFU Calibrator 1012190 1-970-498-1500 www.in-situ.com...
  • Page 21 SDI-12, analog (4-20 mA), or Modbus communication protocol. RuggedCable System with female to female connectors Stripped-and-tinned RuggedCable System with female connector Stripped-and-tinned RuggedCable System with male connector (short length that converts a cable with a twist-lock connector to a stripped- and-tinned cable) 1-970-498-1500 www.in-situ.com...

  • Page 22: Aqua Troll 700 Quickstart Guide

    8. pH maintenance kit (if pH/ORP or ISE sensors are included) Getting Started Your Aqua TROLL 700 ships with all sensors installed except for pH/ORP or ISE sensors. If your instrument does not include pH/ORP or ISE sensors, all six sensors are installed by the factory.
  • Page 23 If desiccant is present, Align TROLL Com Twist and push the remove it from cable. connector with cable sleeve until you hear a end. Push and twist until click. you hear a click. 1-970-498-1500 www.in-situ.com...
  • Page 24 You must have the VuSitu mobile app to use the instrument with a mobile device. Download VuSitu from the Google Play Store or the Apple App Store. Android Aqua TROLL 700 The app locates and Launch VuSitu and tap displays nearby In-Situ Connect.

  • Page 25: Parameters And Sensors

    Before using the ISE sensors for the first time, replace the reference filling solution. Condition the sensors by soaking in calibration standard for 4-24 hours prior to deployment. This step is not necessary for the pH sensor. Unscrew reference junction. Replace reference filling solution. 1-970-498-1500 www.in-situ.com...

  • Page 26: Using Ion-Selective Electrode Sensors

    ISE sensors require one or more additional sensors to function. See the details below and install the required sensors to use an ISE. Ammonium Sensor Requirements Conductivity/ Temperature Sensor Temperature Sensor To calculate ammonia... Conductivity/ pH Sensor Temperature Sensor Chloride, Nitrate, and pH/ORP Sensor Requirements Conductivity/ Temperature Sensor Temperature Sensor 1-970-498-1500 www.in-situ.com...

  • Page 27: Derived Parameters

    The derived parameter Select Derived View the list of available linear scale factor from is now listed next to Parameters in the derived parameters. grab sample analysis. measured parameters. Instrument Settings Select the edit icon to menu. configure a parameter. 1-970-498-1500 www.in-situ.com...

  • Page 28: Lcd Screen

    Power level within specs specs Possible Connected Statuses Connected via Bluetooth Connected via cable Error Messages RDO cap is reaching the end Port(s) empty of its expected lifespan. Refer to the VuSitu section of this manual for information on Instrument Bluetooth. 1-970-498-1500 www.in-situ.com...
  • Page 29 RDO cap is reaching the end of its expected lifespan. RDO Cap expired Install a new RDO Cap if it is worn or damaged or if sensor is not calibrating properly. RDO Cap: XXX days remaining Temporary text message update on the lifespan of the RDO Cap. 1-970-498-1500 www.in-situ.com...

  • Page 30: Calibrating Sensors

    Select Set User Defined to begin calibrating with the new value. If you are using an In-Situ standard and the app does not automatically detect it, perform the sensor cleaning and maintenance procedure, then select Retry Auto Detect.

  • Page 31: Rdo 100% Saturation Calibration: Water Saturated Air

    Calibrator. the calibration. deployment mode. RDO 100% Saturation Calibration: Water Saturated Air Use the procedure below to calibrate the Aqua TROLL 700 RDO sensor, or see the next section for an alternative method. Sponge Place the restrictor in calibration Saturate a small sponge with...

  • Page 32: Calibrating With An Antifouling Restrictor

    RDO Salinity Setting The Aqua TROLL 700 includes automatic salinity compensation. This feature requires a conductivity sensor and RDO sensor. With both sensors installed, the sonde uses salinity compensation by default. To change the compensation value, follow these steps:...

  • Page 33: Zeroing The Depth Sensor

    Zeroing the Depth Sensor The Aqua TROLL 700 uses its pressure reading and specific gravity value to calculate depth. The pressure sensor is located at the center of the instrument, but depth is reported at the smart sensor faces. An embedded gyroscope compensates for the distance between these sensors and allows the sonde to be deployed in any orientation (vertical, horizontal, angled).
  • Page 34 Calibration Frequency Recommendations In-Situ sensors are factory calibrated across the entire range of each sensor, and thus achieve a very high degree of accuracy and stability for extended periods of time without user calibration. In-Situ recommends inserting the instrument into a known calibration standard to check the accuracy of a sensor prior to performing any user calibration if you suspect drift, unless a user calibration is required by a standard operating procedure.
  • Page 35 Factory calibration includes a thorough cleaning, full functionality check and sensor adjustments to all applicable sensors over the entire calibrated temperature range. We recommend a factory calibration every 12 months or when the unit appears to drift significantly. 1-970-498-1500 www.in-situ.com...

  • Page 36: Batch Calibrating Sensors In Vusitu

    Set up the calibration. Make sure When all sensors have stabilized, Flip the restrictor back into tap Accept. Review the calibration that all sensors are completely deployment mode and install the submerged. report for the completed sensors. end cap. 1-970-498-1500 www.in-situ.com...

  • Page 37: Multiple Sensors Of The Same Type

    Remove sensors and install them If one sensor isn’t stablilizing, tap Accept. Review the calibration in the instruments they will be use the toggle switch to turn report for the completed sensors. deployed in. that sensor off and continue calibrating the others. 1-970-498-1500 www.in-situ.com...

  • Page 38: Vusitu Mobile App

    Com. Then open VuSitu to connect. • If the Aqua TROLL 700 is connected to another power source, turn on the Aqua TROLL 700 LCD screen by holding the sonde vertical with the sensor end facing up. Then open VuSitu to connect.

  • Page 39: Vusitu Menu Options

    Selecting with Long-press and Swipe Press and hold any item Press and swipe left to Press and swipe right to in a list of files. You can reveal the delete and reveal the sharing icon. now select multiple files. share icons. 1-970-498-1500 www.in-situ.com...

  • Page 40: Live Readings In Vusitu

    The instrument takes recording. VuSitu displays share the Live Readings from snapshot mode to a reading every two a summary of the live file via email or cloud live readings mode. seconds. readings data. storage. 1-970-498-1500 www.in-situ.com...

  • Page 41: Viewing And Sharing Data

    Viewing Data on a Mac or PC You’ll need to extract your files to view them. To do that on a Mac, double-click the Zip folder. On a PC, right-click on the folder and choose Extract. Then open your files in Excel. 1-970-498-1500 www.in-situ.com...

  • Page 42: Vusitu Locations

    How to Edit or Delete a Location Select Locations from Tap the location you Confirm by tapping Delete. the app menu. wish to delete and swipe left. Tap the trash icon. 1-970-498-1500 www.in-situ.com...

  • Page 43: How To Select A Location

    Select Instrument Choose Enabled, then Connect to VuSitu using Settings. Bluetooth. a Wireless TROLL Com or save your selection. a VuLink. You must have external power connected to your Aqua TROLL 700 to connect directly with Instrument Bluetooth. 1-970-498-1500 www.in-situ.com...

  • Page 44: Remote Monitoring With Vulink

    Remote Monitoring with VuLink Using VuLink in any manner not specified by the manufacturer may impair the device’s built-in protections. For complete information on remote monitoring, refer to the VuLink manual at www.in-situ.com Connect the instrument. Claim VuLink. Log into your HydroVu account and claim Connect the Aqua TROLL instrument to VuLink VuLink from the Telemetry page.

  • Page 45: Hydrovu

    HydroVu HydroVu is a data-management application that runs in the browser. Use it to manage data, view graphs, and configure telemetry devices for remote monitoring. See it at www.hydrovu.com. 1-970-498-1500 www.in-situ.com...

  • Page 46: Connecting The Aqua Troll 800 To A Plc Or Data Logger

    The shield must be wired to a chassis ground or earth ground. RS485 (+) RS485 (-) Ground SDI-12 Power Not Used Stripped and Tinned Cable Wire Legend Wire Color Signal External Power Black Ground Blue RS485 (+) Green RS485 (-) White SDI-12 Brown Not Used 1-970-498-1500 www.in-situ.com...
  • Page 47 SDI-12 3 Wire 1-970-498-1500 www.in-situ.com...
  • Page 48 Modbus Master RS485 1-970-498-1500 www.in-situ.com...
  • Page 49 Modbus Master with RS232 (Converter Required) 1-970-498-1500 www.in-situ.com...

  • Page 50: Configuring Sdi-12 Settings

    Modbus PLC Interface Overview The Modbus PLC Interface is a simplified method of communicating with the Aqua TROLL 700 using the Modbus protocol. It reduces programming complexity and allows the user to remove sensors and reinstall them in different ports. Please note the following limitations when using this interface: •...

  • Page 51: Setting Up Instrument

    Holding Register Size Data Description Number Address (Registers) Type 9001 9000 uint16 Device Id: 42 = Aqua TROLL 700 Non-Vented 43 = Aqua TROLL 700 Vented 9002 9001 uint32 Serial Number 9007 9006 uint16 Firmware version (100 = 1.00) 1-970-498-1500 www.in-situ.com...

  • Page 52: Reading Parameters

    Units ID as shown in Appendix B. For example, if register number 5510 (Actual Conductivity Units ID) returns 65, Actual Conductivity is configured to report in µS/cm. Looking at Appendix B, you can find that mS/cm is also a valid unit which can be set by writing Units ID 66 to register number 5510. 1-970-498-1500 www.in-situ.com...

  • Page 53: Care And Maintenance

    Never use pipe wrenches or a vise grip which my damage the instrument. Never insert tools into the restrictor holes for leverage, as they may damage the wiper shaft or sensors. Strap wrenches should only be used when necessary to remove or loosen parts. Tighten parts by hand only. 1-970-498-1500 www.in-situ.com...

  • Page 54: Maintenance Schedule

    Replace bristles at least every 12 months or when they are visibly bent, damaged, or fouled. Replace wiper brush. Tighten brush set screw Loosen brush housing Slide the old brush off of Slide the new brush onto with hex key. with hex key. the wiper shaft. the wiper shaft. 1-970-498-1500 www.in-situ.com...

  • Page 55: Cleaning And Storing The Ph/Orp Sensor And Ion-Selective Electrode (Ise) Sensors

    Do not sensor. remove tube. discard down the drain. Reinstall reference Soak ISE sensors for 2 Rinse the sensor junction. Dry sensor body. hours in the highest thoroughly prior to concentration calibration calibration. standard you plan to use. 1-970-498-1500 www.in-situ.com...
  • Page 56 3. Do not soak the sensor in strong solvents, such as chlorinated solvents, ethers, or ketones, such as acetone. To remove protein-like material, or slimy film: 1. Clean the sensor with warm water and mild soap. 2. Soak the sensor in 0.1 M HCl solution for 10 minutes and then rinse with deionized water. 1-970-498-1500 www.in-situ.com...

  • Page 57: Cleaning And Storing The Rdo Sensor

    Do not use solvents on the sensor. Storage Prior to installation, store the sensor in the factory supplied container. Once installed on the sonde, the turbidity sensor can be stored wet or dry depending on the sensor configuration of the sonde. 1-970-498-1500 www.in-situ.com...

  • Page 58: Cleaning And Storing The Conductivity Sensor

    1. Remove the restrictor from the sonde. 2. Remove the restrictor end cap. 3. Gently remove biofilm with a cloth or soft bristle brush, mild soap, and warm water. 4. Rinse the restrictor in water and air dry. 1-970-498-1500 www.in-situ.com...

  • Page 59: Replacing O-Rings

    2. Battery Cover Connector O-Rings (Aqua TROLL 800 only) 3. Battery Cover O-Rings (Aqua TROLL 800 only) 4. Restrictor O-Rings 5. Sensor Block O-Ring 6. Sensor Connector O-Rings 7. RDO® Cap O-Rings (RDO sensor only) Apply a pea-sized amount of grease to each O-ring after installing. 1-970-498-1500 www.in-situ.com...

  • Page 60: Service And Repair

    If you suspect your system is malfunctioning and repair is needed, you can help assure efficient servicing by following these guidelines: 1. Call or email In-Situ Technical Support. Have the product model and serial number available. 2. Be prepared to describe the problem, including how the product was used and the conditions noted at the time of the malfunction.

  • Page 61: Guidelines For Cleaning Returned Equipment

    Representatives that the equipment presents a potential health or biological hazard, we reserve the right to withhold service until proper certification is obtained. Decontamination & Cleaning Statement Company Name Phone Address City State Instrument Type Serial Number Contaminant(s) if known) Decontamination procedure(s) used Cleaning verified by Title Date 1-970-498-1500 www.in-situ.com...

  • Page 62: More Information

    More Information To learn more about the Aqua TROLL 700, telemetry, software and other In-Situ products, see the resources listed below. Visit www.in-situ.com Find information about In-Situ water quality, water level, telemetry and other products. Download software, manuals and product instructions.

  • Page 63: Declaration Of Conformity

    The CE mark is affixed accordingly. David A. Bossie Regulatory Compliance Manager In-Situ, Inc. April 24, 2023 Copyright © 2015 In-Situ Inc. This document is confidential and is the property of In-Situ Inc. Do not distribute without approval. 1-970-498-1500 www.in-situ.com...
  • Page 64 The UKCA mark is affixed accordingly. David A. Bossie Regulatory Compliance Manager In-Situ, Inc. April 24, 2023 Copyright © 2015 In-Situ Inc. This document is confidential and is the property of In-Situ Inc. Do not distribute without approval. 1-970-498-1500 www.in-situ.com...

  • Page 65: Appendix

    Dissolved Oxygen 5584 5583 117 = mg/L Concentration Dissolved Oxygen 5591 5590 177 = % Saturation % Saturation Chloride (Cl 5612 5611 117 = mg/L Turbidity 5619 5618 194 = NTU Oxygen Partial 5654 5653 26 = torr Pressure 1-970-498-1500 www.in-situ.com...
  • Page 66 Fluorescence 5801 5800 257 = RFU Intensity Blue Green Algae- Phycocyanin 5822 5821 118 = µg/L Concentration Blue Green Algae- Phycocyanin 5829 5828 257 = RFU Fluorescence Intensity Blue Green Algae- Phycoerythrin 5850 5849 118 = µg/L Concentration 1-970-498-1500 www.in-situ.com...
  • Page 67 Fluorescent Dissolved Organic Matter 5934 5933 257 = RFU Fluorescence Intensity Crude Oil 6004 6003 118 = µg/L Concentration Crude Oil Fluorescence 6011 6010 257 = RFU Intensity Colored Dissolved Organic Matter 6053 6052 118 = µg/L Concentration 1-970-498-1500 www.in-situ.com...

  • Page 68: Appendix B: Unit Ids

    Millimeters of Mercury (0 to C) inHg Inches of Mercury (4 to C) Centimeters of water (4 to C) Inches of water (4 to C) Torr Torr Standard atmosphere Distance/Length (33-48) Millimeters Centimeters Meters Kilometer Inches Feet Coordinates (49-64) Degrees Minutes Seconds 1-970-498-1500 www.in-situ.com...
  • Page 69 Parts per billion Density (129-144) g/cm3 Grams per cubic centimeter pH (145-160) Voltage (161-176) µV Microvolts Millivolts Volts Dissolved Oxygen (DO) % Saturation (177-192) % sat Percent saturation Turbidity (193-208) Formazin nephelometric units Nephelometric turbidity units Formazin turbidity units 1-970-498-1500 www.in-situ.com...
  • Page 70 Thousands of liters per day Volume (225-240) Cubic feet Gallons Mgal Millions of gallons Cubic meters Liters acre-ft Acre feet. Milliliters Millions of liters Thousands of liters Acre-in Acre inches % (241-256) Percent Fluorescence (257-2720 Relative Fluorescence Units 1-970-498-1500 www.in-situ.com...
  • Page 71 Low-Flow (273-288) mL/sec Milliliters per second mL/hr Milliliters per hour L/min Liters per minute L/hr Liters per hour Current (289-304) µA Microamps Milliamps Amps Velocity (305-320) ft/s Feet per second Meters per second 1-970-498-1500 www.in-situ.com...
