In-situ Aqua TROLL 700 Quick Start Manual

Antifouling restrictor
Hide thumbs Also See for Aqua TROLL 700:
1
2
3

Advertisement

Table of Contents

This restrictor requires different calibration procedures than the standard restrictor. For
accurate calibrations, follow the instructions below. Refer to the user manual for detailed
cleaning and calibration procedures.

RDO 100% Saturation Calibration: Water Saturated Air

Use the procedure below to calibrate the Aqua TROLL 700 RDO sensor, or see the next section for an
alternative method.
1
Install calibration sleeve onto
restrictor until you hear a click.
Sleeve should be flush with end of
restrictor.
4
Loosely install the end cap,
keeping the sensor face dry and
allowing for air flow.

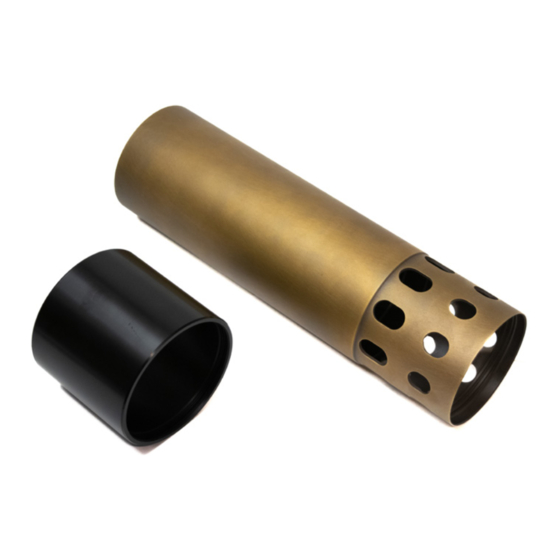

Aqua TROLL Antifouling Restrictor
Contents
•

Antifouling Restrictor

•

Calibration Sleeve

Sponge
2
Saturate a small sponge with
water.
5 min
5
Leave sponge in restrictor for five
minutes.
3
Place the sponge on the restrictor
cap.
6
Follow the instructions in VuSitu
to finish calibration.
2023-06-13 | 1014502

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aqua TROLL 700 and is the answer not in the manual?

Questions and answers

Related Manuals for In-situ Aqua TROLL 700

Summary of Contents for In-situ Aqua TROLL 700

  • Page 1 Refer to the user manual for detailed cleaning and calibration procedures. RDO 100% Saturation Calibration: Water Saturated Air Use the procedure below to calibrate the Aqua TROLL 700 RDO sensor, or see the next section for an alternative method. Sponge...
  • Page 2 Select Set User Defined to begin calibrating with the new value. If you are using an In-Situ standard and the app does not automatically detect it, perform the sensor cleaning and maintenance procedure, then select Retry Auto Detect.
  • Page 3 Follow the on-screen instructions Enter the standard value from the to complete the calibration. top of the Calibrator. Remove the calibration sleeve and reinstall the end cap before deployment. 1-970-498-1500 www.in-situ.com...
