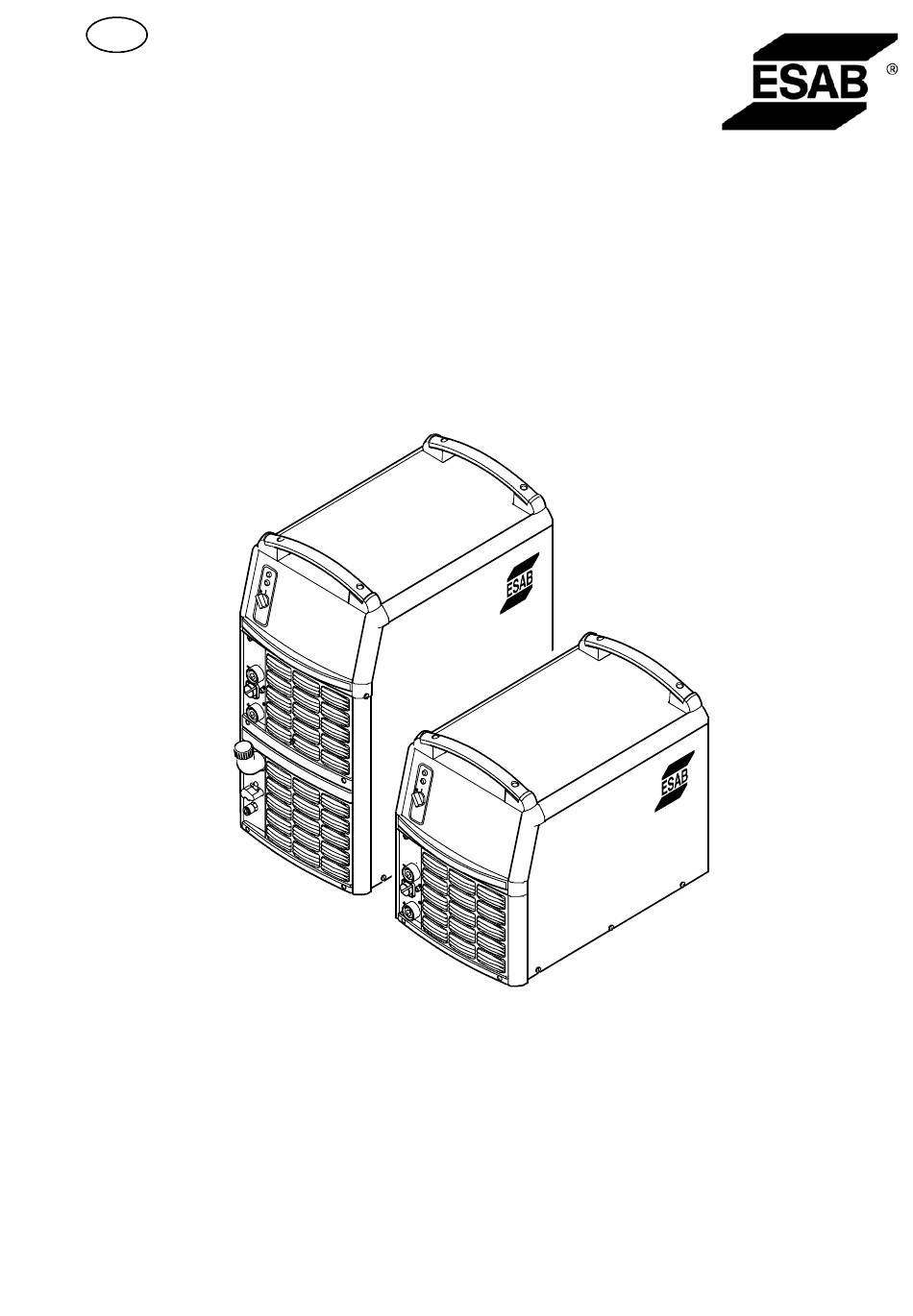

- Page 1 AristoMig 500 400 V version Instruction manual 0459 290 001 GB 060228 Valid for serial no. 304- -xxx- -xxxx, 445- -xxx- -xxxx, 524- -xxx- -xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
ESAB Welding Equipment AB, S--695 81 Laxå, Sweden, gives its unreserved guarantee that welding power source AristoMig 500 from serial number 304 complies with standard IEC/EN 60974--1, in ac- cordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC) and with stan- dard EN 50199 in accordance with the requirements of directive (89/336/EEC) and addendum (93/68/EEC). - Page 4 MALFUNCTION - - Call for expert assistance in the event of malfunction. READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING. PROTECT YOURSELF AND OTHERS! ESAB can provide you with all necessary welding protection and accessories. WARNING! Read and understand the instruction manual before installing or operating.
-
Page 5: Introduction

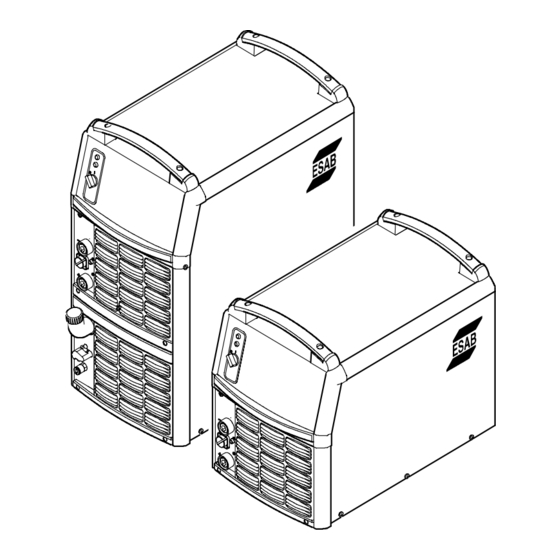

INTRODUCTION The AristoMig 500 is a MIG/MAG welding power source, which can also be used for MMA welding. There are two variants of the power source: AristoMig 500 without cooling unit AristoMig 500 with cooling unit NB: These instructions describe an AristoMig 500 with a cooling unit. -
Page 6: Installation
AristoMig 500 Insulation class transformer IP 23 Enclosure class Application class Cooling unit Cooling power 2500 W at 40˚C temp. difference and flow1.5l/min Coolant 50 % water / 50% glycol Coolant quantity 5.5 l Maximum water flow 2.0 l/min Maximum number of water--cooled welding... -
Page 7: Lifting Instructions
A protective earth connection must be made, in accordance with regulations. Rating plate with supply connection data Recommended fuse sizes and minimum cable areas AristoMig 500 400 V 3µ 50 Hz Mains voltage 400 V Mains cable area, mm... -
Page 8: Terminating Resistor
Terminating resistor In order to avoid communication interference, the ends of the CAN bus must be fitted with terminating resistors. One end of the CAN bus is at the control panel, which has an integral terminating resistor. The other end at the power source must be fitted with the terminating resistor, as shown on the right. -
Page 9: Turning On The Power Source
Turning on the power source Turn on the mains power by turning switch (7) to the ”START” position. Release the switch, and it will return to the ”1” position. If the mains power supply should be interrupted while welding is in progress, and then be restored, the power source will remain de--energised until the switch is again turned manually to the ”START”... -
Page 10: Maintenance
Remote control unit The program version in AristoPendant U8 should be 1.20 or higher. Aristo mchines with intergral control panels should have program version 1.21 or higher, in order for the remote control to function correctly. When the remote control unit is connected, the power source and wire feed unit are in remote control mode;... -
Page 11: Fault Tracing
Repair and electrical work should be performed by an authorized ESAB serviceman. Use only ESAB original spare and wear parts. Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - - 11 - -... -
Page 12: Diagram
Diagram - - 12 - - ba37e11a... - Page 13 - - 13 - - ba37e11a...
- Page 14 Cooling unit - - 14 - - ba37e11a...
-
Page 15: Ordering Number
0459 290 990 Spare part list AristoMig 500 The spare parts list is available on the Internet at www.esab.com Under ”Products” and ”Welding & cutting equipment”, you will find a link to the page where you can both search for and download instruction manuals and spare parts lists. -
Page 16: Spare Parts List
AristoMig 500 Spare parts list Item Ordering no. Denomination 0458 398 001 Filter 0458 383 001 Front grill - - 16 - - Edition 060228 ba37s... -
Page 17: Accessories
AristoMig 500 Accessories Trolley for AristoMig ..... . 0458 530 880 Trolley 2 for AristoMig (for feeder with counterbalance device and/or 2 gas bottles) . 0458 603 880 Guide pin . - Page 18 AristoMig 500 Feeder stand ......0458 522 880 Remote control adapter RA12 12 pole ..
- Page 19 AristoMig 500 Remote control cable 12 pole - - 4 pole 5 m ........
- Page 20 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...
