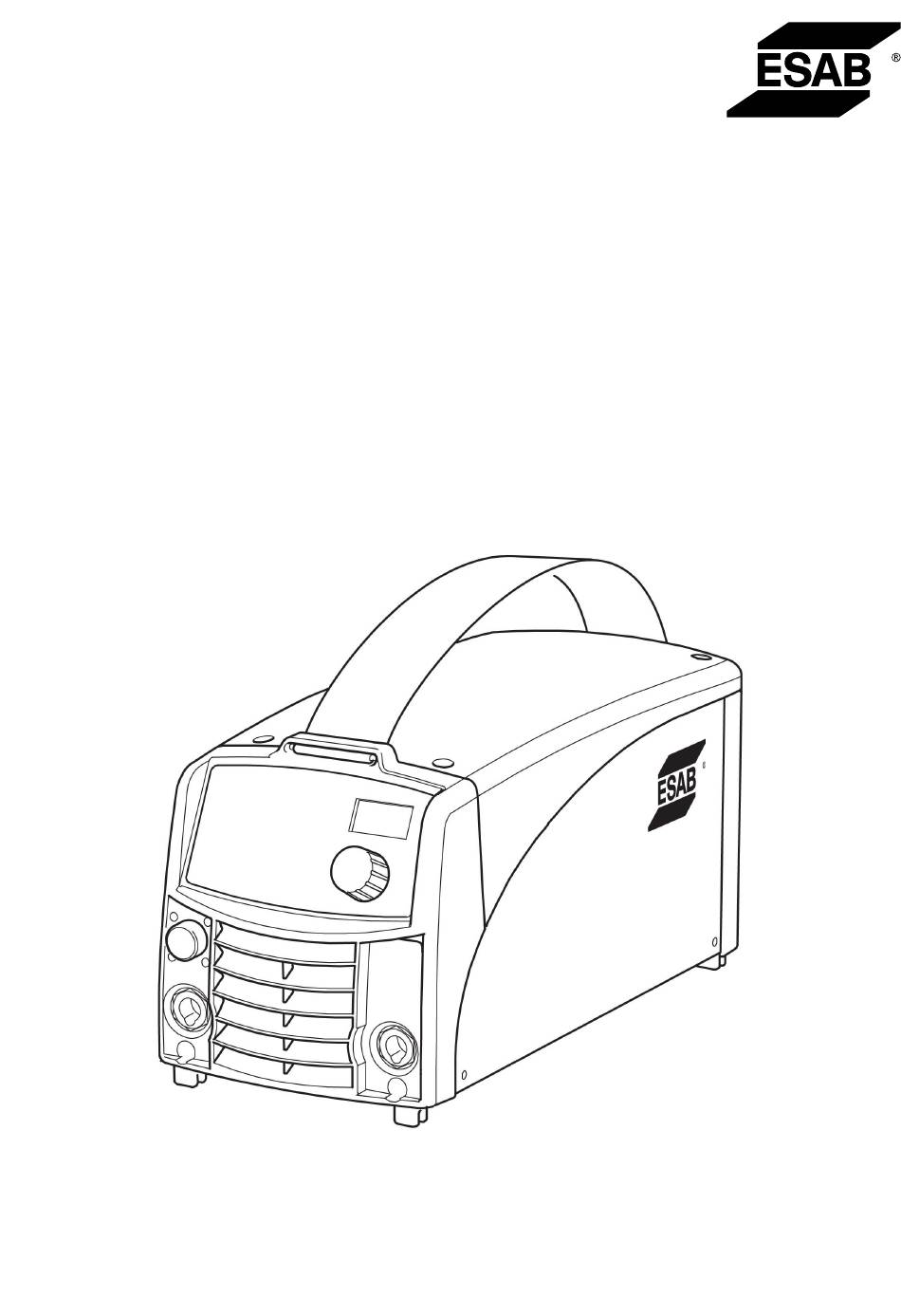

- Page 1 Caddy® Arc 151i, Arc 201i Instruction manual Valid for: serial no. 840-xxx-xxxx 0460 446 301 GB 20190619...
-
Page 3: Table Of Contents
TIG welding ..................... Remote control unit................MAINTENANCE ................... Inspection and cleaning................. TROUBLESHOOTING ................. Fault codes....................ORDERING SPARE PARTS ................ DIAGRAM ......................ORDERING NUMBERS ..................22 ACCESSORIES ....................23 Rights reserved to alter specifications without notice. 0460 446 301 © ESAB AB 2019... -
Page 4: Safety
Safety Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 Protect your eyes and body. Use the correct welding screen and filter lens and wear protective clothing. • Protect bystanders with suitable screens or curtains. NOISE - Excessive noise can damage hearing Protect your ears. Use earmuffs or other hearing protection. 0460 446 301 - 5 - © ESAB AB 2019...
- Page 6 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0460 446 301 - 6 - ©...
-
Page 7: Introduction
INTRODUCTION Arc 151i, Arc 201i is a welding current power source intended for use with coated electrodes (MMA welding) and TIG welding. ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual. Equipment Arc 151i, Arc 201i is supplied with a 3 m welding cable, return cable, 3 m mains cable and an instruction manual for power source and control panel. -
Page 8: Technical Data
1) Valid for power sources without VRD specification on the rating plate. 2) Valid for power sources with VRD specification on the rating plate. The VRD function is explained in the instruction manual for the control panel. 0460 446 301 - 8 - © ESAB AB 2019... - Page 9 Equipment marked IP23 is intended for indoor and outdoor use. Application class The symbol indicates that the power source is designed for use in areas with increased electrical hazard. 0460 446 301 - 9 - © ESAB AB 2019...
-
Page 10: Installation
The mains cable areas and fuse sizes as shown above are in accordance with Swedish regulations. For other regions, supply cables must be suitable for the application and meet local and national regulations. 0460 446 301 - 10 - © ESAB AB 2019... -
Page 11: Operation
TIG: for return cable TIG: for Tig torch l 2 Connection for remote control unit 5 Toggle switch for mains power supply 0 / 1 3 Control panel 6 Mains cable 0460 446 301 - 11 - © ESAB AB 2019... -
Page 12: Connection Of Welding And Return Cable
If, when striking arc, the tip of the electrode is pressed against the metal, it immediately melts and sticks to the metal, rendering continued welding impossible. Therefore, the arc has to be struck in the same way that you would light a match. 0460 446 301 - 12 - © ESAB AB 2019... -
Page 13: Tig Welding
”Live TIG-start” (only A33) With “Live TIG start” the arc strikes when the tungsten electrode is brought into contact with the workpiece and then lifted away from it. 0460 446 301 - 13 - © ESAB AB 2019... -
Page 14: Remote Control Unit
5 OPERATION Remote control unit The remote control unit is connected to the remote control socket on the power source. 0460 446 301 - 14 - © ESAB AB 2019... -
Page 15: Maintenance
Clogged or blocked air inlets and outlets otherwise result in overheating. TIG torch The TIG torch's wear parts should be cleaned and replaced at regular intervals in order to achieve trouble-free welding. 0460 446 301 - 15 - © ESAB AB 2019... -
Page 16: Troubleshooting
Check the gas flow. Fault codes Arc 151i, 201i comes with built-in fault monitoring. If a fault occurs, a code is shown in the display. See instruction manual for the control panel. 0460 446 301 - 16 - © ESAB AB 2019... -
Page 17: Ordering Spare Parts
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see esab.com. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list. -
Page 18: Diagram
DIAGRAM DIAGRAM Arc 151i 0460 446 301 - 18 - © ESAB AB 2019... - Page 19 DIAGRAM 0460 446 301 - 19 - © ESAB AB 2019...
- Page 20 DIAGRAM Arc 201i 0460 446 301 - 20 - © ESAB AB 2019...
- Page 21 DIAGRAM 0460 446 301 - 21 - © ESAB AB 2019...
-
Page 22: Ordering Numbers
Arc 151i, Arc 152i, A31 0459 839 028 Spare parts list Arc 151i, Arc 201i, A33 Instruction manuals and the spare parts list are available on the Internet at: www.esab.com 0460 446 301 - 22 - © ESAB AB 2019... -
Page 23: Accessories
Tig torch TXH 201V, Arc 201i 0349 501 024 Remote control MMA 1 (10 m cable) MMA and TIG: current 0349 090 886 Foot control FS002 MMA and TIG current 0460 446 301 - 23 - © ESAB AB 2019... - Page 24 MMA and TIG: rough and fine setting of current. Remote cable 12 pole - 8 pole 0459 552 880 0459 552 881 10 m 0459 552 882 15 m 0459 552 883 25 m 0460 446 301 - 24 - © ESAB AB 2019...
- Page 25 ACCESSORIES 0460 446 301 - 25 - © ESAB AB 2019...
- Page 26 For contact information visit esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 http://manuals.esab.com...
