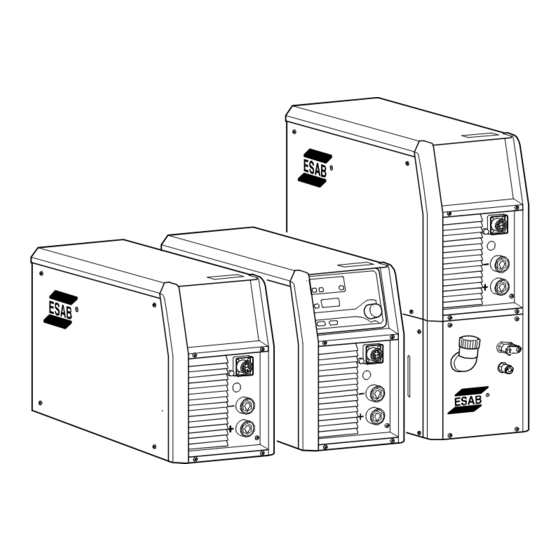

- Page 1 Origot Aristot Mig 3001i Instruction manual 0460 739 001 GB 090127 Valid for serial no. 835- -xxx- -xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
DIRECTIVE DECLARATION OF CONFORMITY ESAB AB, Welding Equipment, SE--695 81 Laxå, Sweden, gives its unreserved guarantee that weld- ing power source Mig 3001i from serial number 835 are constructed and tested in compliance with the standard EN 60974--1 and EN 60974--10 (Class A) in accordance with the requirements of directive (2006/95/EC) and (2004/108/EEC). - Page 4 WARNING Arc welding and cutting can be injurious to yourself and others. Take precausions when welding. Ask for your employer’s safety practices which should be based on manufacturers’ hazard data. ELECTRIC SHOCK - Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
-
Page 5: Introduction
By applying this European Directive you will improve the environment and human health! ESAB can provide you with all necessary welding protection and accessories. INTRODUCTION Mig 3001i is a welding power source intended for MIG/MAG welding, as well as for welding with powder filled cored wire (FCAW--S), TIG welding and for welding with coated electrodes (MMA). -
Page 6: Technical Data
TECHNICAL DATA Mig 3001i Mains voltage 400 V ±10%, 3 ∼ 50/60 Hz Mains supply 1.4 MVA sc min Primary current MIG/MAG 16 A 13 A 19 A No- -load power demand when in the 30 W energy--saving mode, 6.5 min. after welding Setting range MIG/MAG 16 A / 8 V -- 300 A / 48 V... -
Page 7: Installation
Duty cycle The duty cycle refers to the time as a percentage of a ten--minute period that you can weld at a cer- tain load without overloading. The duty cycle is valid for 40˚C. Enclosure class The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid objects or water. -
Page 8: Location
Location Position the welding power source such that its cooling air inlets and outlets are not obstructed. Mains supply Note! Mains supply requirements High power equipment may, due to the primary current drawn from the mains supply, influence the power quality of the grid. Therefore connection restrictions or requirements regarding the maximum permissible mains impedance or the required minimum supply capacity at the interface point to the public grid may apply for some types of equipment (see technical data). -
Page 9: Operation
OPERATION General safety regulations for the handling of the equipment can be found on page 3. Read through before you start using the equipment! Connections and control devices Connection for wire feed unit or remote Mains voltage switch 1 / 0 control unit Connection (--) MIG/MAG: Return cable Fuse for supply voltage for feeder unit,... -
Page 10: Fan Control
Fan control The power source has a time control that means that the fans continue to run for 6.5 minutes after welding has stopped, and the unit switches to energy--saving mode. The fans start again when welding restarts. The fans run at reduced speed for welding currents up to 110 A, and at full speed for higher currents. -
Page 11: Mma Welding
”Live TIG- - start” At a ”Live TIG--start” the tungsten electrode is placed against the workpiece. When the electrode is then lifted away from workpiece, the arc is struck at a limited current level (12 -- 15 A). MMA welding For welding with coated electrodes, the power source is supplemented with: welding cable with electrode clamp MAINTENANCE... -
Page 12: Fault- -Tracing
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - - 12 - -... - Page 13 - - 13 - -...
-
Page 14: Diagram
Diagram Mig 3001i - - 14 - -... - Page 15 Diagram - - 15 - -...
-
Page 16: Ordering Number
Origot Mig 3001i A24 with control panel A24 0459 839 031 Spare parts list Mig 3001i 0460 737 0 Instruction manual Control panel A22, A24 The spare parts list is available on the Internet at www.esab.com - - 16 - -... -
Page 17: Accessories
Mig 3001i Accessories NO TAG Trolley with two wheels ....0460 564 880 Feeder platform for trolley with two wheels 0460 815 880 Trolley with four wheels . - Page 18 Mig 3001i Stabilizer kit for counter balance ..0460 946 880 Protection frame ......0460 459 880 Cooling unit CoolMidi 1000 .
- Page 19 Mig 3001i Connection set 70mm 1.7 m ........0459 528 780 0459 528 781 5 m .
