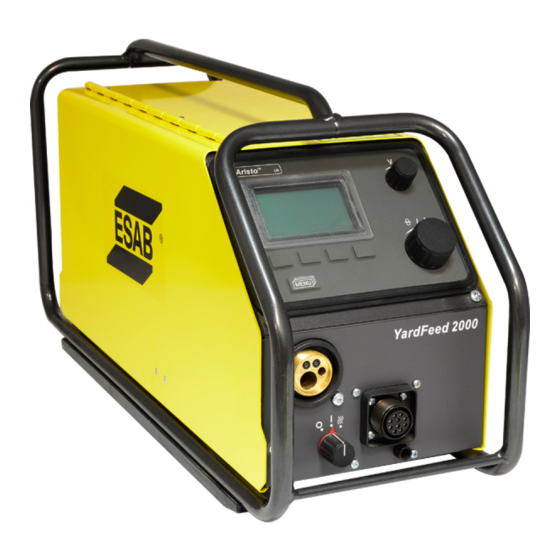

- Page 1 Aristo®, Origo™ YardFeed 2000 Instruction manual Valid for: 425-xxx-xxxx, 616-xxx-xxxx 0459 936 301 GB 20170831...
-
Page 3: Table Of Contents
Replacing and inserting wire..............Changing feed rollers................MAINTENANCE ..................... 15 Inspection and cleaning................ORDERING SPARE PARTS ................16 DIAGRAM ......................ORDERING NUMBERS ..................WEAR PARTS....................... ACCESSORIES ....................Rights reserved to alter specifications without notice. 0459 936 301 © ESAB AB 2017... -
Page 4: Safety
Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 • Keep your head out of the fumes • Use ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone and the general area 0459 936 301 - 5 - © ESAB AB 2017...
- Page 6 As the person responsible for the equipment, it is your responsibility to obtain information on approved collection stations. For further information contact the nearest ESAB dealer. 0459 936 301 - 6 - © ESAB AB 2017...
- Page 7 1 SAFETY ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0459 936 301 - 7 - © ESAB AB 2017...
-
Page 8: Introduction
It comes in different variants, see chapter "ORDERING NUMBERS". The wire feed unit contains a four-wheel drive wire feed mechanism as well as control electronics. ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual. Equipment The wire feed unit is supplied with: •... -
Page 9: Technical Data
Equipment marked IP23 is intended for indoor and outdoor use. Application class The symbol indicates that the power source is designed for use in areas with increased electrical hazard. 0459 936 301 - 9 - © ESAB AB 2017... -
Page 10: Installation
WARNING! When welding in an environment with increased electrical danger, only power sources intended for this environment may be used. These power sources are marked with the symbol Lifting instructions 0459 936 301 - 10 - © ESAB AB 2017... -
Page 11: Operation
Read it through before you start using the equipment! WARNING! Assure that the side panels are closed during operation. WARNING! Rotating parts can cause injury, take great care. 0459 936 301 - 11 - © ESAB AB 2017... -
Page 12: Connections And Control Devices
* ELP = ESAB Logic Pump, see "Functional explanations" section. Function explanations Water connection The wire feed unit with water connection is equipped with a detection system ELP (ESAB Logic Pump) which checks that the water hoses are connected. When connecting a water-cooled welding torch, the water pump starts. - Page 13 Heat ON (accessory) and welding OFF The bobbin area is heated so that the welding wire is not damp when welding. Gasflow control A = Controlling gas flow. B = Gas flow meter 0459 936 301 - 13 - © ESAB AB 2017...
-
Page 14: Setting The Wire Feed Pressure
(5) and pulling out the rollers. During installation, repeat the above in reverse order. Choice of track in the feed rollers Turn the feed roller with the dimensioning mark for the required track towards you. 0459 936 301 - 14 - © ESAB AB 2017... -
Page 15: Maintenance
The welding torch's wear parts should be cleaned and replaced at regular intervals in order to achieve trouble-free wire feed. Blow the wire guide clean regularly and clean the contact tip. 0459 936 301 - 15 - © ESAB AB 2017... -
Page 16: Ordering Spare Parts
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see the back cover of this document. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list. -
Page 17: Diagram
DIAGRAM DIAGRAM 0459 936 301 - 17 - © ESAB AB 2017... - Page 18 DIAGRAM 0459 936 301 - 18 - © ESAB AB 2017...
-
Page 19: Ordering Numbers
0460 454 Instruction manual Control panel Origo™ MA23 0459 287 Instruction manual Control panel Aristo® U6 Instruction manuals and the spare parts list are available on the Internet at: www.esab.com 0459 936 301 - 19 - © ESAB AB 2017... -
Page 20: Wear Parts
In order to weld with aluminium wire, proper rollers, nozzles and liners for aluminium wire MUST be used. It is recommended to use 3 m long welding torch for aluminium wire, equipped with appropriate wear parts. 0459 936 301 - 20 - © ESAB AB 2017... - Page 21 WEAR PARTS 0459 936 301 - 21 - © ESAB AB 2017...
-
Page 22: Accessories
0460 006 880 Water kit 0459 491 880 Remote control unit MTA1 CAN MIG/MAG: wire feed speed and voltage MMA: current and arc force TIG: current, pulse and background current 0459 936 301 - 22 - © ESAB AB 2017... - Page 23 MIG/MAG: voltage deviation TIG and MMA: current deviation 0465 720 002 ESAB ready mixed coolant (10 l / 2.64 gal) Use of any other cooling liquid than the prescribed one might damage the equipment. In case of such damage, all warranty undertakings from ESAB cease to apply.
- Page 24 10 pole cable plug - 10 pole cable socket 0459 528 572 10 m 0459 528 573 15 m 0459 528 574 25 m 0459 528 575 35 m 0459 528 576 50 m 0459 936 301 - 24 - © ESAB AB 2017...
- Page 25 ACCESSORIES 0459 936 301 - 25 - © ESAB AB 2017...
