- Page 1 OPERATING INSTRUCTIONS Translation of the original instructions TC 1200 Electronic Drive Unit...
-
Page 2: Table Of Contents
6.3 Cross-linking via the connection RS-485 ......16 The Pfeiffer Vacuum parameter set ....... . 17 7.1 General . - Page 3 Switching off ......... 29 Pfeiffer Vacuum Protocol for "RS-485" ......30 8.1 Telegram frame .
-
Page 4: About This Manual
About this manual Validity This operating manual is for customers of Pfeiffer Vacuum. It describes the functioning of the designated product and provides the most important information for safe use of the unit. The description follows applicable EU guidelines. All information provided in this operating manual refers to the current state of the product's development. -
Page 5: Pictographs
About this manual 1.2.2 Pictographs Prohibition of an action to avoid any risk of accidents, the disregarding of which may result in serious accidents Warning of a displayed source of danger in connection with operation of the unit or equipment Command to perform an action or task associated with a source of dan- ger, the disregarding of which may result in serious accidents Important information about the product or this document... -
Page 6: Safety
Do not independently modify or change the pump and electrical equipment. Make sure that the system is integrated in an emergency off safety circuit. Consult Pfeiffer Vacuum for special requirements. WARNING Danger due to lack of power disconnection device Pump and electronic drive unit are not equipped with a power disconnection device. -
Page 7: Proper Use
Following installation into a plant and before commissioning, the operator must check the entire system for compliance with the valid EU directives and reassess it accord- ingly. ● The electronic drive unit TC 1200 operates designated Pfeiffer Vacuum turbopumps and their accessories. Improper use Improper use will cause all claims for liability and warranties to be forfeited. -
Page 8: Product Description

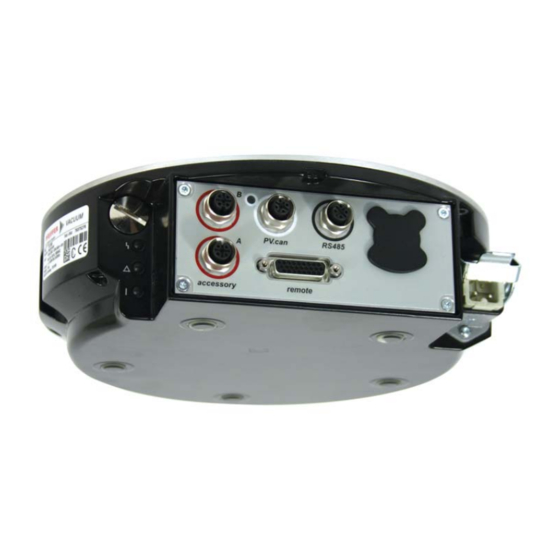

Product description Product description Product identification 3.1.1 Product characteristics The electronic drive unit TC 1200 is an integrated component of the turbopump. It's pur- pose is to drive, monitor and control the entire pump. Characteristics TC 1200 Connection panel Standard (RS485) -
Page 9: Function
High Density D-sub 26 pole female socket for the connection and configuration of a remote control. RS-485 M12 socket with screw coupling for the connection of a Pfeiffer Vacuum control unit or a PC. The use of a Y-connector enables the series connection in a bus system. -
Page 10: Connecting To The Mains Power Supply
Do not independently modify or change the pump and electrical equipment. Make sure that the system is integrated in an emergency off safety circuit. Consult Pfeiffer Vacuum for special requirements. WARNING Danger due to lack of power disconnection device Pump and electronic drive unit are not equipped with a power disconnection device. -
Page 11: Connection Diagram
RS 485 D - DI Remote priority n.c. Relay 1 Relay 1 Relay 1 Relay 2 Relay 2 Relay 2 Relay 3 Relay 3 DO Remote priority active RS485 D+ RS485 D- GND* Fig. 4: Connection diagram and assignment of the TC 1200... -
Page 12: Connection "Remote
Remote control is possible via the 26-pin D-sub connector labelled "remote" on the elec- tronic drive unit. The accessible individual functions are mapped to "PLC levels". Remove the remote plug from the TC 1200 and connect a remote control unit. Pin as- signment of the connector according to table. -
Page 13: Inputs
The digital inputs at connection "remote" are used to connect various functions of the electronic drive unit. Functions are assigned to the inputs DI1 - DI2 ex factory. These can be configured via interface RS-485 and the Pfeiffer Vacuum parameter set. DI1 (Enable venting) / Pin 2... -
Page 14: Outputs
5.2.5 RS-485 One Pfeiffer Vacuum display and control panel (DCU or HPU) or an external PC can be connected respectively to the electronic drive unit via Pin 24 and Pin 25 of the connec- tion "remote" on the electronic drive unit. -
Page 15: Connection "Rs-485
Connection "RS-485" Connections A Pfeiffer Vacuum display and control panel (DCU or HPU) or an external PC can be connected to the electronic drive unit via the connection designated "RS-485". The inter- face is electrically isolated from the maximum supply voltage of the electronic drive unit. -
Page 16: Cross-Linking Via The Connection Rs-485
Connection "RS-485" Cross-linking via the connection RS-485 USB/RS485-converter USB/RS485-converter RS 485 CAUTION Danger of electric shock The insulation measures of the bus system are designed only for use with safety extra- low voltage. Connect only suitable devices to the bus system. ... -
Page 17: The Pfeiffer Vacuum Parameter Set
All function-relevant variables of a turbopump are anchored in the electronic drive unit as parameters. Each parameter has a three-digit number and a designation. Parameters can be used via Pfeiffer Vacuum display and control units or via RS-485 with the Pfeiffer Vacuum protocol. -
Page 18: Control Commands
The Pfeiffer Vacuum parameter set 7.2.3 Control commands default Display Designation Functions Unit min max 001 Heating Heating 0 = off 1 = on 002 Standby Standby 0 = off 1 = on 004 RUTimeCtrl Run-up time control 0 = off... -
Page 19: Status Requests
The Pfeiffer Vacuum parameter set default Display Designation Functions Unit min max 041 Press1HVen Enable integrated HV Sensor (IKT only) 0 = off 1 = on 2 = on, when rotation speed switchpoint attained 3 = on, when pressure switchpoint... -
Page 20: Configuring The Connections
The Pfeiffer Vacuum parameter set default Display Designation Functions Unit min max 314 OpHrsElec Operating hours electronic drive unit 65535 315 Nominal Spd Nominal rotation speed (Hz) 999999 316 DrvPower Drive power 999999 319 PumpCycles Pump cycles 65535 324 TempPwrStg Temperature power stage °C... -
Page 21: Accessory Connection
The Pfeiffer Vacuum parameter set 7.3.1 Accessory connection Configuration via parameters [P:035], [P:036], [P:037] or [P:038]. Option Description 0 = Fan (continuous operation) Control via parameter for pumping station 1 = Venting valve, normally closed Control via parameter to enable venting. When using a nor-... -
Page 22: Digital Inputs On "Remote
1,5 - 8,5 V for sensor RPT p (hPa) = 10 (U-10.5 V) 1,5 - 8,5 V for sensor IKT p (hPa) = 10 9 V: overrange 8 = Control fore-vacuum Fore-vacuum signal; control of Pfeiffer Vacuum turbo pumping stations 7.3.5 Analog input on "remote" Configuration via parameter [P:057]. -
Page 23: Operation With The Pfeiffer Vacuum Parameter Set
Ensure the gas mode is correctly set. Contact Pfeiffer Vacuum before using gases with a greater molecular mass (> 80). ● Gas mode "0" for gases with the molecular mass >39, e.g. argon. ● Gas mode "1" for gases with the molecular mass 39. -
Page 24: Set Value Power Consumption
The Pfeiffer Vacuum parameter set To avoid rotation speed fluctuations, Pfeiffer Vacuum recommends setting a some- what lower frequency in rotation speed setting mode. 7.4.4 Set value power consumption Adjust the parameter [P:708] to the desired value in %. -
Page 25: Rotation Speed Setting Mode
The Pfeiffer Vacuum parameter set When the pumping station [P:010] is switched on, the rotation speed switchpoint 1 is the signal generator. When the pumping station is switched off, signal output and status que- ry are based on the rotation speed switchpoint 2. The signal output is governed by the hysteresis between the two switchpoints. -
Page 26: Standby
Pfeiffer Vacuum recommends the intermittend mode between 5 and 10 hPa. A pressure gauge and a dosing valve are required to set the switching thresholds. -
Page 27: 7.4.11 Standby Mode For The Backing Pump
The signal can also be used for switching a fore-vacuum safety valve. 7.4.11 Standby mode for the backing pump Connected Pfeiffer Vacuum backing pumps with speed control can be put in standby by configuring a digital output. The pump status signal switches off the backing pump when the turbo pump reaches the specified power consumption level;... -
Page 28: 7.4.13 Vent Modes
The Pfeiffer Vacuum parameter set Sealing gas monitoring Configuration of a free and available accessory output [P:035], [P:036, [P:037], or [P:038] for option "13." Setup of warning threshold [P:791] for the required sealing gas flow rate. Query of sealing gas flow rate via [P:337]. -
Page 29: Switching Off
The Pfeiffer Vacuum parameter set Ongoing (and removed) error messages are reset. After a successfully completed self- test, the electronic drive unit sets the turbopump motor and all connected accessories into operation depending on their configuration. When the pumping station is activated, the motor of the turbopump can be switched off and on via the function [P:023]. -
Page 30: Pfeiffer Vacuum Protocol For "Rs-485
Pfeiffer Vacuum Protocol for "RS-485" Pfeiffer Vacuum Protocol for "RS-485" Telegram frame The telegram frame of the Pfeiffer Vacuum protocol contains only ASCII code characters [32; 127], the exception being the end character of the message . Basically, a master ... -
Page 31: Example 2
Pfeiffer Vacuum Protocol for "RS-485" 8.2.2 Example 2 Control command Switch on pumping station (parameter [P:010], device address slave: "042") ! ASCII Control command understood Switch on pumping station (parameter [P:010], device address slave: "042") ! ASCII Applied data types... -
Page 32: Malfunctions
Problem Possible causes Remedy code Err001 Overspeed Call Pfeiffer Vacuum Service Only acknowledge for rotational speed f = 0 Err002 Overvoltage – Incorrect mains input voltage Check mains input voltage Only acknowledge for rotational speed f = 0 ... - Page 33 Possible causes Remedy code Err010 Internal device error Call Pfeiffer Vacuum Service Only acknowledge for rotational speed f = 0 Err021 Drive electronics fail to identify pump Call Pfeiffer Vacuum Service Only acknowledge for rotational speed f = 0...
-
Page 34: Operation With Dcu
Malfunctions Error Problem Possible causes Remedy code Wrn116 Temperature evaluation on bearings is Call Pfeiffer Vacuum Service faulty Wrn117 High pump base temperature – Insufficient cooling Improve cooling Check deployment conditions Wrn118 High output stage temperature – Insufficient cooling ... -
Page 35: Declaration Of Conformity
We hereby declare that the product cited below satisfies all relevant provisions accord- ing to the following EC directives: ● Electromagnetic Compatibility 2014/30/EU ● Low Voltage 2014/35/EU TC 1200 Harmonised standards and national standards and specifications which have been ap- plied: DIN EN 61000-3-2 : 2014... - Page 36 VACUUM SOLUTIONS FROM A SINGLE SOURCE Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, technological perfection, competent advice and reliable service. COMPLETE RANGE OF PRODUCTS From a single component to complex systems: We are the only supplier of vacuum technology that provides a complete product portfolio.
