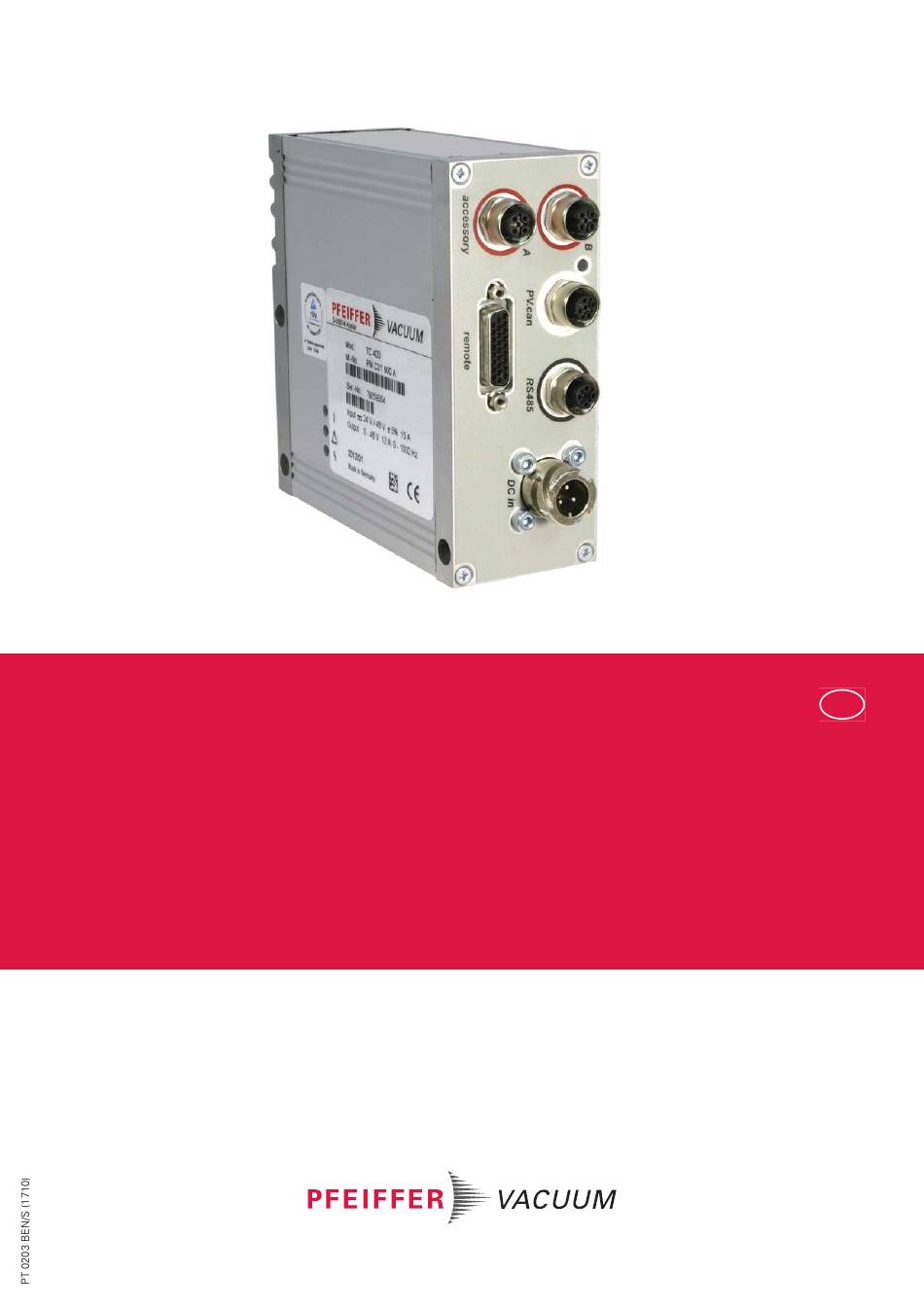

OPERATING INSTRUCTIONS
EN
Translation of the original instructions
TC 400
Electronic Drive Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pfeiffer Vacuum TC 400

  • Page 1 OPERATING INSTRUCTIONS Translation of the original instructions TC 400 Electronic Drive Unit...
  • Page 2: Table Of Contents

    6.3 Cross-linking via the connection RS-485 ......16 The Pfeiffer Vacuum parameter set ....... . 17 7.1 General .
  • Page 3 Switching off ......... 29 Pfeiffer Vacuum Protocol for "RS-485" ......30 8.1 Telegram frame .
  • Page 4: About This Manual

    About this manual Validity This operating manual is for customers of Pfeiffer Vacuum. It describes the functioning of the designated product and provides the most important information for safe use of the unit. The description follows applicable EU guidelines. All information provided in this operating manual refers to the current state of the product's development.
  • Page 5: Pictographs

    About this manual 1.2.2 Pictographs Prohibition of an action to avoid any risk of accidents, the disregarding of which may result in serious accidents Warning of a displayed source of danger in connection with operation of the unit or equipment Command to perform an action or task associated with a source of dan- ger, the disregarding of which may result in serious accidents Important information about the product or this document...
  • Page 6: Safety

    ● Power supply: The turbopump power supply must apply to the requirements of dou- ble insulation between mains input voltage and operating voltage according to the reg- ulations of IEC 61010 and IEC 60950. Therefore Pfeiffer Vacuum recommends to use exclusively original-power packs and -accessories. Only in this case Pfeiffer Vacuum is able to guarantee the compliance of the European and North American guidelines.
  • Page 7: Proper Use

    Service. Functional safety The drive unit (electronic drive unit) TC 400 performs the safety function "Safe Limited Speed" according to EN 61800-5-2. In case of excess rotation speed the commutation of the pump motor is switched off and the drive transferred into the safe condition.
  • Page 8: Product Description

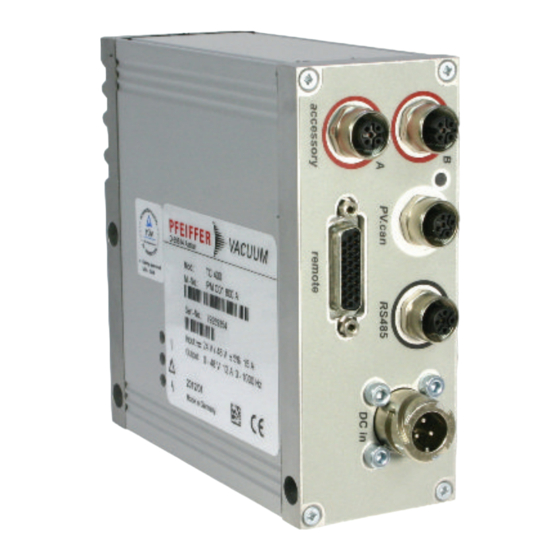

    Product description Product description Product identification The electronic drive unit TC 400 is an integrated component of the turbopump. It's pur- pose is to drive, monitor and control the entire pump. Characteristics TC 400 Connection voltage TC 24 V DC ±10 % 48 V DC ±10 %...
  • Page 9: Function

    High Density D-sub 26 pole female socket for the connection of a remote control. RS485 M12 socket with screw coupling for the connection of a Pfeiffer Vacuum control unit or a PC. The use of a Y-connector enables the series connection in a bus system.
  • Page 10: Connection Diagram

    Relay 1 Relay 2 + U B (+24 / +48 VDC ±10 %) Relay 2 Relay 2 Relay 3 Relay 3 DO Remote priority active RS485 D+ RS485 D- GND* Fig. 3: Connection diagram and assignment of the TC 400...
  • Page 11: Connection "Remote

    Remote control is possible via the 26-pin D-sub connector labelled "remote" on the elec- tronic drive unit. The accessible individual functions are mapped to "PLC levels".  Remove the remote plug from the TC 400 and connect a remote control unit. Pin as- signment of the connector according to table.
  • Page 12: Operation Via "Remote" Connection

    The digital inputs at connection "remote" are used to connect various functions of the electronic drive unit. Functions are assigned to the inputs DI1 - DI2 ex factory. These can be configured via interface RS-485 and the Pfeiffer Vacuum parameter set. DI1 (Enable venting) / Pin 2...
  • Page 13: Outputs

    The digital outputs at the connection "remote" can be loaded with a maximum of 24 V / 50 mA per output. All outputs listed below are configurable by the Pfeiffer Vacuum pa- rameter set via interface RS-485 (description related to factory settings).
  • Page 14: Rs-485

    5.2.5 RS-485 One Pfeiffer Vacuum display and control panel (DCU or HPU) or an external PC can be connected respectively to the electronic drive unit via Pin 24 and Pin 25 of the connec- tion "remote" on the electronic drive unit.
  • Page 15: Connection "Rs-485

    Connection "RS-485" Connections A Pfeiffer Vacuum display and control panel (DCU or HPU) or an external PC can be connected to the electronic drive unit via the connection designated "RS-485". The inter- face is electrically isolated from the maximum supply voltage of the electronic drive unit.
  • Page 16: Cross-Linking Via The Connection Rs-485

    Connection "RS-485" Cross-linking via the connection RS-485 USB/RS-485-converter USB/RS-485-converter TC/TM TC/TM RS 485 RJ45 TC 600 / 750 CAUTION Danger of electric shock The insulation measures of the bus system are designed only for use with safety extra- low voltage. ...
  • Page 17: The Pfeiffer Vacuum Parameter Set

    All function-relevant variables of a turbopump are anchored in the electronic drive unit as parameters. Each parameter has a three-digit number and a designation. Parameters can be used via Pfeiffer Vacuum display and control units or via RS-485 with the Pfeiffer Vacuum protocol.
  • Page 18: Control Commands

    The Pfeiffer Vacuum parameter set 7.2.3 Control commands default  Display Designation Functions Unit min max 001 Heating Heating 0 = off 1 = on 002 Standby Standby 0 = off 1 = on 004 RUTimeCtrl Run-up time control 0 = off...
  • Page 19: Status Requests

    The Pfeiffer Vacuum parameter set default  Display Designation Functions Unit min max 041 Press1HVen Enable integrated HV Sensor (IKT only) 0 = off 1 = on 2 = on, when rotation speed switchpoint attained 3 = on, when pressure switchpoint...
  • Page 20: Configuring The Connections

    The Pfeiffer Vacuum parameter set default  Display Designation Functions Unit min max DrvPower Drive power 999999 PumpCycles Pump cycles 65535 TempPwrStg Temperature power stage °C 999999 TempElec Temperature electronic °C 999999 TempPmpBot Temperature pump bottom part °C 999999 AccelDecel...
  • Page 21: Digital Outputs And Relays On "Remote

    The Pfeiffer Vacuum parameter set Option Description 0 = Fan (continuous operation) Control via parameter for pumping station 1 = Venting valve, normally closed Control via parameter to enable venting. When using a nor- mally closed venting valve 2 = Heater...
  • Page 22: Digital Inputs On "Remote

    1,5 - 8,5 V for sensor RPT p (hPa) = 10 (U-10.5 V) 1,5 - 8,5 V for sensor IKT p (hPa) = 10 9 V: overrange 8 = Control fore-vacuum Fore-vacuum signal; control of Pfeiffer Vacuum turbo pumping stations 7.3.5 Analog input on "remote"  Configuration via parameter [P:057].
  • Page 23: Operation With The Pfeiffer Vacuum Parameter Set

     Ensure the gas mode is correctly set.  Contact Pfeiffer Vacuum before using gases with a greater molecular mass (> 80). ● Gas mode "0" for gases with the molecular mass >39, e.g. argon. ● Gas mode "1" for gases with the molecular mass  39.
  • Page 24: Set Value Power Consumption

    The Pfeiffer Vacuum parameter set  To avoid rotation speed fluctuations, Pfeiffer Vacuum recommends setting a some- what lower frequency in rotation speed setting mode. 7.4.4 Set value power consumption  Adjust the parameter [P:708] to the desired value in %.
  • Page 25: Rotation Speed Setting Mode

    The Pfeiffer Vacuum parameter set When the pumping station [P:010] is switched on, the rotation speed switchpoint 1 is the signal generator. When the pumping station is switched off, signal output and status que- ry are based on the rotation speed switchpoint 2. The signal output is governed by the hysteresis between the two switchpoints.
  • Page 26: Standby

    Pfeiffer Vacuum recommends the intermittend mode between 5 and 10 hPa. A pressure gauge and a dosing valve are required to set the switching thresholds.
  • Page 27: 7.4.11 Standby Mode For The Backing Pump

    The signal can also be used for switching a fore-vacuum safety valve. 7.4.11 Standby mode for the backing pump Connected Pfeiffer Vacuum backing pumps with speed control can be put in standby by configuring a digital output. The pump status signal switches off the backing pump when the turbo pump reaches the specified power consumption level;...
  • Page 28: 7.4.13 Vent Modes

    The Pfeiffer Vacuum parameter set Sealing gas valve  Switch on or off a sealing gas valve which is connected to a pre-configured output via parameter [P:050]. Sealing gas monitoring  Configuration of a free and available accessory output [P:035], [P:036, [P:037], or [P:038] for option "13."...
  • Page 29: Switching On/Off The Pump

    The Pfeiffer Vacuum parameter set Switching on/off the pump 7.5.1 Switching on The function "pumping station" comprises turbopump operation with control of all con- nected accessories (e.g. backing pump).  Switch on the supply voltage with switch S1 on the power supply.
  • Page 30: Pfeiffer Vacuum Protocol For "Rs-485

    Pfeiffer Vacuum Protocol for "RS-485" Pfeiffer Vacuum Protocol for "RS-485" Telegram frame The telegram frame of the Pfeiffer Vacuum protocol contains only ASCII code characters [32; 127], the exception being the end character of the message . Basically, a master ...
  • Page 31: Example 2

    Pfeiffer Vacuum Protocol for "RS-485" 8.2.2 Example 2 Control command Switch on pumping station (parameter [P:010], device address slave: "042") ! ASCII Control command understood Switch on pumping station (parameter [P:010], device address slave: "042") ! ASCII Applied data types...
  • Page 32: Malfunctions

    Error Problem Possible causes Remedy code Err001 Overspeed  Call Pfeiffer Vacuum Service  Only acknowledge for rotational speed f = 0 Err002 Overvoltage – Incorrect power pack used  Check power pack type  Check partial mains voltage Err006 Run-up fault –...
  • Page 33 Possible causes Remedy code Err010 Internal device error  Call Pfeiffer Vacuum Service  Only acknowledge for rotational speed f = 0 Err021 Drive electronics fail to identify pump  Call Pfeiffer Vacuum Service  Only acknowledge for rotational speed f = 0...
  • Page 34 Malfunctions Error Problem Possible causes Remedy code Wrn116 Temperature evaluation on bearings is  Call Pfeiffer Vacuum Service faulty Wrn117 High pump base temperature – Insufficient cooling  Improve cooling  Check deployment conditions Wrn118 High output stage temperature – Insufficient cooling ...
  • Page 35: Declaration Of Conformity

    EC directives: ● Electromagnetic Compatibility 2014/30/EU ● Low Voltage 2014/35/EU ● Restriction of the use of certain Hazardous Substances 2011/65/EU TC 400 Harmonised standards and national standards and specifications which have been ap- plied: DIN EN 61000-3-2 : 2014...
  • Page 36 VACUUM SOLUTIONS FROM A SINGLE SOURCE Pfeiffer Vacuum stands for innovative and custom vacuum solutions worldwide, technological perfection, competent advice and reliable service. COMPLETE RANGE OF PRODUCTS From a single component to complex systems: We are the only supplier of vacuum technology that provides a complete product portfolio.
