UniPOS IFS7002 Service Instructions

SERVICE INSTRUCTIONS FOR THE STAFF

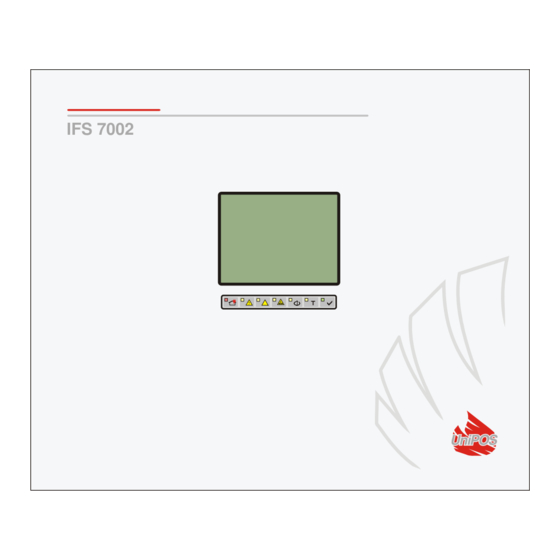

1. . Indications and buttons of IFS7002
1 Common indicator for fire condition
2 Common indicator for fault condition
3 Indicator for System error
4 Indicator for Fault in power supply
5 Indicator for Disabled component
6 Test indicator
7 Indicator for Power supply
8 LCD touch-panel display
2. Duty mode
When the control panel is in this condition, only the green LED indicator
is illuminated. The local sounder is switched off.
The logo of the company-producer, information for the current local time and the mode of
operation (DAY or NIGHT) are shown on the panel's display.
3. Actions of the staff on duty when a signal for fault condition is released:
Light indications for various types of faults are shown on Fig. 1. Upon any registered fault
condition the sounder of the fire control panel releases discontinuous signal
To stop the sound signaling press button
display when the control panel is in fault condition and will disappear when pressed or when the
sound signaling is interrupted (eliminated fault conditions).
In case indicators
panel, supplying the control panel. When the power supply is restored, the light indications for
fault condition extinguish.
FOR
FIRE CONTROL PANEL
1 2 3
and are illuminated, check the voltage 220 V at the power
IFS7002
4 5 6 7
Fig.1
(Stop Alarm). The button appears on the
8
(Power supply)
.
1
