UniPOS
Service Personnel's Instruction Manual for Operating

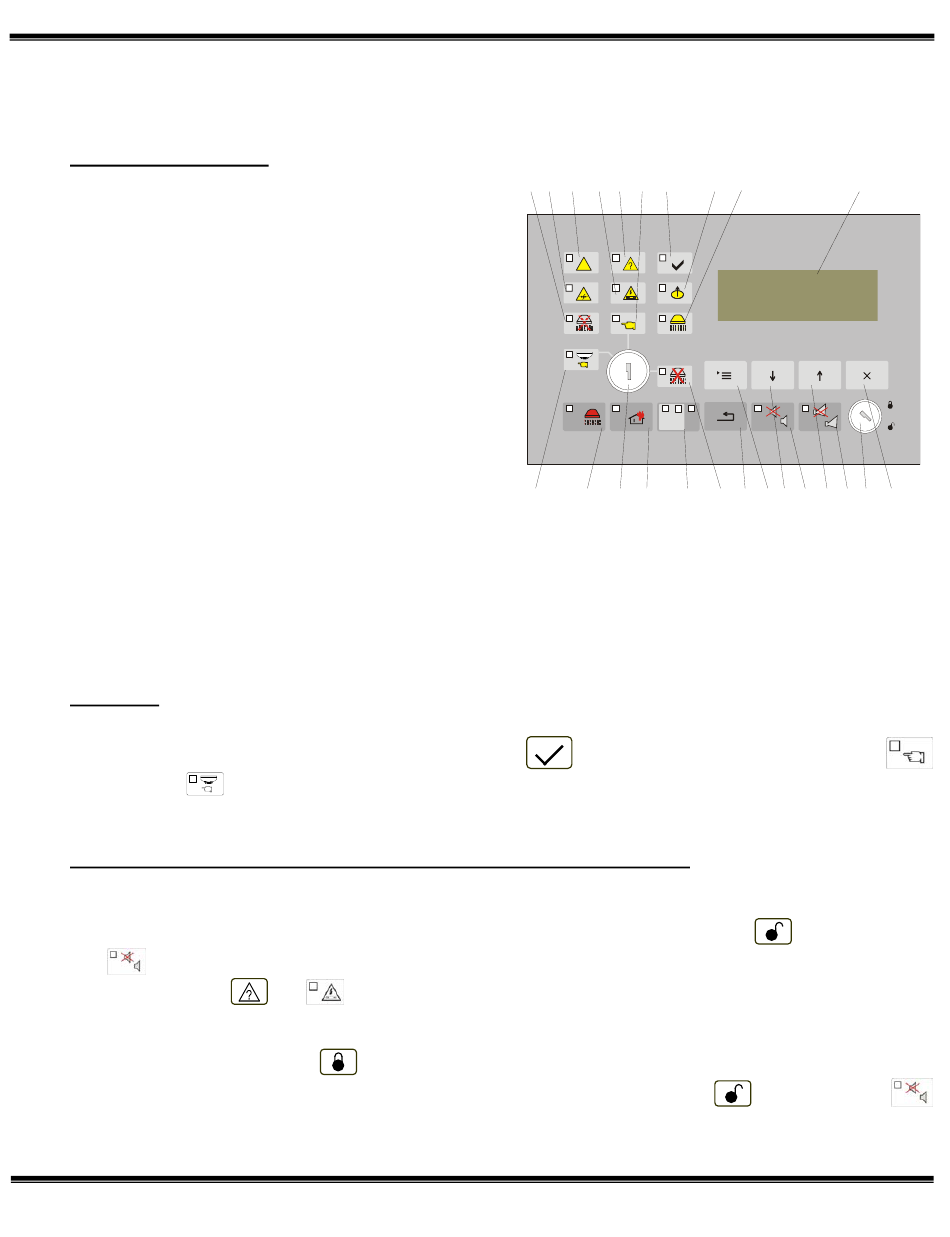

1. Indications and Buttons

1
Indicator Hold extinguishing
2
Indicator Fault in a circuit of signal wires
3
Indicator System Error
4
Indicator Fault in power supply
5
Common Indicator Fault Condition
6
Indicator Manual Mode
7
Indicator Power Supply
8
Indicator Disabled Component
9
Indicator Low Pressure
10
LCD display (4х20)
11
Indicator Automatic Mode
12
Indicator Fire condition stage II – Extinguishing
13
Switch – Automatic / Manual / Disable
14
Indicator Fire condition stage I
15
Individual indicators of the Fire detecting lines
16
Indicator Disable extinguishing
17
Button Reset
18
Button Menu
19
Button Down
20
Button Alarm with indicator Stop alarm
21
Button Up
22
Button Outputs with indicator Suppressed outputs
23
Switch – Access level
24
Button Cancel

2. Duty Mode

This is the condition when the fire alarming installation is not in Extinguishing Mode, Fire condition and Fault
condition. In Duty Mode only the green LED indicator is activated
for Manual Mode or
Protect" and information about the current local time.
3. Operation of the personnel on duty in the case of signal for Fault condition
If any fault condition is registered the sounder of the fire extinguishing control panel produces discontinuous sound
signal.
To stop the sound signal, turn by means of the key the switch (Pos. 23) to position
. The LED indicator of the button starts to illuminate and the sounder stops.
If the indicators
voltage in the electric board supplying the fire extinguishing control panel is 220 V. If the voltage is restored
the light indications for fault condition are switched off.
Turn the switch to position
In all other cases when a fault condition is signaled, turn the switch to position
to stop the sound signaling and call the service company.
Service Personnel's Instruction Manual
Fire Extinguishing Control Panel FS5200E
Manual Automatic Mode. The local sounder is off. The display shows a message "Fire
and
are lit and a text message "Fault Mains Supply" is displayed check if the
.
Fire Extinguishing Control Panel FS5200E
1 2 3
4
5
6
7
1 2 3
11
12
13 14
15
(Power supply) and the yellow indicator
10
8
9
16 17
18
19 20
21
22
23
24
Fig.1
and press button.
, press the button
page1/2
