UniPOS
SERVICE INSTRUCTIONS FOR THE STAFF
1. Indications and buttons
1
Common indicator "Fire condition"
2
Common indicator "Fault condition "
3
Indicator "System fault"
4
Indicator "Fault in power supply"
5
Indicator "Fault in monitored output"
6
Indicator "Disabled component"
7
Indicator "Zone in test"
8
Button "Menu"
9
Button "Down"
10
Button "Up"
11
Button "Cancel"
12
Zone indicators for "Fire condition" and "Fault condition"
13
Indicator "Power supply"
14
Button "Reset"
15
Button "Inspection"
16
Indicator "Inspection"
17
Button "Suppress alarm" with indicator "Suppressed alarm"
18
Indicator "Suppressed alarm"
19
Button "Outputs"
20
Indicator "Suppressed outputs"
21
LCD Display (4х20)
Service instruction for the staff
Revision 1
FOR WIRELESS
FIRE CONTROL PANEL VIT01

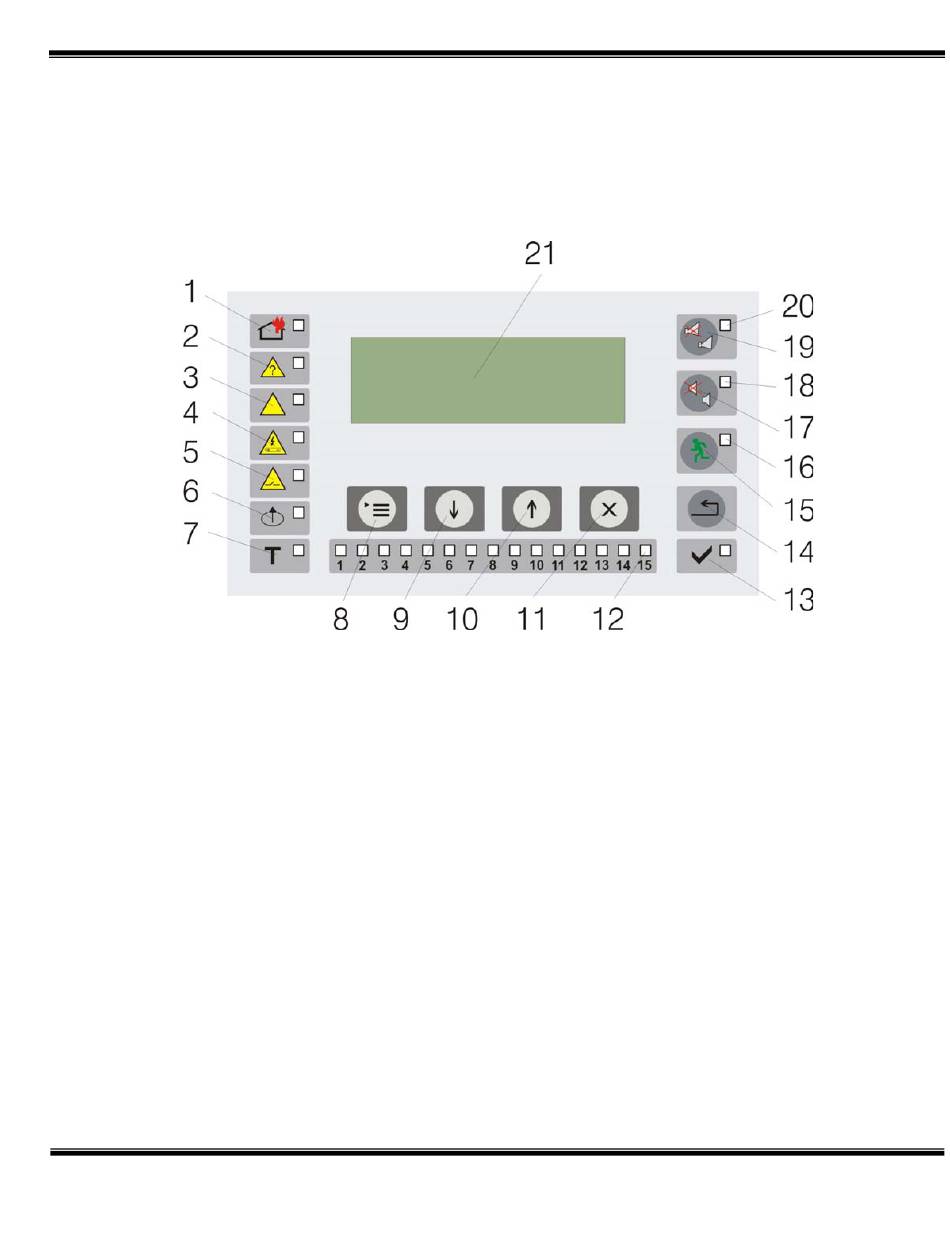

Fig.1
WIRELESS FIRE CONTROL PANEL VIT01
page 1
pages 2
Advertisement
Table of Contents
Related Manuals for UniPOS VIT01
Summary of Contents for UniPOS VIT01
- Page 1 UniPOS WIRELESS FIRE CONTROL PANEL VIT01 SERVICE INSTRUCTIONS FOR THE STAFF FOR WIRELESS FIRE CONTROL PANEL VIT01 1. Indications and buttons Fig.1 Common indicator “Fire condition” Common indicator “Fault condition ” Indicator “System fault” Indicator “Fault in power supply” Indicator “Fault in monitored output”...
- Page 2 UniPOS WIRELESS FIRE CONTROL PANEL VIT01 2. Duty Mode The Fire Control Panel is in Duty Mode when there is no Fire condition or Fault condition into the panel or into the connected to it wireless devices. In this Mode is active only the green LED indicator (“Power supply”).The local sound indicator is off.
