  • Page 1 Fire Control Panel FS5100 INSTRUCTION MANUAL Revision 7/06.12...

  • Page 2: Table Of Contents

    UniPOS Fire Control Panel FS5100 Contents 1. Introduction..........................5 2. Terminology ..........................5 3. Function ........................... 7 4. Technical data .......................... 7 4.1. Modules ..........................7 4.1.1. Type of modules ........................7 4.1.2. Features ..........................7 4.2. Physical configuration ......................7 4.2.1.
  • Page 3 UniPOS Fire Control Panel FS5100 9.2.2. Text messages ........................16 9.3. Using the keypad ........................16 10. Fault Condition ........................17 10.1. Description .......................... 17 10.2. Indication ..........................18 10.2.1. LED and sound indication ....................18 10.2.2. Text messages ........................ 18 10.3.
  • Page 4 UniPOS Fire Control Panel FS5100 17. Labour protection requirements ..................32 18. Installation and arrangements .................... 32 18.1. To mount the fire control panel ................... 32 18.2. Periphery devices assembly ....................33 18.2.1. Mounting periphery devices to controllable outputs ............33 18.2.2.

  • Page 5: Introduction

    FIRE ALARM LINE (further on it will be referred as LINE) – automatic fire detectors and manual call points, physically connected by the means of two-wire connection. The basic configuration of FS5100 includes two lines; the maximum configuration includes eight lines. Up to 32 fire detectors can be integrated into one line.
  • Page 6 UniPOS Fire Control Panel FS5100 FIRE CONDITION STAGE I – upon activation of automatic fire detector the fire control panel enters Fire condition until the defined time expires. The common and local light indicators, local sound signaling and a text message displayed on the LCD display indicate the phase.

  • Page 7: Function

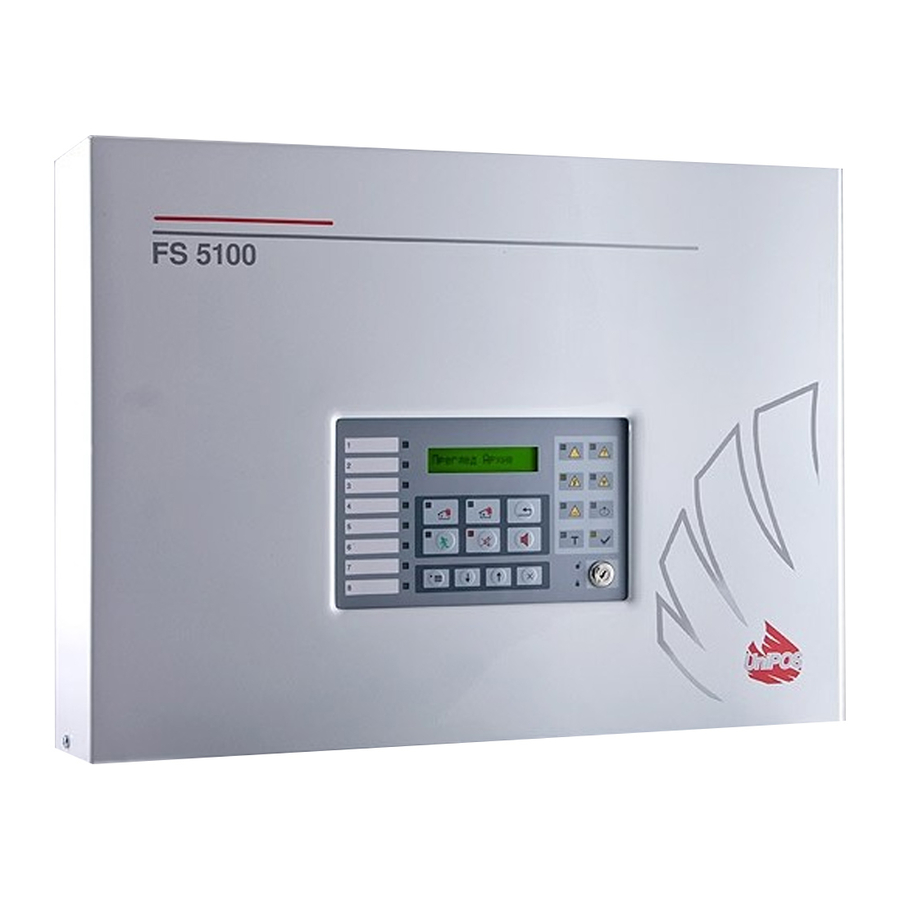

    FS5100. 3. Function Fire control panel FS5100 is designed to operate with conventional automatic fire detectors and manual call points. The panel has outputs provided for external executive devices. Its modular structure allows for variable configurations according the specific features of the protected site.

  • Page 8: Maximum Configuration

    UniPOS Fire Control Panel FS5100 − Features - 5 lines - 2 controllabe outputs - 5 relay outputs for fire condition - 1 relay output for fault conditions 4.2.3. Maximum configuration − Modules - Basic module - Module 5102 - Power supply module −...

  • Page 9: Indications Of Registered Events

    - 445x327x87mm 4.11. Weight − backup batteries not included - 5,2kg 5. Contents of delivery 5.1. Fire control panel − Fire control panel FS5100 - 1 pc − Resistors 3,9kΩ/ 0,25W ♦ Basic configuration - 2 pcs ♦ Expanded configuration - 5 pcs ♦...

  • Page 10: General Information

    6.2. Indications and buttons for control Table 1 gives detail desription of the indications for each status, Table 2 presents the basic means for control. Appendix 1 shows the front panel of Fire control panel FS5100 with its visual system for indication and control.
  • Page 11 UniPOS Fire Control Panel FS5100 Table 1 Conditions of the fire control panel Indication All conditions - Indicator Power supply – The fire control panel is power supplied continuous green light Common indicator Fire condition Fire condition, phase Fire condition stage I stage I –...
  • Page 12 UniPOS Fire Control Panel FS5100 Table 2 Condition of Access Means of control the fire Operation level control panel Level 1 Position Key for access to Level 2 Level 2 Position Button Reset of line To exit Fire condition in a line, indicated on...

  • Page 13: Function "Logical And" Of Two Lines

    Simultaneously, a constant control over the controllable outputs of fault condition (short circuit or break) is being carried out. The fire control panel FS5100 operates in nine basic modes: Duty Mode, Fire Condition, Pre-Fire Condition, Fault Condition, Disabled Component Mode, Test Mode, Information and Control Mode, SetUp Mode and Remote Control Mode.

  • Page 14: Duty Mode

    UniPOS Fire Control Panel FS5100 7. Duty Mode 7.1. Description The fire control panel is in Duty Mode, when it is not in any other of the rest 8 possible conditions. 7.2. Indication 7.2.1. LED and sound indication In Duty Mode the green LED indicator is activated (Power supply).

  • Page 15: Using The Keypad

    UniPOS Fire Control Panel FS5100 The first symbol has the following meaning: − empty – only one line is in Fire condition; − “↓” – for the last line that entered Fire condition; − “↑” – for the first line that entered Fire condition;...

  • Page 16: Text Messages

    UniPOS Fire Control Panel FS5100 8.3.5. Buttons (Down), (Up) and (Cancel) If there are suppressed messages, they can be displayed using buttons situated on the front panel. The priority of the messages is: − Messages for lines in Fire condition are of highest priority;...

  • Page 17: Fault Condition

    UniPOS Fire Control Panel FS5100 Press the button to: − Switch off the local sounder for fire condition/pre-fire condition, if there are fire alarm lines, in which the fire control panel has detected Fire Condition or Pre-Fire Condition; − Switch off the local sounder for fault condition when a Fault Condition is detected;...

  • Page 18: Indication

    UniPOS Fire Control Panel FS5100 All other faults are not fatal and switch off some of the periphery devices only. The fire control panel exits such conditions automatically 8 s after the breakdown is eliminated. Upon Short circuit in ground wire occur the following faults: −...

  • Page 19: Using The Keypad

    UniPOS Fire Control Panel FS5100 ∗ Fault in controllable output Flt: cO The right screen section “12” contains the number of the controllable outputs in fault condition. ∗ Fault in mains power supply Flt: MainPow 220V The backlight of the LCD is extinguished and is activated only if a button is pressed.

  • Page 20: Disabled Component Mode

    UniPOS Fire Control Panel FS5100 10.3.3. Buttons (Down), (Up) and (Cancel) If there are suppressed messages, they can be displayed using buttons situated on the front panel. They operate as in Fire Condition (see section 8.3.5). When the suppressed message is displayed, 15s after the last pressing of the button the message of highest priority will be automatically restored.

  • Page 21: Test Mode

    UniPOS Fire Control Panel FS5100 12. Test Mode 12.1. Description The fire control panel enters Test Mode after a fire alarm line has been manually set to operate in test condition. The mode can be controlled via the screens for Information and Control Mode (see section 13.2.2).

  • Page 22: Menu System Functions

    UniPOS Fire Control Panel FS5100 On information screens the button is not active; the rest three buttons retain their functions. When a command screen is activated, a cursor appears. In this case the buttons have the following effect: − Press button to save a change in a parameter or to execute a selected command;...

  • Page 23: Function Fire Alarm Lines Test

    UniPOS Fire Control Panel FS5100 13.2.2. Function Fire alarm lines test The function is activated from the screen Test Ln When the function is active, the following command screen ХХХХХХХХ Test Ln appears, where X can be 0 (fire alarm line not in test condition) or 1 (fire alarm line in test condition): The first position corresponds to Line 1, the last position corresponds to Line 8.

  • Page 24: Menu Setting The Clock

    UniPOS Fire Control Panel FS5100 13.2.6. Menu Setting the clock Select he menu from the screen: Clock The menu has the following functions: − Setting the date − Setting the time 13.2.6.1. Function Setting the date Activate the function from the screen...
  • Page 25 UniPOS Fire Control Panel FS5100 13.2.7.1. Menu Boards Select the menu from the screen Boards The menu contains one information screen only: Boards N is the type of the integrated additional module. N can adopt the following values: − “NO” – without additional module −...
  • Page 26 UniPOS Fire Control Panel FS5100 − Controllable outputs upon Fire condition stage I in a line: ХХ cO F1 (At Х=0 the controllable output does not start operation upon Fire condition stage I, at Х=1 the controllable output starts operation) The left position corresponds to Controllable output 1;...

  • Page 27: Menu Adjustment

    UniPOS Fire Control Panel FS5100 Nn tXXXXXX Press the button to display the information screen for a particular telephone number: ♦ n is the consecutive number of the telephone number; ♦ t is the type of dialing – P (pulse dial) or T (tone dial);...

  • Page 28: Information Screen Disabled Controllable Outputs

    UniPOS Fire Control Panel FS5100 − Flt: Earth – the fire control panel has entered Fault condition: short circuit in ground wire; − Flt: Rst Earth - the fire control panel has exited Fault condition: short circuit in ground wire −...

  • Page 29: Menu Controllable Output Status

    UniPOS Fire Control Panel FS5100 13.4.2. Menu Controllable output status Select the menu from the screen: cOut Information screens for the status (current state) of the cOut N Status controllable outputs are displayed; N is the number of the selected controllable output, Status is its current state.

  • Page 30: Menu Line Parameters

    UniPOS Fire Control Panel FS5100 14.2.2. Menu Line parameters Select the menu from the screen: Line It includes the same screens as the analogical submenu of the menu Parameters review (see section 13.2.7.2) with one difference only: when button is pressed, a screen for parameter change appears and the parameters can be modified within specified limits.

  • Page 31: Function Adjustment Of Relay Outputs

    UniPOS Fire Control Panel FS5100 14.2.5. Function Adjustment of relay outputs Activate the function from the screen: Rl Adj When the function is active the following command screen ХХХХХ Rl Adj appears: where Х can adopt 0 (the relay output will not operate) or 1 (the relay output will operate). The left position corresponds to Relay output 1.

  • Page 32: Function Enter New Password

    UniPOS Fire Control Panel FS5100 14.2.8. Function Enter new password Activate the function from the screen: New Password The activated function displays the following screen: New Password and the cursor is positioned over the first digit of 000 (password). The function enables the user to enter a new access password for Set Up Mode.

  • Page 33: Periphery Devices Assembly

    UniPOS Fire Control Panel FS5100 18.2. Periphery devices assembly All connections are to be made by means of terminals, mounted on the printed circuit boards (Appendixes 4, 5 and 6). Be advised, that the consumption of the voltage powering the external devices (terminal “+ 24V”...

  • Page 34: Connection To Power Supply

    20. How to add, remove or replace an additional module FS5100 fire control panel is able to operate with one additional module of 5101 or 5102 type. To add an additional module, follow the instructions: − Open the fire control panel and cutt off the power supply by taking the fuse out of the terminal with mains fuse (Appendix 2) and disconnecting the feeding cables of the backup batteries;...

  • Page 35: Troubleshooting

    UniPOS Fire Control Panel FS5100 To remove an additional module, follow the instructions: − Open the fire control panel and cutt off the power supply by taking the fuse out of the terminal with mains fuse (Appendix 2) and disconnecting the feeding cables of the backup batteries;...
  • Page 36 UniPOS Fire Control Panel FS5100 Тable 4 Trouble Indication Troubleshooting System error The trouble shall be fixed in Indicators illuminate in Service department steady yellow light; the local sounder releases continuous signal; the message Syst. Error is displayed; Circuit boards conflict Enter Set Up Mode.

  • Page 37: Conditions Of Operation, Storage And Transportation

    − The conditions of storage and transportation have been observed; − The startup has been done by authorized personnel only − The requirements for operation stated herein have been observed. UniPOS wishes you a successful work! Instruction Manual Page 37 Revision 7/06.12...

  • Page 38: Appendixes

    UniPOS Fire Control Panel FS5100 24. Appendixes Appendix 1 Separate indicators for fire condition LCD display (1х16) Common indicator Fire condition stage II Fire alarm line reset Indicator Out of order/disabled controllable output Indicator System error Indicator Fault in mains power supply...
  • Page 39 UniPOS Fire Control Panel FS5100 Appendix 2 Assembly diagram Instruction Manual Page 39 Revision 7/06.12 Of 47...
  • Page 40 UniPOS Fire Control Panel FS5100 Appendix 3 Screw Connection of additional module Instruction Manual Page 40 Revision 7/06.12 Of 47...
  • Page 41 UniPOS Fire Control Panel FS5100 Appendix 4 +24V REL Fault Rel 1 Rel 2 Out 1 Out 2 Lin 1 Lin 2 Lin х – leads of fire alarm line № х “+” – positive lead “-“ – negative lead Out х...
  • Page 42 UniPOS Fire Control Panel FS5100 Appendix 5 NC NO NC NO NC NO Rel 3 Rel 4 Rel 5 Lin 3 Lin 4 Lin 5 Lin х – leads of fire alarm line № х “+” – positive lead “-“ – negative lead Rel x –...
  • Page 43 UniPOS Fire Control Panel FS5100 Appendix 6 NC NO NC NO NC NO Rel 3 Rel 4 Rel 5 Lin 3 Lin 4 Lin 5 Lin 6 Lin 7 Lin 8 Lin х – leads of fire alarm line № х...
  • Page 44 UniPOS Fire Control Panel FS5100 Appendix 7 Last First 1N5819* Fire Detector Fire (max 32) Detector +OUT Fire Contrlol FD30xx FD30xx FD80XX Panel -IN/OUT FS5100 RI/KL- *Diode 1N5819 or similar а) fire alarm line with automatic fire detectors type FD8000 or FD3000...
  • Page 45 UniPOS Fire Control Panel FS5100 Appendix 8 Main screen: - Duty Mode - Fire Condition - Fault Condition - Disabled Fire Alarm Lines Disabled System Functions Status Controllable Outputs LED and Sound Indicators Line Status Check up Controllable Fire Alarm Lines Test...
  • Page 46 UniPOS Fire Control Panel FS5100 Приложение 8 - Продължение Parameter review Fire Control Panel Boards Line Parameters Parameters Line 1 Inspection Time . . . Interface Number Line 8 Baud Rate Number of Checks Modem Supported Check up for a Removed...
  • Page 47 25 26 27 28 29 30 31 32 UniPOS Insert Delete Scroll Print " Enter < > Shift Shift MODEM MODEM Diagram of fire alarm installation based on Fire control panel FS5100 Instruction Manual Page 47 Revision 7/06.12 Of 47...
