UniPOS FS5200 Instruction Manual

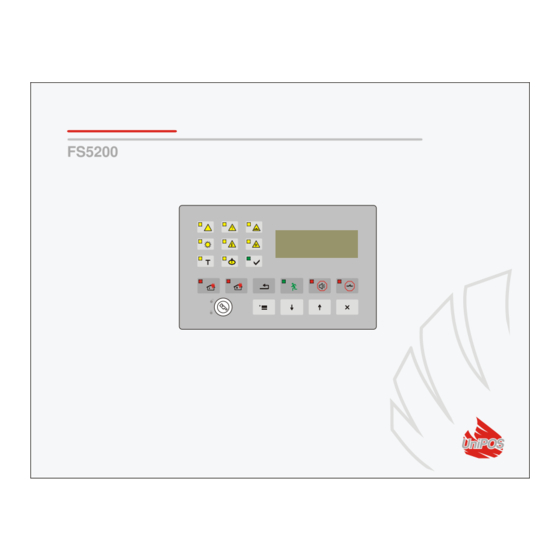

Fire control panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Fire Control Panel
FS5200
INSTRUCTION MANUAL
Revision 8/07.17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS5200 and is the answer not in the manual?

Questions and answers

John
April 9, 2025

How to trigger manual evacuation in Fs5200 unipos panel?

0

Subscribe to Our Youtube Channel

Related Manuals for UniPOS FS5200

Summary of Contents for UniPOS FS5200

  • Page 1 Fire Control Panel FS5200 INSTRUCTION MANUAL Revision 8/07.17...

  • Page 2: Table Of Contents

    UniPOS Fire Control Panel FS5200 Content 1. Introduction ........................... 5 2. Terminology ........................... 5 3. Function ............................7 4. Technical data ..........................7 4.1. Modules ..............................7 4.1.1. Type of modules ............................. 7 4.1.2. Basic module ..............................7 4.1.3. Additional module ............................7 4.2.
  • Page 3 UniPOS Fire Control Panel FS5200 8. Fire condition ..........................15 8.1. Description ............................15 8.2. Indication ............................16 8.2.1. LED and sound indication ..........................16 8.2.2. Text message ..............................16 8.3. Using the keypad ..........................17 9. Pre-Fire condition ........................18 9.1.
  • Page 4 UniPOS Fire Control Panel FS5200 13.7.8. Menu Parameter review ..........................32 13.7.9. Menu Set Parameters ..........................36 13.7.10. Menu Archive review ..........................36 14. SetUp Mode ..........................38 14.1. Description ............................38 14.2. Access to SetUp Mode ........................39 14.3. Menus ............................... 40 14.3.1.

  • Page 5: Introduction

    UniPOS Fire Control Panel FS5200 1. Introduction Fire Control Panel FS 5200 is a modern, highly reliable, multifunctional and versatile unit, providing the user with unexpected potential in the design, installation and operation of conventional fire alarm systems. Some of its main features and possibilities are: ...
  • Page 6 UniPOS Fire Control Panel FS5200 FIRE CONDITION STAGE I – upon activation of automatic fire detector the fire control panel enters Fire condition, phase Fire condition stage I until the defined time expires. The common and local light indicators, local sound signaling and a text message displayed on the LCD display indicate the phase.

  • Page 7: Function

    FS 5200. 3. Function Fire control panel FS5200 is designed to operate with conventional automatic fire detectors and manual call points. The panel has outputs provided for external executive devices. Its modular structure allows for variable configurations according the specific features of the protected site 4.

  • Page 8: Physical Configuration

    UniPOS Fire Control Panel FS5200 4.2. Physical configuration Modules Basic Additional Configuration Technical data  8 lines  2 relay outputs for fire condition х  1 controllable output (Configuration  1 relay output for fault condition minimum)  8 lines ...

  • Page 9: Fire Alarm Lines

    UniPOS Fire Control Panel FS5200 Modules Basic Additional Configuration Technical data  32 lines  2 relay outputs for fire condition х х х х  2 controllable outputs  1 relay output for fault condition  32 lines  10...

  • Page 10: Indications Of Registered Events

    UniPOS Fire Control Panel FS5200  Option to prolong the time period for Fire condition stage I with programmable overall inspection period  Built-in sounder for fire condition – one tonal, continuous, can be switched off  Built-in sounder for fault condition – one tonal, discontinuous, can be switched off ...

  • Page 11: Dimensions

    6. General information 6.1. Access levels There are 4 levels of access to the variable indications and control functions of FS5200. 6.1.1. Access level 1 All persons who would presumably find out and react to alarm for fault condition or fire condition have access to level 1.

  • Page 12: Access Level 2

    6.2. Indications and buttons for control Table 1 gives detail description of the indications for each status, Table 2 presents the basic means for control. Appendix 1 shows the front panel of Fire control panel FS5200 with its visual system for indication and control.
  • Page 13 UniPOS Fire Control Panel FS5200  Fire condition stage I in both lines – if there is an activated automatic fire detector in the other line, i.e. the fire control panel has already entered Pre-Fire condition in the other line.
  • Page 14 UniPOS Fire Control Panel FS5200 Table 2 Condition of the fire Access Means of control Operation control panel level Level 1 Position Key for access to Level 2 Level 2 Position Button Reset of To exit Fire condition in a line, indicated on...

  • Page 15: Conditions Of The Fire Control Panel

    Simultaneously, a constant control over the controllable outputs of fault condition (short circuit or break) is being carried out. The fire control panel FS5200 operates in nine basic modes: Duty Mode, Fire Condition, Pre-Fire Condition, Fault Condition, Disabled Component Mode, Test Mode, Information and Control Mode, SetUp Mode and Remote Control Mode.

  • Page 16: Indication

    UniPOS Fire Control Panel FS5200 stage II. The time period for Fire condition stage I is limited and is user programmable, separately for each line (up to 255 seconds). The period can be prolonged with the Inspection time (see section 8.3.1).

  • Page 17: Using The Keypad

    UniPOS Fire Control Panel FS5200 If there are more than two lines in Fire condition, the rest of the text messages are suppressed. They can be displayed in the first field by the means of the keypad (see section 8.3.5).

  • Page 18: Pre-Fire Condition

    UniPOS Fire Control Panel FS5200 8.3.5. Buttons (Down) and (Up) If there are suppressed messages for fire condition they can be displayed in the first field of the LCD display using buttons situated on the front panel. Press button to display the next text message for fire condition. When the last text message is reached, press button to display the first message.

  • Page 19: Fault Condition

    UniPOS Fire Control Panel FS5200 The button does not affect nor is its action cancelled by the following events:  When Fire Condition is registered in a new line, or transition from Fire condition stage I to Fire condition stage II the button shall activate the local sounder for Fire/Pre-Fire condition;...

  • Page 20: Indication

    UniPOS Fire Control Panel FS5200  Only the green LED indicator is illuminated (Power supply);  The backlight of the display is extinguished;  Only the power supplies are being controlled. The fire control panel exits the status automatically 8 s after the mains supply is restored.
  • Page 21 UniPOS Fire Control Panel FS5200 10.2.2.2. Upon detection of New configuration or non-fatal errors, and the fire control panel is not in Fire condition, appear the following information screens:  New configuration: Duty 17:05:34 (The field “ЕEЕ” contains the number of the faults) Flt:ЕEЕ...
  • Page 22 UniPOS Fire Control Panel FS5200  Fault in a controllable output: Duty 17:05:34 (The field “ЕEЕ” contains the number of the faults; Flt:ЕEЕ cONN Status “NN” contains the number of the controllable output in fault condition; “Status” contains the state of the controllable output, i.e.

  • Page 23: Using The Keypad

    UniPOS Fire Control Panel FS5200 Fault in the supply to external devices in Basic module: Duty 17:05:34 (The field “ЕEЕ” contains the number of the faults) Flt:ЕEЕ Flt Out Pwr1  Fault in the supply to external devices in Additional...

  • Page 24: Indication

    UniPOS Fire Control Panel FS5200 11.2. Indication 11.2.1. LED and sound indication In such condition the common indicator (Disabled component) illuminates in steady yellow light. If there are disabled controllable outputs the indicator (Out of order/Disabled controllable output) illuminates in steady yellow light. The indication can be suppressed by indication for a fault in controllable output;...

  • Page 25: Using The Keypad

    UniPOS Fire Control Panel FS5200 The message can be suppressed by the screens for Fire condition. To display the suppressed messages enter Information and Control Mode (see section 13.4). 12.3. Using the keypad Test Mode supports 1 active button. When the control panel operates in combination with other conditions, their buttons are active too.

  • Page 26: Menu Faults

    UniPOS Fire Control Panel FS5200 When you enter the Information and Control Mode, a transition to the first menu is performed. The menu contains the following subordinate menus:  Faults  Disabled components  Lines in test  Status  Pre-Fire condition ...

  • Page 27: Menu Lines In Test

    UniPOS Fire Control Panel FS5200 13.4. Menu Lines in test Select the menu from the screen: 03 Lines in Test  04 Status The menu contains information screens with suppressed messages for lines in test. Where no lines in test are available appears the following...

  • Page 28: Menu Pre-Fire Condition

    UniPOS Fire Control Panel FS5200 13.6. Menu Pre-Fire condition Select the menu from the screen 05 Pre-Fire  06 System functions The menu contains information screens with suppressed messages for Pre-fire condition. If no lines in Pre-fire condition are available, the following...

  • Page 29: Menu Current In Fire Alarm Lines

    UniPOS Fire Control Panel FS5200 When the button is pressed, all LED indicators illuminate and the sound indicator releases continuous sound signal as long as the button is being pressed. To deactivate the function press button ; the cursor disappears.
  • Page 30 UniPOS Fire Control Panel FS5200 When the function is active a cursor appears over the first left Clock digit of the date “DD”: 01 Date DD-MM-YYYY To set the desired date use buttons . It is not possible to set a value higher than 31 in “DD”...

  • Page 31: Menu Fire Alarm Lines Test

    UniPOS Fire Control Panel FS5200 13.7.4.4. Function Calibration Activate the function from the screen Clock 04 Calibration (The field “s” contains the symbol + or - ; “CC” contains the calibration index) When the function is active a cursor appears over the last...

  • Page 32: Menu Disable Controllable Outputs

    UniPOS Fire Control Panel FS5200 The menu contains 8, 16, 24 or 32 functions depending on the Disable Line fire alarm lines available in the configuration (when ХХ is “No” the Line ХХ line is enabled, when XX is “Yes” the line is disabled.)
  • Page 33 UniPOS Fire Control Panel FS5200 13.7.8.1. Menu Configuration Select the menu from the screen: Parameter Review 01 Confuguration The menu contains the following information screens: 01 Lines: Configuration (The field “LL” contains the number of lines available in the 01 Lines...
  • Page 34 UniPOS Fire Control Panel FS5200 03 Period for transition from Fire condition stage I to Fire Line condition stage II: Time F1-F2 SSSs The field “NN” contains the number of the line; “SSS” contains the period in seconds - 0 to 255s.
  • Page 35 UniPOS Fire Control Panel FS5200 The menu contains 2, 10 or 18 parameters depending on Line the relay outputs available in the configuration: F1 Relay RR ХХ The field “RR” contains the number of the relay output; “ХХ” can contain “No” (the relay output will not be activated in Fire condition stage I) or “Yes”...

  • Page 36: Menu Set Parameters

    UniPOS Fire Control Panel FS5200 05 Menu Phone numbers: Fire Panel Phone numbers The menu contains 4 information screens, one for each Tel number N IIII phone number: TTTTTTTTTTTTTTTTTTTT (The field “N” contains the consecutive number of the phone number;...
  • Page 37 UniPOS Fire Control Panel FS5200 cONN Interrupt  – controllable output number NN enters Fault condition: Interrupted controllable output; cONN Short  – controllable output number NN enters Fault condition : Short circuit in controllable output; cONN Normal  – controllable output number NN restored from Fault condition;...

  • Page 38: Setup Mode

    UniPOS Fire Control Panel FS5200 Fault Code 2 Reset  – fire control panel exits Fault condition: Fault in the program of Linear processor 2; Fault Code 3  – fire control panel enters Fault condition: Fault in the program of Linear processor 3;...

  • Page 39: Access To Setup Mode

    UniPOS Fire Control Panel FS5200 In this condition only the green LED indicator illuminates (Power supply). The local sounder is switched off. The screens displayed on the LCD are organized in a tree structure of subordinate menus (Appendix 2d). The first two lines display the name of the current menu (or function); the bottom two lines display the names of the subordinate menus (or the parameter or command).

  • Page 40: Menus

    UniPOS Fire Control Panel FS5200 14.3. Menus The menu contains the following subordinate menus and functions: 01 Line parameters 02 Fire control panel parameters 03 Adjustment of controllable outputs 04 Adjustment of relay outputs 05 Default parameters 06 Clear archive 07 Enter new password 14.3.1.
  • Page 41 UniPOS Fire Control Panel FS5200 04 Current threshold above which Fire condition stage I is > Set Parameters< detected in a line: > Line NN < “CCC” contains the current in mA - 1 to 80mA. Current Fire1 CCmA 05 Current threshold above which Fire condition stage II is >...
  • Page 42 UniPOS Fire Control Panel FS5200 09 Menu Controllable outputs in Fire condition stage II in the > Set Parameters < line > Line NN < Select the menu from the screen: 09 Ctrl Outs F2  10 Relays F1 The menu contains 1 or 2 parameters depending on the >...

  • Page 43: Menu Fire Control Panel Parameters

    UniPOS Fire Control Panel FS5200 The following symbols are used: А Б В Г Д Е Ж З И Й К Л М Н О П Р С Т У Ф Х Ц Ч Ш Щ Ъ Ю Я Ë Ы Э ! “ # $ % & ‘ ( ) * Space + , - .

  • Page 44: Menu Adjustment Of Controllable Outputs

    UniPOS Fire Control Panel FS5200 If all four phone numbers are erased, the modem will not be able to connect if an event is registered by the control panel. 06 Language: > Set Parameters < (The field “ХХХХХХХХХ” contains the language for the text >...

  • Page 45: Function Default Parameters

    UniPOS Fire Control Panel FS5200 14.3.5. Function Default parameters Select the function from the screen: > Set Parameters < 05 Default param  06 Clear archive While selecting the function a screen for confirmation will > Set Parameters < appear: >...

  • Page 46: Function Enter New Password

    UniPOS Fire Control Panel FS5200 While selecting the function a screen for confirmation will > Set Parameters < appear: > Clear archive < ≡ - Confirm х - Cancel When you press button the function is activated and the archive (information on events saved in the energy-independent memory of the control panel) will be cleared.

  • Page 47: Labour Protection Requirements

    UniPOS Fire Control Panel FS5200 17. Labour protection requirements The installation and maintenance staff shall be well grounded in equipment’s mechanism and operation, as well as in common technical safety regulations. Connection to unearthed or to indirectly earthing mains supply is prohibited.

  • Page 48: Connecting Fire Detectors

    UniPOS Fire Control Panel FS5200 Table 3 Coupling’s lead Signal of RS232 Interface Signal of RS485 Interface RXD (input data) Inverting input/output TXD (output data) Non inverting input/output GND (chassis ground) The fire control panel provides power supply to an external modem, if the feature has been included in the order.

  • Page 49: Change In Fire Control Panel Configuration

    20. Change in fire control panel configuration 20.1. How to add or remove Additional Module Fire control panel FS5200 is able to operate with one additional module having 8 or 16 fire alarm line. To add an additional module, follow the instructions:...

  • Page 50: Changes In Additional Module

    UniPOS Fire Control Panel FS5200  Remove Module 5203 (8 relay outputs for fire condition) or Module 5204 (16 relay outputs for fire condition);  Replace Module 5203 (8 relay outputs for fire condition) with Module 5204 (16 relay outputs for fire condition);...

  • Page 51: Troubleshooting

    UniPOS Fire Control Panel FS5200 e) Restore the power supply of the fire control panel by placing the fuse back in the terminal with fuse (Appendix 3), connect the feeding cables to the backup batteries and close the fire control panel;...
  • Page 52 UniPOS Fire Control Panel FS5200 Trouble Indication Troubleshooting Fault in a controllable - Eliminate the fault (short circuit Indicators ; illuminate in output or interruption) in the steady yellow light; the local sounder transmission path of the releases discontinuous signal; a...

  • Page 53: Conditions Of Operation, Storage And Transportation

     the conditions of storage and transportation have been observed;  the startup has been done by authorized personnel only;  the requirements for operation stated herein have been observed. UniPOS wishes you a successful work! Instruction manual Page 53 Revision 8/07.17...

  • Page 54: Appendixes

    UniPOS Fire Control Panel FS5200 24. Appendixes Appendix 1 Indicator Test Indicator Day Mode Indicator System fault Indicator Fault in mains power supply Common indicator for fault condition Indicator Disabled component Indicator Out of order/disabled controllable output Indicator Fault in backup batteries Indicator Power supply LCD display (4х20)
  • Page 55 UniPOS Fire Control Panel FS5200 Appendix 2 а) Basic menu Instruction manual Page 55 Revision 8/07.17 of 69...
  • Page 56 UniPOS Fire Control Panel FS5200 Appendix 2 - continued b) Menu System functions Instruction manual Page 56 Revision 8/07.17 of 69...
  • Page 57 UniPOS Fire Control Panel FS5200 Appendix 2 - continued Parameter Review 02 Lines 03 Fire Panel Configuration 01 Inspection 01 Line 1 Time 01 Lines . . . 02 Interface 02 Controllable Number Outputs NN Line XX 03 Baud Rate...
  • Page 58 UniPOS Fire Control Panel FS5200 Appendix 2 - continued Set Parameters 03 Controllable 05 Default 01 Lines 07 New Password Outputs Parameters 01 Line 1 01 Ctrl 06 Clear 02 Fire Panel 04 Relays Output 1 Archives . . .
  • Page 59 UniPOS Fire Control Panel FS5200 Appendix 3 Assembly diagram Instruction manual Page 59 Revision 8/07.17 of 69...
  • Page 60 UniPOS Fire Control Panel FS5200 Appendix 4 Circuit board 5200Indication Screw М3 Screw М3 Module 5201 Module 5203 or Module 5204 Screw М3 Circuit board 5200Base Basic module chassis Remote column Interface module а) Basic Module - layout Instruction manual Page 60 Revision 8/07.17...
  • Page 61 UniPOS Fire Control Panel FS5200 Appendix 4 - continued Additional Module cover Screw М3 Screw М3 Module 5201 Remote column Module 5202 Additional Module chassis b) Additional Module – layout Instruction manual Page 61 Revision 8/07.17 of 69...
  • Page 62 UniPOS Fire Control Panel FS5200 Appendix 4 - continued – negative lead of power supply to external devices (chassis earth); – relay output for fire condition № X, Rel X where X is from 1 to 2 – common contact –...
  • Page 63 UniPOS Fire Control Panel FS5200 Appendix 4 - continued – leads of fire alarm line № X, where X is: = from 9 to 16 when Module 5101 is in Basic Module = from 25 to 32 when Module 5101 is in Additional Module “+”...
  • Page 64 UniPOS Fire Control Panel FS5200 Appendix 4 - continued Out 2 – leads of Controllable output 2 „+” – positive lead „–” – negative lead – leads of fire alarm line № X, where X is from 17 tо 24 “+”...
  • Page 65 UniPOS Fire Control Panel FS5200 Appendix 4 - continued Terminals Microswitches Terminals: Microswitches for selection of contact type: Rel X – relay output for fire condition № X, Rel X – relay output for fire condition № X where X is from 3 to 10 where X is from 3 to 10 NO –...
  • Page 66 UniPOS Fire Control Panel FS5200 Appendix 4 - continued Terminals Microswitches Terminals: Microswitches for selection of contact type: Rel X – relay output for fire condition № X, Rel X – relay output for fire condition № X where X is from 3 to 18 where X is from 3 to 18 NO –...
  • Page 67 UniPOS Fire Control Panel FS5200 Appendix 5 Last First 1N5819* Fire Detector Fire (max 32) Detector +OUT Fire Control 30xx 30xx FD80XX Panel -IN/OUT FS5200 RI/KL- *Diode 1N5819 or similar а) Fire alarm line with automatic fire detectors type FD3000 or FD8000...
  • Page 68 UniPOS Fire Control Panel FS5200 Appendix 6 Special Nut М3 Stud Connection diagram for Additional Module Instruction manual Page 68 Revision 8/07.17 of 69...
  • Page 69 25 26 27 28 29 30 31 32 UniPOS Inser t Delete Sc roll Pr int " Enter Shift < > Shift MODEM MODEM Diagram of fire alarm installation based on Fire control panel FS5200 Instruction manual Page 69 Revision 8/07.17 of 69...
