UniPOS FS5200E Instruction Manual

Fire extinguishing control panel
Hide thumbs Also See for FS5200E:
Table of Contents

Advertisement

Quick Links

Download this manual

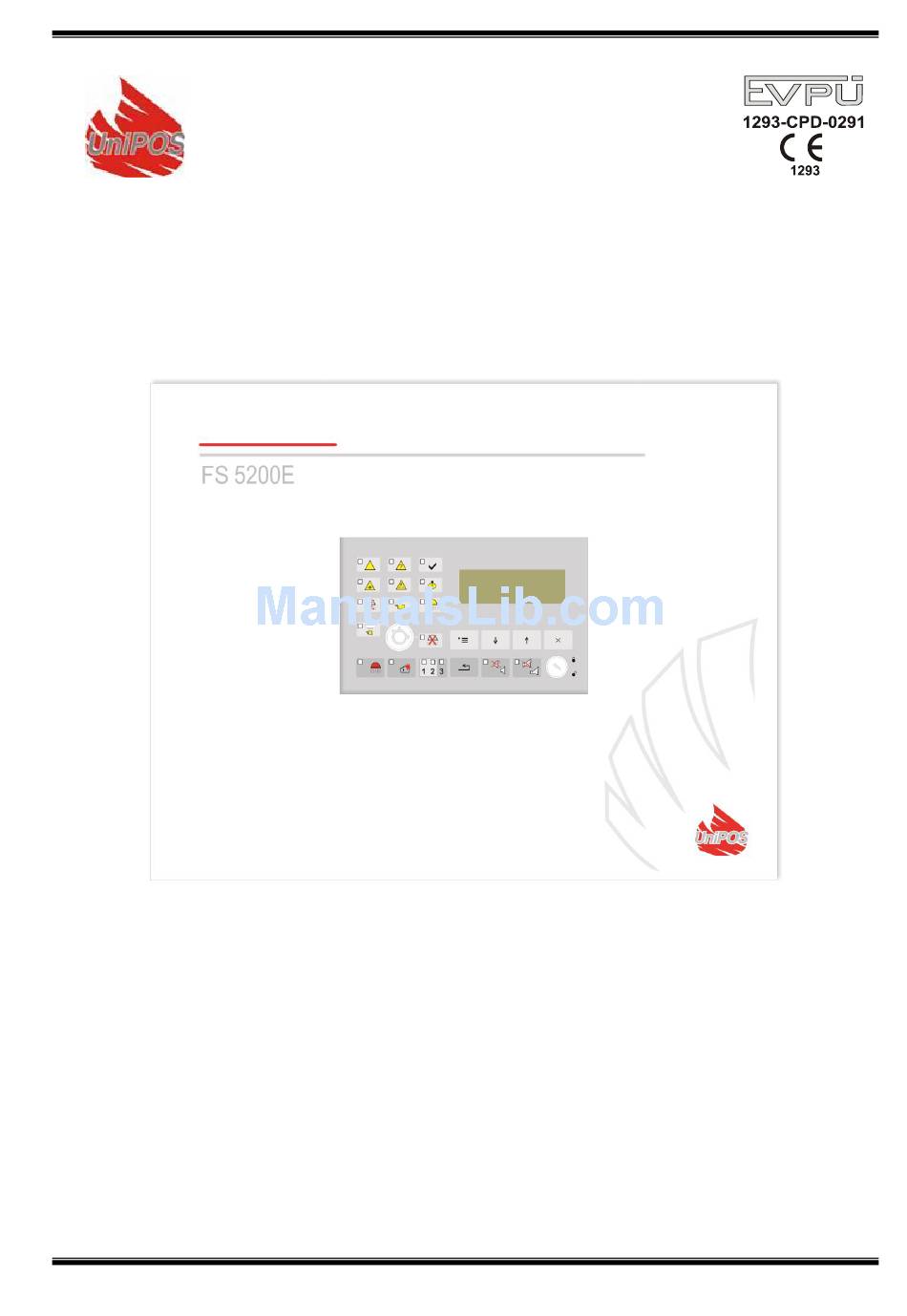

UniPOS
Fire Extinguishing Control Panel FS5200Е
Fire Extinguishing Control Panel
FS5200Е
INSTRUCTION MANUAL
Revision 7/06.12
Instruction Manual
Page 1
Revision 7/06.12
of 63

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS5200E and is the answer not in the manual?

Questions and answers

Related Manuals for UniPOS FS5200E

Summary of Contents for UniPOS FS5200E

  • Page 1 UniPOS Fire Extinguishing Control Panel FS5200Е Fire Extinguishing Control Panel FS5200Е INSTRUCTION MANUAL Revision 7/06.12 Instruction Manual Page 1 Revision 7/06.12 of 63...

  • Page 2: Table Of Contents

    UniPOS Fire Extinguishing Control Panel FS5200Е Table of contents Terminology ....................... Technical Data......................Contents of Delivery....................Installation and Arrangements..................4.1. To Mount the Control Panel..................4.2. Description of Inputs and Outputs. Periphery Devices Assembly ......4.2.1. Description and Mounting of Devices to L1, L2 and L3 Inputs........
  • Page 3 UniPOS Fire Extinguishing Control Panel FS5200Е 12.4.2. Menu View Disables....................12.4.3. Menu View Test ......................12.4.4. Menu Statuses ......................12.4.5. Menu System Functions ..................... Setup Mode ........................ 13.1. Description........................13.2. Indication ........................13.3. Using the Keypad ....................... 13.4. Using the Menus ......................

  • Page 4: Terminology

    RS485 and a repeater FS5200R. The fire extinguishing control panel could be connected and become a part of the Interactive Fire Control System IFS7002 /UniPOS production/. The fire extinguishing control panel FS5200Е is designed and produced in compliance with standards EN 54-2:1997/ А1:2006/AC: 2009, EN 54-4:1997/A2: 2006/AC: 2009, EN 12094-1: 2003.
  • Page 5 UniPOS Fire Extinguishing Control Panel FS5200Е defined by “on” status of the monitored input “On/Off Exting” (See section 4.2.) or by the secret switch on the front panel. The indication for disable extinguishing is an individual light indication. HOLD EXTINGUISHING – condition of the fire extinguishing control panel when the release signal to the executive extinguishing device is delayed.

  • Page 6: Technical Data

    UniPOS Fire Extinguishing Control Panel FS5200Е b) Manual button release for forced extinguishing. The indication for Fire condition stage 1 is common light indication. Local sound signaling and text messages on the LCD display. INTERRUPTED LINE, MONITORED OUTPUT OR MONITORED INPUT – non-system non-fatal fault condition entered when parameters lower than the threshold value are registered.
  • Page 7 UniPOS Fire Extinguishing Control Panel FS5200Е  Type - balanced 2.3. Monitored outputs for the sound-light indication  Type - potential relay  Electrical characteristics - (24±3)V/0.5 A 2.4. Monitored output for the extinguishing devices  Type - potential relay ...

  • Page 8: Contents Of Delivery

    UniPOS Fire Extinguishing Control Panel FS5200Е  nominal voltage of the back up battery - 2x12V  nominal capacity C - (7-12)Ah  extreme discharge voltage - 21V  charge voltage - 28,2V 2.10.3. Consumption on back up batteries supply ...
  • Page 9  “RS 485” – Terminals to connect the two-wire line of RS 485 interface. The connection with a repeater, PC and other devices realized by exchange protocol - UniProtocol /FS5200E interface/ is executed via this interface. As the case with CAN interface, a jumper is provided here too with the same functions.
  • Page 10 UniPOS Fire Extinguishing Control Panel FS5200Е Interface CAN (join to system IFS7002) Interface RS 485 (repeater, PC and other devices) Jump (RS485) Relay output in condition Fire Alarm Phase 1 Jump (CAN) Relay output in condition Fire Alarm Phase 2 Output Open Collector –...

  • Page 11: Description And Mounting Of Devices To L1, L2 And L3 Inputs

    Make the connection to the terminals – “+ Lx -” (where “x” is the line number). Observe the shown polarity (Drawing 2). First Last detector detector 1N5819* FS5200E 1N5819* +OUT FD80xx FD30xx 3k/0.25W -IN/OUT RI/KL -...

  • Page 12: Description And Mounting Of Devices To Manual Release Input

    Install resistor 3k to the last button if 2 or 3 buttons are mounted (Drawing 3). Connecting diagram with 1 button Button for manual activation of the extinguishing FS5200E 1.5k/ 0.25W 0.25W Connecting diagram with 2 buttons...

  • Page 13: Description And Mounting Of Devices Hold Input

    UniPOS Fire Extinguishing Control Panel FS5200Е Switch modes Manual/Manual-automatic FS5200E 1.5k/ 0.25W 4.2.4. Description and mounting of devices to Hold input Connect a two-wire line to the Hold input for connection with a switch to activate hold extinguishing function. The line is balanced and it is monitored for interruption and short circuit. Install the two resistors to the switch terminals as shown in the connecting diagram to monitor the condition (Drawing 4).

  • Page 14: Description And Mounting Of Devices Low Press Input

    Fault condition in the extinguishing installation. The line is balanced and it is monitored for interruption and short circuit. Install the two resistors to the switch terminals as shown in the connecting diagram to monitor the condition (Drawing 6). Pressure FS5200E 1.5k/ 0.25W 0.25W Drawing 6 Set up the input active status: OPEN or CLOSED contact from menu System functions >...

  • Page 15: Description And Mounting Of Devices Sounder S1 And Sounder S2 Outputs

    UniPOS Fire Extinguishing Control Panel FS5200Е Electromagnetic valve FS5200E 0.25W 1N5401 Rv - < 30 Ohms Drawing 8 Upon the output activation the supplied voltage (24±3)V is with load-carrying capacity of 1.5А. The time for output activation could be set from 2 to 255 seconds from menu System functions >...

  • Page 16: Description And Mounting Of Devices Rel

    UniPOS Fire Extinguishing Control Panel FS5200Е 4.2.11. Description and mounting of devices to Rel 1 and Rel 2 outputs Rel 1 and Rel 2 are potential free, relay outputs. The logic of the contact - Normally Open or Normally Closed could be adjusted by means of a jumper. The outputs are not monitored. The outputs are activated in Fire condition stage I and Fire condition stage II, respectively.

  • Page 17: General Information

    UniPOS Fire Extinguishing Control Panel FS5200Е  N – power wire “Null”;  Ground - safety ground wire. The cable shall be double insulated and of 0,5mm section for the power supply wires, and of 1,5mm section for the safety ground wire.

  • Page 18: Indications And Buttons For Control

    UniPOS Fire Extinguishing Control Panel FS5200Е 5.1.4. Access Level 4 Accessible for personnel trained and authorized by the Producer to repair the fire extinguishing control panel and to modify the software. Special means are required to enter this level. 5.2. Indications and buttons for control Table 1 gives detail description of the indications for each status, Table 2 presents the basic function of the control buttons.
  • Page 19 UniPOS Fire Extinguishing Control Panel FS5200Е Conditions of the fire extinguishing control panel Indication Local sounder – discontinuous signal: 1 s Fault condition - All faults except for Battery Low sound, followed by 1 s break Local sounder – discontinuous signal: 1 s...

  • Page 20: Conditions Of The Fire Extinguishing Control Panel

    UniPOS Fire Extinguishing Control Panel FS5200Е Table 2 Condition of the fire Access Means of control extinguishing operation level control panel Level 1 Status Access level 2 key Level 2 Status Button Line Reset Output from Fire Condition stage I or Fire...

  • Page 21: Duty Mode

    UniPOS Fire Extinguishing Control Panel FS5200Е interruption) or active status. Simultaneously the monitored outputs are followed constantly for in Fault condition (short circuit or interruption). The fire extinguishing control panel FS5200Е operates in eight main conditions: Duty Mode, Fire condition Stage I, Fire condition Stage II, Fault Condition, Disabled component, Test Mode, Information and Control Mode and Set up Mode.

  • Page 22: Indication

    UniPOS Fire Extinguishing Control Panel FS5200Е An automatic fire detector is activated along the first or the second or the third line To exit this condition press button at Access level 2 7.2. Indication 7.2.1. LED and sound indication In this condition: - The indicator (Power Supply) illuminates in green light;...

  • Page 23: Fire Condition Stage

    UniPOS Fire Extinguishing Control Panel FS5200Е extinguishing control panel enters Fire condition Stage II; upon Fault condition. 2, 3 and Press the button to: Access level 2 is required to  suppress for operation with this button. The outputs Button...
  • Page 24 UniPOS Fire Extinguishing Control Panel FS5200Е In Fire Condition Stage II and expired evacuation time the fire extinguishing control panel activates the extinguishing devices and the LED indicator (Fire Stage II) illuminates in red continuous light. The indicator (Manual Mode) or the indicator (Manual-Automatic Mode) illuminates in yellow light depending on the selected mode of operation.

  • Page 25: Using The Keypad

    UniPOS Fire Extinguishing Control Panel FS5200Е The display shows: The message ATTENTION GAS! and EXTINGUISHING ON indicating that the extinguishing agent is released. Information for the current status of the lines: This indication could suppressed by the screens in Fire condition. The suppressed messages could be displayed in Information and Control Mode.

  • Page 26: Using The Switch For Mode Selection (Automatic/Manual/Disabled)

    UniPOS Fire Extinguishing Control Panel FS5200Е 2, 3 and Press force fire Access level 2 is required to extinguishing control panel to exit for operation with this button. The Button Fire condition Stage II and to reset key on the front panel should be...

  • Page 27: Indication

    UniPOS Fire Extinguishing Control Panel FS5200Е 9.2. Indication 9.2.1. LED and sound indication Upon Fault battery low LED indicator is not activated. The local sounder produces a discontinuous signal (sound for 1s, followed by 3s break). The LCD display illumination is off.

  • Page 28: Using The Keypad

    UniPOS Fire Extinguishing Control Panel FS5200Е  Faults in monitored outputs: Duty 17:05:34 (The field “ЕEЕ” shows the number of the faults; Fault:ЕEЕ MONN Status The field “Status” shows the monitored output status, i.e. the type of the fault) L1:Dut.L2:Dut.L3:Dut ...

  • Page 29: Disabled Component

    UniPOS Fire Extinguishing Control Panel FS5200Е pressing of the same button. local sounder activated again: when fire extinguishing control panel enters Fire condition; Fault condition occurs; Press it to enter Information For detailed information how and Control Mode. All occurred...

  • Page 30: Using The Keypad

    UniPOS Fire Extinguishing Control Panel FS5200Е 10.3. Using the keypad Button Access Operation Additional information level Press it to enter Information For detailed information how and Control Mode. All entered to view all entered disables in Button disables could be viewed in Menu...

  • Page 31: Information And Control Mode

    UniPOS Fire Extinguishing Control Panel FS5200Е 12. Information and Control Mode 12.1. Description Information and Control Mode provides the user with the possibilities to display information associated with the settings of the fire extinguishing control panel, and to enter control data.

  • Page 32: Using The Menus

    UniPOS Fire Extinguishing Control Panel FS5200Е  button is active only in the screens for changing the parameter. Press it to:  move the cursor one position to the right. Upon reaching the last position of the parameter the cursor returns to the first one;...

  • Page 33: Menu View Disables

    UniPOS Fire Extinguishing Control Panel FS5200Е If there are fault condition the display shows information about the first fault. The screen contains the following information: consecutive number of the fault; total number of the faults; type of the fault; status of the lines...

  • Page 34: Menu View Test

    UniPOS Fire Extinguishing Control Panel FS5200Е If there are disables all active disables are displayed simultaneously on the screen. To exit the menu – use the button Example: All entered disables are visualized on the screen: line1, line 2, line 3, the two...

  • Page 35: Menu Statuses

    UniPOS Fire Extinguishing Control Panel FS5200Е If there is/are line/lines in test, their numbers appear on the display. Information on the changed status is provided on the fourth line of the display. To exit the menu use button Example: The displayed screen provides information that Line 1 and Line 2 are set to Test Mode.

  • Page 36: Menu System Functions

    UniPOS Fire Extinguishing Control Panel FS5200Е Information screen containing the line number and the current at that moment is displayed for the status (current condition) of the line. The current value in the line provides information about its status. 1 2 3...
  • Page 37 UniPOS Fire Extinguishing Control Panel FS5200Е 12.4.5.1. Function Check LEDs and Sound Indicators” 1 2 3 Press button LEDs indicators are illuminated and the sounder produces continuous signal. Press button to deactivate the function. Note: During the check the LEDs of the...
  • Page 38 UniPOS Fire Extinguishing Control Panel FS5200Е  – to change the calendar date; button  – to move to the next character; button  – to confirm the entered or set calendar date; button  button - to exit. Use Function Day to adjust the current day of the week.
  • Page 39 UniPOS Fire Extinguishing Control Panel FS5200Е Use function Calibration to “accelerate/ delay” the clock. Each entered positive unit (“+”) accelerates the clock at the rate of 10,7s per month; each negative unit delays the clock at the rate of 5,35s per month.
  • Page 40 UniPOS Fire Extinguishing Control Panel FS5200Е When the function to disable a fire alarm line or an output from the fire extinguishing control panel is selected from the subordinate menu, a screen appears displaying the current status of the disable in the specific input/output.
  • Page 41 UniPOS Fire Extinguishing Control Panel FS5200Е Screen Number of Checks In order the number of the false activations reduced, fire extinguishing control panel provides the option to setup a parameter indicating the number of the activations of an automatic fire...
  • Page 42 UniPOS Fire Extinguishing Control Panel FS5200Е Screen Time for Extinguishing The screen provides information about the setup time while the extinguishing devices are switched. The time is in seconds. 1 2 3 Screen Evacuation Time The screen provides information about the setup time for evacuation.
  • Page 43 UniPOS Fire Extinguishing Control Panel FS5200Е Screen Software Version The screen provides information about the software version. 1 2 3 12.4.5.6. Menu Setup The configuration parameters of the fire extinguishing control panel are set in the menu Setup. It is described in details in Setup Mode (section13).

  • Page 44: Setup Mode

    UniPOS Fire Extinguishing Control Panel FS5200Е 12.4.5.8. Screen Archive The screen Archive Counter is part of the menu System Functions. The active buttons to enter it, to move to another entry in the archive and to exit the screen are:...
  • Page 45 UniPOS Fire Extinguishing Control Panel FS5200Е Transition to a lower hierarchy menu is performed by the means of button ; to revert to an upper hierarchy menu use button . To switch between elements of one menu use buttons The screens containing specific information (information screens) or providing the possibility for changing the parameters and executing the commands (command screens) are at the lowest level.

  • Page 46: Using The Menus

    UniPOS Fire Extinguishing Control Panel FS5200Е 13.4. Using the menus Enter Setup Mode through menu System Function. 1 2 3 Enter a password (four-digit number) to have an access to the menu. The factory set password is “0000”. Use: ...
  • Page 47 UniPOS Fire Extinguishing Control Panel FS5200Е 13.4.1.1. The value of the parameter Network Address defines uniquely the fire extinguishing control panel within established network of remote control panels and repeaters. A screen for entry of the data appears in setting (entry) of a network address.

  • Page 48: Menu "Can Parameters

     Only the panel from 7000 series is definedas the main panel;  Information of Fire condition or Fault condition of FS5200E is accepted and indicated only from panels 7000 series;  Maximum number of devices on CAN network - up to 32 ( i.e maximum laden network can be built of 8 panels series 7000 and 24 FS5200E panels.
  • Page 49 UniPOS Fire Extinguishing Control Panel FS5200Е • Fire Extinguishing Control Panel 5200Е receives and uniquely distinguishes data from activated inputs of up to 5 manual call points (FD7150), up to 8 automatic fire detectors (FD71xx) and inputs of devices FD7203 within the systems series 7000.
  • Page 50 Enter in the screen the exchange rate of the network. Important : The speed entered for Panel FS5200E must correspond to the speed, entered for IFS7000 panels. Parameter permits the following values: 40, 80, 100 или 160 kb/s. Active buttons: 1 2 3 ...
  • Page 51 Fire Extinguishing Control Panel FS5200Е 13.4.2.5. Inserting addresses of the Remote Control Panels. This option of the Menu permits entering the addresses Remote Panels communication with FS5200E. Мenu includes :  01 CAN Master Remote Panel 01;  02 CAN Remote Panel 02; ...
  • Page 52 13.4.2.6. If devices of type FD7203, manual or automatic detectors are also used as an input of the fire Extinguishing Panel, their paremetres must be set in FS5200E. Four inputs of the Control Panel are possible to be set : ...
  • Page 53 UniPOS Fire Extinguishing Control Panel FS5200Е 13.4.2.6.3.1. ON/OFF Remote input. Admissible values of the parameter are : ''On'' and ''Off'' Аctive buttons :  to change – buttons  to save the change – button („Мenu”); 1 2 3 ...
  • Page 54 UniPOS Fire Extinguishing Control Panel FS5200Е 13.4.2.6.3.4. Number of the addressable device FD7203. Admissible values of the parametres are: 01÷125 (address of the device in the relevant loop). Аctive buttons :  to change – buttons  to save the change – button 1 2 3 („Мenu”);...

  • Page 55: Menu Inputs/Outputs

    UniPOS Fire Extinguishing Control Panel FS5200Е 13.4.2.7. Insert the number of the automatic fire detectors of type FD71XX, connected in logical dependency „AND”.The inserted number indicates how many fire detectors should be be activated in order the control panel to enter Fire Condition 2 Stage .

  • Page 56: Menu Time Extinguishing

    UniPOS Fire Extinguishing Control Panel FS5200Е 13.4.3.2. Screen Number of Checks of Lines Use this screen to set the number of checks upon which the fire extinguishing control panel registers a fire condition along a fire alarm line. The possible values of this parameter are 1, 2 and 3 checks.

  • Page 57: Menu Factory Settings

    UniPOS Fire Extinguishing Control Panel FS5200Е 13.4.3.5. Setup Input Low Press Due to the specificity of the input to monitor the leaking of the extinguisher, the active status for this function is OPEN contact. it is provided the logic of the contact...
  • Page 58 UniPOS Fire Extinguishing Control Panel FS5200Е 13.4.6. The function Factory Settings returns the parameters of the fire extinguishing control panel repeater to their default settings. The specific values of the parameters are given in the previous sections of the instruction manual.

  • Page 59: Fire Extinguishing Control Panel Start Up

    UniPOS Fire Extinguishing Control Panel FS5200Е Algorithm for the procedures during decision for extinguishing in Fire Extinguishing Panel FS 5200E Duty mode Automatic control of the Manual control of the extinguishing extinguishing Fire in 1 or 2 fire alarm lines...

  • Page 60: Labour Protection Requirements
