UniPOS FS4000 Instruction Manual

Fire control panel
Hide thumbs Also See for FS4000:
Table of Contents

Advertisement

Quick Links

Download this manual

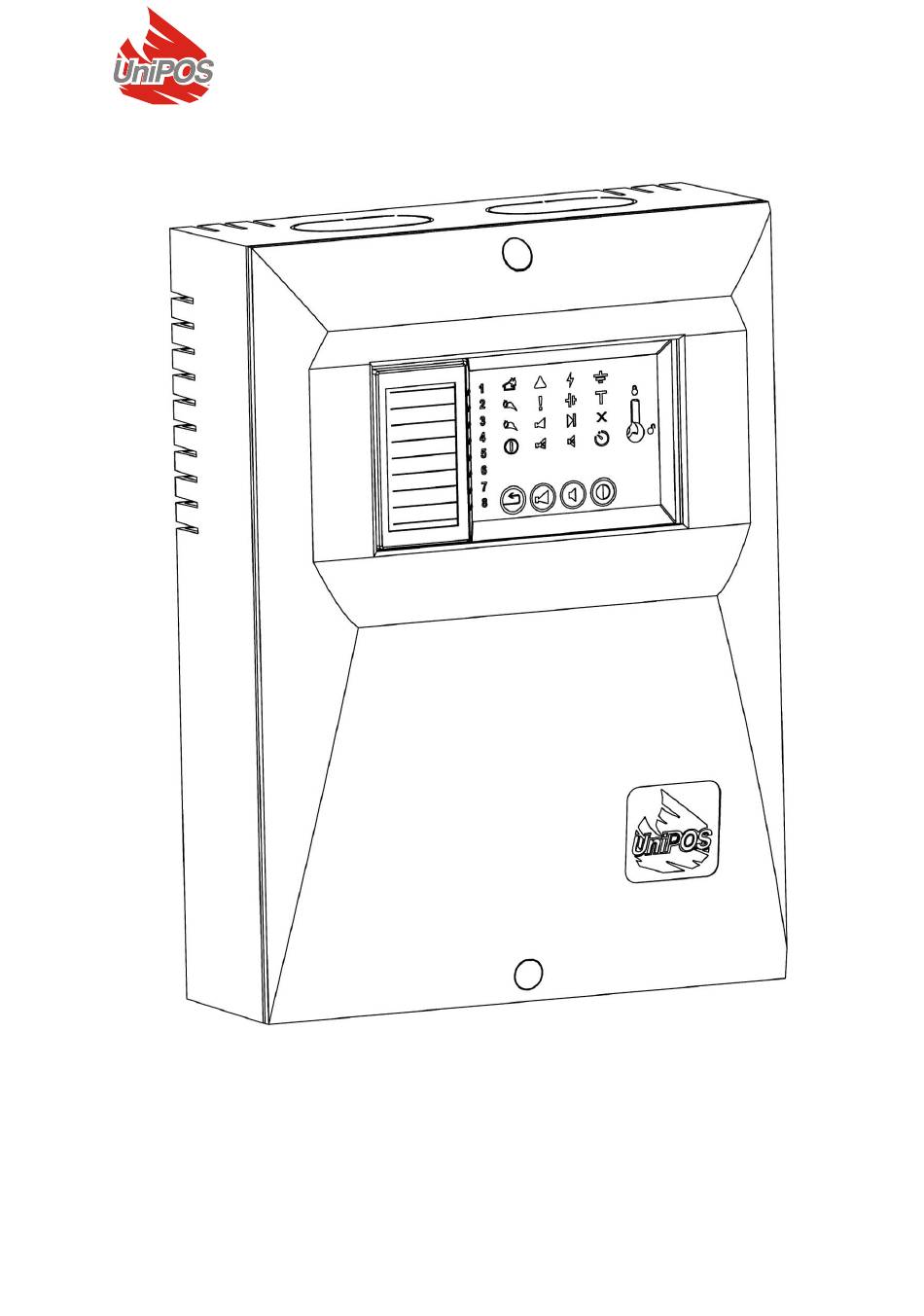

Fire Control Panel
FS4000
INSTRUCTION MANUAL
Revision 05.07.24
12-10-1038-0100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS4000 and is the answer not in the manual?

Questions and answers

Related Manuals for UniPOS FS4000

Summary of Contents for UniPOS FS4000

  • Page 1 Fire Control Panel FS4000 INSTRUCTION MANUAL Revision 05.07.24 12-10-1038-0100...

  • Page 2: Table Of Contents

    Contents 1. Introduction..........................4 2. Terminology ..........................4 3. Function ...........................5 4. Technical features ........................5 4.1. Fire detection lines ......................5 4.2. Current thresholds for ......................5 4.3. Monitored outputs for fire condition ................5 4.4. Relay outputs ........................6 4.5. Input for remote “Reset fires” or “Activate monitored outputs” ........6 4.6.
  • Page 3 10.5.Enable/Disable “EARTH detection” ................16 10.6.Enable/Disable “Check Rem.Det” ................. 17 11. Test condition ........................17 11.1. Description ........................17 11.2. Line in Test condition ....................17 12. Delay of outputs........................18 12.1. Description ........................18 12.2 Activating Line Time Delay .................... 18 12.3 Indication of Time Delay ....................

  • Page 4: Introduction

    - shielded fire cable. The basic configuration of FS4000 is offered in four different configurations - 2, 4, 6, 8 conventional lines. Following the EN54-2 up to 32 fire detectors and manual call points can be connected per line.

  • Page 5: Function

    FIRE CONDITION FIRST STAGE when automatic detectors are activated simultaneously in two lines. 3. Function Fire control panel FS4000 is designed to operate with conventional automatic fire detectors and manual call points. The panel has outputs dedicated to trigger external equipment. The panel is manufactured in four configurations: ...

  • Page 6: Relay Outputs

    − Input for remote Reset fires operation or remote activation of the monitored outputs for Fire Alarm Devices (refer p.6.3); − 8 pcs. UniPOS Automatic Fire Detectors (or 4 pcs. With connected RI31 remote indicators) simultaneously in Fire per zone, before the Short-circuit protection of the line is triggered.

  • Page 7: Power Supply To External Devices

    - 304х222х94 mm 4.11. Dimensions 4.12. Weight, backup batteries not included - 0,98kg 5. Contents of delivery: − Fire control panel FS4000 - 1 pc − End of line resistors 3,0k / 0.6W  for 2 detection lines - 4 pcs ...

  • Page 8: General Information

    UniPOS Fire Control Panel FS4000 6. General information 6.1. Access levels 6.1.1. Access level 1 Ordinary persons who would presumably find out and react to alarm for fault condition or fire condition have access to level 1. All control buttons and light indicators are available.
  • Page 9 UniPOS Fire Control Panel FS4000 Table 1 Conditions of the fire control panel Indication Indicator Power supply – steady All conditions - The fire control panel is power supplied green light Indicator Delay of outputs - steady Only in case that delays are active.

  • Page 10: Configuration Modes Of Lines, Outputs, And Operation Of The Interface Rs485

    UniPOS Fire Control Panel FS4000 Table 2 Condition of the fire Access Means of control Operation control panel level Button Reset Level Fire condition Exit of Fire condition 2a/2b - suppress the outputs in case that they are Button Outputs Level activated in fire mode;...

  • Page 11: Conditions Of The Fire Control Panel

    6.4. Conditions of the Fire Control Panel Fire control panel FS4000 monitors the fire detection lines in sequence. Depending on the current value, the line can be in normal condition, in fire condition or in fault condition (short circuit or open line).

  • Page 12: Buttons Operation

    ). The application of this functionality is to signal for forced evacuation. 7.4. Additional option In FS4000 there is option dedicated per detection line(s) so that in case of fire the common delay of outputs will be skip and the CIE will be in Fire condition 2 stage.

  • Page 13: Buttons Operation

    UniPOS Fire Control Panel FS4000 - if the outputs are suppressed with button , then the indicator is illuminated with yellow light; Local buzzer is activated. If the Control Panel is connected with local network by Remote Control Panel for indication, the...

  • Page 14: Led And Sound Indication

    UniPOS Fire Control Panel FS4000 − Fault in power supply to detection lines; − Fault in power supply to external equipment; - Network fault or fault in the transmitting device; In System fault the main processor is not able to continue operation.

  • Page 15: Disabled Component Mode

    UniPOS Fire Control Panel FS4000 The local buzzer will be activated: − when new detection line enters Fire condition; − when new fault condition is registered. The button is operational at Access level 1, 2, 3. 10. Disabled component mode 10.1.

  • Page 16: Switching On/Off Communication Interface Rs485

    UniPOS Fire Control Panel FS4000 Тable 3 Check for removed detector disabled Check for removed detector enabled Earth detection disabled Earth detection enabled Time delay See Table 4 Not used Communication interface RS485 is ON Communication interface RS485 is OFF...

  • Page 17: Enable/Disable "Check Rem.det

    UniPOS Fire Control Panel FS4000 10.6.Enable/Disable “Check Rem.Det”: 10.6.1. Disable “Check Rem. Det.“: - Move DIP 1 (pos.3, fig.1 and Table 3 ) into position “On”; 10.6.2. Enable “EARTH detection” function: - Move DIP 2 ( pos.2, Table 3) into position “Off”.

  • Page 18: Delay Of Outputs

    UniPOS Fire Control Panel FS4000 11.2.1. Line indication at Test Mode Duty Mode at this condition are illuminated: - the dedicated zone indicator is with continuous On yellow indication; - the indicator with continuous yellow light 12. Delay of outputs 12.1.

  • Page 19: User Configuration Of The Outputs

    UniPOS Fire Control Panel FS4000 the panel is in Fire condition. 13. User configuration of the outputs The Fire Control Panel provides the option for inserting combinations for outputs activation .8 constant combinations are set. An operating combination shall be chosen by 8...

  • Page 20: Installation And Initial Start Of The Fire Control Panel

    14. Installation and initial start of the fire control panel NOTE: Read FS4000 Safety Guide carefully! Only people who have access level 3 and 4 /according EN-54/ and they are skilled /according EN 62368-1/ are authorized to do installation, initial start, changing the settings and repairing of the fire control panel! 14.1.
  • Page 21 UniPOS Fire Control Panel FS4000 - Pull-out the interface board (fig.4) following the sequence: • push the holders on the top side (fig.4, pos.1); • take out (from the top holders) the interface board and leave it fixed on the bottom holders (fig.4, pos.
  • Page 22 - The openings (fig.5, pos.6) and (fig.5, pos.5) are dedicated to the signal lines (conventional zones and alarm and protection equipment); - The opening in the top left corner is only dedicated to the 220/230VAC mains power line (fig.5, pos.4), applicable for the FS4000 mains power supply; Instruction manual Page 22 Revision 05.07.24...
  • Page 23 UniPOS Fire Control Panel FS4000 14.1.3. Preparation of the installation cables in the cabinet of the FCP. - The length of the mains cable line (220/230VAC), placed inside the cabinet must be 185 mm, as marked on the draft fig.6(A);...
  • Page 24 Fig.6.(B) 14.1.4. FCP cabinet location NOTE: FS4000 is for use in locations where children are not likely to be present. - The distance between the wall and the backside of the FCP cabinet is 7 mm (fig.7). For correct installation, there should be no cables or obstacles in the gap between the cabinet and the wall, which are more than 7 mm (fig.7, pos.1);...
  • Page 25 UniPOS Fire Control Panel FS4000 Put the panel's cabinet on the wall and mark the positions for the dowels (fig.8, pos.1). Depending on the type of wall, please use suitable fasteners with a minimum load capacity of 25N each. Distribute the load on each of the fasteners evenly.
  • Page 26 UniPOS Fire Control Panel FS4000 14.1.5. The signal lines and mains power line prepare to connect to main interface board. - The mains power line, passing through the dedicated opening (p.14.1.2) is fixed with tie-wraps in the cabinet on fig.9, pos.1.
  • Page 27 UniPOS Fire Control Panel FS4000 Fig.9 14.1.6. The signal lines cable connection to main interface board. - For easy wires installation in the PCB connectors, the interface board is mounted to the bottom holders, as illustrated on fig.10, pos.1. - The signal cable lines, dedicated for the conventional zones and fire protection and fire alarm equipment, are fit to the PCB connectors in the main interface board (fig.10, pos.
  • Page 28 UniPOS Fire Control Panel FS4000 14.1.7. Мains power line connection to the main interface board. The interface board is put back to its initial position (Fig.11) : - The bottom side of the interface board is mounted on the holders (fig.11, pos.1);...
  • Page 29 UniPOS Fire Control Panel FS4000 Fig.11 14.1.8. Installation of the back-up batteries in FCP. Batteries are not part of the product ! - Install the back-up batteries in the cabinet of the FCP (fig.12, pos.1). The maximum capacity of the batteries is 7 Ah, but it is correct to install 1.2 Ah or 4.5 Ah back-up batteries, as well.
  • Page 30 UniPOS Fire Control Panel FS4000 Fig.12 14.1.9. Close the cabinet. - Fit the front cover of the cabinet to its initial position (fig.13); - Install the screws (2pcs 3,9mm X 13mm) in the dedicated openings of the front cover (fig.13, pos.1 and pos.2);...

  • Page 31: Periphery Devices Assembly

    UniPOS Fire Control Panel FS4000 Fig.13 14.2. Periphery devices assembly All wiring is installed in terminals, mounted on the printed circuit boards . Be advised, that the total consumption of the voltage powering the external equipment (terminal “+ 24V”) shall not exceed 1,2 A in alarm mode.
  • Page 32 Not connected dry-contact outputs are not terminated. 14.2.3. Connection of extension module FD 4201 In Fire Control Panel FS4000 there is an option for extension through module FD 4201. The optional module FD 4201 is with the following interfaces: - 2, 4, 6 or 8 dry-contacts (depending on the number of detection lines in the panel). Each dry- contact is dedicated to a conventional line;...

  • Page 33: Connecting Remote Reset Input / "Activate Monitored Outputs

    UniPOS Fire Control Panel FS4000 14.3. Connecting Remote Reset Input / “Activate monitored outputs” 14.4. Connecting fire detectors Fire detectors are connected to the fire control panel by means of two-wire insulated line of total resistance up to 100. Recommended cross section of the wires depending on the length of the line is: ...

  • Page 34: Fire Control Panel Start Up

    The warranty period is 24 months from the date of the purchase, providing that: conditions of storage and transportation have been observed; startup has been done from skilled personnel only; requirements for operation stated herein have been observed. UniPOS wishes you a successful work! Instruction manual Page 34 Revision 05.07.24...

  • Page 35: Appendixes

    UniPOS Fire Control Panel FS4000 18. Appendixes Appendix 1 1. Area for LINE labeling 2. Individual LINE indicators for LINE states - FIRE(red), FAULT, TEST, DISABLED (yellow) 3. Confirmed fire condition from the Remote Control Panel ( red ) 4. Common indicator FIRE condition ( red ) 5.
  • Page 36 UniPOS Fire Control Panel FS4000 Leaflet Appendix 2 Instruction manual Page 36 Revision 05.07.24 of 37...
  • Page 37 UniPOS Fire Control Panel FS4000 Front panel of FS4000 Appendix 3 Instruction manual Page 37 Revision 05.07.24 of 37...
