Wireless Fire Alarm Control Panel VIT 01
WIRELESS FIRE ALARM CONTROL PANEL
VIT01
INSTRUCTION MANUAL
Revision 10/02.17
Instruction manual
Page 1
Revision 10/02.17
Pages 51

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIT 01 and is the answer not in the manual?

Questions and answers

Related Manuals for UniPOS VIT 01

Summary of Contents for UniPOS VIT 01

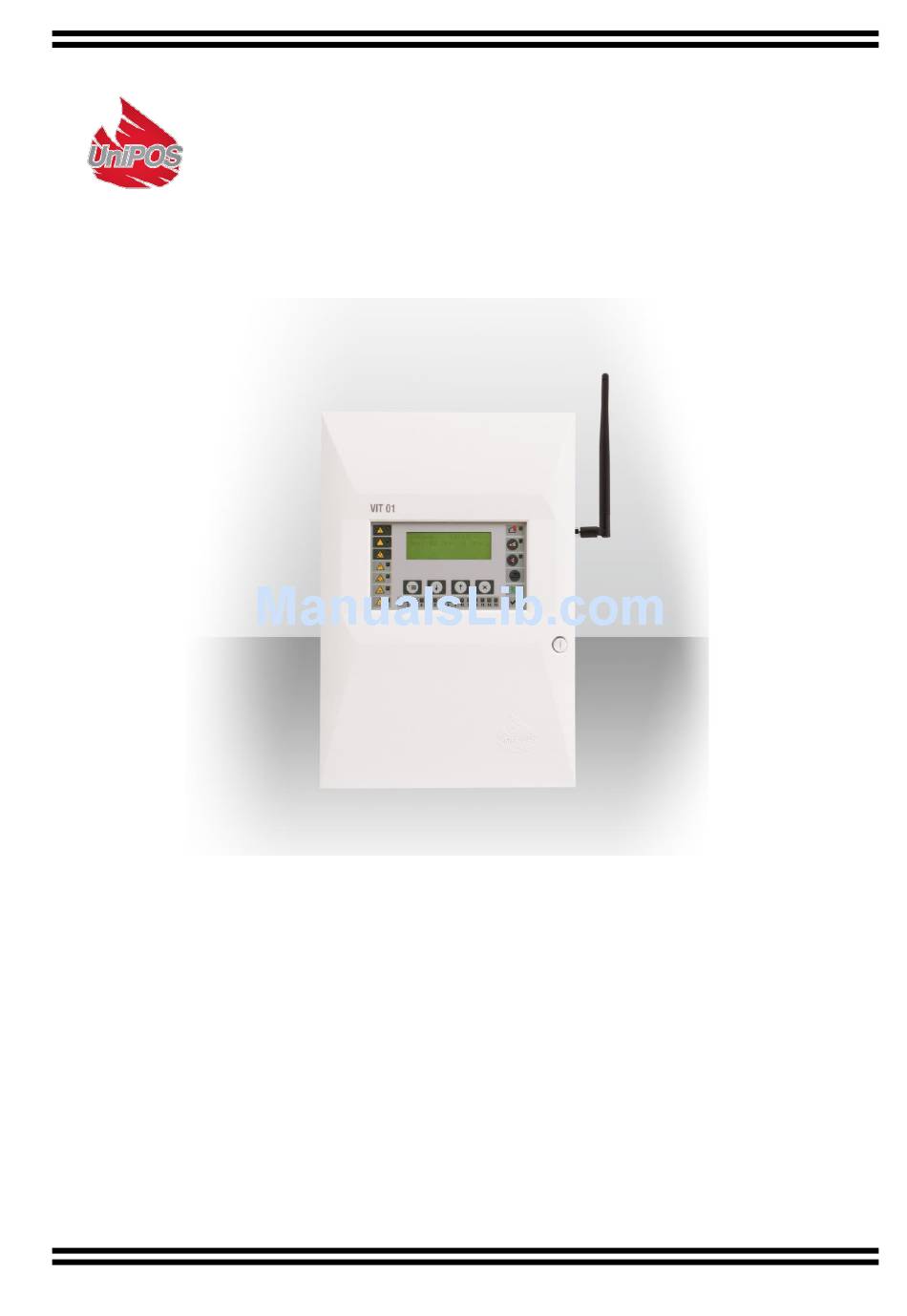

  • Page 1 UniPOS Wireless Fire Alarm Control Panel VIT 01 WIRELESS FIRE ALARM CONTROL PANEL VIT01 INSTRUCTION MANUAL Revision 10/02.17 Instruction manual Page 1 Revision 10/02.17 Pages 51...

  • Page 2: Table Of Contents

    UniPOS Wireless Fire Alarm Control Panel VIT 01 Contents Terminology........................ Technical data......................Contents of delivery....................Installation and setup for operation................4.1. Defining of the structure of the radio network............. 4.2. Installation of the Control Panel.................. 4.3. Description of inputs and outputs. Mounting peripheral devices.........
  • Page 3 UniPOS Wireless Fire Alarm Control Panel VIT 01 Checking for other devices working on the same band………………………………... 17.1. Preliminary radio test………………………………………………………………………. 17.2. Routers and “parents”……………………………………………………………………… 17.3. Several steps in building configuration…………………………………………………… 17.4. Possible reasons of dropping messages between elements in the system………….

  • Page 4: Terminology

    Wireless Fire Alarm Control Panel VIT 01 Introduction Wireless Fire Alarm Control Panel VIT 01 is designed for fire security, management and control of wireless fire alarm devices. The usage of radio communication between the control panel and the fire detectors makes it suitable for installation into premises, where laying cables is unwanted.

  • Page 5: Technical Data

    UniPOS Wireless Fire Alarm Control Panel VIT 01 mode is indicated by common light signalization, local sound signalization and text information on the LCD display. Fire condition Stage 2 (Fire 2) – fire mode, entered by the control panel in two situations: ...

  • Page 6: Contents Of Delivery

    UniPOS Wireless Fire Alarm Control Panel VIT 01 3. Contents of delivery  Fire Control Panel VIT 01 - 1 pc.  Resistors 5,6k/ 0,25W - 2 pcs.  Cable Bridge for the back up batteries - 1 pc.  Fuse 4A - 1 pc.
  • Page 7 UniPOS Wireless Fire Alarm Control Panel VIT 01 In the second case (Fig.1.2), routers (controllers) V I T 0 1 connected directly Control Panel and to each them (including control panel) V I T 0 2 V I T 0 2...

  • Page 8: Installation Of The Control Panel

    UniPOS Wireless Fire Alarm Control Panel VIT 01  Connect router3 to router2;  In the described method above, connect R4 to R3, R5 to R4. In this configuration of the network it is not possible to connect any devices to R5, because limitation of the retransmissions of the messages through routers is 5 (see 2.2.) ;...
  • Page 9 UniPOS Wireless Fire Alarm Control Panel VIT 01  “GND” – GND terminal.  “+28V-” – Terminal for user supply voltage 28V to peripheral devices.  “Rel Fire” – Output, relay, potentiial-free, the line’s status is not monitored.The output is used to control devices in fire mode of the Control Panel.
  • Page 10 UniPOS Wireless Fire Alarm Control Panel VIT 01 Fig.3 4.3.1. Description and mounting of devices to output “Rel Fire” Output “Rel Fire” is a relay output with potential-free contacts, situated on the terminal bus: – normally open “NO”; – normally closed ”NC”;...

  • Page 11: Connection Power Supply

    UniPOS Wireless Fire Alarm Control Panel VIT 01 For connection of the Control Panel with the devices on RS232 we use three-wire line – RX, TX and GND. The signal lines RX and TX connecting the panel and the other device should be crossed.

  • Page 12: Means Of Control And Indication

    UniPOS Wireless Fire Alarm Control Panel VIT 01 enter password for Access level 3. The following features are accessible: all accessable features of Access level 2; entering and changing password for Access level 2 and level 3; deleting the archive;...

  • Page 13: Display And Using The Buttons

    UniPOS Wireless Fire Alarm Control Panel VIT 01 Condition of the Fire Control Panel Indication Local sounder - discontinuous signal – slow Fault condition beeping Table 2 Condition of the Access Means of control Operation Control Panel Lecel Button “Reset”...

  • Page 14: Duty Mode

    UniPOS Wireless Fire Alarm Control Panel VIT 01 On the screens for entering parameters are given the parameter name and to what part of the system is related. The cursor is a line below the changing value. 5.3.2. Using the buttons For operating the Control Panel are used 8 buttons, as 4 of them are with unique functions in mode „Fire condition”, and the rest are used in the context of the displayed information, namely:...

  • Page 15: Using The Keypad

    UniPOS Wireless Fire Alarm Control Panel VIT 01 6.3. Using the keypad (“Menu”). The button is accessable for all the The only one active button at that condition is Access Levels. Information about the status of devices, outputs, zones and Control Panel is available at all access levels.

  • Page 16: Using The Keypad

    UniPOS Wireless Fire Alarm Control Panel VIT 01 - Number and user description name of the zone (Example: 01 Floor1) to which detector belongs; - At phase 1 – the time in seconds, remaining to entering phase 2 (Example: 33).

  • Page 17: Fault Condition

    UniPOS Wireless Fire Alarm Control Panel VIT 01 Adds Inspection time in the Control If this button is pressed when Button Panel is in „Fire 1”. the Control Panel is in „Fire 1”, („Inspection”) Time is set for each zone.

  • Page 18: Using The Keypad

    UniPOS Wireless Fire Alarm Control Panel VIT 01 Upon registering of fault condition, relay „REL Fault” is activated. Entering Fire condition Control Panel suppresses the messages of fault condition. The display shows information about the type of the fault and the total number of faults.

  • Page 19: Indication

    UniPOS Wireless Fire Alarm Control Panel VIT 01 9.2. Indication 9.2.1. LED and sound indication In presence of a disabled component, indicator is continuously on The condition has no sound indication. 9.2.2. Text indication The entered disabled components can be...

  • Page 20: Using The Keypad

    UniPOS Wireless Fire Alarm Control Panel VIT 01 The zone is set to Test mode. The display shows information about: Zone number in test; Zone mode; Number of detectors in Fire condition; Number of Disabled components; Number of detectors in Fault condition.

  • Page 21: Using The Menus

    UniPOS Wireless Fire Alarm Control Panel VIT 01 For operation with this mode are used 4 buttons:  Menu/Confirmation o In the main screen – selects menu for possible functions; o In screen with menu – confirms the function, selected by the cursor.
  • Page 22 UniPOS Wireless Fire Alarm Control Panel VIT 01 11.4.1.2. „Status/Outputs” The status of the outputs in the system is shown. On the second line is shown the name of the output („Output1”, „Output2” for the monitored outputs of the Control Panel or the symbol sequence (the address and name) of the router (controller), managing the output).
  • Page 23 UniPOS Wireless Fire Alarm Control Panel VIT 01 („Menu”) alternatively shows the Button general information about the records in the archive of the Control Panel. Avrive buttons are 11.4.2. Submenu “Archives” The menu is accessable at Access Level 1 and contains information windows with event records.

  • Page 24: Disabled Devices

    UniPOS Wireless Fire Alarm Control Panel VIT 01 11.4.3. Menu “Disabled Devices List” The menu is available at all access levels and contains information screens showing the disabled devices in the system. Buttons display the disabled devices in ascending order, and button - in descending order.

  • Page 25: Using The Keypad

    UniPOS Wireless Fire Alarm Control Panel VIT 01 The displayed text indication is specific for each menu, function, or screen. In section description of operation in menu "Set Up" are given screens with text indication for each of the adjusted parameters.

  • Page 26: Menu Control Panel

    UniPOS Wireless Fire Alarm Control Panel VIT 01 12.4.1. Menu Panel menu includes functions visualization and adjustment of the Control Panel’s elements: outputs and inputs, clock, language of the menus, ground check validity, network address and others. 12.4.1.1. Submenu "Test"...
  • Page 27 UniPOS Wireless Fire Alarm Control Panel VIT 01 Test switching on/switching off of the outputs can be done by the second element of the menu for testing outputs. The outputs are displayed by the following order:  Monitor output 1;...
  • Page 28 UniPOS Wireless Fire Alarm Control Panel VIT 01  Ground check ( chapter 12.4.1.3.2);  Network address ( chapter 12.4.1.3.3);  Password for access level 2 (chapter 12.4.1.3.4);  Password for access level 3 (chapter 12.4.1.3.5);  Check back-up detector’s battery (chapter 12.4.1.3.6) 12.4.1.3.1.

  • Page 29: Menu Zones Set Up

    UniPOS Wireless Fire Alarm Control Panel VIT 01 12.4.1.3.4. „Password for access level 2” Changing the password of level 2 can be done only, if upon entering „Set Up” mode was entered password for level 3. The cursor is positioned on the first digit.
  • Page 30 UniPOS Wireless Fire Alarm Control Panel VIT 01 12.4.2. Zones Set Up The zone represents a number of fire detectors, grouped by a certain sign (usually the location) For example: Fire detectors on one floor in a building could belong to one zone Setting a specific zone determines the way of reaction of the system in case of fire alarm in that zone (which outputs of the Control Panel will be activated).
  • Page 31 UniPOS Wireless Fire Alarm Control Panel VIT 01 Press buttons to make a selection from the submenu, button returns the display in menu „Zones”. 12.4.2.2.1. Parameter„Zone name” Enter the name character by character. The following buttons are used:  buttons...

  • Page 32: Menu Registration

    UniPOS Wireless Fire Alarm Control Panel VIT 01 12.4.2.2.4. „Manual Call Point Priority” The parameter determines if upon activation the zone of a manual call point type VIT 50, the panel will directly enter fire phase 2 mode for the zone where the MCP belongs - „Fire 2”.
  • Page 33 UniPOS Wireless Fire Alarm Control Panel VIT 01  Adding new devices in the system;  Removing devices (switching off);  Replacing an old device with a new one;  Changing the mode of operation of the devices;  Disable and enable devices;...
  • Page 34 UniPOS Wireless Fire Alarm Control Panel VIT 01 detectors in the network to clear its remembered ‘’parent’’ (Control Panel or Router) that they use to communicate with the control panel. After receiving this command, detectors will stop to communicate in the network and will stay in stop mode with blinking all LEDs.
  • Page 35 UniPOS Wireless Fire Alarm Control Panel VIT 01 12.4.3.2. Devices By buttons of the main screen proceed to test mode and setting up of the devices in the network. For each device, registered in the system it is shown the condition, the measured values and the basic parameters.
  • Page 36 UniPOS Wireless Fire Alarm Control Panel VIT 01 For each device, the menu (Appendix 2а) includes the following actions: changing the mode; user defined name of FD and zone, to which it is connected; network parameters; setting up parameters - class, sensitivity, etc.
  • Page 37 UniPOS Wireless Fire Alarm Control Panel VIT 01 o Disable –The Control Panel ignores the messages for fault from the routers and does not produce commands for activating the outputs of the routers. All activities of transmission of messages and connection continue to operate. Upon a disable command, the routers switch off their outputs.
  • Page 38 UniPOS Wireless Fire Alarm Control Panel VIT 01 еnter the zone (1-15). Active buttons are:  buttons - to select the number of the zone (1-15);  button - to return to the screen for entering the name;  button...
  • Page 39 UniPOS Wireless Fire Alarm Control Panel VIT 01  Parameter „Contact period” Each device in the system periodically sends a status message to the Control Panel. The parameter sets the interval between two messages (in seconds). This time period does not refer to the reaction of the fire detectors in fire condition.
  • Page 40 UniPOS Wireless Fire Alarm Control Panel VIT 01 times (see LED indication) and after succesfull operation, operator will receive acknowledgement for cleared parent with a fast blinking of all LEDs followed by LED indication corresponding state “Connection” searching for new parent.
  • Page 41 UniPOS Wireless Fire Alarm Control Panel VIT 01  Parameter „Measurement period in Duty Mode” The parameter sets the interval (in seconds) between the two consecutive measurements of the device. It defines the maximum respond time in case of a fire condition or in case of fault in the devices.

  • Page 42: Default Parameters

    UniPOS Wireless Fire Alarm Control Panel VIT 01 12.4.3.3. Adding This submenu appears upon newly arrived device on the network when the type of registration is manual. By selecting this option, the device registers in the configuration with the next available address.

  • Page 43: Conditions Of Operation, Storage And Transportation

    UniPOS Wireless Fire Alarm Control Panel VIT 01 Enter Set Up condition and set the parameters of the system. In exit of Set Up condition, the Fire Control Panel enters Duty Mode – the Fire Control Panel is ready for fire security of the premise.

  • Page 44: Routers And "Parents

    UniPOS Wireless Fire Alarm Control Panel VIT 01 17.2.1. This test must be performed in advance before final installation of the wireless fire alarm system on the site. This test will gives you information about the attenuation of the signal between elements on different floors and on the same floor, but in different rooms where you want to install routers or detectors.
  • Page 45 UniPOS Wireless Fire Alarm Control Panel VIT 01 Using stored information about network – if router has been removed from the network for some reason and want to restored it on the same position in the network: 1. version 10.12 - there are two requirements for successful restoration- saved “parent”...
  • Page 46 UniPOS Wireless Fire Alarm Control Panel VIT 01 Now switch on your first router C1 and wait to be registered in the configuration of the system. Result should be - "01" devices registered in the configuration, 01 - to the central panel directly and 01 –...

  • Page 47: Possible Reasons Of Dropping Messages Between Elements In The System

    UniPOS Wireless Fire Alarm Control Panel VIT 01 Now you can "Enable registration" of all routers and control panel and follow these steps to connect/register the other devices in the system. These steps will be valid in situation that you have good strength signal between elements that you connect.
  • Page 48 UniPOS Wireless Fire Alarm Control Panel VIT 01 Front panel VIT 01 Indicator “Fire condition ” Indicator “Fault condition” Indicator “System fault” Indicator “Fault in power supply” Indicator “Fault in monitored output” Indicator “Disabled component” Indicator “Test” Button “Menu” Button “Down”...
  • Page 49 UniPOS Wireless Fire Alarm Control Panel VIT 01 Duty mode Detectors (11.4.1.1.) Outputs (11.4.1.2.) Status (11.4.1.) Zones (11.4.1.3.) Panel (11.4.1.4.) Fires Archives (11.4.2.) Faults Dist.List (11.4.3.) Test (12.4.1.1.) Language Clock (12.4.1.2.) Ground check Setup (11.4.4.) Panel (12.4.1.) Parameters (12.4.1.3.) Net Address Level 2 Pass Del.Arch.
  • Page 50 UniPOS Wireless Fire Alarm Control Panel VIT 01 A d d i t i o n A k t i v a t e d i n t h e p r e s e n c e C h a n g e...

  • Page 51: Revision 10/02.17

    UniPOS Wireless Fire Alarm Control Panel VIT 01 Appendix 3 Message Type Reason Device Initially switch on Inform. Initial start up of the mains supply Control Panel AC power off/AC Flt. Fault Mains supply failure Control Panel/R AC Power On/AC On Inform.
