PSEN sl-1.0p 1.1/1.1 VA
PSEN sensor technology
}
Operating Manual-1003821-EN-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSEN sl-1.0p 1.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pilz PSEN sl-1.0p 1.1

Summary of Contents for Pilz PSEN sl-1.0p 1.1

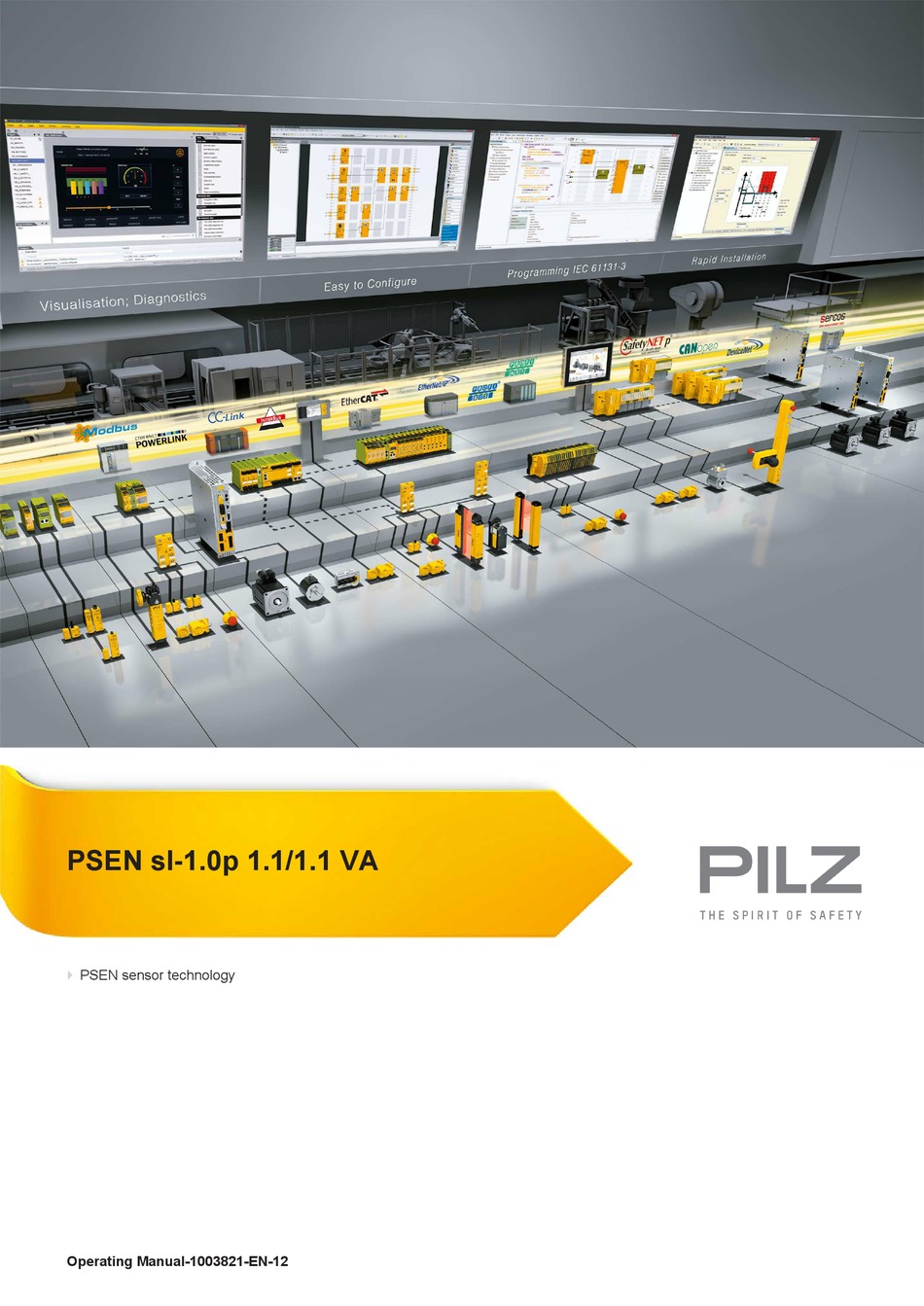

  • Page 1 PSEN sl-1.0p 1.1/1.1 VA PSEN sensor technology Operating Manual-1003821-EN-12...
  • Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.

  • Page 3: Table Of Contents

    Connection example PNOZ s3 Connection example PNOZmulti Teaching in the actuator Installation Note regarding the free-moving actuator PSEN sl-1.0fm Installing on a swing gate Installing on a sliding gate Adjustment Operation Error display through flashing codes Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 4 Dimensions in mm Technical Details Order No. 570600 Technical Details Order No. 570660 Technical Details Order No. 570630 Supplementary data Radio approval Safety characteristic data Order reference Safety gate system Accessories EC declaration of conformity Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 5: Introduction

    PSEN sl-1.0p 1.1/1.1 VA Introduction Validity of documentation This documentation is valid for the product PSEN sl-1.0p 1.1/1.1 VA. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.

  • Page 6: Safety

    Any component, technical or electrical modification to the product Use of the product outside the areas described in this manual Use of the product outside the technical details (see Technical details [ 27]). Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 7: Safety Regulations

    Are familiar with the basic regulations concerning health and safety / accident preven- tion, Have read and understood the information provided in this description under "Safety" Have a good knowledge of the generic and specialist standards applicable to the spe- cific application. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 8: Warranty And Liability

    This must be considered in the operator's hazard assessment and the oper- ator must define appropriate measures to exclude manipulation. Do not remove the connector's protective cap until you are just about to connect the unit. This will prevent potential contamination. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 9: Unit Features

    – free-moving actuator PSEN sl-1.0fm for special applications with higher tolerance compensation Device type: PSEN sl-1.0p 1.1 VA: Base plate of switch and actuator, and connector and screws of the device made of stainless steel Dual-channel operation 2 safety outputs...

  • Page 10: Function Description

    Feasibility monitoring for safety inputs S11 and S21 If the signal at a safety input switches from high to low, while the other safety input re- mains high, an unequal status is displayed: Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 11: Lateral And Vertical Offset

    Therefore a higher effort is required when opening for the first time. If the safety gate is in a locked condition and is opened by force, the safety outputs will shut down. Lateral and vertical offset Max. vertical offset 5 mm Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 12: Wiring

    System with free-mov- ing actuator [ 30], System with normal actuator and stainless steel base plate [ 34]), the electromagnet is no longer activated reliably. The "Lock" LED registers an error when guard locking. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 13: Recommended Cable Cross Sections

    Cable type: LiYY 8x0.25 mm² (79 Ohm/km) from Pilz Max. load per safety output 100 mA 500 mA Cable length 45 m 24 m If cable lengths greater than those stated in the table are required, please contact Pilz. Pin assignment 8-pin M12 connector Cable colour (Pilz Function Terminal designation cable)

  • Page 14: Connection To Evaluation Devices

    Make sure that the selected evaluation device has the following properties: 2-channel with feasibility monitoring OSSD signals are evaluated Connection diagram, single connection 24 V Actuator Safety switch O1 (ST) I1 (FS) I2 (FS) Evaluation device FS: Failsafe ST: Standard Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 15 24 V O1 (ST) Safety switch Actuator I1 (ST) O2 (ST) Safety switch Actuator I2 (ST) O3 (ST) Safety switch Actuator I3 (ST) I1 (FS) I2 (FS) Evaluation device FS: Failsafe ST: Standard Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 16 When several units are connected in series, the required current adds with the number of interconnected safety switches. The safety switch PSEN sl-1.0p 1.1/1.1 VA can be connected to Pilz evaluation devices, for example. Suitable Pilz evaluation devices are, for example:...

  • Page 17: Connection Example Pnoz S3

    PNOZmulti Legend: Input OSSD Input OSSD Signal input Lock/Unlock Teaching in the actuator Any corresponding Pilz actuator (see Technical details: System with normal actuator [ 27], System with free-moving actuator [ 30], System with normal actu- ator and stainless steel base plate [ 34]), is detected as soon as it is brought into the response range.

  • Page 18: Installation

    Prevent the safety switch and actuator being exposed to heavy shock or vibration Circumvention of the safety switch in a reasonably foreseeable manner must be pre- vented. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 19 Installation of the safety switch and actuator must be concealed. Alignment errors of the guard must not adversely affect the safety function of the guard. INFORMATION Mounting brackets are available as accessories [ 38]. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 20: Note Regarding The Free-Moving Actuator Psen Sl-1.0Fm

    The actuators enable a warped gate to be closed. A gap may occur on the gate as a result. Make sure that the gap remains small enough to exclude the possibility of reaching into the danger zone. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 21: Installing On A Swing Gate

    Align the safety switch and mounting bracket with the actuator and tighten the screws. Installing on a sliding gate Align the actuator mounting bracket flush with the sliding gate and tighten the screws. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 22 (Important: do not tighten the screws) Fix safety switch upright with a screw (a), close gate. Align mounting brackets, press firmly together and tighten screw (b). Remove the safety switch and tighten screw (c). Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 23: Adjustment

    The safety functions may only be checked by qualified personnel. CAUTION! Contaminated surfaces can reduce the holding force of the locking magnet. Make sure that the contact surfaces are clean. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 24: Error Display Through Flashing Codes

    1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Decimal error code 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0 Example: Error code 1,4,1: Flash frequency of the "Safety Gate" or "Input" LED Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 25 Check cable length and too high (cable is shorten it, if necessary (see too long) max. cable length) Other flashing codes signal an internal error. Remedy: Change device. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 26: Dimensions In Mm

    PSEN sl-1.0p 1.1/1.1 VA Dimensions in mm M5 (6x) 25,9 M12x1 Fig.: Safety switch and locking magnet 22,5 M5 (2x) 2,5° Fig.: Actuator Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 27: Technical Details Order No. 570600

    Coding level in accordance with EN ISO 14119 Design in accordance with EN ISO 14119 Classification in accordance with EN 60947-5-3 PDDB Pilz coding type Coded Transponder Frequency band 122 kHz - 128 kHz Max. transmitter output 15 mW Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 28 Risk time in accordance with EN 60947-5-3 260 ms Supply interruption before de-energisation 15 ms ∞ Simultaneity, channel 1 and 2 max. Environmental data Temperature of metal surface at ambient temperat- ure: 25 °C 65 °C Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 29 Assured operating distance Sao 1 mm Typical operating distance So 2 mm Assured release distance Sar 8 mm 40 % Repetition accuracy switching distances Typ. Hysteresis 0,7 mm Min. distance between safety switches 30 mm Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 30: Technical Details Order No. 570660

    Electrical data Supply voltage 24 V Voltage Kind Voltage tolerance -15 %/+10 % Output of external power supply (DC) 7,2 W Max. inrush current at UB 0,6 A Max. switching frequency 1 Hz Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 31 25 °C 65 °C Ambient temperature EN 60068-2-14 In accordance with the standard Temperature range -25 - 55 °C Storage temperature EN 60068-2-1/-2 In accordance with the standard Temperature range -25 - 70 °C Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 32 Typ. Hysteresis Min. distance between safety switches 30 mm Sensor flush installation in accordance with EN Yes, follow installation guidelines 60947-5-2 Connection type M12, 8-pin male connector Cable LiYY 8 x 0.25 mm2 Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 33 Height 188 mm 52 mm Width Depth 22 mm Weight of safety switch 1.120 g 590 g Weight of actuator Weight 1.710 g Where standards are undated, the 2015-04 latest editions shall apply. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 34: Technical Details Order No. 570630

    1,5 V Voltage drop at OSSDs Conditional rated short circuit current 100 A Lowest operating current 0 mA Utilisation category in accordance with EN 60947-1 DC-12 Times Test pulse duration, safety outputs 450 µs Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 35 11 ms In accordance with the standard EN 60068-2-29 Number of shocks Acceleration Duration 16 ms Airgap creepage Overvoltage category Pollution degree Rated insulation voltage 75 V Rated impulse withstand voltage 1 kV Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...
  • Page 36 Height 188 mm Width 52 mm Depth 22 mm Weight of safety switch 1.470 g Weight of actuator 1.080 g 2.550 g Weight Where standards are undated, the 2015-04 latest editions shall apply. Operating Manual PSEN sl-1.0p 1.1/1.1 VA 1003821-EN-12...

  • Page 37: Supplementary Data

    2) this product must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this product not expressly approved by Pilz may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 38: Order Reference

    European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN sl-1.0p 1.1/1.1 VA...
  • Page 39 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95600621 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland +41 62 88979-30 Mexico +43 1 7986263-0...
