- Page 1 SDD ES PROFINET PSEN sensor technology Operating Manual-1003826-EN-01...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Process data exchange System structure Set IP address Install GSDLM file Operation Display Structure Operate menu Menu structure Menu settings Device History menu Device Info menu Device Event menu Web server Messages for safety device diagnostics Operating Manual SDD ES PROFINET 1003826-EN-01... - Page 4 Contents Dimensions in mm Tecnical details Order reference Product Accessories EC declaration of conformity Operating Manual SDD ES PROFINET 1003826-EN-01...
-
Page 5: Introduction
SDD ES PROFINET Introduction Validity of documentation This documentation is valid for the product SDD ES PROFINET. It is valid until new docu- mentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 6: Overview

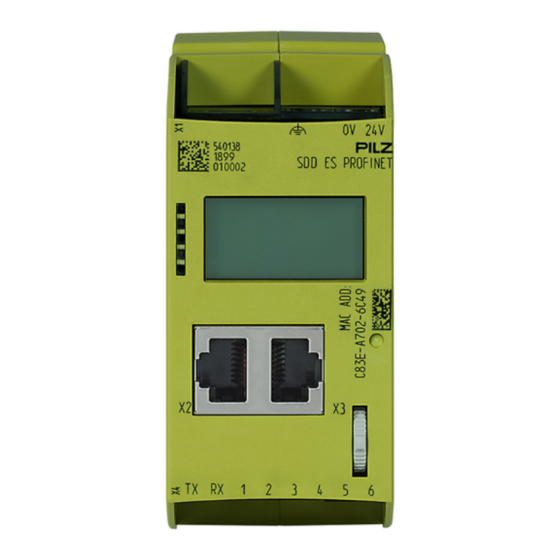

This gives advice on applications and provides information on special fea- tures. Overview Scope of supply Fieldbus module SDD ES PROFINET Unit features SDD ES PROFINET is an active subscriber (Master) of Safety Device Diagnostics Backlit display LEDs for – Supply voltage –... -
Page 7: Front View
1 - 6: Configurable inputs/outputs for connecting signal inputs/outputs from ad- ditional devices (not incorporated in Safety Device Diagnostics) [1] LED supply voltage [2] LED PROFINET interface [3] LED Safety Device Diagnostics [4] LED Start up [5] LED error [6] Display [7] Multifunction switch Operating Manual SDD ES PROFINET 1003826-EN-01... -
Page 8: Safety
Safety Intended use The SDD ES PROFINET is used for communication between connected safety devices and the PROFINET. The PROFINET is designed for data exchange at field level. The SDD ES PROFINET operates as the IO -Device, a connected control system operates as the IO- Controller. -
Page 9: Use Of Qualified Personnel
LEDs indicate the status of the SDD ES PROFINET and communication between the safety devices and the PROFINET IO controller. The SDD ES PROFINET sends telegrams to the connected safety devices via a ring pro- tocol. The following types of data are transferred to the fieldbus and read in. -
Page 10: Data Structure
PROFINET. Data structure The input and output data is divided into the following data areas: Data for the overall system and for the SDD ES PROFINET Data for the connected safety devices List of messages and events Control system telegrams for the safety devices and responses from the safety devices The data structure, including a list of the possible events, is described in detail in the Sys- tem Description "Safety Device Diagnostics". -
Page 11: Commissioning
Both Ethernet interfaces use RJ45 technology. Requirements of the connection cable and connector The following minimum requirements must be met: Ethernet standards (min. Category 5) 10BaseT or 100BaseTX Double-shielded twisted pair cable for industrial Ethernet use Operating Manual SDD ES PROFINET 1003826-EN-01... -
Page 12: Interface Configuration
The RJ45 interfaces on the internal autosensing switch enable process data to be ex- changed with other Ethernet subscribers within a network. The product SDD ES PROFINET can also be connected to Ethernet via a hub (hub or switch). Operating Manual SDD ES PROFINET... - Page 13 SDD ES PROFINET Hub/Switch Hub/Switch Ethernet subscriber Ethernet subscriber Safety relay + SDD ES PROFINET with Ethernet interface Safety relay + SDD ES PROFINET with Ethernet interface Operating Manual SDD ES PROFINET 1003826-EN-01...
-
Page 14: System Structure
Assignment of the IP address by the IO controller before system startup based on the unique unit name. Install GSDLM file Install the GDSML file. You can find the GSDML file in the Internet at www.pilz.de. Operating Manual SDD ES PROFINET 1003826-EN-01... -
Page 15: Operation
SDD ES PROFINET Operation The SDD ES PROFINET is ready for operation when the "Power" LED is lit and the "Fault" LED is unlit. Legend LED on LED flashes LED off Status Meaning / action Power Supply voltage is outside the permitted range... -
Page 16: Display
The menu settings are made on the device's display via a multifunction switch. You can switch between the menu levels by pressing or rotating the multifunction switch. Press multifunction switch Confirm selection/setting Switch to sub-menu Exit menu: <- Back Operating Manual SDD ES PROFINET 1003826-EN-01... -
Page 17: Menu Structure
Description Settings Information about I/O mapping on the connected safety device and about the network configuration of the SDD ES PROFINET Device History Information about previous state changes of en- ables on a connected safety device and status in- formation... -
Page 18: Device History Menu
Safety Gate Actuator is within the response range Actuator is not within the response range in sec Time at which the safety gate was opened (seconds since power-on) Lock Guard locking activation Guard locking activation Operating Manual SDD ES PROFINET 1003826-EN-01... -
Page 19: Device Info Menu
Actuator within the response range Actuator not within the response range Lock Status of guard locking activated deactivated OSSD1 Status of OSSD1 ON state OFF state OSSD2 Status of OSSD2 ON state OFF state INPUT1 Status Input 1 Operating Manual SDD ES PROFINET 1003826-EN-01... -
Page 20: Device Event Menu
24]) Web server A web server is implemented in the fieldbus module SDD ES PROFINET. This can be used to poll data from the SDD. The web server is started once the SDD ES PROFINET is connected to the supply voltage. - Page 21 SDD ES PROFINET Device History The last 23 messages since the SDD ES PROFINET was switched on are displayed. The messages are described in the System Description "Safety Device Diagnostics". Updated by reload: this page is updated by reloading the page in the browser.
- Page 22 User = User – Password = 1111 Once logged in, you can log out again with logout. Logout occurs automatically when the SDD ES PROFINET is restarted or the browser is closed. Delete the list of events (see Delete Events [ 23]) The Settings area can be used by 2 users simultaneously.
- Page 23 Click OK to delete all previous events. Click Abort if no events are to be deleted. Set new Password A new password should be set after the SDD ES PROFINET is switched on for the first time. Enter the new password under New Password.
-
Page 24: Messages For Safety Device Diagnostics
1. Set the IP address of the configuration PC to the address range of the SDD ES PROFINET (e.g. 192.168.0.1). To access SDD ES PROFINET, the IP address of the PC has to be in the same subnet as the IP address of SDD ES PROFINET Change the IP address in the network settings of your configuration PC or change the IP address of the SDD ES PROFINET (see Set IP address). - Page 25 Internal error Check the wiring and switch the voltage off and then on again. OSSD 1&2 0x905 Fault on the safety device output Check the wiring and switch the voltage off and then on again. Operating Manual SDD ES PROFINET 1003826-EN-01...
- Page 26 0x909 Supply voltage below the permit- ted range (see Technical details for safety device) Increase the supply voltage. Escape Release 0x90A The escape release was operated. Reset the safety device to nor- mal operation. Operating Manual SDD ES PROFINET 1003826-EN-01...
-
Page 27: Dimensions In Mm
SDD ES PROFINET Dimensions in mm 45 (1,8") 96 (3,78") Operating Manual SDD ES PROFINET 1003826-EN-01... -
Page 28: Tecnical Details
Number of MODBUS connections Connection type RJ45 1 - 65535 Permitted address range MODBUS/TCP port Operating mode Auto-MDIX, Autonegotiation Default port MODBUS/TCP Galvanic isolation Times Supply interruption before de-energisation 20 ms Default value, keep-alive time 32000 ms Operating Manual SDD ES PROFINET 1003826-EN-01... - Page 29 Top hat rail 35 x 7,5 EN 50022 Material Bottom Front Connection type Spring-loaded terminal, plug-in, screw terminal, plug-in Conductor cross section with screw terminals 1 core flexible 0,25 - 2,5 mm², 24 - 12 AWG Operating Manual SDD ES PROFINET 1003826-EN-01...
-
Page 30: Order Reference
160 g Where standards are undated, the 2016-02 latest editions shall apply. Order reference Product Product type Features Order no. SDD ES PROFINET Fieldbus module PROFINET for Safety Device Diagnostics 540 138 Accessories Product type Features Order no. SDD ES SET Screw terminals, plug-in... -
Page 31: Ec Declaration Of Conformity
EC declaration of conformity This/(These) product(s) fulfil the requirements of the low voltage directive 2006/95/EG. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/down- loads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost-... - Page 32 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia +45 74436332 Brazil +61 3 95600621 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
