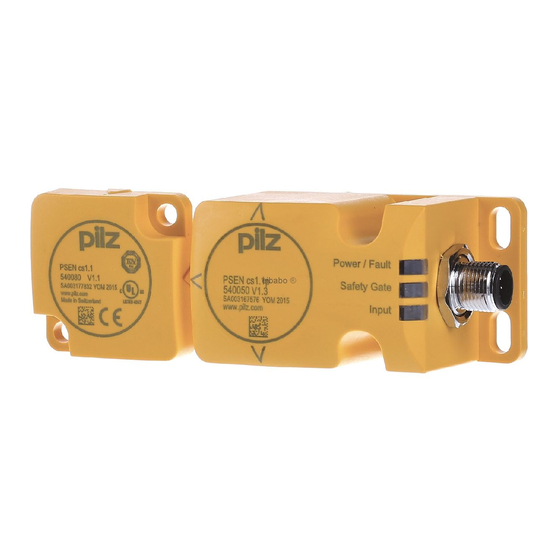

- Page 1 PSEN cs1.1p PSEN sensor technology Operating Manual-21095-EN-10...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Safety Device Diagnostics Operating distances Lateral and vertical offset Wiring Terminal assignment connectors Connection to evaluation devices Single connection Series connection Connection to Pilz evaluation devices Teaching in the actuator Installation Adjustment Operation Dimensions in mm Technical details Safety characteristic data... - Page 4 Contents Accessories EC declaration of conformity Operating Manual PSEN cs1.1p 21095-EN-10...
-
Page 5: Introduction
PSEN cs1.1p Introduction Validity of documentation This documentation is valid for the product PSEN cs1.1p from Version 2.0. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. Using the documentation This document is intended for instruction. -
Page 6: Safety
Safety regulations Safety assessment Before using a unit it is necessary to perform a safety assessment in accordance with the Machinery Directive. Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 7: Additional Documents That Apply
All claims to warranty and liability will be rendered invalid if The product was used contrary to the purpose for which it is intended Damage can be attributed to not having followed the guidelines in the manual Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 8: Disposal
2 safety inputs for series connection of multiple safety switches 2 safety outputs Safety Device Diagnostics (SDD) – Safety Device Diagnostics can be used to poll sensor information, to perform ac- tions and to read configuration parameters Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 9: Function Description
If a fieldbus module of the SDD is used, the diagnostic input Y1 is automatically activ- ated and data is read. If no fieldbus module of the SDD is used, the diagnostic input Y1 is not used. Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 10: Safety Device Diagnostics
With Safety Device Diagnostics there are the following diagnostic options for the field- bus module for simple wiring: – Information is passed on via the fieldbus module directly to the network Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 11: Operating Distances
Further information on Safety Device Diagnostics can be found in Additional documents that apply [ Operating distances Legend: : Assured operating distance: 15 mm : Typical operating distance: 21 mm : Typical release distance: 32 mm : Assured release distance: 40 mm Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 12: Lateral And Vertical Offset
The faults at the safety inputs that can occur by shorts across contact will have to be excluded by suitable measures (e.g. wiring in accordance with EN 60204-1). The power supply must meet the regulations for extra low voltages with protective sep- aration (SELV, PELV). Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 13: Terminal Assignment Connectors
0 V UB blue Diagnostics input The wire colour also applies for the cable available from Pilz as an accessory. Connection to evaluation devices Make sure that the selected evaluation device has the following property: OSSD signals are evaluated through 2 channels with feasibility monitoring... -
Page 14: Single Connection
Connect the signal output Y32 to a consumer, e.g. to the input on a control system, or leave the signal output unconnected. Also note the max. current (see Technical details [ 23]). Single connection Connection diagram, single connection without SDD Actuator Receiver Evaluation device Operating Manual PSEN cs1.1p 21095-EN-10... - Page 15 PSEN cs1.1p Connection diagram, single connection with SDD 24 V Actuator Safety switch I1 (FS) I2 (FS) Evaluation device Fieldbus module FS: Failsafe Operating Manual PSEN cs1.1p 21095-EN-10...
-
Page 16: Series Connection
– PSEN ix2 F4 code – PSEN ix2 F8 code – PSEN Y junction M8-M12/M12 PIGTAIL – PSEN Y junction M12-M12/M12 PIGTAIL – PSEN Y junction M12 SENSOR – PSEN Y junction M12 cable channel Operating Manual PSEN cs1.1p 21095-EN-10... - Page 17 PSEN cs1.1p Connection diagram, series connection without SDD Actuator Receiver Control system Actuator Receiver Actuator Receiver Evaluation device Operating Manual PSEN cs1.1p 21095-EN-10...
-
Page 18: Connection To Pilz Evaluation Devices
FS: Failsafe ST: Standard Connection to Pilz evaluation devices The safety switch PSEN cs1.1p can be connected to Pilz evaluation devices, for example. Suitable Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring PNOZpower for safety gate monitoring Operating Manual PSEN cs1.1p... - Page 19 The connections to two evaluation devices are shown on the following pages, by way of ex- ample: PNOZ s3 and PNOZmulti PNOZ s3 PSENcode Fieldbus module PNOZ s3 PSENcode Without SDD With SDD Operating Manual PSEN cs1.1p 21095-EN-10...
-
Page 20: Teaching In The Actuator
Input OSSD Input OSSD Signal input Teaching in the actuator Any Pilz actuator PSEN cs1.1) is detected as soon as it is brought into the response range. Installation CAUTION! The unit's properties may be affected if installed in an environment contain- ing electrically or magnetically conductive material. - Page 21 Make sure that the actuator with the printed side points towards the marking on the sensor. 5. Do not fully tighten the second screw on the actuator. 6. Align the safety switch and tighten the screws. 7. Align the actuator and tighten the screws. Operating Manual PSEN cs1.1p 21095-EN-10...
-
Page 22: Adjustment
"Power/Fault" LED lights up red: Error message Remedy: Rectify fault and interrupt power supply. Please note the different times for The switch-on delay after UB is applied The recovery time of the sensor and evaluation device. Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 23: Dimensions In Mm
Coding level in accordance with EN ISO 14119 Design in accordance with EN ISO 14119 Classification in accordance with EN 60947-5-3 PDDB Pilz coding type Coded Transponder Frequency band 122 kHz - 128 kHz Max. transmitter output 7 dBm Operating Manual PSEN cs1.1p 21095-EN-10... - Page 24 15 ms Inputs max. 20 ms Actuator typ. 40 ms Actuator max. 260 ms Risk time in accordance with EN 60947-5-3 260 ms Supply interruption before de-energisation 20 ms Simultaneity, channel 1 and 2 max. ∞ Operating Manual PSEN cs1.1p 21095-EN-10...
- Page 25 3 mm Min. distance between safety switches 400 mm Sensor flush installation in accordance with EN 60947-5-2 Yes, follow installation guidelines Connection type M12, 8-pin male connector Material Max. torque setting for fixing screws 1 Nm Operating Manual PSEN cs1.1p 21095-EN-10...
-
Page 26: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PSEN cs1.1p 21095-EN-10... -
Page 27: Supplementary Data
2) this product must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this product not expressly approved by Pilz may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. - Page 28 M12, 8-pin, socket M12, 8‑pin, pin M12, 8- 540 338 M12 PIGTAIL pin, socket PDP67 F 4 code Decentralised passive junction 773 603 PDP67 F 4 code VA Decentralised passive junction, V2A ring nut 773 613 Operating Manual PSEN cs1.1p 21095-EN-10...
-
Page 29: Ec Declaration Of Conformity
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN cs1.1p... - Page 30 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95600621 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
