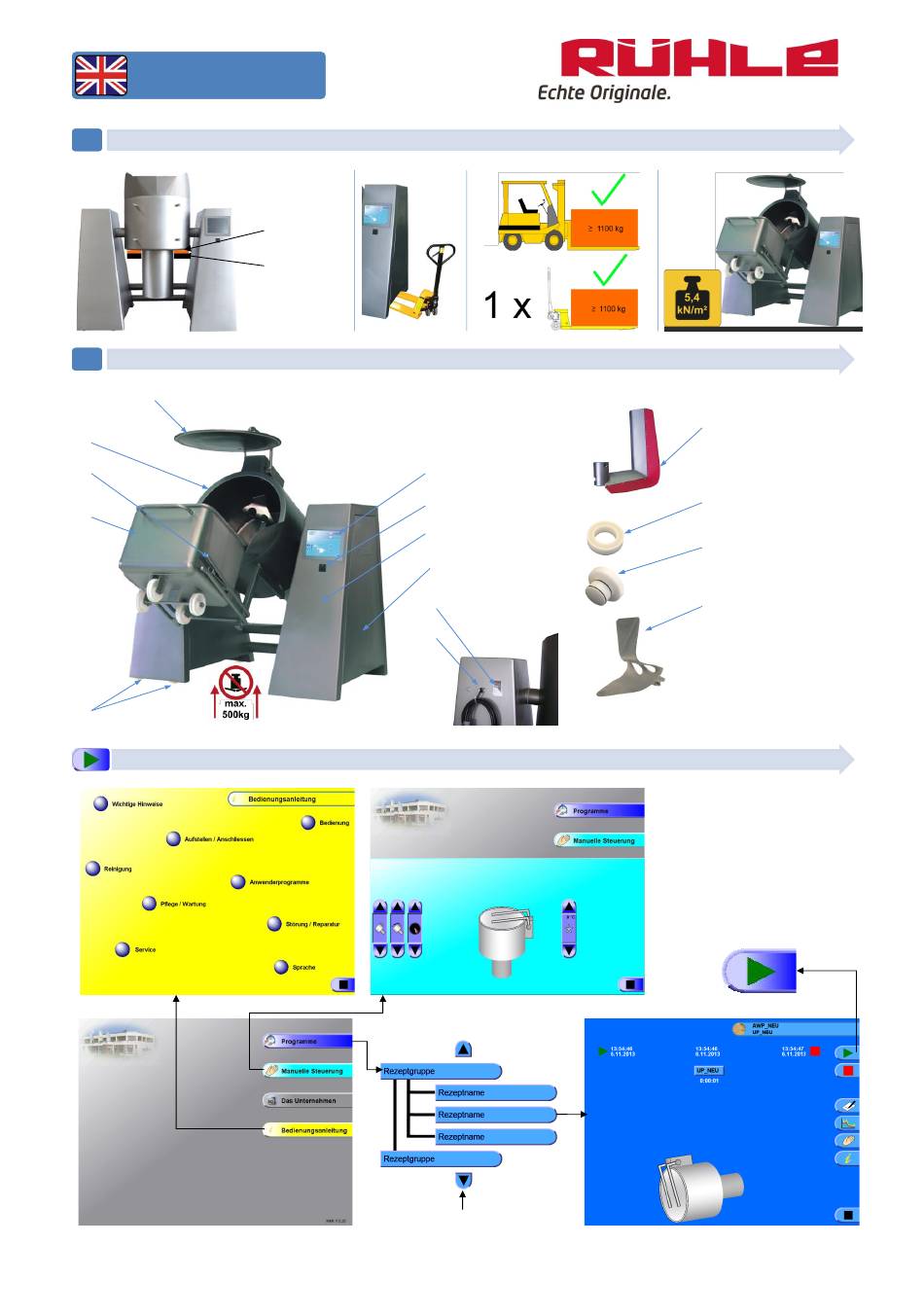

Quick installation guide
• Installing the machine
I
• Operation
II
⑪
⑩
⑨
⑧
⑦
• Recipe selection / recipe start
(Quick help)
(Welcome screen)
MKR 300
Wooden board
Forklift
①
②
③
④
⑤
⑥
(Manual control)
Push button scroll recipes
(Recipe selection)
Rühle GmbH, Beim Signauer Schachen 10, D-79865 Grafenhausen
Tel.: +49 7748-523-11, Fax: +49 7748-523-8511
www.original-ruehle.de
1)
Operation panel
⑫
2)
Main switch
3)
Lateral machine
foot
4)
Side panel
5)
Type plate
⑬
6)
Power supply
7)
Wheel
8)
Trolley
9)
Lift system
⑭
10) Drum
11) Lid
12) Tumbling arm
13) Ring
⑮
14) Blank plug
15) Mixing arm
(recipe start)
(Recipe)
Advertisement
Table of Contents
Related Manuals for Rühle MKR 300
Summary of Contents for Rühle MKR 300
- Page 1 MKR 300 Quick installation guide • Installing the machine Wooden board Forklift • Operation ⑪ Operation panel ⑫ Main switch ⑩ Lateral machine foot ⑨ ① Side panel Type plate ② ⑬ Power supply ⑧ Wheel ③ Trolley Lift system ⑭...
- Page 2 1) Name "new recipe" Lid position 2) Press copy • Manual settings Button tumbling arm Recipe selection Clockwise/Counterclockwise Button lid position Button drum position Start button refrigeration Back • Cleaning MKR 300 Copyright © 2021 by Rühle GmbH 01.25.2021 (v. 2.0)
- Page 3 Lebensmitteltechnik Translation of the original instructions - Tumbler Type: MKR 300 Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen Germany Tel.: +49 7748 523-11, Fax: +49 7748 523-8511 www.original-ruehle.de...
-
Page 4: Table Of Contents
Tumbler MKR 300 Table of Contents Safety Instructions ................3 Safety instructions ..............3 Remaining risk of accidents ..........6 Intended Use ................6 Installation instructions ..............7 Machine transport and setup ..........7 Workplace description ............. 8 Connecting the machine ............9 Operating instructions ..............10... -
Page 5: Safety Instructions
Tumbler MKR 300 1 Safety Instructions !!! Observe the safety instructions during the installation, operation, cleaning and maintenance of the Rühle Tumbler! Hazard potentially causing irreversible injuries if disre- garded. Warning, potentially causing serious injuries if disre- garded. Note Work on electrical equipment of the machine may only... - Page 6 Tumbler MKR 300 missioning, care / maintenance as well as dismantling / dis- posal! c) Make sure that the qualified workers have completely read and understood the respective work instructions according to section 1.1b! d) Proper functioning of the protective devices must be checked at least once a year by a Rühle service technician!
- Page 7 Tumbler MKR 300 and indication must remain on the display. - Now close the lid fully. - When reaching the “Closed” end position the lid and in- dication must remain on the display. If the lid or indication on the display do not remain, the machine must be shut down...
-
Page 8: Remaining Risk Of Accidents
Tumbler MKR 300 1.2 Remaining risk of accidents !!! All life cycles phases Error messages of the operating system must be heeded! Non-compliance is strictly prohibited! No person or object may be present or located in the working area of the machine while the program is run-... -
Page 9: Installation Instructions
Tumbler MKR 300 Misuse: • Any use other than the one listed above is strictly prohibited and is considered misuse! • Operating the machine in explosion hazard areas is prohib- ited! • Handling / processing products and materials not belonging to food products is prohibited! •... -
Page 10: Workplace Description
Tumbler MKR 300 Observe the maximum filling quantity of 225 kg per standard trolley (corresponds to the max. filling capacity of the drum)! Foundation load: 5,4 kN/m²! Set up the machine on a solid level floor with sufficient load bearing capacity! 2.2 Workplace description... -
Page 11: Connecting The Machine
Tumbler MKR 300 Swivel range of drum, lid and lifting unit 2.3 Connecting the machine The machine is connected to a three-phase current outlet; its data (voltage, amperage) must agree with the specifications on the type plate of the machine. -
Page 12: Operating Instructions
Tumbler MKR 300 • The power supply to the machine must be fuse-pro- tected with 16A secured with an AC/DC sensitive ground-fault circuit interrupter (type B). 3 Operating instructions Please refer to the short instructions supplied with your machine for the operation of your Tumbler. - Page 13 Tumbler MKR 300 Depending on the user programs, temperatures down to - 10 C may be generated in the drum. Take the correspond- ing precautions. Do not touch the tumbling arm / mixing arm with your hands or any object when they are moving! Their rota-...
-
Page 14: Cleaning Instructions
Tumbler MKR 300 If you interrupt a program by pressing “Pause”, you will be prompted to aerate when “Open lid” is actuated. Only af- ter the drum has been evacuated will you be able to open the lid by actuating it again. -
Page 15: Cleaning Agents And Disinfectants
Tumbler MKR 300 Cleaning with high-pressure cleaners is permitted only for: • all outside surfaces, • drum, • drum lid + seal • intake filter and air intake pipe, • tumbling arm, • mixing arm and • blind plug The control panel must be cleaned manually and may not... -
Page 16: Cleaning Procedure
Tumbler MKR 300 18803 FINK – Alu-Rei- Acid foam cleaner 2.0 – 5.0 5 – 15 20 – 50 niger 17043 FT 43 SR Acid foam cleaner 1.0 – 5.0 5 – 15 20 – 50 18550 FINK – FC Power- Acid foam cleaner 1.0 –... -
Page 17: Service: Care, Maintenance, Repair
Tumbler MKR 300 5 Service: Care, maintenance, repair Any work related in any way with service may be carried out only by Rühle service technicians and by persons authorised by Rühle in writ- ing. In this regard, a distinction is made between regular care and maintenance and repair. -
Page 18: Regular Maintenance
Tumbler MKR 300 Care schedule: a) Disassemble the machine according to the cleaning instruc- tions. Check for any parts moving with difficulty, material abrasion or other signs of wear and tear. b) Check hygienic condition and function of drum lid seal! -
Page 19: Repair And Spare Parts
Tumbler MKR 300 5.3 Repair and spare parts As a damaged part on a machine is usually damaged due to causes unrelated to the part, always carry out a fault diagnosis. For this reason, contact our Service Hotline at +49 7748 523-11 for spare parts or technical faults. -
Page 20: Electrical Circuit Diagram
Tumbler MKR 300 Protection class: IP54 Protection class: Ambient temperature: +2 to 40 °C Dimensions, W x H x D: 1912 x 2752 x 2431 mm Machine weight: 1100 kg Transport weight: 1500 kg Container size: 300 litres Max. filling:... -
Page 21: Ec Declaration Of Conformity According To Directive 2006/42/Ec
Tumbler MKR 300 8 EC Declaration of Conformity according to Directive 2006/42/EC The manufacturer herewith declares that the following product Name: Rühle GmbH Type: MKR 300 Legal form: Lebensmitteltechnik Address: Beim Signauer Schachen 10 Designation: Tumbler D–79865 Grafenhausen From series no.
