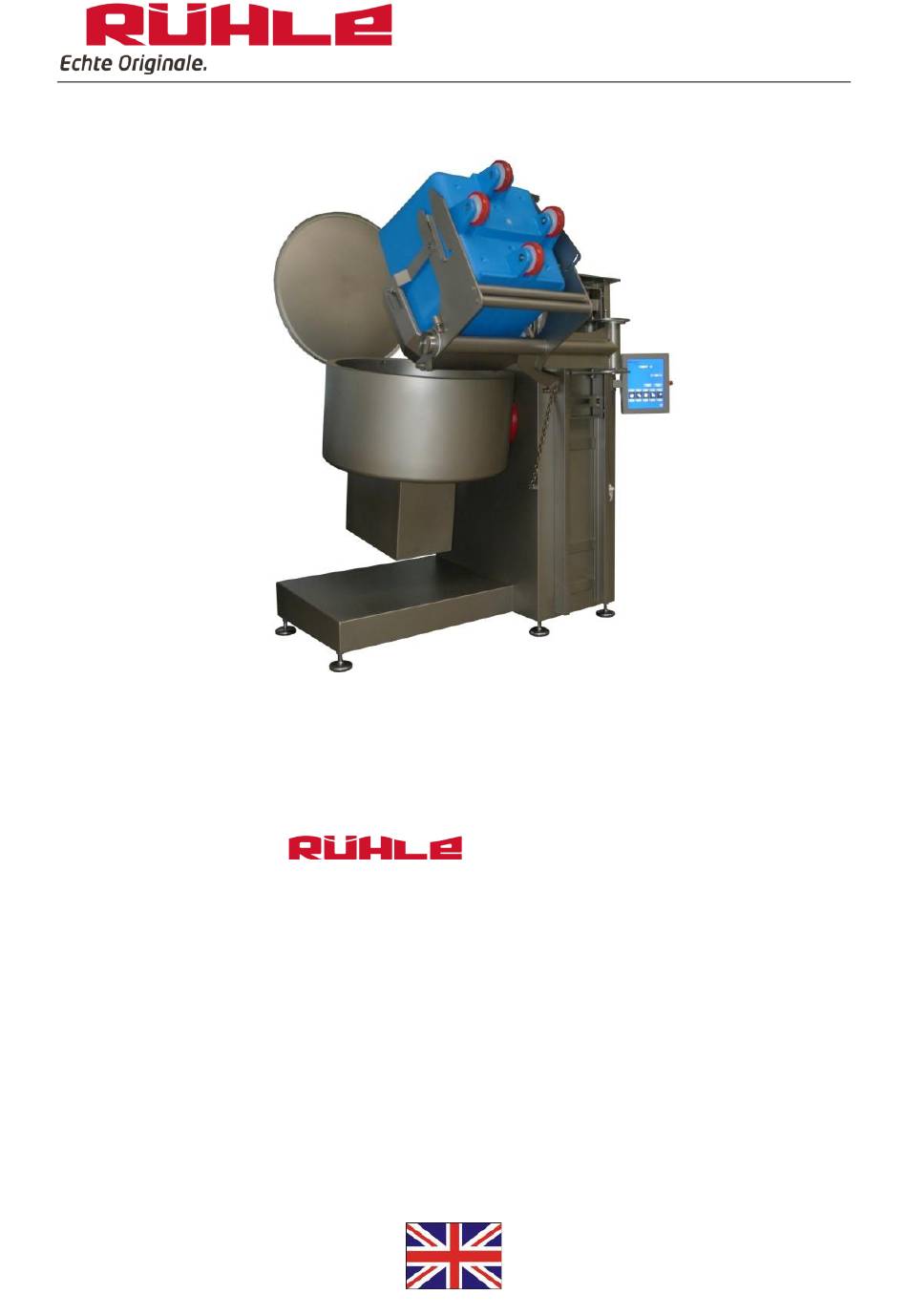

- Page 1 Lebensmitteltechnik Translation of the original instructions - Miknetum Type: MGR 400 Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen Germany Tel.: +49 7748-523-11, Fax: +49 7748-523-8511 www.original-ruehle.de...
-
Page 2: Table Of Contents
Miknetum MGR 400 Table of Contents Safety Instructions ................3 Safety instructions ..............3 Remaining risk of accidents ..........6 Intended Use ................6 Installation instructions ..............7 Machine transport and setup ..........7 Workplace description ............. 8 Connecting the machine ............9 Operating instructions ..............10... -
Page 3: Safety Instructions
Miknetum MGR 400 1 Safety Instructions !!! Observe the safety instructions during the installation, operation, cleaning and maintenance of the Rühle Miknetum! Hazard potentially causing irreversible injuries if disre- garded. Warning, potentially causing serious injuries if disre- garded. Note Work on electrical equipment of the machine may only... - Page 4 Miknetum MGR 400 b) Prepare work instructions for the intended and safe transport, commissioning, setup, operation, cleaning, decom- missioning, care / maintenance as well as dismantling / dis- posal! c) Make sure that the qualified workers have completely read and understood the respective work instructions according to section 1.1b!
- Page 5 Miknetum MGR 400 !!! Before putting the machine into operation for the first time and on each working day, the operator must check the functionality of the following safety devices: a) Visual check for changes or damages on all machine sides and accessible machine parts, e.g.
-
Page 6: Remaining Risk Of Accidents
Miknetum MGR 400 !!! Only Rühle spare parts and accessories may be used. !!! The operating instructions as well as all other technical documents included must be supplied completely when reselling the machine. 1.2 Remaining risk of accidents !!! All life cycles phases... -
Page 7: Installation Instructions
Miknetum MGR 400 Claims of any type because of damages due to non-in- tended use are ruled out! Misuse: • Any use other than the one listed above is strictly prohibited and is considered misuse! • Operating the machine in explosion hazard areas is prohib- ited! •... -
Page 8: Workplace Description
Miknetum MGR 400 Make sure the machine is stable! Ensure that the max. filling quantity of 400 kg per stand- ard trolley is not exceeded! Foundation load: 7,2 kN/m²! Set up the machine on a solid level floor with sufficient load bearing capacity! 2.2 Workplace description... -
Page 9: Connecting The Machine
Miknetum MGR 400 Swivel range of standard trolley sup- port 2.3 Connecting the machine The machine is connected to a three-phase current outlet; its data (voltage, amperage) must agree with the specifications on the type plate of the machine. The machine must be decommissioned until a damaged... -
Page 10: Operating Instructions
Miknetum MGR 400 3 Operating instructions Please refer to the short instructions supplied with your machine for the operation of your Miknetum. Follow also the safety instructions in Chapter 1.1! Depending on the user programs, the lid and drum are moved automatically. - Page 11 Miknetum MGR 400 Do not touch the tumbling stripper arm / mixing arm with your hands or any object when they are moving! Their ro- tational speed while the lid is open is restricted for safety reasons! Make sure before each lifting operation that the standard...
-
Page 12: Cleaning Instructions
Miknetum MGR 400 If you interrupt a program by pressing “Pause”, you will be prompted to aerate when “Open lid” is actuated. Only af- ter the drum has been evacuated will you be able to open the lid by actuating it again. -
Page 13: Cleaning Agents And Disinfectants
Miknetum MGR 400 Cleaning with high-pressure cleaners is permitted only for: • all outside surfaces, • drum, • drum lid and drum lid seal, • intake filter and air intake pipe, • tumbling stripper arm, • mixing arm and • blind plug... -
Page 14: Cleaning Procedure
Miknetum MGR 400 18803 FINK – Alu-Reini- Acid foam cleaner 2.0 – 5.0 5 – 15 20 – 50 17043 FT 43 SR Acid foam cleaner 1.0 – 5.0 5 – 15 20 – 50 18550 FINK – FC Power- Acid foam cleaner 1.0 –... -
Page 15: Service: Care, Maintenance, Repair
Miknetum MGR 400 5 Service: Care, maintenance, repair Any work related in any way with service may be carried out only by Rühle service technicians and by persons authorised by Rühle in writ- ing. In this regard, a distinction is made between regular care and maintenance and repair. -
Page 16: Regular Maintenance
Miknetum MGR 400 a) Disassemble the machine according to the cleaning instruc- tions. Check for any parts moving with difficulty, material abrasion or other signs of wear and tear. b) Check hygienic condition and function of drum lid seal! c) Check function and firm seating of the closures at the tum-... -
Page 17: Repair And Spare Parts
Miknetum MGR 400 5.3 Repair and spare parts As a damaged part on a machine is usually damaged due to causes unrelated to the part, always carry out a fault diagnosis. For this reason, contact our Service Hotline at +49 7748-523-11 for spare parts or technical faults. -
Page 18: Electrical Circuit Diagram
Miknetum MGR 400 Power consumption: 8.9 kW Full-load current: 17.5 A Back-up fuse max.: 32 A Protection class: IP54 Protection class: Ambient temperature: +2 to 40 °C Dimensions, W x H x D: 2934 x 2817 x 3001 mm Machine weight:... -
Page 19: Ec Declaration Of Conformity According To Directive 2006/42/Ec
Miknetum MGR 400 8 EC Declaration of Conformity according to Directive 2006/42/EC The manufacturer herewith declares that the following product Name: Rühle GmbH Type: MGR 400 Legal form: Lebensmitteltechnik Address: Beim Signauer Schachen 10 Designation: Miknetum D – 79865 Grafenhausen From series no.:...
