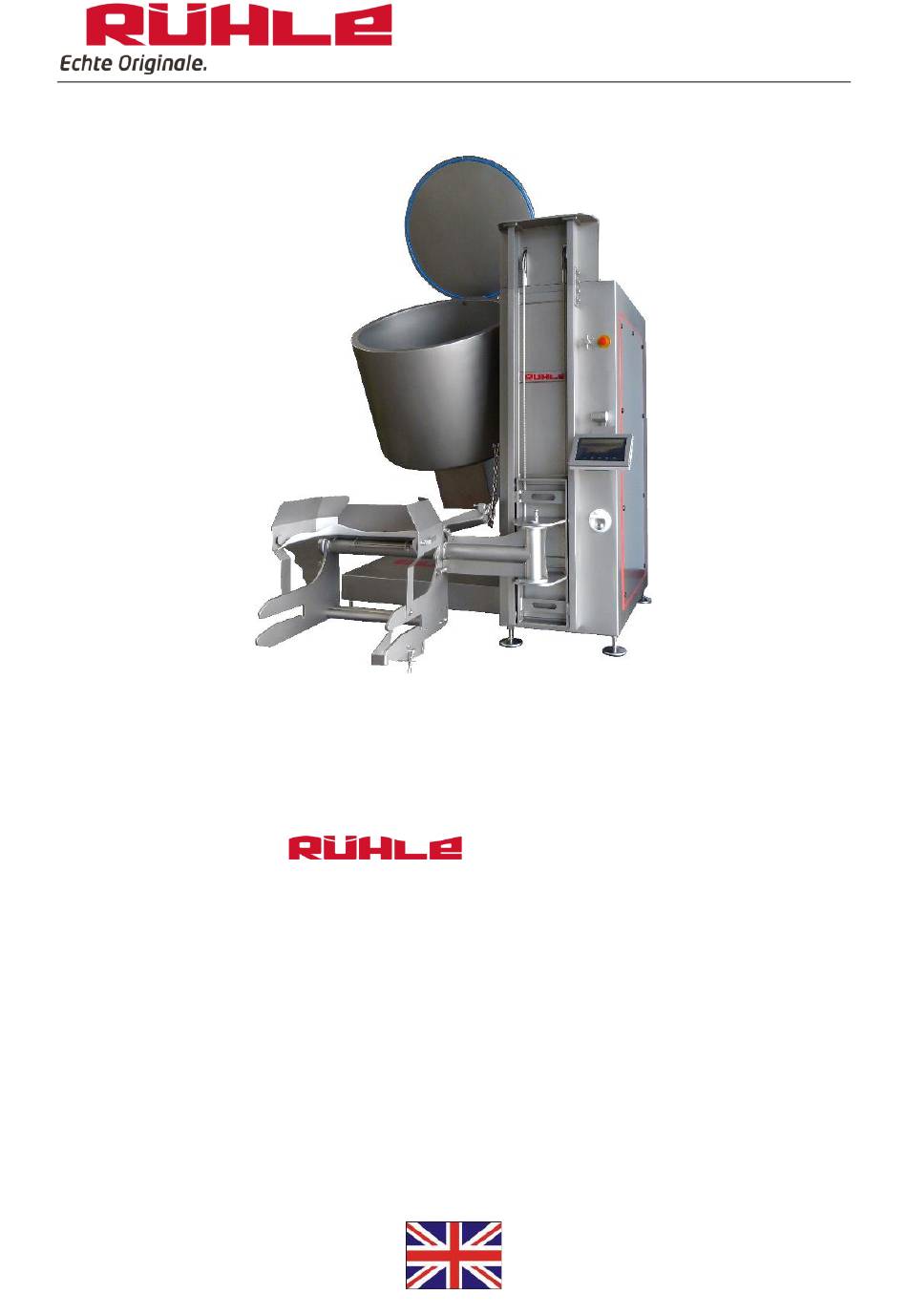

- Page 1 Lebensmitteltechnik Translation of the original instructions - Miknetum Type: MPR 500 Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen Germany Phone: +49 7748-523-11; fax: +49 7748-523-8511 www.original-ruehle.de...
-
Page 2: Table Of Contents
Miknetum MPR 500 Table of contents Safety instructions ................3 Safety instructions ..............3 Remaining risk of accidents ..........6 Intended use ................7 Installation instructions ..............8 Machine transport and setup ..........8 Workplace description ............. 9 Connecting the machine ............10 Operating instructions ..............11... -
Page 3: Safety Instructions
Miknetum MPR 500 1 Safety instructions !!! Observe the safety instructions during the installation, operation, cleaning and maintenance of the Rühle Miknetum! Hazard potentially causing irreversible injuries if disre- garded. Warning potentially causing serious injuries if disre- garded. Note Warning of electrical power. - Page 4 Miknetum MPR 500 a) Completely read and understand these operating instructions before transport, commissioning, setup, operation, cleaning, decommissioning, care/maintenance as well as disman- tling/disposal! b) Prepare work instructions for intended and safe transport, commissioning, setup, operation, cleaning, decommissioning, care/maintenance as well as dismantling/disposal!
- Page 5 Miknetum MPR 500 [The information on the proposed personal protective equip- ment has only an advisory function. A full risk assessment should be carried out before using the product to assess whether the indicated personal protective equipment is suitable for local conditions. Personal protective equipment should conform to the relevant EU standards.]...
-
Page 6: Remaining Risk Of Accidents
Miknetum MPR 500 !!! The maintenance personnel may only carry out work specified as "Regular maintenance" unless any other authorisation has been is- sued in writing by the manufacturer of the machine. The maintenance personnel must observe the work procedures from the "Maintenance"... -
Page 7: Intended Use
Miknetum MPR 500 !!! Maintenance Touching electrical components may cause serious inju- ries or death. Work on electrical equipment of the machine may only be carried out by qualified technicians! Always disconnect machine from the mains during this process! The protective covers may be removed only while per-... -
Page 8: Installation Instructions
Miknetum MPR 500 • Handling/processing products and materials which are not foodstuffs is prohibited! • The lifting aid may be used only for the standard trolleys pro- vided and must not be overloaded! Lifting of persons is strictly prohibited! •... -
Page 9: Workplace Description
Miknetum MPR 500 Foundation load: 7,5 kN/m²! Set up the machine on a solid level floor with sufficient load bearing capacity! 2.2 Workplace description The work area around the machine is at least 0.5 m on all sides; for maintenance work it is at least 1 m; if used as passageway, it is at least 1.2 m. -
Page 10: Connecting The Machine
Miknetum MPR 500 Swivel range of lid 2.3 Connecting the machine The machine is connected to a three-phase outlet (clockwise rotating field); the specifications (voltage, amperage) must correspond to the specifications on the type plate of the machine. The machine must be shut down until a damaged power... -
Page 11: Operating Instructions
Miknetum MPR 500 3 Operating instructions Please refer to the short instructions supplied with your machine for the operation of your Miknetum. Also observe Chapter 1 Safety instructions! Make sure that you are connected to the right machine with your tablet PC! Depending on the application programs, the drum is moved automatically. - Page 12 Miknetum MPR 500 Depending on the user programs, temperatures down to - 25 ℃ may be generated in the drum. Take the corre- sponding precautions. Do not touch the tumbling arm/mixing arm with your hands or any object when they are moving! Their rota-...
-
Page 13: Cleaning Instructions
Miknetum MPR 500 Please refer to the brief instructions supplied with your machine regarding the manual operation of the manual switch control. The lid cannot be opened when there is a vacuum in the machine or if it has not yet been fully aerated. -
Page 14: Cleaning Agents And Disinfectants
Miknetum MPR 500 • The cleaning agents and disinfectants must be prepared to a so- lution as described in the product data sheet of the manufac- turer! Personal protective equipment must be worn as described in Chapter 1.1! Cleaning with high-pressure cleaner is only permitted for: •... -
Page 15: Cleaning Procedure
Miknetum MPR 500 13302 FINK – Antisept A Alcohol-based disin- fectant 13304 FINK – Antisept E Alcohol-based disin- fectant 17107 FT 107 DES Disinfection 2.0 – 5.0 15 – 30 20 – 40 18803 FINK – Alu-Rei- Acid foam cleaner 2.0 –... -
Page 16: Service: Care, Maintenance, Repair
Miknetum MPR 500 • Remove the tablet PC from the holder and close it. Fold up the holder! 5 Service: care, maintenance, repair Any work related to any kind of service may be carried out only by Rühle service technicians and by persons authorised by Rühle in writ- ing. -
Page 17: Regular Care
Miknetum MPR 500 Use of lubricants – hygiene area • Multi-purpose grease OKS 476 white, for food technology NSF H1 Reg. No. 137619 ➢ Replacing seal rings Use of lubricants – others • AUTOL TOP 2000, high pressure grease with synthetic base oil (soap... -
Page 18: Regular Maintenance
Miknetum MPR 500 c) Check function and firm seating of the closures at the stripper and mixing arms (or blind plugs) as well as the lifting aid! d) Check the hygienic condition of the stripper rubber on the tumbling arm! e) Clean air intake pipe thoroughly! Check the drum positioning;... -
Page 19: Repairs And Spare Parts
Miknetum MPR 500 5.3 Repairs and spare parts As a damaged part on a machine is usually damaged due to causes unrelated to the part, always carry out a fault diagnosis. Contact our Service Hotline at +49 7748-523-11 for spare parts or malfunctions. -
Page 20: Electrical Circuit Diagram
Miknetum MPR 500 Back-up fuse max.: 32 A Protection class: IP54 Protection class: Ambient temperature: +2 to 40 °C Dimensions, W x H x D: 1931 x 2313 x 1658 mm Workplace, W x H x D 2846 x 3262 x 3119 mm... -
Page 21: Ec Declaration Of Conformity According To Directive 2006/42/Ec
Miknetum MPR 500 8 EC Declaration of Conformity according to Directive 2006/42/EC The manufacturer hereby declares that the following product Name: Rühle GmbH Type: MPR 500 Legal form: Lebensmitteltechnik Address: Beim Signauer Schachen 10 Designation: Miknetum 79865 Grafenhausen From series no.
