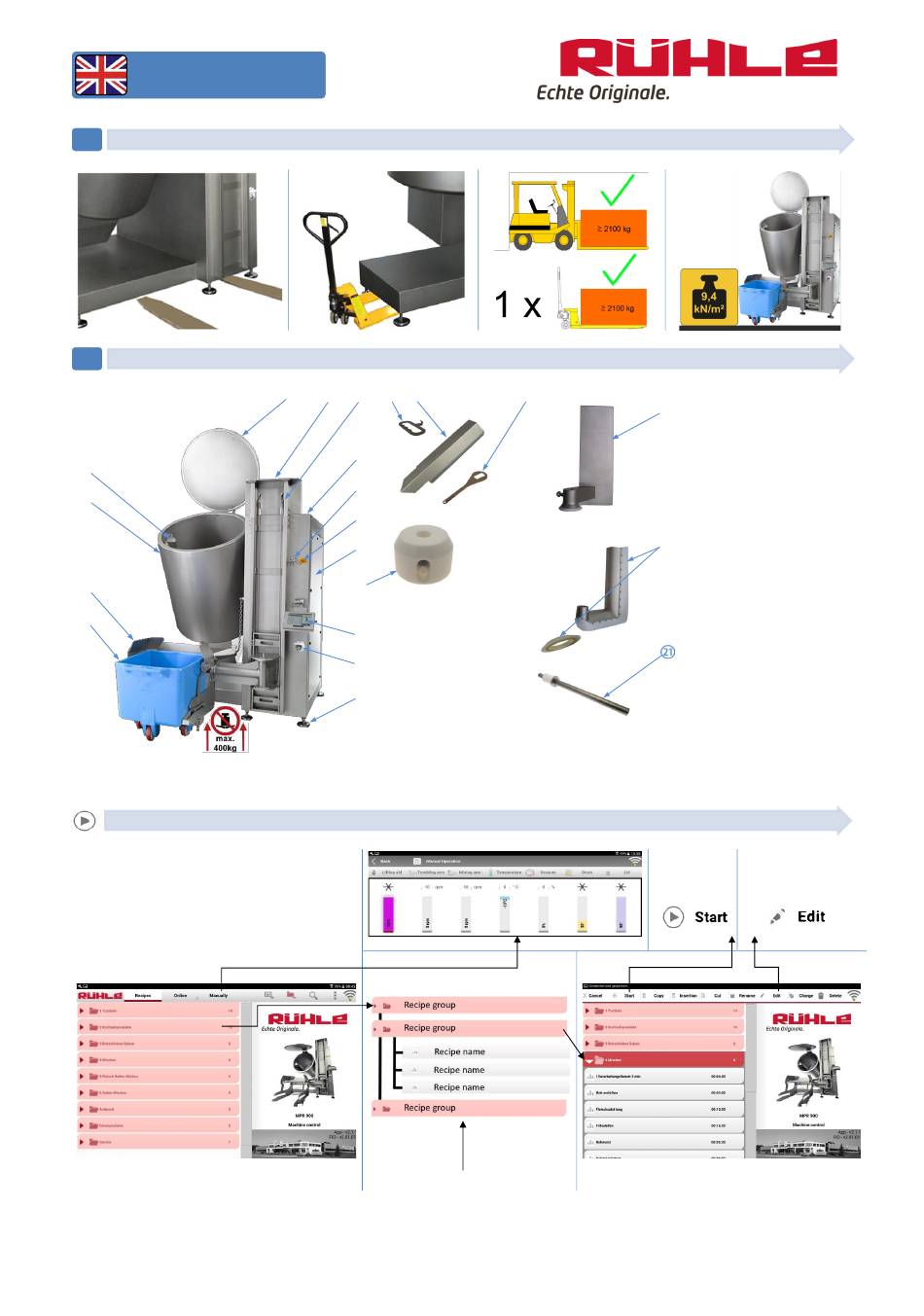

Quick installation guide
• Installing the machine
I
• Operation
II
⑫
⑪
⑩
⑨
• Recipe selection / Recipe start
(Welcome screen)
MPR 900
⑬
⑭
⑮ ⑯ ⑰
①
②
③
④
⑤
⑥
⑦
⑧
(Manual settings)
(Recipe selection)
Rühle GmbH, Beim Signauer Schachen 10, D-79865 Grafenhausen
Tel.: +49 7748-523-11, Fax: +49 7748-523-8511
www.original-ruehle.de
⑱
⑲
1)
2)
3)
4)
5)
6)
7)
⑳
8)
9)
10) Trolley reception
11) Drum
12) Tumbling system
13) Lid
14) Bail wire rope
15) Lift system
16) Mounting aid scraper
17) Discharging aid
18) Installation wrench
19) Mixing arm
20) Tumbling arm
21) Mounting aid tumbling
(Recipe start)
Frame
Control wheel
Emergency stop button
Side panel
Plug for work without
mixing arm
Operation panel
(Tablet-PC)
Condensation flap
Machine foot
Trolley (optional)
(Trolley connection)
trolley reception
arm
(Recipe editor)
(Recipe)
Advertisement
Table of Contents
Related Manuals for Rühle MPR 900
Summary of Contents for Rühle MPR 900
- Page 1 MPR 900 Quick installation guide • Installing the machine • Operation ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ Frame Control wheel Emergency stop button ① Side panel ⑫ Plug for work without ② mixing arm ⑪ Operation panel ③ (Tablet-PC) Condensation flap ④...
- Page 2 (0° to 100°) Simultaneous movement Simultaneous movement Temperature of drum and arm of drum and arm (-25°C to +30°C) Icon for manual control (discharging) (discharging) Input boxes • Cleaning MPR 900 Copyright © 2021 by Rühle GmbH 01.25.2021 (v. 2.0)
- Page 3 Lebensmitteltechnik Translation of the original instructions - Miknetum Type: MPR 900 Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen Germany Tel.: +49 7748-523-11, Fax: +49 7748-523-8511 www.original-ruehle.de...
-
Page 4: Table Of Contents
Miknetum MPR 900 Table of Contents Safety Instructions ................3 Safety instructions ..............3 Remaining risk of accidents ..........6 Intended Use ................7 Installation instructions ..............7 Machine transport and setup ..........8 Workplace description ............. 8 Connecting the machine ............10 Operating instructions ..............10... -
Page 5: Safety Instructions
Miknetum MPR 900 1 Safety Instructions !!! Observe the safety instructions during the installation, operation, cleaning and maintenance of the Rühle Miknetum! Hazard potentially causing irreversible injuries if disre- garded. Warning, potentially causing serious injuries if disre- garded. Note Work on electrical equipment of the machine may only... - Page 6 Miknetum MPR 900 missioning, care / maintenance as well as dismantling / dis- posal! c) Make sure that the qualified workers have completely read and understood the respective work instructions according to section 1.1b! d) Proper functioning of the protective devices must be checked at least once a year by a Rühle service technician!
- Page 7 Miknetum MPR 900 a) Visual check for changes or damages on all machine sides and accessible machine parts, e.g. steel cables and chain. The machine must be shut down in the event of any damages or changes! b) Check the safety switches as follows: –...
-
Page 8: Remaining Risk Of Accidents
Miknetum MPR 900 !!! The operating instructions as well as all other technical documents included must be supplied completely when reselling the machine. 1.2 Remaining risk of accidents !!! All life cycles phases Error messages of the operating system must be heeded! -
Page 9: Intended Use
Miknetum MPR 900 1.3 Intended Use The Miknetum has been solely designed for mixing, salting/season- ing, marinating and tumbling meat products and salads. The max. room temperature may be 12 °C for reasons of food hygiene! This machine is designed to be operated by •... -
Page 10: Machine Transport And Setup
Miknetum MPR 900 2.1 Machine transport and setup Please refer to the short instructions supplied with the machine re- garding transport and setup of the Miknetum. The machine and machine parts must be transported by 2 persons (1x operator of floor conveyor / 1x transport su- pervision). - Page 11 Miknetum MPR 900 Lid swivel range Swivel range of drum Swivel range of trolley support...
-
Page 12: Connecting The Machine
Miknetum MPR 900 2.3 Connecting the machine The machine is connected to a three-phase current outlet; its data (voltage, amperage) must agree with the specifications on the type plate of the machine. The machine must be decommissioned until a damaged... - Page 13 Miknetum MPR 900 is reinstated: it will start up again automatically and the program will continue from that point at which it was in- terrupted by the power failure. The startup warning (horn) will sound before this restart. In its respective life cycle phases (transport, commission-...
-
Page 14: Cleaning Instructions
Miknetum MPR 900 support as well as the chain on it that the pertaining lock- ing pins are correctly locked! No person may stand in the swivel range of the lid! The operator must make sure that no persons, who do not... -
Page 15: Safety Instructions
Miknetum MPR 900 4.1 Safety instructions • Follow also the safety instructions in Chapter 1.1! • The cleaning staff must notify the supervisor immediately of any defects on the machine! • The cleaning staff must use the specified cleaning agents and disinfectants! •... - Page 16 Miknetum MPR 900 Concen- tration Expo- for appli- sure Temper- Art. cation times atures Product name Description value [min] [°C] 15207 FINK – Spül ASS Alkaline foam 1.0 – 5.0 5 – 15 20 – 50 cleaner, mild 19402 FINK - Superfet- Alkaline foam 0.5 –...
-
Page 17: Cleaning Procedure
Miknetum MPR 900 4.3 Cleaning procedure Please refer to the short instructions supplied with your machine for carrying out the cleaning procedure. Cleaning preparations: • To ensure optimum cleaning, some components of the machine must be removed. • Remove the mixing arm and the tumbling arm from the drum! •... -
Page 18: Regular Care
Miknetum MPR 900 Make sure when working on the electrical equipment of the machine that • this is only done by qualified personnel! • the machine is always disconnected from power! • a waiting time of at least 10 minutes is observed af-... -
Page 19: Regular Maintenance
Miknetum MPR 900 5.2 Regular maintenance Regular maintenance of the machine must be carried out every 2000 hours of operation but at least once per year. Maintenance schedule: a) Inspect the safety devices as outlined in Chapter 1.1 Safety Instructions! -
Page 20: Technical Documentation
Miknetum MPR 900 1. The machine contains a cooling system filled with the refrig- erant R404A. It must be pumped off by a refrigeration in- staller and must then disposed of correctly! 2. The following components contain oil: Lid drive... -
Page 21: Electrical Circuit Diagram
Miknetum MPR 900 Lifting aid, load capacity: 400 kg Foundation load: 9,4 kN/m² Emission sound pressure level: L ≤ 70 dB(A) Measured according to: DIN EN ISO 11201 accuracy class 2 Measured: while idling without product, at maxi- mum speed The data on the type plate principally applies;... -
Page 22: Ec Declaration Of Conformity According To Directive 2006/42/Ec
Miknetum MPR 900 8 EC Declaration of Conformity according to Directive 2006/42/EC The manufacturer herewith declares that the following product Name: Rühle GmbH Type: MPR 900 Legal form: Lebensmitteltechnik Address: Beim Signauer Schachen 10 Designation: Miknetum D – 79865 Grafenhausen From series no.:...
