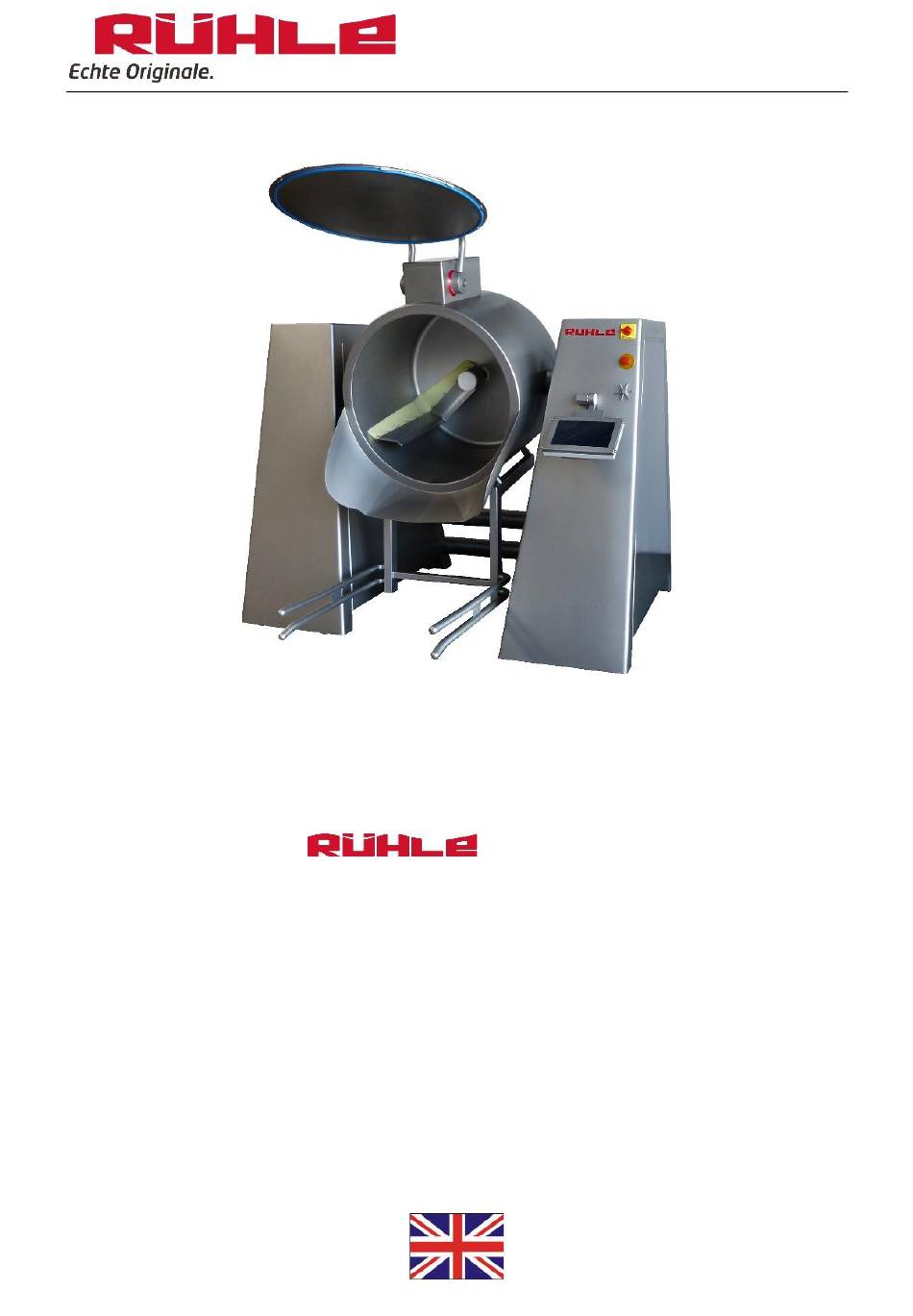

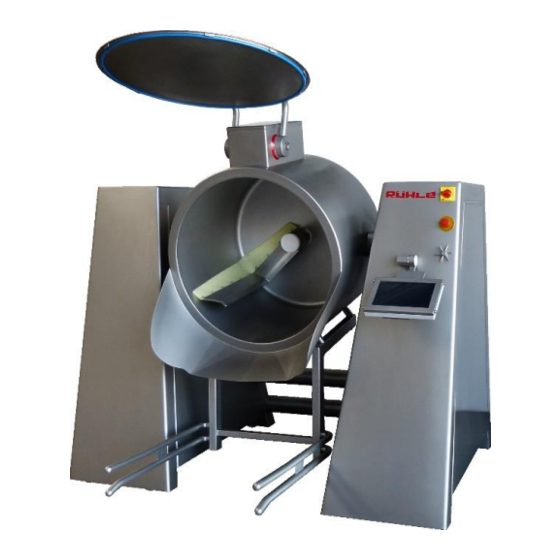

- Page 1 Lebensmitteltechnik Translation of the original instructions - Tumbler Type: MPR 300 Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen Germany Phone: +49 7748-523-11; fax: +49 7748-523-8511 www.original-ruehle.de...
-
Page 2: Table Of Contents
Tumbler MPR 300 Table of contents Safety instructions ................3 Safety instructions ..............3 Remaining risk of accidents ..........6 Intended use ................7 Installation instructions ..............8 Machine transport and setup ..........8 Workplace description ............. 9 Connecting the machine ............10 Operating instructions ..............11... -
Page 3: Safety Instructions
Tumbler MPR 300 1 Safety instructions !!! Observe the safety instructions during the installation, operation, cleaning and maintenance of the Rühle Tumbler! Hazard potentially causing irreversible injuries if disre- garded. Warning potentially causing serious injuries if disre- garded. Note Warning of electrical power. - Page 4 Tumbler MPR 300 a) Completely read and understand these operating instructions before transport, commissioning, setup, operation, cleaning, decommissioning, care/maintenance as well as disman- tling/disposal! b) Prepare work instructions for intended and safe transport, commissioning, setup, operation, cleaning, decommissioning, care/maintenance as well as dismantling/disposal!
- Page 5 Tumbler MPR 300 [The information on the proposed personal protective equip- ment has only an advisory function. A full risk assessment should be carried out before using the product to assess whether the indicated personal protective equipment is suitable for local conditions. Personal protective equipment should conform to the relevant EU standards.]...
-
Page 6: Remaining Risk Of Accidents
Tumbler MPR 300 !!! The supervisor must arrange for the repair of the non-functional safety device by a Rühle service engineer. Until the corresponding parts have been repaired, the supervisor must ensure that the ma- chine or parts of the machine are not put into operation under any cir-... -
Page 7: Intended Use
Tumbler MPR 300 Temperatures to -10°C may be produced in the drum. Wear hand protection! !!! All life cycles phases Staying under the lifting aid (standard trolley support) is strictly prohibited, and the standard trolleys provided must be used! !!! Maintenance Touching electrical components may cause serious inju- ries or death. -
Page 8: Installation Instructions
Tumbler MPR 300 Claims of any type for damage caused by use other than the intended use are excluded! Misuse: • Any use other than the use listed above is strictly prohibited and is considered misuse! • Operating the machine in explosive atmospheres is prohib- ited! •... -
Page 9: Workplace Description
Tumbler MPR 300 Ensure that the machine is stable! Lifting aid, load capacity: Observe the maximum filling quantity of 220 kg per standard trolley (corresponds to the max. filling capacity of the drum)! Foundation load: 5,8 kN/m²! Set up the machine on a solid level floor with sufficient load bearing capacity! 2.2 Workplace description... -
Page 10: Connecting The Machine
Tumbler MPR 300 Swivel range of drum, lid and lift- ing unit 2.3 Connecting the machine The machine is connected to a three-phase outlet (clockwise rotating field); the specifications (voltage, amperage) must correspond to the specifications on the type plate of the machine. -
Page 11: Operating Instructions
Tumbler MPR 300 3 Operating instructions Please refer to the brief instructions supplied with your machine for the operation of your Tumbler. Also observe Chapter 1 Safety instructions! Make sure that you are connected to the right machine with your tablet PC! Depending on the application programs, the drum is moved automatically. - Page 12 Tumbler MPR 300 Depending on the user programs, temperatures down to - 10 ℃ may be generated in the drum. Take the corre- sponding precautions. Do not touch the tumbling arm/mixing arm with your hands or any object when they are moving! Their rota-...
-
Page 13: Cleaning Instructions
Tumbler MPR 300 The lid cannot be opened when there is a vacuum in the machine or if it has not yet been fully aerated. If you interrupt a program by pressing "Pause", you will be prompted to aerate when "Open lid" is actuated. Only af- ter the drum has been evacuated will you be able to open the lid by actuating it again. -
Page 14: Cleaning Agents And Disinfectants
Tumbler MPR 300 Personal protective equipment must be worn as described in Chapter 1.1! Cleaning with high-pressure cleaner is only permitted for: • all outside surfaces, • drum, • lid and lid seal, • intake filter and air intake pipe, •... -
Page 15: Cleaning Procedure
Tumbler MPR 300 18803 FINK – Alu-Rei- Acid foam cleaner 2.0 – 5.0 5 – 15 20 – 50 niger 17043 FT 43 SR Acid foam cleaner 1.0 – 5.0 5 – 15 20 – 50 18550 FINK – FC Power- Acid foam cleaner 1.0 –... -
Page 16: Service: Care, Maintenance, Repair
Tumbler MPR 300 5 Service: care, maintenance, repair Any work related to any kind of service may be carried out only by Rühle service technicians and by persons authorised by Rühle in writ- ing. In this regard, a distinction is made between regular care, mainte- nance and repair. -
Page 17: Regular Care
Tumbler MPR 300 Personal protective equipment: Protective gloves (EN 374), eye protection (EN 166), protective clothing (EN 14605), protective mask (EN 1731) ➢ Replacement of moving parts, e.g. drive for swivelling the drum, flange drive tumbling arm [The information on the proposed personal protective equipment has only an advisory function. -
Page 18: Regular Maintenance
Tumbler MPR 300 5.2 Regular maintenance Regular maintenance of the machine must be carried out every 2000 hours of operation but at least once per year. Maintenance schedule: a) Inspect the safety devices as described in Chapter 1.1 Safety instructions! -
Page 19: Technical Documentation
Tumbler MPR 300 1. The machine contains a cooling system filled with the refrig- erant R452A. It must be pumped off by a refrigeration in- staller and then disposed of correctly! 2. The following components contain oil or lubricant: Lid drive (lubricating grease) -
Page 20: Electrical Circuit Diagram
Tumbler MPR 300 Foundation load: 5,8 kN/m² Emission sound pressure level: L ≤ 70 dB(A) Measured according to: DIN EN ISO 11204, accuracy class 2 according to DIN EN ISO 3744 Measured when: while idling without product, at maxi- mum speed The data on the type plate principally applies;... -
Page 21: Ec Declaration Of Conformity According To Directive 2006/42/Ec
Tumbler MPR 300 8 EC Declaration of Conformity according to Directive 2006/42/EC The manufacturer hereby declares that the following product Name: Rühle GmbH Type: MPR 300 Legal form: Lebensmitteltechnik Address: Beim Signauer Schachen 10 Designation: Tumbler D – 79865 Grafenhausen from serial no.:...
