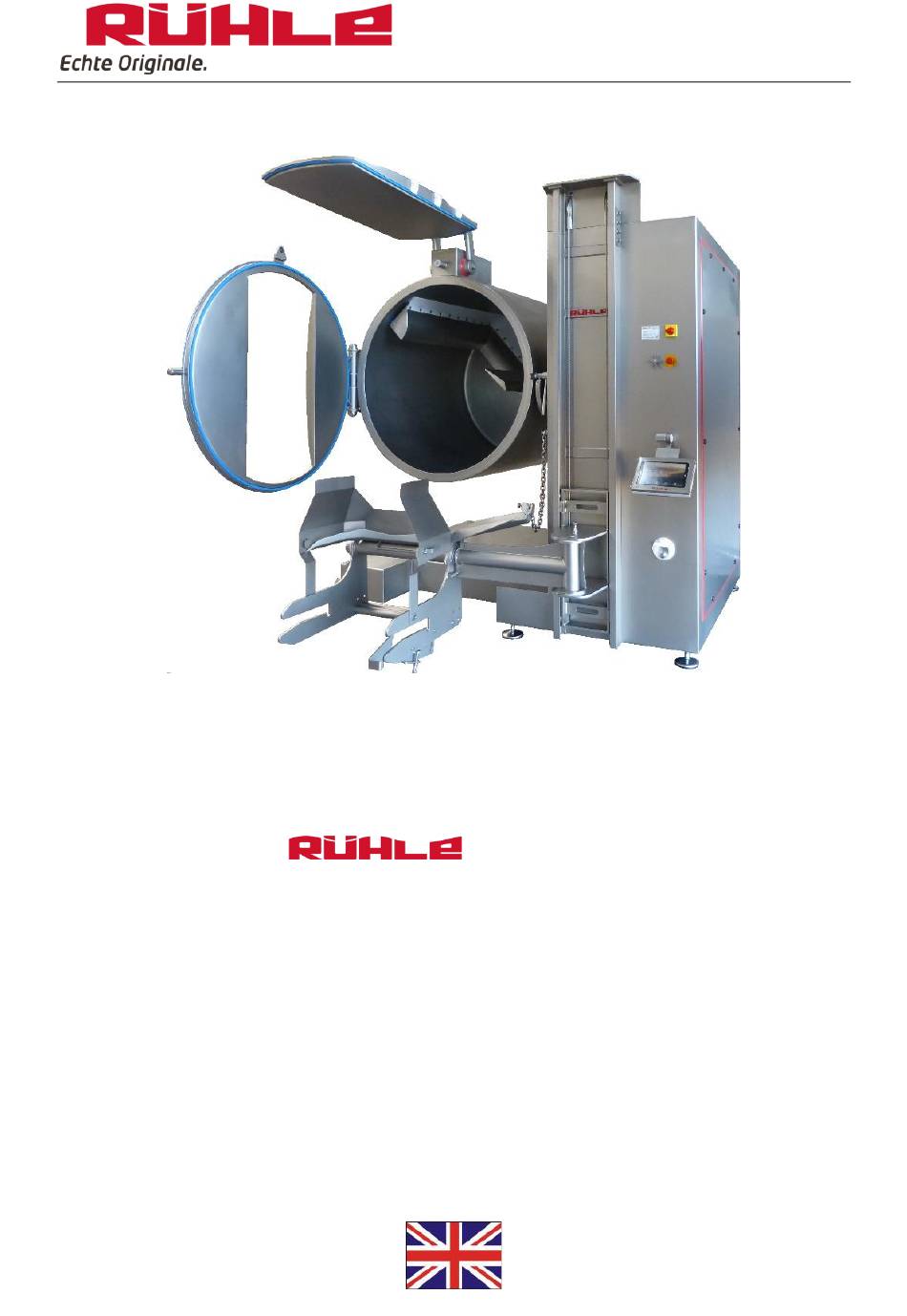

- Page 1 Lebensmitteltechnik Translation of the original instructions - Miknetum Type: MPR 1500 Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen Germany Phone: +49 7748-523-11; fax: +49 7748-523-8511 www.original-ruehle.de...
-
Page 2: Table Of Contents
Miknetum MPR 1500 Table of contents Safety instructions ................3 Safety instructions ..............3 Remaining risk of accidents ..........6 Intended use ................7 Installation instructions ..............8 Machine transport and setup ..........8 Workplace description ............. 9 Connecting the machine ............10 Operating instructions ..............10... -
Page 3: Safety Instructions
Miknetum MPR 1500 1 Safety instructions !!! Observe the safety instructions during the installation, operation, cleaning and maintenance of the Rühle Miknetum! Hazard potentially causing irreversible injuries if disre- garded. Warning potentially causing serious injuries if disre- garded. Note Warning of electrical power. - Page 4 Miknetum MPR 1500 a) Completely read and understand these operating instructions before transport, commissioning, setup, operation, cleaning, decommissioning, care/maintenance as well as disman- tling/disposal! b) Prepare work instructions for intended and safe transport, commissioning, setup, operation, cleaning, decommissioning, care/maintenance as well as dismantling/disposal!
- Page 5 Miknetum MPR 1500 [The information on the proposed personal protective equip- ment has only an advisory function. A full risk assessment should be carried out before using the product to assess whether the indicated personal protective equipment is suitable for local conditions. Personal protective equipment should conform to the relevant EU standards.]...
-
Page 6: Remaining Risk Of Accidents
Miknetum MPR 1500 !!! The cleaning personnel must observe the work procedures from the "Cleaning" work instructions prepared by the supervisor. !!! The maintenance personnel may only carry out work specified as "Regular maintenance" unless any other authorisation has been is- sued in writing by the manufacturer of the machine. -
Page 7: Intended Use
Miknetum MPR 1500 !!! Maintenance Touching electrical components may cause serious inju- ries or death. Work on electrical equipment of the machine may only be carried out by qualified technicians! Always disconnect machine from the mains during this process! The protective covers may be removed only while per-... -
Page 8: Installation Instructions
Miknetum MPR 1500 • Handling/processing products and materials which are not foodstuffs is prohibited! • The lifting unit may only be used for 200 litre standard trol- leys with lifting claws and must not be overloaded (max. 400 kg)! Lifting of persons is strictly prohibited! •... -
Page 9: Workplace Description
Miknetum MPR 1500 Foundation load: 8,3 kN/m²! Set up the machine on a solid level floor with sufficient load bearing capacity! 2.2 Workplace description Swivel range of inner lid Swivel range of external lid Swivel range of drum Swivel range of... -
Page 10: Connecting The Machine
Miknetum MPR 1500 The work area around the machine is at least 0.5 m on all sides; for maintenance work it is at least 1 m; if used as passageway, it is at least 1.2 m. 2.3 Connecting the machine The machine is connected to a three-phase outlet (clockwise rotating field);... - Page 11 Miknetum MPR 1500 machine (front distance at least 1.2 m over the entire ma- chine width). Before the drum moves automatically, a 5 second alarm (horn) sounds. If the power fails when a user program is being executed the machine will react as follows when the power supply...
- Page 12 Miknetum MPR 1500 The drum can only be swivelled after the lifting unit has moved to the bottom. Prior to starting a recipe, the lifting unit must therefore be moved down again! When emptying the drum corresponding appropriate pre- cautions must be taken to ensure that no person stands in...
-
Page 13: Cleaning Instructions
Miknetum MPR 1500 The drum can be set to any position between 30° and 95° (= discharging position) so that it can be used for any op- erating process. The tablet PC may only be operated by finger touch or with a stylus. -
Page 14: Cleaning Agents And Disinfectants
Miknetum MPR 1500 Cleaning with high-pressure cleaner is only permitted for: • all outside surfaces, • drum, • lid and lid seal, • intake filter and air intake pipe, • tumbling arm, • mixing arm and • blind plug The tablet PC and its holder must be cleaned manually... -
Page 15: Cleaning Procedure
Miknetum MPR 1500 18803 FINK – Alu-Rei- Acid foam cleaner 2.0 – 5.0 5 – 15 20 – 50 niger 17043 FT 43 SR Acid foam cleaner 1.0 – 5.0 5 – 15 20 – 50 18550 FINK – FC Pow- Acid foam cleaner 1.0 –... -
Page 16: Service: Care, Maintenance, Repair
Miknetum MPR 1500 5 Service: care, maintenance, repair Any work related to any kind of service may be carried out only by Rühle service technicians and by persons authorised by Rühle in writ- ing. In this regard, a distinction is made between regular care, mainte- nance and repair. -
Page 17: Regular Care
Miknetum MPR 1500 Protective gloves (EN 374), eye protection (EN 166), protective clothing (EN 14605), protective mask (EN 1731) ➢ Replacement of moving parts, e.g. drive for swivelling the drum, flange drive tumbling arm • 5182 PYROSHIELD® SYN OPEN GEAR GREASE, synthetic high-perfor- mance lubricant (synth. -
Page 18: Regular Maintenance
Miknetum MPR 1500 g) Check the lifting unit (standard trolley support)! h) Check the holders of inside and outside lids! Check the chain lock for flawless function! Visually check the chain for wear! k) Visually check the steel cable for fraying! 5.2 Regular maintenance... -
Page 19: Disposal
Miknetum MPR 1500 6 Disposal All materials and operating fuels must be separated and disposed of in accordance with nationally applicable regu- lations! 1. The machine contains a cooling system filled with the refrig- erant R452A. It must be pumped off by a refrigeration in- staller and then disposed of correctly! 2. -
Page 20: Electrical Circuit Diagram
Miknetum MPR 1500 Container size: 1500 litres Max. filling: 900 litres Refrigerant: R452A, 0.76 kg Mixing arm speed: -16 to +16 rpm Tumbling arm speed: 0 to +16 rpm Vacuum: 0–90% Lifting unit, load capacity: 400 kg Foundation load: 8,3 kN/m²... -
Page 21: Ec Declaration Of Conformity According To Directive 2006/42/Ec
Miknetum MPR 1500 8 EC Declaration of Conformity according to Directive 2006/42/EC The manufacturer hereby declares that the following product Name: Rühle GmbH Type: MPR 1500 Legal form: Lebensmitteltechnik Address: Beim Signauer Schachen 10 Designation: Miknetum 79865 Grafenhausen From series no.
