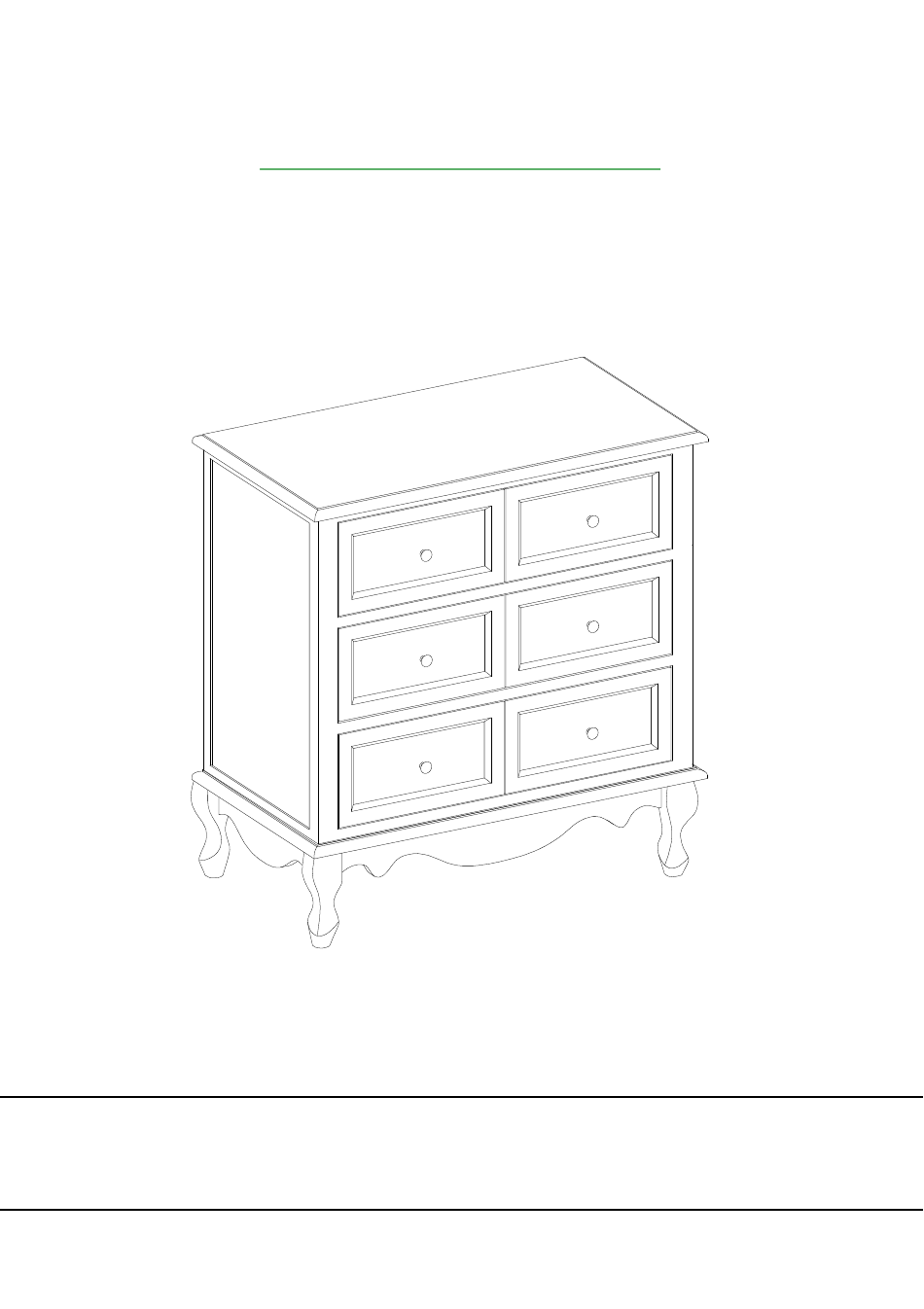

- Page 1 HULALA ITEM NO.SCCL0878 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/15...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONEN 03/15... -
Page 4: Parts List
PARTS LIST 04/15... -
Page 5: Hardware List
HARDWARE LIST Ø M4*40mm M4*35mm 6*35mm Ø15*11mm M3.5*15mm TOOL LIST HARDWARE SPARE LIST Ø M4*40mm M4*35mm 6*35mm M3.5*15mm 05/15... - Page 6 ASSEMBLY INSTRUCTIONS STEP-1 Insert screw bolt #1 into the corresponding hole of leg (C), tighten bolt #1 with screwdriver #10. Ø 6*35mm 06/15...
- Page 7 ASSEMBLY INSTRUCTIONS STEP-2 Insert leg (C) into the panel (B),and then insert cam bolt #2 into the panel (B)tighten cam bolt #2 with screwdriver #10. Ø15*11mm 07/15...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-3 Insert preassemble step 2 into panel (A) and make sure all the holes are aligned. 08/15...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-4 In preassemble step 3 ， make sure all holes aligned and then use bolt #4 to attach them ， tighten bolt #4 with screwdriver #10. M4*40mm 09/15...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-5 As shown in the figure,remove the #3 back protective layer and attach the felt mat #3 to the leg (C) 10/15...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-6 Remove the screw using #10 screwdriver, place the handle in front of drawer panel, connect the handle with a screw and lock the screw with a screwdriver#10. 11/15...
- Page 12 ASSEMBLY INSTRUCTIONS M3.5*15mm STEP-7 Use screw #5 to plastic bracket #9 to panel (A),tighten screw #5 with screwdriver #10. 12/15...
- Page 13 ASSEMBLY INSTRUCTIONS M4*35mm STEP-8: 1. Mark the position on the wall, that corresponds to the location of bracket on the top panel (A); Drill and insert the expandable screw by hammer. 2. Assemble the bracket to the wall. Align the hole in the bracket with the expandable screw , use screw...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-9: 3.Let the plastic belt pass through bracket and pull tightly. If you encounter difficulties during the installation process, please watch the installation video! ×1 14/15...
-
Page 15: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
