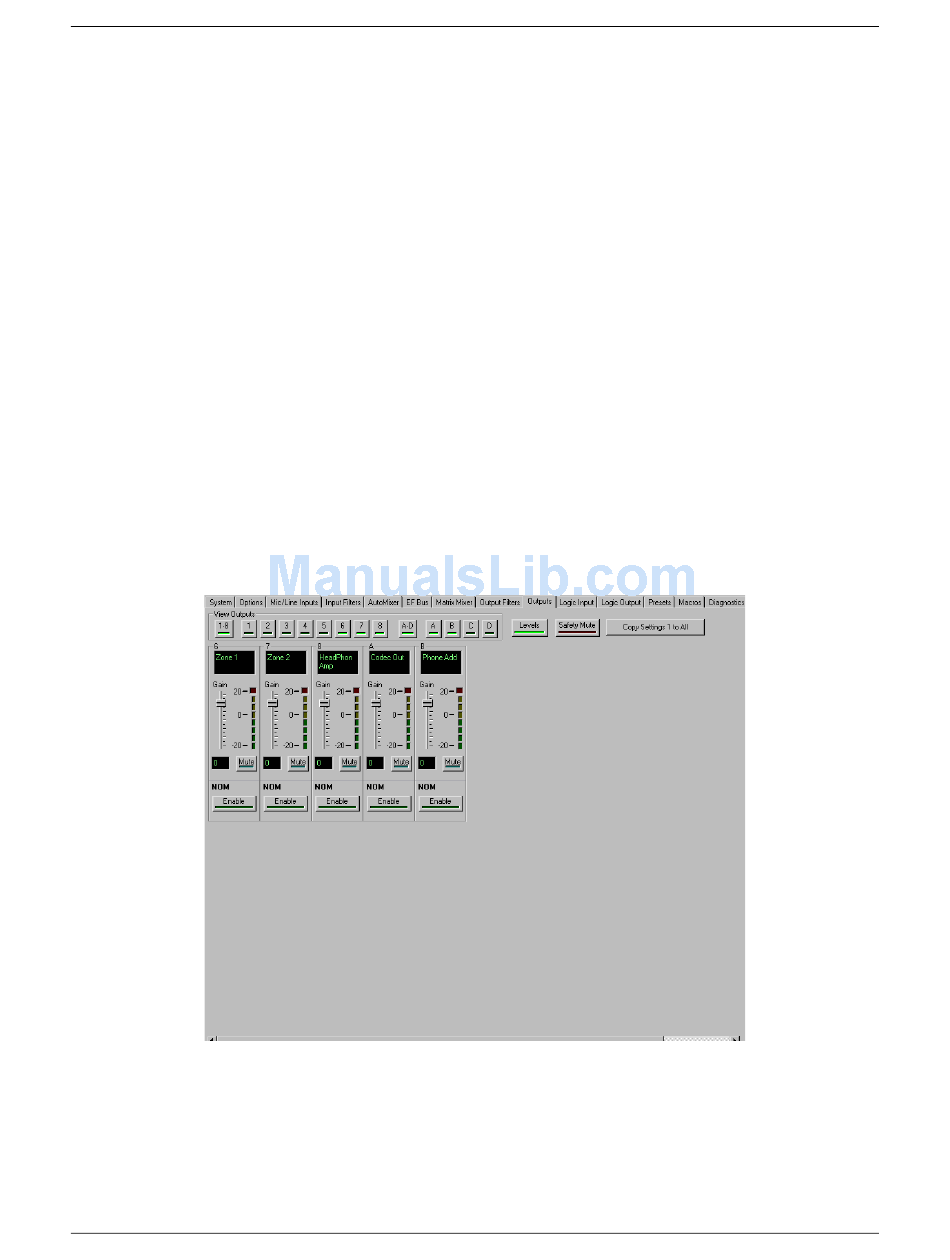

Figure 14. Output control for each of the 12 output channels is available on the
Outputs Tab. Channels can be hidden from view from the V
trol.
© Polycom, Inc.
and a mono mix of the left and right program audio. The program audio is attenuated
by 3 dB before adding it into the R1 output.
Each of the outputs can have up to 5 filters of equalization. These filters include
Parametric, Low Pass, High Pass, Low Shelf, and High Shelf. To use the filters,
select the type of filter and adjust the controls for the filter. You can adjust the con-
trols in a variety of ways: by typing in values in the text boxes, using the cursor up/
down, using Page Up/Page Down, or by clicking and holding the knob and moving
the mouse up to increase the value or down to decrease the value. The frequency
response of the plots may be viewed by clicking on the G
The E button per filter enables/disables that particular filter on the Output. The
NABLE
E F button enables/disables all filters on the particular Output Channel.
NABLE ILTERS
This button toggles with the Filter Bypass buttons per Output. All filters for a partic-
ular output can be bypassed by clicking the B
Once the settings are configured for Output Channel 1, the user may copy those set-
tings to all other channels using the C
button.
The O page allows the user to adjust the output level, select NOM attenuation,
UTPUTS
and mute outputs. A typical output control is shown in Figure 14. NOM attenuation
17
D
EVICE
button.
RAPH
button.
YPASS
C 1 F
OPY HANNEL ILTERS TO ALL
O con-
IEW UTPUTS
