1004151429/308824354/26MMP90480-PG77
USE AND CARE GUIDE

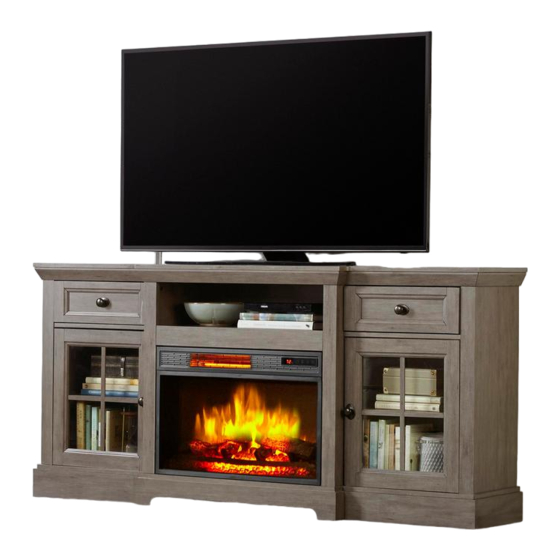

GLENVILLE ELECTRIC FIREPLACE
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLENVILLE 1004151429 and is the answer not in the manual?

Questions and answers

Related Manuals for Home Decorators Collection GLENVILLE 1004151429

Summary of Contents for Home Decorators Collection GLENVILLE 1004151429

  • Page 1 USE AND CARE GUIDE GLENVILLE ELECTRIC FIREPLACE QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE, CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE 8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS THANK YOU We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace.

  • Page 2: Table Of Contents

    Table of Contents Maximum Load Warning ........... 2 Package Contents .............. 7 Safety Information ............. 3 Assembly ..............8 Warranty ..............5 Operation ..............20 Pre-Assembly ............. 6 FCC/IC Information ............22 Hardware Included ........... 6 Care & Cleaning ............22 Product Specifications ............

  • Page 3: Safety Information

    Safety Information Please read and understand this entire manual before WARNING: This appliance is hot when in use. To avoid attempting to assemble, operate or install the product. If you burns, do not touch hot surfaces with bare skin. If provided, have any question regarding the product, please call customer use handles when moving this appliance.
  • Page 4 Safety Information (continued) NOTE: Use care in assembling your new fireplace. Take your time and use the hardware provided and a quality Phillips head screwdriver. Never overtighten bolts. • Do not sit on any part of the mantel. • It is recommended to work on a soft surface like a rug or to lay out a blanket to protect the furniture from getting scratched during the assembly process NOTE:...

  • Page 5: Warranty

    Warranty 1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times.

  • Page 6: Pre-Assembly

    Pre-Assembly HARDWARE INCLUDED Part Description Part Number Quantity Shelf Pin PH-SPNPCSPLB2 Cam Lock Screw PH-KDBZNC001 Cam Lock Connector PH-KDCZNC001 Screw 3 x 15 mm PH-SCRBLK010 Door Bumper PH-BMPBLK002 Wood Dowel PH-DWLNTL001 Euro Hinge PH-HNG2H35CR95 Screw 3.5 x 15 mm PH-SCRNKL008 Screw 4 x 50 mm PH-SCRBLK006 Bolt 6.3 x 12 mm...

  • Page 7: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS NOTE: All panels are labeled left and right as viewed from the front of unit. Part Description Quantity Bottom Shelf Center Shelf Left Partition Right Partition Left Fixed Shelf Right Fixed Shelf Top Panel Left Side Panel Right Side Panel Base Back Rail Base Left Side Rail...

  • Page 8: Assembly

    Assembly Preparing the center shelf Preparing the center panels Locate the Left Partition (C) and Right Partition (D). Locate the Center Shelf (B). Insert Wood Dowels (FF) into the pre-drilled holes in Insert Cam Lock Screws (BB) into the pre-drilled holes the Center Shelf (B).
  • Page 9 Assembly (continued) Preparing the side panels Preparing the center assembly Insert Cam Lock Screws (BB) into the pre-drilled Using the Left Partition (C) and the Center Shelf (B), holes in the Left Partition (C) and tighten using a align the pre-installed wood dowels and cam lock Phillips screwdriver.
  • Page 10 Assembly (continued) Preparing the center assembly Attaching the door hinges Using the Left Fixed Shelf (E) and the center Locate the Left Side Panel (H) and Right Side Panel (I). assembly, align the pre-installed dowels and Locate the Euro Hinges (GG) and secure both the upper cam lock screws into the holes.
  • Page 11 Assembly (continued) Attaching the side panels Preparing for the bottom assembly Align the cam lock screws on the center assembly Insert Wood Dowels (FF) into the bottom edges of the with the pre-drilled holes on the Left Side Panel (H). center assembly as indicated.
  • Page 12 Assembly (continued) Preparing the base rails Attaching the base rails Locate the Base Rails (J, K, L, M). Align the Base Left Side Rail (K) with the Base Back Rail Insert Bolts (JJ) through the Plastic Connector (J) and push together. Blocks (KK).
  • Page 13 Assembly (continued) Attaching the base rails Attaching the base rails Insert Bolts (PP) through the Flat Washers (QQ) from Attach the previously assembled rails to the bottom of behind the front base rail to secure the the main assembly by inserting the Bolts (JJ) through Base Front Block (N).
  • Page 14 Assembly (continued) Installing the power port Preparing the top of the assembly Locate the Power Port (RR). Insert Wood Dowels (FF) into the pre-drilled holes along Insert the Power Port (RR) into the cutout in the the top edges of the main assembly as shown. center shelf (B), feeding the cord though first.
  • Page 15 Assembly (continued) Attaching the top panel Covering the screws Place the Top Panel (G) onto the main assembly by Push Plastic Covers (LL) into the screw hole openings of aligning the previously installed cam lock screws areas that have already been assembled. and wood dowels with the pre-drilled holes.
  • Page 16 Assembly (continued) Preparing the drawers Assembling the drawers Locate the Handle (NN) and use pre-attached screws on When inserting each Drawer (Q), be sure that each hinge each handle to secure onto each Drawer (Q). on the main assembly is fully extended. This will ensure that the drawer slides into place properly.
  • Page 17 Assembly (continued) Attaching the door handles Attaching the doors Locate the Handles (NN) and use pre-attached Slide the previously installed Euro Hinges on each door screws to secure onto each Door (R). into the corresponding hinge on the main assembly as indicated by the diagram.
  • Page 18 Assembly (continued) Installing the fireplace insert Lift the Fireplace Insert (T) carefully into the back of the unit and center in the fireplace insert opening. Do not drag the fireplace insert across the Base as it may scratch your unit. Securing the fireplace insert Align the Metal Brackets (TT) behind the fireplace Insert (T) and above the pre-drilled holes.
  • Page 19 Assembly (continued) Installing the tipping restraint hardware When the Tipping Restraint Hardware (OO) is properly installed, it can provide protection against unexpected tipping of the Unit due to small tremors, bumps or climbing. Wall Your Unit comes with two Tipping Restraint Hardware (OO).

  • Page 20: Operation

    Operation Operation NOTE: The control panel can be accessed at the upper-right corner of the insert. Fig . 1 Powering the fireplace Adjusting the flame Push the Power button to supply power to all There are 6 brightness levels that can be selected: functions of the fireplace and put the insert in a standby mode.
  • Page 21 Operation (continued) Replacing the remote control battery Disposing of used batteries The battery may contain hazardous substances that When the remote control stops operating or its range could endanger the environment and human health. seems reduced, it is time to replace the batteries with new ones.

  • Page 22: Fcc/Ic Information

    FCC/IC Information WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 23: Troubleshooting

    Troubleshooting PROBLEM ROOT CAUSE CORRECTIVE ACTION Unplug the fireplace, remove the back panel of the fireplace and check that the thermo- The thermostat sensor is stat is plugged into the main circuit board. Display shows " " broken or disconnected. If this does not solve the problem contact customer service for a replacement thermo- stat sensor.
  • Page 24 Troubleshooting (continued) PROBLEM ROOT CAUSE CORRECTIVE ACTION Flame effect works but heater func- With the power on press and hold the POWER tion does not and the emberbed flashes button on the control panel for 10 seconds. The heater is disabled. when the Heater button is pressed.

  • Page 25: Replacement Parts

    Replacement Parts For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. Part Description Qty. Remote Control Flame Circuit Board Blue LED Circuit Board Flame Generator Drive Motor Thermostat Sensor Blower/ Heater Assembly Control Panel Circuit Board...
  • Page 26 HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
  • Page 27 HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
  • Page 28 Questions, problems, missing parts? Before returning to the store call Home Decorators Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS RETAIN THIS MANUAL FOR FUTURE USE.
