1006152671/316142857/23WM30509-PT01
USE AND CARE GUIDE

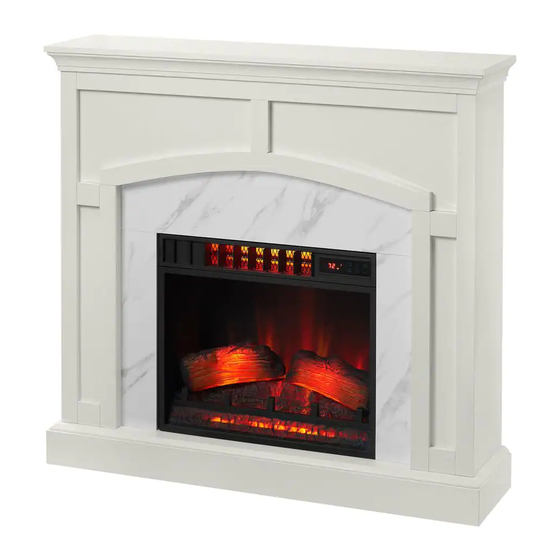

FALLSTON ELECTRIC FIREPLACE WALL MANTEL
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
MONDAY - FRIDAY 8 A.M. - 7 P.M. EST, AND SATURDAY 9 A.M. - 6 P.M. EST.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection FALLSTON 1006152671
Summary of Contents for Home Decorators Collection FALLSTON 1006152671
- Page 1 USE AND CARE GUIDE FALLSTON ELECTRIC FIREPLACE WALL MANTEL QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE, CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE MONDAY - FRIDAY 8 A.M. - 7 P.M. EST, AND SATURDAY 9 A.M. - 6 P.M. EST. 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Maximum Load Warning ........... 2 Package Contents .............. 7 Safety Information ............. 3 Assembly ..............8 Warranty ..............5 Operation ..............14 Pre-Assembly ............. 6 FCC/IC Information ............17 Hardware Included ........... 6 Care & Cleaning ............17 Product Specifications ............ -
Page 3: Safety Information
Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any question regarding the product, please call customer service at 1-800-986-3460, Monday-Friday 8 A.M. - 7 P.M. WARNING: Under no circumstances should this fireplace be EST, and Saturday 9 A.M. - Page 4 Safety Information (continued) NOTE: Use care in assembling your new fireplace. Take your time and use the hardware provided and a quality Phillips head screwdriver. Never overtighten bolts. • Do not sit on any part of the mantel. NOTE: To avoid injury from unexpected starting or electrical shock, do not plug the power cord into a source of power during unpacking and assembly.
-
Page 5: Warranty
Warranty Warranty 1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times. -
Page 6: Pre-Assembly
Pre-Assembly HARDWARE INCLUDED Part Description Part Number Quantity Bolt 6.3 x 25 mm P23WM30509-AA 19 mm Flat Washer PH-WSRBLK001 Screw 3 x 12 mm PH-SCRBLK007 Screw 3.5 x 15 mm PH-SCRBLK008 Metal Bracket P23WM30509-EE Tipping Restraint Hardware PH-BKTWHT003 Threaded Insert (pre-installed) PH-THRZNC001 Floor Glide (pre-installed) PH-GLDBRW001... -
Page 7: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS NOTE: All panels are labeled left and right as viewed from the front of unit. Part Description Quantity Bottom Shelf Left Side Panel Right Side Panel Left Surround Panel Right Surround Panel Top Surround Panel Top Panel Left Decorative Surround Panel Right Decorative Surround Panel Top Decorative Surround Panel... -
Page 8: Assembly
Assembly Attaching the surround panels to the side panels Locate the Left and Right Side Panels (B and C) and the Left and Right Surround Panels (D and E). Place the Left Surround Panel (D) one the inside edge of the Left Side Panel (B) as shown in the diagram. - Page 9 Assembly (continued) Assembling the fireplace surround Locate the Top Surround Panel (F). Insert the pre-installed wooden dowels on the left and right surround panels into the bottom edge of the Top Surround Panel (F) as shown. Once the Top Surround Panel (F) is in place, rotate the pre-attached metal brackets to span the joint of the top surround rail and each side surround rail.
- Page 10 Assembly (continued) Attaching the top panel Place the Top Panel (G) on top of the main assembly while aligning the pre-installed screws with the screw holes. After inserting the screws into the holes, tighten the fasteners from underneath the Top Panel (G) using a Phillips Screwdriver.
- Page 11 Assembly (continued) Attaching the decorative top panel Locate the Top Decorative Surround Panel (J). Align the pre-installed dowels between the Top Decorative Surround Panel (J) and Decorative Surround Panels (H and I). Be sure that the design of your choice is facing out toward the front of the unit, matching the side panels installed in step 6.
- Page 12 Assembly (continued) Installing the fireplace insert Lift the Fireplace Insert (K) carefully into the back of the unit and center in the fireplace insert opening. Do not drag the Fireplace Insert (K) across the base as it may scratch your unit. Securing the fireplace insert Align the Metal Brackets (EE) behind the Fireplace Insert (K) and over the edge of the bottom panel.
- Page 13 Assembly (continued) Installing the tip restraint hardware When the Tipping Restraint Hardware (FF) is properly installed, it can provide protection against unexpected tipping of the unit due to small tremors, bumps or Wall climbing. Each Tipping Restraint Hardware (FF) includes one Unit Anchor, one Wall Anchor, one Anchor Tether, and four Anchor Screws.
-
Page 14: Operation
Operation Operation NOTE: The control panel can be accessed at the upper-right corner of the insert. Powering the fireplace Adjusting the flame Push the Power button to supply power to all There are 5 unique 3D flame colors that can be selected. functions of the fireplace and put the insert in a 1: Spectrafire ®... - Page 15 Operation (continued) Adjust the fan speed Fan oscillation Pressing this button will turn on or off the oscillation Press the Fan button in succession to cycle through feature. When on, the louvers will oscillate back and the speed settings; 1 (lowest speed) 2 (middle speed) forth to distribute the air flow to a wider area.
- Page 16 Operation (continued) Power cord information This heater is for use on 120 volts. The cord has a plug as shown in the figure. Connect to properly grounded outlets only. Do not use a two-prong adapter. Never use with an extension cord or relocatable power tap (outlet/ power strip).
-
Page 17: Fcc/Ic Information
FCC/IC Information WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 18: Troubleshooting
Troubleshooting PROBLEM ROOT CAUSE CORRECTIVE ACTION Fireplace has reached set temperature. Fireplace stopped heating before Set the fireplace to a higher temperature or Temperature around fireplace might be a few reached desired temperature. always “on”. degrees higher than other area in the room. Unplug the fireplace, remove the back panel of the fireplace and check that the The thermostat sensor is... - Page 19 Troubleshooting (continued) PROBLEM ROOT CAUSE CORRECTIVE ACTION Flame effect works but heater With the power on press and hold the Power function does not and the emberbed button on the control panel for 10 seconds. The heater is disabled. flashes when the Heater button is Once re-enabled the emberbed lights will pressed.
-
Page 20: Replacement Parts
Replacement Parts For replacement parts, call our customer service department at 1-800-986-3460, Monday - Friday 8 A.M. - 7 P.M. EST, and Saturday 9 A.M. - 6 P.M. EST. Part Description Qty. Ember bed with Log Set Flame Generator Drive Motor Flame Circuit Board Control Panel Circuit Board PCB Binboard... - Page 21 Questions, problems, missing parts? Before returning to the store call Home Decorators Customer Service MONDAY - FRIDAY 8 A.M. - 7 P.M. EST, AND SATURDAY 9 A.M. - 6 P.M. EST. 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS RETAIN THIS MANUAL FOR FUTURE USE.
