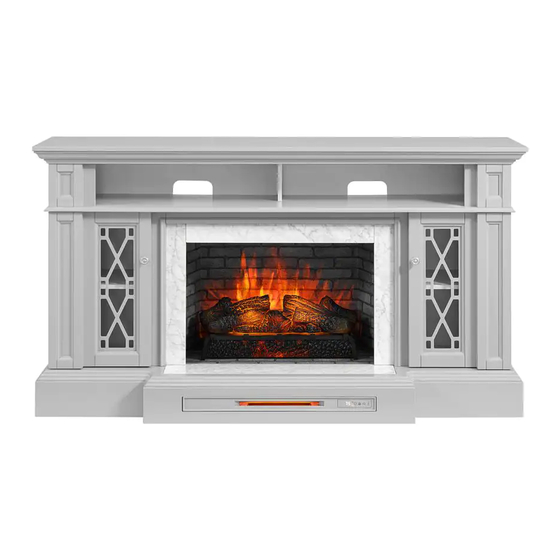

68 in infrared media fireplace in light gray

Advertisement

Quick Links

Item #1006295808
Model #2357FMM-26-242

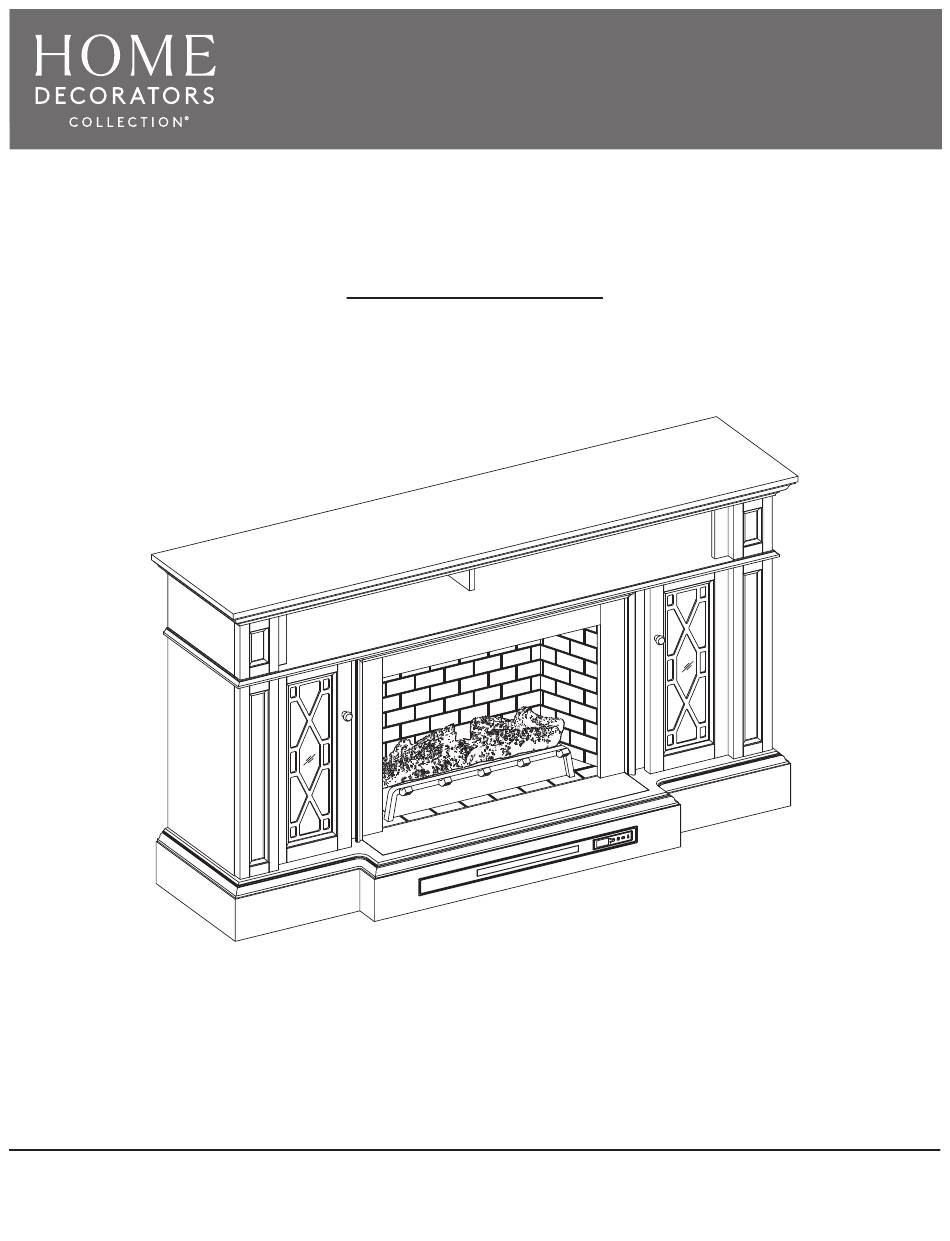

ASSEMBLY INSTRUCTIONS
PARKBRIDGE 68 IN INFRARED MEDIA
FIREPLACE IN LIGHT GRAY
Questions, problems, missing parts?
Before returning to the store, call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARKBRIDGE 2357FMM-26-242 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection PARKBRIDGE 2357FMM-26-242

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Hardware Included .
  • Page 3 Safety Information (continued) WARNING: □ This appliance is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. Keep combustible material, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from this appliance and keep them away from the sides and rear. □...
  • Page 4 Safety Information (continued) □ ONLY connect to properly grounded outlets. □ This appliance, when installed, must be electrically grounded in accordance with local codes, with the current CSA C22.1 Canadian Electrical Code or follow U.S.A. Installations, follow local codes and the National Electrical Code, ANSI/NFPA N0.70. □...
  • Page 5: Warranty

    Warranty The manufacturer warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this electric fireplace in accordance with the installation and operating instructions furnished with the product at all times.
  • Page 6: Pre-Installation

    Pre-Installation PLANNING INSTALLATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 50 minutes. Tools Required for Assembly (not included): Phillips screwdriver.
  • Page 7: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Outer Wall Left Side Panel Right Side Panel Center Panel Side Back Panel Shelf Left Front Door Right Front Door Fireplace Brick Wall Fireplace Glass Front Base And Heater Fire Log Fireplace Grate Remote Control (Battery Inside) HOMEDEPOT.COM/HOMEDECORATORS...
  • Page 8: Installation

    Installation Install right side panel □ Insert three wooden dowels (CC) into holes on the right of base (L). Attach right side panel (D), securing with two washers (BB) and two long bolts (AA). Install left side panel □ Insert three wooden dowels (CC) into holes on the left of base (L). Attach left side panel (C). NOTE: Do not secure left side panel (C) yet until the center panel (E) is attached at step 4.
  • Page 9 Installation (continued) Install center panel □ Insert one wooden dowel (CC) into each side of center panel (E). Install center panel □ Carefully position the center panel (E) into place between left side panel (C) and right side panel (D). Secure each side with one washer (BB) and one long bolt (AA), and use two washers (BB) and two long bolts (AA) to secure the left side panel assembly.
  • Page 10 Installation (continued) Install outer walls □ Insert four wooden dowels (CC) into holes on outer side of base (L). Attach outer walls (B), securing with four washers (BB) and four long bolts (AA). Install fireplace glass front □ From behind the assembly, attach the fireplace glass front (K), lowering it into the front groove on base (L). □...
  • Page 11 Installation (continued) Install top □ Insert two wooden dowels (CC) into the top outer holes on both outer walls (B), left side panel (C) and right side panel (D). Attach top (A), securing from underneath with ten washers (BB) and ten long bolts (AA). Install back panels □...
  • Page 12 Installation (continued) Install fireplace grate □ Place the fireplace grate (N) by matching the bottom pins into the holes on the base (L). □ Slot the USB cable from the heater underneath through the cable hole on the base (L). Install fire log □...
  • Page 13 Installation (continued) Install L-bracket □ Screw two L-bracket (FF) onto the fireplace brick wall (J) using four screws (HH). Install fireplace brick wall □ Insert the fireplace brick wall (J) into the mantel, slotting it into the grooves on base (L). □...
  • Page 14 Installation (continued) Install shelves □ From the front of the assembly, insert shelf pins (EE) at desired height, ensuring they are level. Place shelf (G) on top of shelf pins (EE). Repeat for remaining the shelf (G). Install the doors □...
  • Page 15 Installation (continued) Align the doors □ If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
  • Page 16: Maximum Recommended Weight Loads

    Maximum Recommended Weight Loads WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result instability causing tip over resulting in death or serious injury. FITS UP TO MOST 193.04 cm / 76 in FLAT PANEL TVS MAXIMUM LOAD 59.09 kg / 130 lb MAXIMUM LOAD 22.7 kg / 50 lb MAXIMUM LOAD 4.5 kg / 9.9 lb...
  • Page 17: Operating Instructions

    Operating Instructions Control Panel Remote Control To use the remote control, first remove the plastic tab by gently pulling it out of remote control. Controls and Display The control panel will display the heater setting when the unit power is turned ON. Whichever control icon you press will display the current setting of the corresponding function.
  • Page 18 Operating Instructions (continued) NOTE: This may not exactly match the room thermostat reading as their sensors are located in different areas. □ Hold down the FLAME SPEED ICON for 10 seconds to toggle between Fahrenheit and Celsius. “F” or “C” will be displayed on the control panel (°F/°C can only be toggled from the control panel and will not work if using the remote control).
  • Page 19: Care And Maintenance

    Care and Maintenance □ Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater or fireplace. □ Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.
  • Page 20: Troubleshooting

    Troubleshooting Problem Possible cause Solution Error E1 displayed on The overheat sensor has been Unplug unit, wait 15-20 minutes, then the sensor will reset itself. Plug the control panel. engaged. unit back in and turn on the heater. If the problem persists, call customer service.
  • Page 21: Service Parts

    Service Parts MODEL TYPE Item #0000000000 PARKBRIDGE 68 IN. FREESTANDING ELECTRIC FIREPLACE TV STAND IN GREY FINISH Model #2357FMM-26-242 Shelf Pin (X 8) Wood Dowel (X 20) L-Bracket (X 2) Back Panel Screw (X 22) Screw (X 8) Washer (X 20) Glass Clips (X 2) Touch-up Pen (X 1) Long Bolt (X 20)
