Summary of Contents for UNIS Wildlife PICs

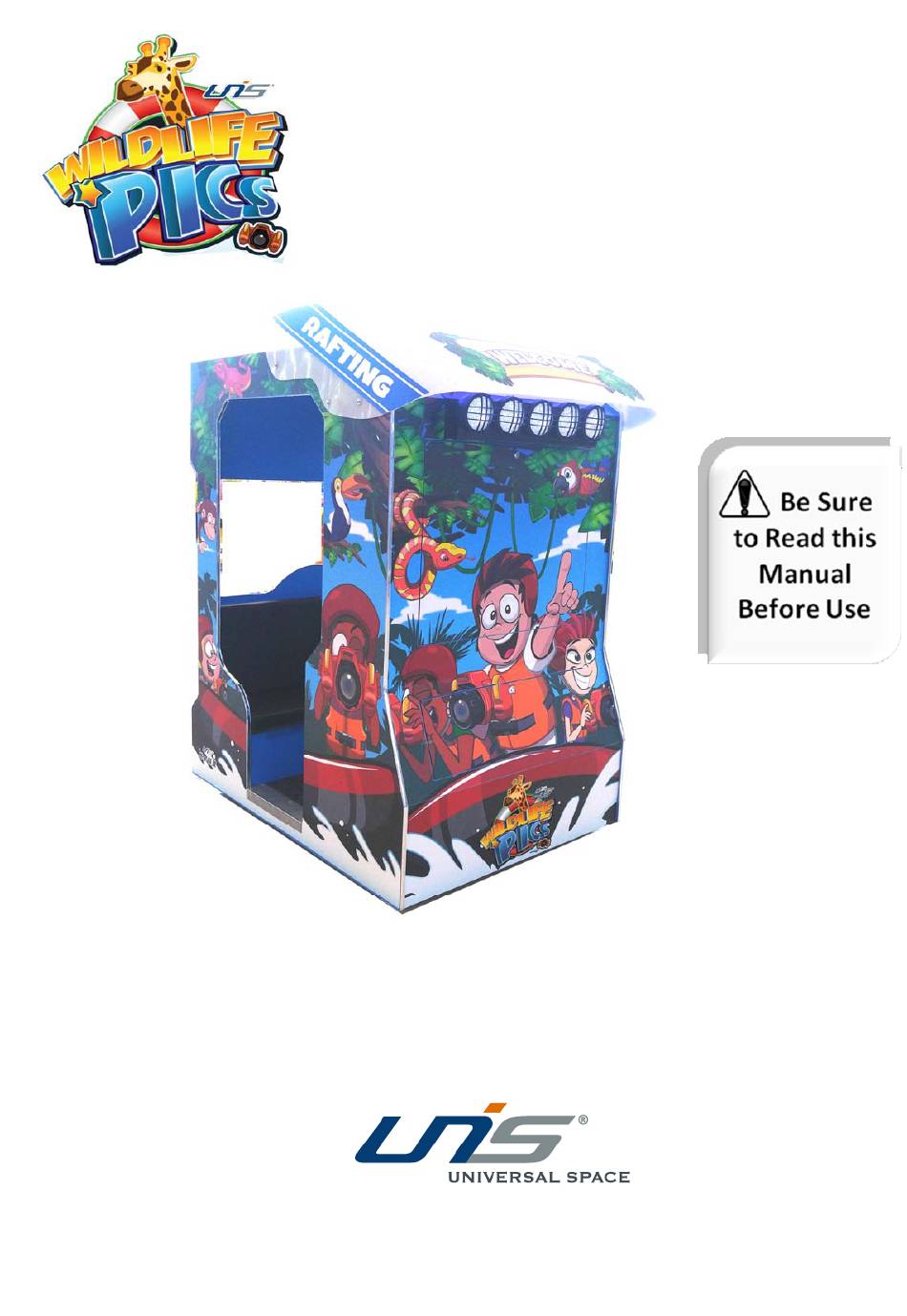

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Wildlife PICs Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 2 1. SPECIFICATIONS ..................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAME ......................6 4. SET UP & INSTALLATION ..................7 5. HOW TO PLAY ......................13 6. GAME OPTION ....................... 14 7.

  • Page 3: Important Safety Instructions

    Wildlife PICs Manual Thank you for purchasing Wildlife PICs. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Wildlife PICs Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Wildlife PICs Manual 1. SPECIFICATIONS Rated power supply: AC220V 50/60Hz; AC110V 50/60Hz Min. Power consumption: 250W Max. Power consumption: 220W Dimension: W43.30×D59.01×H75.78 in Weight: 507 lb Part No: W115 Model No: C-498 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 6 Wildlife PICs Manual This is the dimension after unpacking. (Top shed assy. need to install) Dimension: W42.51×D56.06×H69.15 in 11/06/2017...

  • Page 7: Package Contents

    Wildlife PICs Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: 1. Following accessories Part No Code Name Picture 1 W115-802-000 25300171002 2 W115-803-000 25300172002 Power cord 3 W115-804-000 23301000001 3×16AWG 1.8M Fuse 4 W115-416-000 21901000012...

  • Page 8: Part Name

    Wildlife PICs Manual 3. PART NAME Top shed assy. Marquee Assy. Display Camera Assy. Coin mech. Assy. Ticket dispenser Assy. 11/06/2017...

  • Page 9: Set Up & Installation

    Wildlife PICs Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface ...
  • Page 10 Wildlife PICs Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area Notice: Please open the seat for service electrical parts and find the POWER SWITCH of the...
  • Page 11 Wildlife PICs Manual 4.4 Top shed assy. Installation Instruction Please prepare the following tools before installation. Name Picture Allen key Cross screwdriver Unpack the machine and install the following 3 parts. Part No. Name 1 W115-125-000 Top plastic shed 1...
  • Page 12 Wildlife PICs Manual Step 1 Place and install Top shed plate 1& Top shed plate as following picture. Part No Name 1 W115-313-000 Cross recessed pan head screw 8 2 W115-122-000 Top shed plate 1 3 W115-123-000 Top shed plate...
  • Page 13 Wildlife PICs Manual 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.

  • Page 14: How To Play

    Wildlife PICs Manual 5. HOW TO PLAY 5.1 Press left or right button to snap a photo 5.2 Aim perfectly to get 3 stars 5.3 Complete tasks to earn MEDALS! 11/06/2017...

  • Page 15: Game Option

    Wildlife PICs Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press test button to get into the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu 6.2.2 Basic Setting...
  • Page 16 Wildlife PICs Manual 6.2.4Input Test 6.2.6 Game Reset 1P Coin In OFF/ON Restore Factory Settings 1P confirm button OFF/ON Restore Basic Settings 1P Left Button OFF/ON Restore Customized Setting 1P Right Button OFF/ON Clear Unused Coin 2P Coin In OFF/ON...
  • Page 17 Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power cutting in cutting state anomaly. Please contact with UNIS Service. Coin mech. fault or sample coin Change coin mech. or sample coin. not installed.
  • Page 18 Wildlife PICs Manual Symptom Possible Cause Recommended action Update the driver of the video card or Display blue screen Software problem. reinstall the system. when playing Hardware problem. Check the hardware one by one. Video card is loose or poor Playing normal, but Plug video card again.
  • Page 19 Wildlife PICs Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action The connection part of the Check and reconnect the loose IO board and PC are loose. ports of the PC or IO board.
  • Page 20 Wildlife PICs Manual 7.2 System Recovery Operation 1. Turn off the game. Remove recovery USB from the cabinet. (Note: This process may take 30-45 minutes to reform.) Insert the memory stick into the USB port at the back of the computer.

  • Page 21: Maintenance & Inspection

    Wildlife PICs Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.
  • Page 22 Wildlife PICs Manual WARNING  • Before servicing the machine, be sure to turn power off. Servicing without turning the power off can cause electric shock or short circuit. • To avoid electric shock or short circuit, do not plug then unplug the power quickly •...

  • Page 23: Overall Construction

    Wildlife PICs Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name 1 W115-007-000 29951703007 Light Assy. 2 W115-001-000 29951703001 Cabinet Assy. 3 W115-006-000 29951703006 Camera Assy. 4 W115-004-000 29951703004 Backrest Assy. 5 W115-005-000 29951703005 Control panel Assy. 1 6 W115-003-000 29951703003 Seat Assy.
  • Page 24 Wildlife PICs Manual 9.2 General Assembly 1 Part No. Code No. Name W115-125-001 20651703005A Top plastic shed W115-126-000 20651703009 Rubber washer 2 W115-122-000 20651703011 Top shed plate 1 3 W115-008-000 29951703008 Fender 4 W115-131-000 20251703013 Control panel side board W115-132-000 20251703017...
  • Page 25 Wildlife PICs Manual 9.3 General Assembly 2 Part No. Code No. Name 1 W115-121-000 20651703006 Light mounting plate 1 2 W115-135-000 20651703004 Display EVA pad 3 W115-120-000 20251703041 Display support 4 W115-118-000 20251703042 Meter bracket 5 W115-119-000 20251703008 Coin track...
  • Page 26 Wildlife PICs Manual 9.4 Wooden cabinet Assembly Part No. Code No. Name 1 W115-105-000 20251703007 90°wood plate2 2 2 W115-103-000 20251703037 150°wood plate 1 3 W115-102-000 20251703038 120°wood plate 1 4 W115-101-000 20251703039 160°wood plate 2 5 W115-104-000 20251703006 135°wood plate 3 6 W115-106-000 20251703040 90°wood plate1 2...
  • Page 27 Wildlife PICs Manual 9.6 Seat Assembly Part No. Code No. Name Seat limiting 1 W115-157-000 20251703022 plate 2 W115-531-000 20351703029 Seat pad 3 W115-156-000 20251703023 Seat plate 4 W115-165-001 29951703009A Seat surface 9.7 Backrest Assembly Part No. Code No. Name...
  • Page 28 Wildlife PICs Manual 9.8 Camera Assembly Part No. Code No. Name 1 W115-139-000 20651703002 Camera back shell 2 W115-143-000 20251703030 Controller cover 3 W115-164-000 20651703013 Rubber washer 2 4 W115-146-000 20251703004 Horizontal gear 5 W115-145-000 20251703005 POT gear 2 6 W115-147-000 20651703007...
  • Page 29 Wildlife PICs Manual 9.9 Light Assembly Part No. Code No. Name 1 W115-160-000 20251703033 Light fixed plate 2 4 2 W115-158-000 20251703031 Light base plate 1 3 W115-161-000 20251703032 Light fixed plate 1 5 4 W115-159-000 20251703034 Light cover 11/06/2017...
  • Page 30 Wildlife PICs Manual 9.10 Decals Part No. Code No. Name 1 W115-722-000 20551408A013 Mind your head label 2 W115-705-000 20551703008 Top decal W115-727-000 20551703A005 L side decal W115-726-000 20551703A004 R side decal 4 W115-725-000 20551703A003 Front decal 5 W115-701-001 20551703001A...
  • Page 31 Wildlife PICs Manual Part No. Code No. Name 1 W115-723-000 20551703A001 Light box plexi. Decal 1 2 W115-704-001 20551703006A Back decal 3 W115-703-000 20551703004 Buoy plastic 4 W115-729-000 20551703A007 220V nameplate 5 W115-733-000 20551703A009 CE 110V nameplate 1 6 W115-730-000 20551703A008...
  • Page 32 Wildlife PICs Manual 9.10 Electrical components Part No. Code No. Name 1 W115-452-000 22002013002 RGB light 2 W115-447-000 22013030002 Round white light 5 5630 cabinet light 3 W115-439-001 22003080008 (85cm) W115-435-000 22702010025 W115-436-000 22702000010 Fan net 11/06/2017...
  • Page 33 Wildlife PICs Manual Part No. Code No. Name W115-418-000 21201032004 32'”display W115-424-000 23307010004 DVI-HMDI cable 1 W115-422-000 23301050002 Power cord 2 W115-431-000 22801000047 Speaker 3 W115-434-000 22002015005 5050 Light belt 3.8 4 W115-426-000 22402030003 Button(light) W115-448-000 22402000201 Button W115-449-000 22003000006...
  • Page 34 Wildlife PICs Manual Part No. Code No. Name 1 W115-453-000 29751601007 PCB board 2 W115-421-000 21602000094 Power supply W115-430-000 29791300001 Main board W115-432-000 23304000017 USB Cable W115-454-000 23309000246 Cable set W115-419-000 21107020036 Dongle W115-427-000 23304000100 USB extended cable 1 W115-009-000 PC Assy.
  • Page 35 Wildlife PICs Manual Part No. Code No. Name 1 W115-440-000 23000000006 Meter W115-444-000 29750882003 POT connected board 2 W115-445-000 22403000001 POT SW W115-441-000 22402010002 Button (Red) W115-442-000 22402030002 Button (Green) W115-443-000 22402050001 Button (Black) W115-428-000 23305000003 Audio cable W115-429-000 22803000047...

  • Page 36: Wiring Diagram

    Wildlife PICs Manual 10. WIRING DIAGRAM OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 11/06/2017...
  • Page 37 WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email: service@unisusasupportcenter.com...
