- Page 1 Operating and Maintenance Manual CR 5 Hatz 1 B 30 Weber Maschinentechnik GmbH Im Boden 5 - 8, 10 57334 Bad Laasphe-Rückershausen / Germany Telephone +49 (0) 27 54 / 398-0 Fax +49 (0) 27 54 / 398-101 E-Mail: info@webermt.de...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Measures to be taken if stored for long periods Contact addresses... -
Page 4: Introduction
Introduction This operating and maintenance manual is designed to facilitate familiarization with your soil compactor, and enable you to maintain the compactor and use it in accordance with the proper application possibilities. When complying with the instructions in the operating and maintenance manual you help avoid hazards, reduce repair and downtime costs, and increase the reliability and service life of your compactor. -
Page 5: Safety Guidelines
The soil compactor should only be used in technically faultless condition, as intended, in a safety- conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The CR 5 soil compactor is designed exclusively for compacting - Sand - Gravel... - Page 6 Operation Prior to starting work the owner of the compactor must be familiar with the work environment. The work environment includes obstacles in the work and traffic area, the bearing capacity of the ground, as well as the necessary safeguarding of the construction site in the area adjacent to public traffic; and it includes compliance with traffic regulations.
- Page 7 Inspection Compactors must be inspected in accordance with appropriate implementation conditions and operating conditions, as needed; however an inspection to ensure operationally safe status must be performed by an expert at least once a year. The results of the inspection must be recorded in writing and must be stored until the next inspection.
-
Page 8: Graphic Presentation

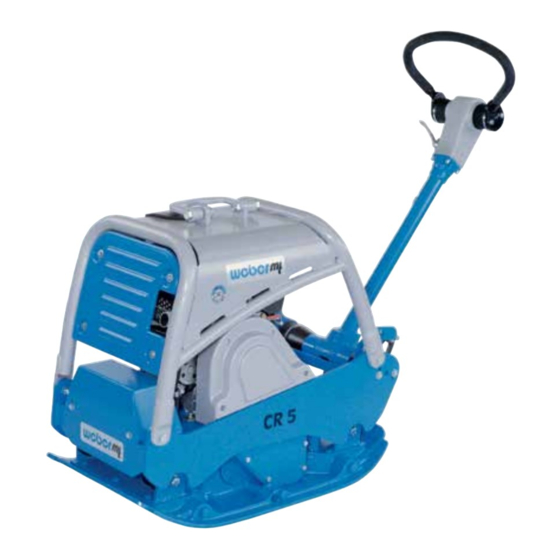

Graphic presentation Overall view CR 5 1 Engine 2 Drive lever 3 Manual guidance rod 4 Lifting ring 5 Base plate 6 Protective frame 7 Exciter 8 Gas lever 9 Attachment plates Wear ear protection (Stickers) -
Page 9: Device Description
Device description The CR 5 compactor is used for road building and landscaping compaction tasks. Propulsion The compactor is propelled by an air-cooled Hatz diesel engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Hatz diesel engine with the attached reversing starter. -
Page 10: Technical Data
Technical data CR 5 Weight Operating weight CECE in kg (basic device) Dimensions 1520 Overall length in (in mm) 550/700 Overall width/with attachment plates (in mm) 1070 Height with folded manual guidance rod (in mm) Base plate length (base in mm) - Page 11 1Description 2 TYPE ....................... 4 Year of construction 3 Serial-Number ......................5 Mass 6 Rated power KW...
-
Page 12: Activities Prior To Starting Work
Activities prior to starting work Transport Arrest the manual guidance rod (1) with the spring bolt (2). When transporting the soil compactor on a vehicle, secure it with suitable restraints. Fit the crane hook into the hinged lifting ring (1) and lift the machine onto the desired means of transport. -
Page 13: Starting
Checking the hydraulic fluid level Check the hydraulic oil level when the machine is at operating temperature. The correct oil level is reached when the oil is in the middle of the view glass. Mounting the attachment plates Tighten the screws (1) of the attachment plates (2) with a torque of 310 NM. -
Page 14: Compacting
Compacting ng the gas lever (1) into full-throttle position. Control drive speed and direction of travel with the handle (1). Only run machine within reach of the manual guidance rod. Shutdown Bring the gas lever (1) into idle position. Press the switch-off button (1). The engine can only be switched off via the switch-off button! During breaks—even if they are short—the machine... -
Page 15: Maintenance Overview
Maintenance overview Maintenance Maintenance interval Maintenance activity point - Change engine oil After the first 25 Check valve clearance, Engine operating hours adjust if necessary Re-tighten all accessible threaded connections Clean air filter insert, Every 8 operating Air filter check for damage, hours/daily replace if necessary Engine... -
Page 16: Maintenance Work
Maintenance work Changing the engine oil Open the cover lid (1) of the oil filler neck. Only drain engine oil when at operating temperature. Screw the oil drain pipe (1) onto the engine drain valve and drain off the oil. After emptying completely, unscrew the oil drain pipe from the drain valve and fill with oil in accordance with the specification. - Page 17 Changing the fuel filter Pull the fuel line (2) off the fuel filter (1) on both sides. Replace the filter with a new filter element. Cleaning/changing air filter cartridges Unscrew the air filter cover (1). If lubricating oils and fuel come into contact with skin, they can cause skin cancer.
- Page 18 Changing the oil in the exciter Remove the oil drain screw (1) and drain oil. To fill - tilt the machine slightly and fill with fresh oil through the drain opening in accordance with the fill level table. All maintenance work: select a collection vessel that is large enough to prevent oil from spilling onto the ground.
-
Page 19: Operating Fluids And Fill Levels
Operating fluids and fill levels Subassembly Fuel Quantity Summer Winter CR 5 Quality Engine Engine oil SAE 10 W 40 1,1 l (-10 ~ + 50 °C) API - CD CE-CF-CG or SHPD or CCMC - D4 - D5 - PD2... -
Page 20: Measures To Be Taken If Stored For Long Periods
Measures to be taken if stored for long periods (longer than one month) - Clean thoroughly - Check watertight Entire soil compactor - If there are leaks, correct defect Empty fuel and fill with clean fuel Fuel tank up to the lower edge of filler neck Check oil level, if necessary fill to upper oil-level mark Engine... -
Page 23: Contact Addresses
Telefax + 48 (0) 22 - 739 70 – 82 02-863 Warszawa E-Mail info@webermt.com.pl In Tschechien WEBER MT s.r.o. Telefon + 42 (0) 776 222 216 V Piskovne 2054 + 42 (0) 776 222 261 278 01 Kralupy nad Vitavou E-Mail info@webermt.cz... - Page 24 > Vibration plates > Vibrating tampers > Vibration rollers > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe - Rückershausen Telephone + 49 27 54 / 398 0 - Fax +49 27 54 / 398 101...
