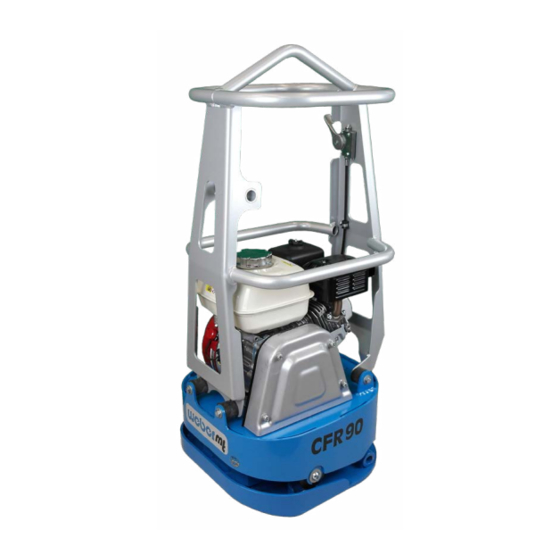

Weber mt CFR 90 Operating And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating and
Maintenance Manual
CFR 90
0101001

Advertisement

Table of Contents
loading

Related Manuals for Weber mt CFR 90

Summary of Contents for Weber mt CFR 90

  • Page 1 Operating and Maintenance Manual CFR 90 0101001...
  • Page 2 Attached to the machine is a rating plate. Note down the information given on this plate so that you can recreate the rating plate should the plate be lost. 1 Description 2 Type ....................... 3 Serial number 4 Year of construction ............

  • Page 3: Table Of Contents

    Contents 1. Introduction ........................4 2. Description ........................5 3. Technical data ......................... 6 4. Safety ..........................7 4.1. Information and safety stickers ................12 5. Operation........................13 6. Transport ........................18 7. Storage .......................... 19 8. Maintenance ........................20 8.1.

  • Page 4: Introduction

    Turn to your Weber MT dealer if you require any additional information. Found on the last page of this manual is a QR code. Scan it to acquire the current contact addresses of all Weber MT branches.

  • Page 5: Description

    2. Description The machine The machine is a hand-guided, forward-moving soil compactor. The machine is composed of a bottom and a top section. The bottom section houses the exciter, while the top section contains the engine and the required controls. An air-cooled Honda gasoline engine makes the exciter vibrate via a centrifugal clutch.

  • Page 6: Technical Data

    3. Technical data CFR 90 Weight Operating weight CECE [kg] Dimensions Overall length [mm] Overall width/with attachment plates [mm] Overall height [mm] Base plate length [base in mm] Pressure surface [mm] 430x350 Drive Engine manufacturer Honda Type GX 160 Performance at operating speed in...

  • Page 7: Safety

    4. Safety General All safety instructions must be read and complied with, as non-compliance will result in - Danger to life and limb of the user, - Impairments to the machine or other property. In addition to the operating manual, the accident-prevention regulations in the country where the appliance is used must be complied with.
  • Page 8 Spare parts, changes and Changes and conversions are prohibited unless made with conversions original Weber MT spare parts. If the machine is modified with other accessories without the approval of Weber MT, the manufacturer will not assume liability for any resulting personal injury or property damage.
  • Page 9 Start-up procedure Do not disperse any sprays or other agents into the air intake while the machine is starting up. They may lead to overheating in the combustion chamber and result in damage to the engine. There is danger of suffocation if the operator starts up the machine in closed rooms or in deep and tight trenches.
  • Page 10 Cleaning work Use clear water for cleaning. Do not use flammable solvents. The vapors of the solvents may ignite upon contact with hot components or other sparks. Perform cleaning tasks only in rooms that are suitable and have been approved for that purpose. Residual oil and lubri- cants that may have been rinsed off have a negative impact on the environment and must be collected by suitable means (e.g.
  • Page 11 Safety instructions and A variety of safety instructions and warnings are used through- warnings out this operating manual. The following explains the meaning of signal words and symbols. ATTENTION warns of the danger of material damage. ATTENTION CAUTION warns of the danger of slight injury.

  • Page 12: Information And Safety Stickers

    4.1. Information and safety stickers Sticker Meaning All threaded unions must be checked for firm seat on a regular basis and, particularly, after initial use. The fuel tank may only be fueled with regular gasoline. Use the designated lifting ring to lift the machine.

  • Page 13: Operation

    5. Operation Preparing the machine Remove all packaging material. for initial use Check all components for visible damage. Do not start the machine if detecting visible damage. Contact the responsi- ble dealer. Check if the shipment of the machine and its components is complete.
  • Page 14 Operating positions on the machine Overall view CFR 90 Base plate with exciter Handle Engine Short-circuit switch Lifting ring Gas lever...
  • Page 15 Before starting work Perform the following tasks before starting to work in order to prevent failures or excessive wear. Visual inspections Fuel system for leaks Rubber buffers for crack formation Other damage Check and, if necessary, Engine oil correct the fill levels Fuel Other inspections Check all threaded unions for firm seat...
  • Page 16 Working with the machine Starting the engine ATTENTION Risk of engine damage. The use of starter spray may lead to overheating in the combustion chamber. Do not use any starter spray. WARNING Danger of suffocation from engine exhausts when starting the engine in closed rooms or poorly ventilated work areas.
  • Page 17 Compacting CAUTION There is a crushing hazard between the machine and the wall during work in close proximity to walls. Use extra caution when working close to obstacles CAUTION Risk of injury if the machine is guided improperly. Guide the machine safely with both hands on the handle. ATTENTION Danger of material damage or excessive wear if V-belt slips through.

  • Page 18: Transport

    6. Transport Lifting the machine The machine can be lifted for loading onto a vehicle. CAUTION Risk of material damage and injuries. The use of defective or unsuitable lifting gear may cause the machine to fall down. Lift the machine only with a suitable lifting ring. Use slings that possess the appropriate carrying capacity.

  • Page 19: Storage

    Check and, if necessary, correct the engine oil level. Check and clean the air filter. Replace if damaged. Lightly oil all bare parts and levers. If the machine is to be stored for longer than six months, contact the Weber MT’s service organization to discuss additional measures.

  • Page 20: Maintenance

    8. Maintenance General information The section below contains instructions that need to be observed for regular maintenance. Read these instructions carefully and follow them in order to prevent downtimes of the machine caused by excessive wear or damage to the machine. Also read the safety instructions relevant to machine mainte- nance before you begin with the maintenance work.

  • Page 21: Maintenance Overview

    8.1. Maintenance overview Frequency Activity Change the engine oil 8.2.2 Check the valve play of the engine, Honda adjust if necessary instructions Re-tighten all accessible threaded connections Clean the air filter 8.2.3 Change the oil in the exciter 8.2.4 YouTube Playlist - Service Videos...

  • Page 22: Description Of The Maintenance Operations

    8.2. Description of the maintenance operations WARNING If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Wear protective gloves. If skin contact has occurred, wash the affected areas thoroughly. Park the machine on a horizontal subsurface. 8.2.1.

  • Page 23: Clean The Air Filter

    Remove the oil drain plug (2) CAUTION! Danger of scalding due to hot oil. Wear protective gloves. Use extra caution. Allow the oil to drain into the collection vessel. Install the oil drain plug. Fill fresh oil into the engine in accordance with the specification.

  • Page 24: Change The Oil In The Exciter

    8.2.4. Change the oil in the Start the engine and allow the engine to warm up for a few exciter minutes. Switch off the engine. Tilt the machine slightly. Place a suitable collection vessel under the machine. Loosen the oil drain plug (1). Allow the oil to drain.

  • Page 25: Adjust / Replace The Spark Plug

    8.2.6. Adjust / replace the CAUTION spark plug Danger of burn injuries at the hot engine and its attachments. Allow the combustion engine to cool down sufficiently before starting work. Use extra caution during work on the engine when it is at operating temperature.

  • Page 26: Operating Fluids And Fill Levels

    8.3. Operating fluids and fill levels Assembly Operating material Quantity Summer Winter Quality Engine Engine oil SAE 10 W 40 0.6 l (-10 ~ + 50 °C) API - CD CE-CF-CG or SHPD or CCMC - D4 - D5 - PD2 3.1 l Fuel tank Unleaded gasoline...
  • Page 28 Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085100401-104 / CFR 90 Hd_2023-01 Original instructions...
