- Page 1 Operating and Maintenance Manual CR 8 MDM 0116729...
- Page 2 CR 8 MDM...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Taking out of operation Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Circuit diagram... -
Page 4: Introduction
If necessary you can obtain additional information from your authorized WEBER dealer, or you can obtain information from one of the contact addresses on the last page. You can obtain information on the assembled Hatz diesel engine at www.hatz-diesel.com The valid conformity declaration is enclosed with every machine delivery. CR 8 MDM... -
Page 5: Safety Guidelines
The soil compactor should only be used if it is in a technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The CR 8 MDM compactor is designed exclusively for compacting – Sand – Gravel –... - Page 6 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. CR 8 MDM...
- Page 7 Inspection Compactors must be inspected in accordance with appropriate implementation conditions and operating conditions, as needed; however an inspection to ensure operationally safe status must be performed by an expert at least once a year. The results of the inspection must be recorded in writing and must be stored at least until the next inspection.
-
Page 8: Graphic Presentation

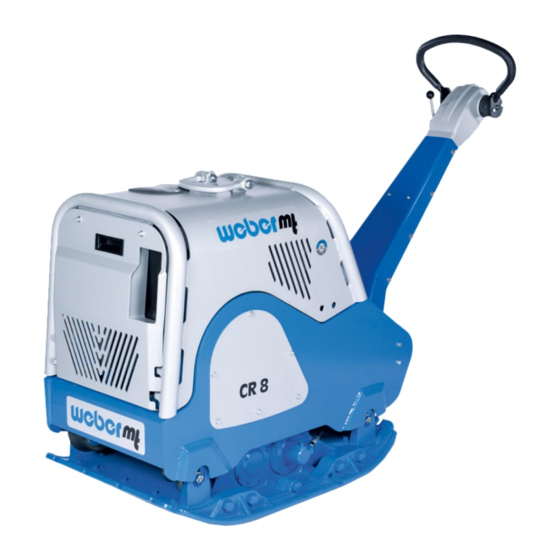

Graphic presentation Overall view CR 8 MDM 1 Engine (no image) 9 Gas lever 2 Drive lever 10 Attachment plates 3 Manual guidance rod 11 Fuse holders (no image) 4 Lifting ring 12 Hearing protection (sticker) 5 MDM motor protection... - Page 9 Graphic presentation – MDM motor protection When the ignition is switched on, the LED (1) will light up 10 hours prior to the next scheduled maintenance. The display will also indicate the operating hours (2) that have passed since the last maintenance. The total operating hours will be displayed as soon as the engine is running.
- Page 10 Engine temperature too high. The engine is shut down 3 minutes after the LED comes on. Air filter LED (1) is illuminated. Air filter is fouled up. The engine is shut down 10 minutes after the LED comes on. CR 8 MDM...
-
Page 11: Device Description
Device description The CR 8 CCD 2.0 compactor is used for road building and landscaping compaction tasks. Drive The compactor is propelled by an air-cooled Hatz diesel engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Hatz diesel engine via the electrical start device. After starting, vibration is switched on via the centrifugal clutch attached to the engine. -
Page 12: Technical Data
Technical data CR 8 MDM Weight Operating weight CECE in kg w/o AP Dimensions 1830 Overall length (in mm) Width without attachment plates (in mm) Width with attachment plates (in mm) 1160 Height with folded manual guidance rod (in mm) - Page 13 1 Description 2 TYPE ..........................3 Serial number 4 Year of construction ..........................5 Mass 6 Rated power kW ..........................
-
Page 14: Activities Prior To Starting Work
(1). Checking the engine oil level Open the maintenance cover (1) (fold forward). Pull the oil dip stick (1) out of the crankcase. The correct oil level is between the min. and max. marks. min max CR 8 MDM... -
Page 15: Starting
Check the fuel level Open the cover (1), remove the gas cap (2), check the fill level and, if necessary, top off with clean fuel to the lower edge of the filler neck in accordance with the specification. For work at the fuel system, have a suitable fire-extin- guishing agent at the ready. -
Page 16: Compacting
If the engine does not start after two start processes, seek cause in fault table. Compacting Control drive speed and direction of travel with the handle (1). Only run machine within reach of the manual guidance rod. CR 8 MDM... - Page 17 Shutting down Push back gas lever (1) (pull towards the operator) and let engine run idle for a few minutes. Turn the ignition key (1) from position “1” to position “0”. Pull out the ignition key. Close the vandalism flap (1) and lock with a padlock. During breaks –...
-
Page 18: Taking Out Of Operation
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CR 8 MDM... -
Page 19: Maintenance Work
Maintenance work Change the engine oil Remove V-belt guard (1) and maintenance cover (2) (fold forward). Open the cover cap (1) of the oil filter. Only drain engine oil when at operating temperature. When working in the area of the engine compartment there is a danger of being burnt! Screw the oil drain pipe (1) onto the engine drain valve (2) and drain off the oil. - Page 20 Battery acid is extremely caustic. Protect hands and eyes with suitable protective goggles and gloves. Remove the cover cap (1). Check the acid level; if it is too low top off with distilled water up to the max. mark. CR 8 MDM...
- Page 21 Changing the oil in the exciter Remove the oil drain screw (1) and drain oil. Select a collection vessel that is large enough to pre- vent oil from spilling on the ground. Dispose of waste oil in an environmentally friendly manner (regulation on waste oils).
- Page 22 During this time, place the reset magnet onto the display and turn in clockwise direction. Once the reset has been completed successfully, the operating hours until the next maintenance will be displayed. The item number of the reset magnet is 021001071. CR 8 MDM...
-
Page 23: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Operating material Quantity Summer Winter CR 8 MDM Quality Engine Engine oil SAE 10 W 40 1.9 l (– 10 ~ + 50 °C) API - CD CE-CF-CG or SHPD or CCMC - D4 - D5 - PD2 Diesel 10.0 l... -
Page 24: Troubleshooting
Remove / charge battery; fuse defective replace fuse No vibration / Vibrator V-belt defective Change vibrator V-belt no forward motion or insufficient forward motion Unit switches with Air trapped in the hydraulic Bleed the transmission a delay transmission system system CR 8 MDM... -
Page 25: Storage
Actions to be taken before long-term storage (longer than 1 month) – Clean thoroughly – Check watertight Entire soil compactor – If there are leaks, correct defects – Empty fuel and fill with clean fuel Fuel tank up to the lower edge of filler neck –... - Page 26 Comply with the device manufacturer’s operating manual for use of the battery charger. The operating manual of the charger is enclosed in the packaging of the battery charger. The battery charger BA 200 can be purchased using order no. 021000603. CR 8 MDM...
-
Page 27: Circuit Diagram
Circuit diagram MS25 Frei X7 Versorgung Luftfilter +12V START M12-A-m X1 Sensorik X6 Compatrol FREIGABE +12V_1 LADUNG +12V_2 TEMPERATUR GND_1 OELDRUCK GND_2 M12-B-m M12-A-f rt 2,5² rt 1,5² sw 2,5² rt 2,5² 30 50 G/1 G/1 ϑ Öldruck Tempe- ratur rt 2,5²... - Page 28 CR 8 MDM...
- Page 30 CR 8 MDM...
- Page 32 Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085101354-104 / CR 8 MDM_2020-04_EN Original instructions CR 8 MDM...
