Connections

A
A Emergency Stop Button
B Alarm Horn
C AUTO/OFF/MANUAL Keyswitch
(BS9) J9 utility sensing generator high
D
voltage sensing connections
(BS7) J7 Generac CAN, watchdog digital
E
output, peripheral module power
F (BS8) J8 J1939 CAN
4
009393
B C

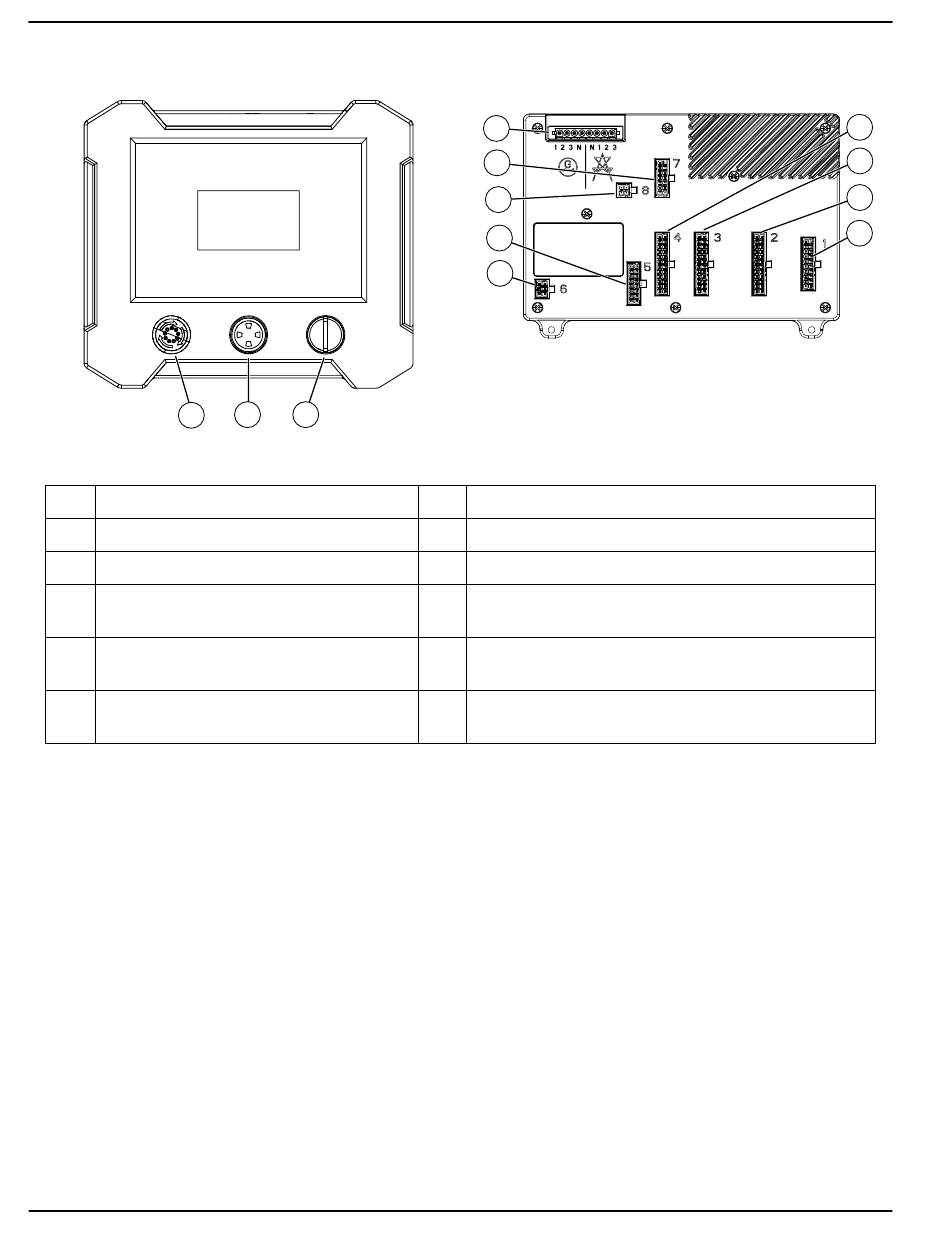

Figure 2-1. Controller Connections
D
E
F
G
H
G (BS5) J5 digital inputs
H (BS6) J6 Connectivity Server power and RS-485
I (BS4) J4 analog inputs, 5 V analog reference
(BS3) J3 CT inputs, analog inputs, analog outputs,
J
analog coolant level input
K (BS2) J2 digital outputs
(BS1) battery connection, 12 V reference, RPM, RS-
L
485
Owner's Manual for Power Zone Pro Main Controller
I
J
K
L
