Symmons Unity 66-2DIV Operation & Maintenance Manual page 2

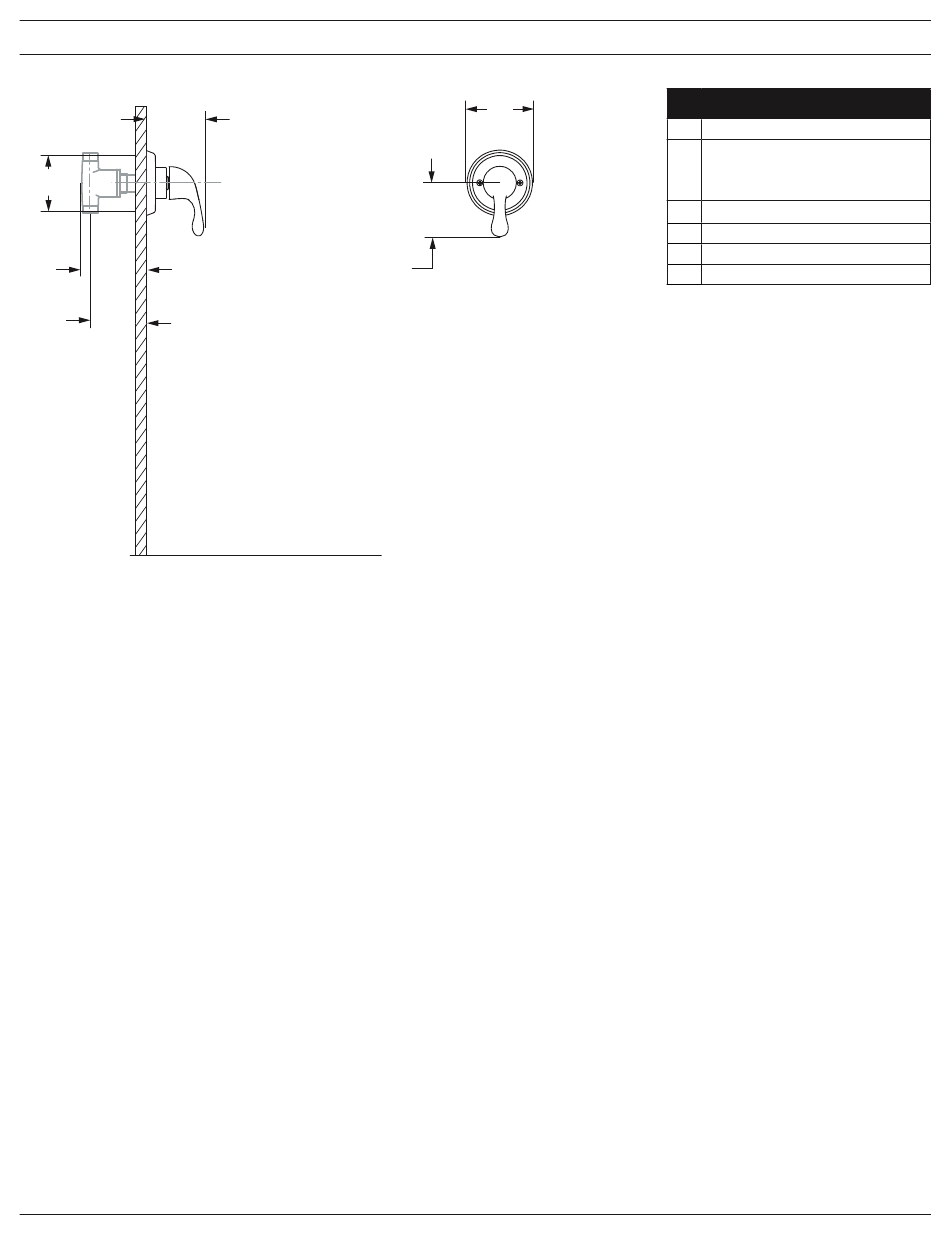

Dimensions
B B
C C
D D
Note: Dimensions subject to change without notice.
A A
F F
FLOOR FLOOR
E E
2
Measurements
A 3 3/4", 95 mm
Diverter Valve Hole Size
B Min. Ø 3", 76 mm
Max. Ø 3 1/4", 83 mm
C 3 1/2", 89 mm
D 3 1/8", 79 mm
E Ø 4 1/4", 108 mm
F 3 1/2", 89 mm
