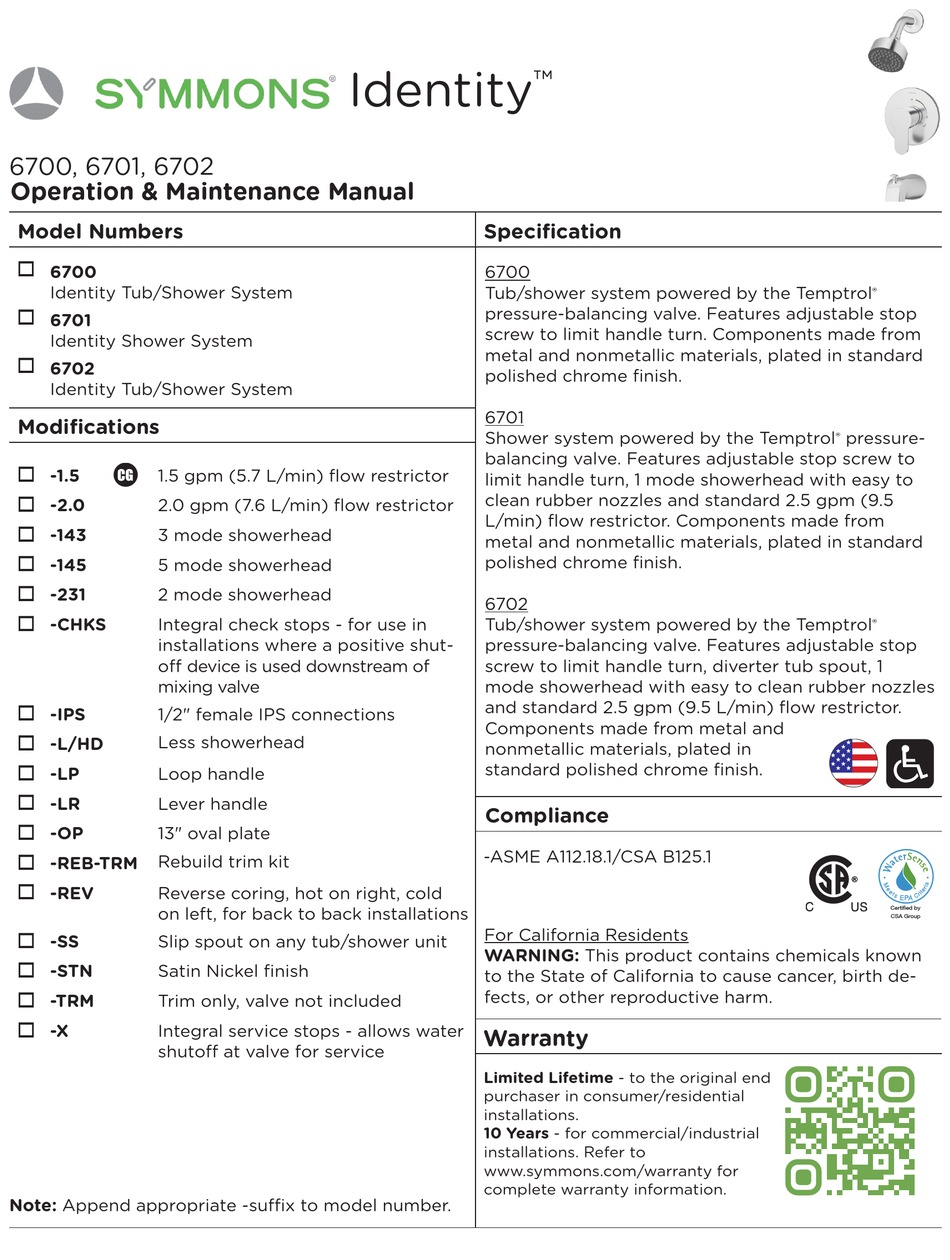

Symmons Identity 6700 Operation & Maintenance Manual

6700, 6701, 6702
Operation & Maintenance Manual
Model Numbers

6700

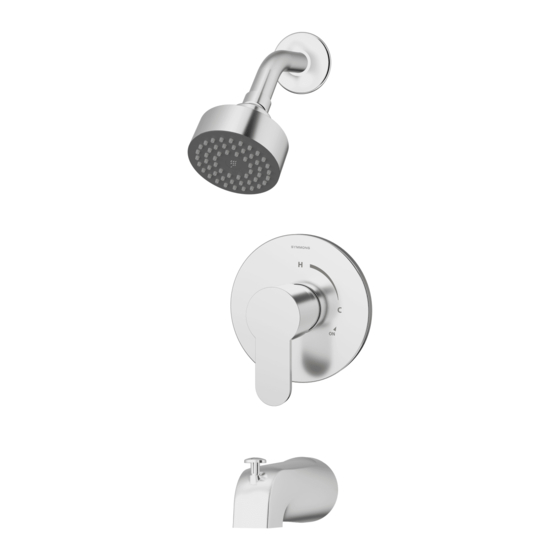

Identity Tub/Shower System

6701
Identity Shower System

6702
Identity Tub/Shower System
Modifications
 -1.5
CG 1.5 gpm (5.7 L/min) flow restrictor
 -2.0 2.0 gpm (7.6 L/min) flow restrictor
-143
 3 mode showerhead
-145
 5 mode showerhead
 -231
2 mode showerhead
 -CHKS Integral check stops - for use in
installations where a positive shut-
off device is used downstream of
mixing valve
-IPS
 1/2" female IPS connections
Less showerhead
-L/HD

 -LP
Loop handle
-LR
 Lever handle
-OP
 13" oval plate
Rebuild trim kit
-REB-TRM

 -REV
Reverse coring, hot on right, cold
on left, for back to back installations
-SS
 Slip spout on any tub/shower unit
 -STN
Satin Nickel finish
 -TRM Trim only, valve not included
-X
 Integral service stops - allows water
shutoff at valve for service
Note: Append appropriate -suffix to model number.
Identity
Specification
6700
Tub/shower system powered by the Temptrol
pressure-balancing valve. Features adjustable stop
screw to limit handle turn. Components made from
metal and nonmetallic materials, plated in standard
polished chrome finish.
6701
Shower system powered by the Temptrol
balancing valve. Features adjustable stop screw to
limit handle turn, 1 mode showerhead with easy to
clean rubber nozzles and standard 2.5 gpm (9.5
L/min) flow restrictor. Components made from
metal and nonmetallic materials, plated in standard
polished chrome finish.
6702
Tub/shower system powered by the Temptrol
pressure-balancing valve. Features adjustable stop
screw to limit handle turn, diverter tub spout, 1
mode showerhead with easy to clean rubber nozzles
and standard 2.5 gpm (9.5 L/min) flow restrictor.
Components made from metal and
nonmetallic materials, plated in
standard polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
For California Residents
WARNING: This product contains chemicals known
to the State of California to cause cancer, birth de-
fects, or other reproductive harm.
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
™
®
pressure-
®
®
Certi ed by
CSA Group
