SLS3612PP
Single Handle Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
☐
SLS3612PP

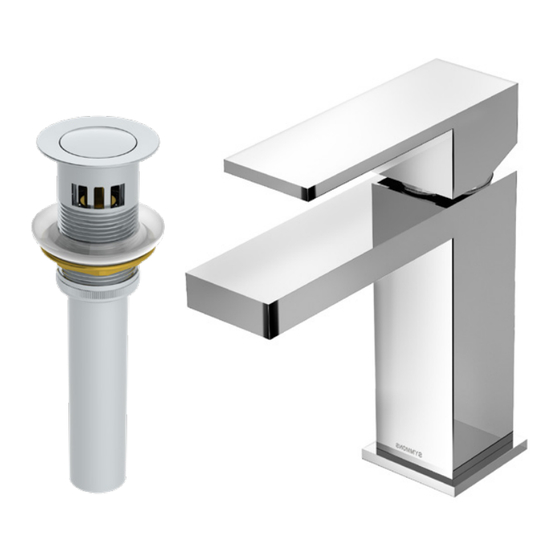

Duro Single Handle Lavatory Faucet
(6-7/8" height) with Push Pop Drain
Assembly
Compliance
- ASME A112.18.1/CSA B125.1
- to NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
- WaterSense 1.0 gpm (3.8 L/min)
Dimensions
A A
Symmons Industries, Inc.
Copyright © 2022 Symmons Industries, Inc.
Duro®
Certi ed by
IAPMO R&T
c
■
■
31 Brooks Drive
Braintree, MA 02184
■
symmons.com
Feature Highlights
•
Single handle lavatory faucet featuring a single hole
mounting configuration
•
Includes ceramic cartridge, nylon braided hoses with
3/8" compression fittings, metal drain assembly and
standard 1.0 gpm (3.8 L/min) aerator
•
Components made from brass and nonmetallic
materials plated in standard polished chrome finish
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
B B
C C
■
Phone: (800) 796-6667
■
■
gethelp@symmons.com
Measurements
Hole Size:
A
Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
Deck Thickness Ref.
B
Min. 7/8", 22 mm
Max. 2-1/2", 64 mm
C
3/8" compression fitting
■
Fax: (800) 961-9621
■
ZV-3689 REV0
120122
Advertisement
Table of Contents
Related Manuals for Symmons Duro SLS3612PP
Summary of Contents for Symmons Duro SLS3612PP
- Page 1 Max. 2-1/2", 64 mm 3/8" compression fitting ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2022 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3689 REV0 120122...
- Page 2 Installation 1a) SLS3612: Insert faucet body (E) 6) The handle limit stop can 3) Install teflon tape to inlets of through deck surface. be set to limit handle turn to shut-off valves. Attach supply lines the hot position. To measure to shut-off valves and hand tighten.
- Page 3 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3689 REV A 011723...
